2007 NISSAN 350Z spare wheel

corrosive materials, check lubrication frequently.
Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*:When checking
the tires, make sure no nuts are missing, and
check for any loose nuts. Tighten if necessary.
Tire rotation*:Tires cannot be rotated in this
vehicle.
Tire, wheel alignment and balance:If the
vehicle pulls to either side while driving on a
straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information Booklet.
Tires*:Check the pressure with a gauge often
and always prior to long distance trips. Adjust
the pressure in all tires, including the spare, to
the pressure specified. Check carefully for dam-age, cuts or excessive wear.
Windshield:Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified re-
pair facility.
Windshield wiper blades*:Check for cracks
or wear if they do not wipe properly.
Inside the vehicleThe maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Automatic transmission P (Park) position
mechanism:On a fairly steep hill check that the
vehicle is held securely with the selector lever in
the P (Park) position without applying any
brakes.
Accelerator pedal:Check the pedal for
smooth operation and make sure the pedal does
not catch or require uneven effort. Keep the floor
mat away from the pedal.
Brake pedal:Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels spongy
or the vehicle seems to take longer to stop, see
a NISSAN dealer immediately. Keep the floormat away from the pedal.
Brakes:Check that the brakes do not pull the
vehicle to one side when applied. Check the
brake booster function. Be sure to keep floor mat
away from the pedal.
Parking brake:Check the parking brake op-
eration regularly. The vehicle should be securely
held on a fairly steep hill with only the parking
brake applied. If the parking brake needs to be
adjusted, see a NISSAN dealer.
Seats:Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if equipped) hold securely in all
latched positions.
Seat belts:Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Steering wheel:Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes:Make sure that all
warning lights and chimes are operating prop-
erly.
Maintenance and do-it-yourself
8-3


06.10.24/Z33-D/V5.0


TIRE PRESSURE
Tire pressure monitoring system
(TPMS)This vehicle is equipped with the tire pressure
monitoring system (TPMS). It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h). Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving).
For more details, refer to “Low tire pressure
warning light” in the “2. Instruments and con-
trols” section, “Tire pressure monitoring system
(TPMS)” in the “5. Starting and driving” section,
and “Flat tire” in the “6. In case of emergency”
section.
Tire inflation pressureCheck the tire pressures (including the
spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “COLD TIRE PRESSURE” heading.
The Tire and Loading Information label is
affixed to the driver side center pillar. Tire
pressures should be checked regularly
because:

Most tires naturally lose air over time.

Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curbwhile
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
SDI1401A
WHEELS AND TIRES
Maintenance and do-it-yourself
8-29


06.10.24/Z33-D/V5.0


TIRE CHAINS
CAUTION
Tire chains/cables cannot be installed
on 265/35R19 size tires. Installation of
the tire chains/cables on 265/35R19
size tires will cause damage to the ve-
hicle. If you plan to use tire
chains/cables, you should install
245/45R18 size tires on your vehicle.
Use of tire chains may be prohibited according
to location. Check the local laws before installing
tire chains. When installing tire chains, make
sure they are of proper size for the tires on your
vehicle and are installed according to the chain
manufacturer’s suggestions.Use only SAE
class “S” chains.Class “S” chains are used on
vehicles with restricted tire to vehicle clearance.
Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component required
to accommodate the use of a winter traction
device (tire chains or cables). The minimum
clearances are determined using the factory
equipped tire size. Other types may damage
your vehicle. Use chain tensioners when recom-mended by the tire chain manufacturer to ensure
a tight fit. Loose end links of the tire chain must
be secured or removed to prevent the possibility
of whipping action damage to the fenders or
undercarriage. If possible, avoid fully loading
your vehicle when using tire chains. In addition,
drive at a reduced speed. Otherwise, your ve-
hicle may be damaged and/or vehicle handling
and performance may be adversely affected.

Never install the tire chains on a T-type
spare tire.

Do not use the tire chains on dry roads.

Tire chains must be installed only on the
rear wheels and not on the front wheels.
CHANGING WHEELS AND TIRES
Tire rotationTires cannot be rotated in this vehicle, as
front tires are different size from rear tires
and the direction of wheel rotation is fixed
in each tire.
A pin is on the front brake rotor to prevent
the rear wheels from being installed in
place of the front wheels. The spare tire
can be installed in place of the front and
rear wheels. When installing the spare
tire in the front wheel, the hole in the
spare tire wheel must be aligned with the
pin on the brake rotor.
8-36
Maintenance and do-it-yourself


06.10.24/Z33-D/V5.0


1. Wear indicator
2. Wear indicator location markTire wear and damage
WARNING

Tires should be periodically in-
spected for wear, cracking,
bulging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,the tire(s) should be replaced.

The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.

Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.

Improper service of the spare
tire may result in serious per-
sonal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.

For additional information re-
garding tires, refer to “Impor-
tant Tire Safety Information”
(US) or “Tire Safety Informa-tion” (Canada) in the Warranty
Information Booklet.
Replacing wheels and tiresWhen replacing a tire, use the same size, speed
rating and load carrying capacity as originally
equipped. See “Specifications” in the “9. Tech-
nical and consumer information” section for rec-
ommended types and sizes of tires and wheels.
WARNING

The use of tires other than those
recommended or the mixed use of
tires of different brands, construction
(bias, bias-belted or radial), or tread
patterns can adversely affect the ride,
braking, handling, ground clearance,
body-to-tire clearance, tire chain
clearance, speedometer calibration,
headlight aim and bumper height.
Some of these effects may lead to
accidents and could result in serious
personal injury.

If the wheels are changed for any
SDI1663
Maintenance and do-it-yourself
8-37


06.10.24/Z33-D/V5.0

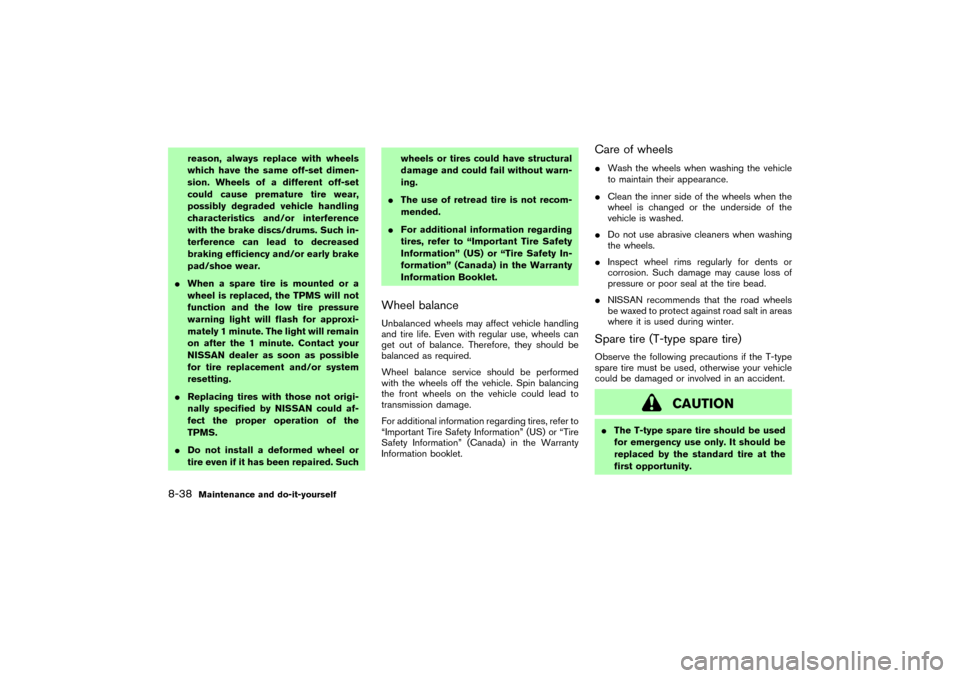

reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
possibly degraded vehicle handling
characteristics and/or interference
with the brake discs/drums. Such in-
terference can lead to decreased
braking efficiency and/or early brake
pad/shoe wear.

When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain
on after the 1 minute. Contact your
NISSAN dealer as soon as possible
for tire replacement and/or system
resetting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not install a deformed wheel or
tire even if it has been repaired. Suchwheels or tires could have structural
damage and could fail without warn-
ing.

The use of retread tire is not recom-
mended.

For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Wheel balanceUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be performed
with the wheels off the vehicle. Spin balancing
the front wheels on the vehicle could lead to
transmission damage.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “Tire
Safety Information” (Canada) in the Warranty
Information booklet.
Care of wheels
Wash the wheels when washing the vehicle
to maintain their appearance.

Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.

Do not use abrasive cleaners when washing
the wheels.

Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.

NISSAN recommends that the road wheels
be waxed to protect against road salt in areas
where it is used during winter.Spare tire (T-type spare tire)Observe the following precautions if the T-type
spare tire must be used, otherwise your vehicle
could be damaged or involved in an accident.
CAUTION

The T-type spare tire should be used
for emergency use only. It should be
replaced by the standard tire at the
first opportunity.
8-38
Maintenance and do-it-yourself


06.10.24/Z33-D/V5.0


WHEELS AND TIRES
Road wheelModel Type Position SizeOffset
in (mm)
Coupe AluminumFront 18 x 8JJ 1.18 (30)
Rear 18 x 8-1/2JJ 1.30 (33)
Front 18 x 9JJ* 1.18 (30)
Rear 19 x 10JJ* 1.18 (30)
Roadster AluminumFront 18 x 8JJ 1.18 (30)
Rear 18 x 8-1/2JJ 1.30 (33)TireModel Type Position Size Pressure (COLD)
CoupeConventionalFront 225/45R18 91W 240 kPa (35 psi)
Rear 245/45R18 96W 240 kPa (35 psi)
Front 245/40R18 93W* 240 kPa (35 psi)
Rear 265/35R19 94W* 240 kPa (35 psi)
Spare — T145/80D17 107M 420 kPa (60 psi)
Road-
sterConventionalFront 225/45R18 91W 240 kPa (35 psi)
Rear 245/45R18 96W 240 kPa (35 psi)
Spare — T145/80D17 107M 420 kPa (60 psi)
*: For option
DIMENSIONS AND WEIGHTS
Vehicle body Coupe Roadster
Overall length in (mm) 169.8 (4,314) 169.8 (4,314)
Overall width in (mm) 71.5 (1,815) 71.5 (1,815)
Overall height in (mm) 52.1 (1,323) 52.5 (1,333)
Front tread in (mm) 60.5 (1,536) 60.5 (1,536)
Rear tread in (mm)60.6 (1,540)*1
60.9 (1,546)*260.6 (1,540)
Wheelbase in (mm) 104.3 (2,650) 104.3 (2,650)
Gross vehicle weight rating
(GVWR)lb(kg)
See the F.M.V.S.S. or C.M.V.S.S. cer-
tification label on the driver’s side
lock pillar. Gross axle weight rating
(GAWR)
Front lb(kg)
Rear lb(kg)
*1: For model with 245/45R 18 tires
*2: For model with 265/35R 19 tires
9-8
Technical and consumer information


06.10.24/Z33-D/V5.0


Cleaning exterior and interior .......................... 7-2, 7-5
Clock ............................................................................ 2-30
Clutch fluid.................................................................. 8-13
Coat hooks ................................................................. 2-38
Cold weather driving ................................................ 5-25
Command (See Bluetooth
Hands-Free
Phone System)........................................................... 4-37
Compact Disc (CD) changer (See audio
system) ......................................................................... 4-26
Compact Disc (CD) player (See audio
system) ......................................................................... 4-21
Compact spare tire ................................................... 8-38
Console box................................................................ 2-34
Control panel buttons (models with navigation
system) ........................................................................... 4-2
Controls
Control panel buttons (display with
navigation system) ................................................ 4-2
Heater and air conditioner controls
(automatic) .............................................................. 4-9
Steering wheel audio controls ........................ 4-29
Coolant
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Checking engine coolant level........................... 8-8
Corrosion protection ................................................... 7-6
Cruise control............................................................. 5-16
Cup holders ................................................................ 2-33
Curtain side-impact air bag system ..................... 1-39
D
Daytime running light system ................................. 2-25Defroster switch, Rear window and outside
mirror defroster switch ............................................. 2-23
Dimensions and weights ............................................ 9-8
Display controls (See control panel buttons),
With navigation system .............................................. 4-2
Door open warning light .......................................... 2-12
Drive belts ................................................................... 8-16
Driving
Cold weather driving ......................................... 5-25
Driving with automatic transmission ..... 5-7, 5-10
Driving with manual transmission .......... 5-7, 5-13
Precautions when starting and driving ............ 5-2
E
Economy, Fuel............................................................ 5-18
Elapsed time ............................................................... 2-10
Emission control information label ........................ 9-10
Emission control system warranty......................... 9-23
Engine
Before starting the engine .................................. 5-9
Break-in schedule............................................... 5-18
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Changing engine coolant .................................... 8-9
Changing engine oil and filter ......................... 8-10
Checking engine coolant level........................... 8-8
Checking engine oil level .................................... 8-9
Coolant temperature gauge ............................... 2-5
Engine block heater ........................................... 5-26
Engine compartment check locations.............. 8-7
Engine cooling system ......................................... 8-8
Engine oil................................................................. 8-9
Engine oil and oil filter recommendation......... 9-5Engine oil viscosity ............................................... 9-5
Engine serial number ......................................... 9-10
Engine specifications ........................................... 9-7
If your vehicle overheats ...................................... 6-9
Oil pressure gauge ............................................... 2-7
Starting the engine ............................................... 5-9
Event data recorders ................................................ 9-25
Exhaust gas (Carbon monoxide).............................. 5-2
F
F.M.V.S.S./C.M.V.S.S. certification label ............. 9-10
Filter, Air cleaner housing filter .............................. 8-18
Filter, Changing engine oil and filter .................... 8-10
Flashers (See hazard warning flasher switch) ... 2-27
Flat tire............................................................................ 6-2
Flat towing .................................................................. 9-21
Floor mat cleaning ....................................................... 7-5
Fluid
Automatic transmission fluid (ATF) ................ 8-12
Brake and clutch fluid ....................................... 8-13
Brake fluid............................................................. 8-13
Capacities and recommended fuel/
lubricants ................................................................. 9-2
Engine coolant ....................................................... 8-8
Engine oil................................................................. 8-9
Power steering fluid ........................................... 8-12
Window washer fluid ......................................... 8-14
FM-AM radio with Compact Disc (CD)
player ............................................................................ 4-19
FM-AM-SAT radio with Compact Disc (CD)
changer ........................................................................ 4-23
Front manual seat adjustment .................................. 1-3
Front passenger air bag and status light ............ 1-36


06.10.24/Z33-D/V5.0

10-2

When starting and driving .................................. 5-2
Push starting ................................................................. 6-9
R
Radio ............................................................................ 4-12
Car phone or CB radio ..................................... 4-31
FM-AM radio with Compact Disc (CD)
changer ................................................................. 4-23
FM-AM radio with Compact Disc (CD)
player ..................................................................... 4-19
Steering wheel audio controls ........................ 4-29
Readiness for inspection/maintenance (I/M)
test (US only) ............................................................. 9-24
Rear floor box ............................................................. 2-35
Rear hatch ..................................................................... 3-9
Rear hatch opener ....................................................... 3-9
Rear parcel box ......................................................... 2-36
Rear power point....................................................... 2-31
Rear window and outside mirror defroster
switch ........................................................................... 2-23
Rear window wiper and washer switch .............. 2-22
Recorders, Event data ............................................. 9-25
Registering your vehicle in another country.......... 9-9
Remote keyless entry system ................................... 3-5
Reporting safety defects (US only) ...................... 9-23
Rollover........................................................................... 5-5
Roof, Soft top............................................................. 3-13
Room light ................................................................... 2-40
S
Safety
Child seat belts ................................................... 1-12Reporting safety defects (US only)................ 9-23
Towing safety....................................................... 9-18
Seat adjustment, Front manual seat
adjustment ..................................................................... 1-3
Seat adjustment, Front power seat
adjustment ............................................................ 1-3, 1-4
Seat belt(s)
Child safety .......................................................... 1-12
Infants .................................................................... 1-13
Injured persons.................................................... 1-14
Larger children .................................................... 1-13
Pre-tensioner seat belt system ....................... 1-41
Precautions on seat belt usage ...................... 1-10
Pregnant women ................................................. 1-13
Seat belt cleaning ................................................. 7-6
Seat belt extenders ............................................ 1-16
Seat belt maintenance ...................................... 1-16
Seat belt warning light ...................................... 2-14
Seat belts ............................................................. 1-10
Shoulder belt arm ............................................... 1-16
Small children ...................................................... 1-13
Three-point type with retractor ....................... 1-14
Seat lever, Tilting passenger’s seat ........................ 1-7
Seat(s)
Heated seats........................................................ 2-28
Seats ........................................................................ 1-2
Ventilated net seats .............................................. 1-6
Seatback tilt cancel switch ....................................... 1-8
Secondary rear hatch release ................................ 3-10
Secondary trunk lid release .................................... 3-12
Security system (NISSAN Vehicle Immobilizer
System), Engine start ............................................... 2-19
Security system, Vehicle security system ........... 2-18
Selector lever, Shift lock release .......................... 5-13Servicing air conditioner................................. 4-9, 4-12
Shift lock release, Transmission ............................ 5-13
Shifting
Automatic transmission ............................ 5-7, 5-10
Manual transmission ................................. 5-7, 5-13
Shoulder belt arm...................................................... 1-16
Side air bag system.................................................. 1-39
Soft top, Care and cleaning ..................................... 7-3
Soft top, If the top does not open or close ....... 3-19
Soft top, Soft top indicator light................ 2-17, 3-17
Soft top, Soft top operation ................................... 3-13
Spare tire ....................................................................... 9-8
Spark plugs................................................................. 8-17
Speed, Speed indicator ............................................. 2-9
Speedometer ................................................................ 2-4
Starting
Before starting the engine .................................. 5-9
Jump starting .......................................................... 6-7
Precautions when starting and driving ............ 5-2
Push starting .......................................................... 6-9
Starting the engine ............................................... 5-9
Status light, Front passenger air bag .................. 1-36
Steering
Power steering fluid ........................................... 8-12
Power steering system ...................................... 5-20
Steering wheel switch for audio controls..... 4-29
Tilting steering wheel......................................... 3-25
Stopwatch ................................................................... 2-10
Storage ........................................................................ 2-32
Stowing golf bags ..................................................... 2-37
Sun visors ................................................................... 3-25
Sunglasses holder .................................................... 2-32
Supplemental air bag warning labels................... 1-42
Supplemental air bag warning light .......... 1-43, 2-14


06.10.24/Z33-D/V5.0

10-5
