DTC P0340, P0345 CMP SENSOR (PHASE)
Revision: 2006 November2007 350Z
DTC Confirmation ProcedureNBS0008F
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-III
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-400, "
Diagnostic Procedure" .
If 1st trip DTC is not detected, go to next step.
4. Maintaining engine speed at more than 800 rpm for at least 5 seconds.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-400, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III” above.

DTC P0340, P0345 CMP SENSOR (PHASE)
EC-397
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Wiring DiagramNBS0008G

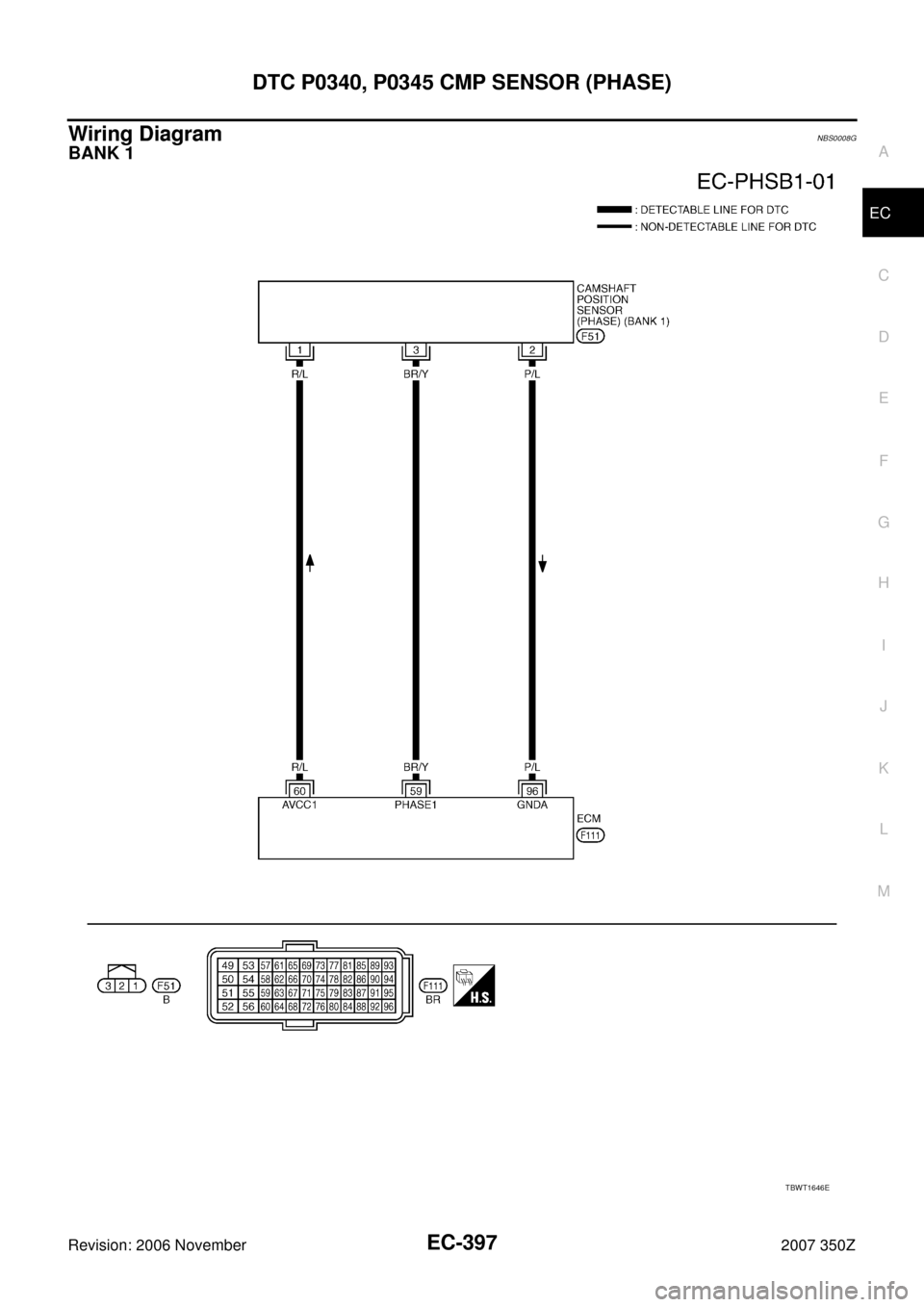

BANK 1
TBWT1646E

EC-398
DTC P0340, P0345 CMP SENSOR (PHASE)
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
59 BR/YCamshaft position sensor
(PHASE) (bank 1)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.3.0 - 5.0V
[Engine is running]

Engine speed: 2,000 rpm3.0 - 5.0V
60 R/LSensor power supply
[Camshaft position sensor
(PHASE) (bank 1), Exhaust
valve timing control position
sensor (bank 1), Power
steering pressure sensor][Ignition switch: ON]5V
96 P/LSensor ground
[Camshaft position sensor
(PHASE) (bank 1), Power
steering pressure sensor][Engine is running]

Warm-up condition

Idle speed0V
PBIB3553E
PBIB3554E

DTC P0340, P0345 CMP SENSOR (PHASE)
EC-399
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

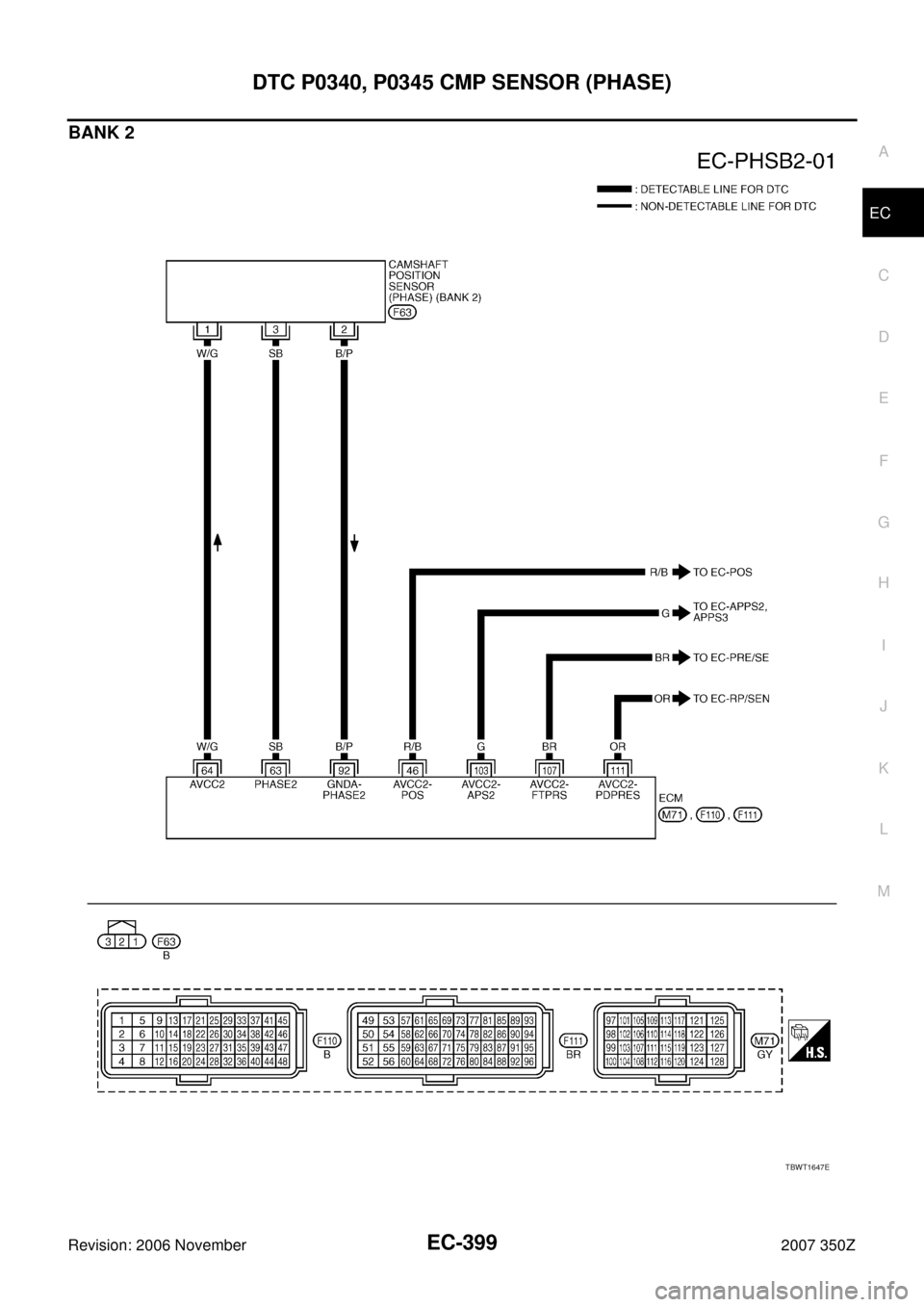

BANK 2
TBWT1647E

EC-400
DTC P0340, P0345 CMP SENSOR (PHASE)
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS0008H
1. CHECK STARTING SYSTEM
Turn ignition switch to START position.
Ye s o r N o
Yes >> GO TO 2.
No >> Check starting system. (Refer to SC-8, "
STARTING SYSTEM" .)
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
46 R/BSensor power supply
[Crankshaft position sensor
(POS)][Ignition switch: ON]5V
63 SBCamshaft position sensor
(PHASE) (bank 2)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idle.3.0 - 5.0V
[Engine is running]

Engine speed: 2,000 rpm1.0 - 4.0V
64 W/GSensor power supply
[Camshaft position sensor
(PHASE) (bank 2), Exhaust
valve timing control position
sensor (bank 2)][Ignition switch: ON]5V
92 B/PSensor ground
[Camshaft position sensor
(PHASE) (bank 2)][Engine is running]

Warm-up condition

Idle speed0V
103 GSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch: ON]5V
107 BRSensor power supply
(EVAP control system pres-
sure sensor)[Ignition switch: ON]5V
111 O RSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]5V
PBIB3553E
PBIB3554E
Does the engine turn over?
Does the starter motor operate?

DTC P0340, P0345 CMP SENSOR (PHASE)
EC-401
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
2. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E

EC-402
DTC P0340, P0345 CMP SENSOR (PHASE)
Revision: 2006 November2007 350Z
3. CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY CIRCUIT-I
1. Disconnect camshaft position (CMP) sensor (PHASE) harness connector.
2. Turn ignition switch ON.
3. Check voltage between CMP sensor (PHASE) terminal 1 and
ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 9.
NG-1 >> P0340: Repair open circuit or short to ground or short to
power in harness or connectors.
NG-2 >> P0345: GO TO 4.
4. CHECK CMP SENSOR (PHASE) POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between CMP sensor (PHASE) terminal 1 and ECM terminal 64.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit.
1. Exhaust valve timing control position
sensor (bank 1)2. Camshaft position sensor (PHASE)
(bank 1)3. Camshaft position sensor (PHASE)
(bank 2)
4. Exhaust valve timing control position
sensor (bank 2)
Voltage: Approximately 5V
PBIB3518E
PBIB3312E
Continuity should exist.

DTC P0340, P0345 CMP SENSOR (PHASE)
EC-403
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
5. CHECK CMP SENSOR (PHASE) POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors.
6. CHECK COMPONENTS
Check the following.

Crankshaft position sensor (POS) (Refer to EC-393, "Component Inspection" .)

Exhaust valve timing control position sensor (bank 2) (Refer to EC-539, "Component Inspection" .)

EVAP control system pressure sensor (Refer to EC-464, "Component Inspection" .)

Refrigerant pressure sensor (Refer to AT C - 8 0 , "COMPONENT INSPECTION" .)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
7. CHECK APP SENSOR
Refer to EC-648, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> GO TO 8.
8. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-77, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-77, "
Throttle Valve Closed Position Learning" .
4. Perform EC-77, "
Idle Air Volume Learning" .
>>INSPECTION END
9. CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ECM terminal 92 (bank 2) or 96 (bank 1) and CMP sensor (PHASE)
terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
ECM terminal Sensor terminal Reference Wiring Diagram
46 CKP sensor (POS) terminal 1EC-388
64CMP sensor (PHASE) (bank 2) terminal 1EC-399EVT control position sensor (bank 2) terminal 1EC-532
103 APP sensor terminal 4EC-643
107 EVAP control system pressure sensor terminal 3EC-458
111 Refrigerant pressure sensor 1EC-711
Continuity should exist.
