FRONT DISC BRAKE
BR-27
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
ComponentsNFS000AT
OTHER THAN BREMBO CALIPERS
WARNING:
Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne
particles or other materials.
CAUTION:
While removing cylinder body, do not depress brake pedal because piston will pop out.
It is not necessary to remove torque member mounting bolts on torque member and brake hose
except for disassembly or replacement of caliper assembly. In this case, hang cylinder body with a
wire so that brake hose is not under tension.
Do not damage piston boot.
If any shim is subject to serious corrosion, replace it with a new one.
Always replace shim and shim covers as a set when replacing brake pads.
Keep disc rotor clean of brake fluid.
Burnish the brake pads and disc rotor mutually contacting surfaces after refinishing or replacing
rotors, after replacing pads, or if a soft pedal occurs at very low mileage. Refer to BR-38, "
Brake
Burnishing Procedure" .
1. Union bolt 2. Copper washer 3. Brake hose
4. Cap 5. Bleed valve 6. Sliding pin bolt
7. Piston seal 8. Piston 9. Piston boot
10. Cylinder body 11. Sliding pin 12. Torque member mounting bolt
13. Washer 14. Sliding pin boot 15. Bushing
16. Torque member 17. inner shim cover 18. inner shim
19. Inner pad 20. Pad retainer 21. Pad wear sensor
22. Outer pad 23. Outer shim 24. Outer shim cover
Refer to GI-11, "
Components" and the followings for the symbols in the figure.
1: Apply rubber grease.
2: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.
3: Apply polyglycol ether based lubricant.
: Apply brake fluid.
PFIA0746J
Page 28 of 54
BR-28
FRONT DISC BRAKE
Revision: 2006 November2007 350Z
WITH BREMBO CALIPERS
NOTE:
Refer to BR-30, "
HOW TO APPLY GREASE TO THE BRAKE PAD" for how to apply grease to brake pads.
WARNING:
Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne
particles or other materials.
CAUTION:
While the brake pad and cylinder body are separated, the piston may suddenly jump out, so do not
depress the brake pedal.
Apart from caliper assembly, disassembly or replacement, there is no need to remove caliper bolts
or brake hose or tube.
Do not damage piston boot.
Keep disc rotor clean of brake fluid.
1. Piston 2. Piston seal 3. Piston boot
4. Cap 5. Bleed valve 6. Washer
7. Bolt 8. Clips 9. Pad pins
10. Caliper 11. Inner pad 12. Cross spring
13. Outer pad 14. Pad wear sensor
Refer to GI-11, "
Components" and the followings for the symbols in the figure.
1: Apply rubber grease.
2: Apply polyglycol ether based lubricant.
: Apply brake fluid.
PFIA0674J
Page 40 of 54
BR-40
REAR DISC BRAKE
Revision: 2006 November2007 350Z

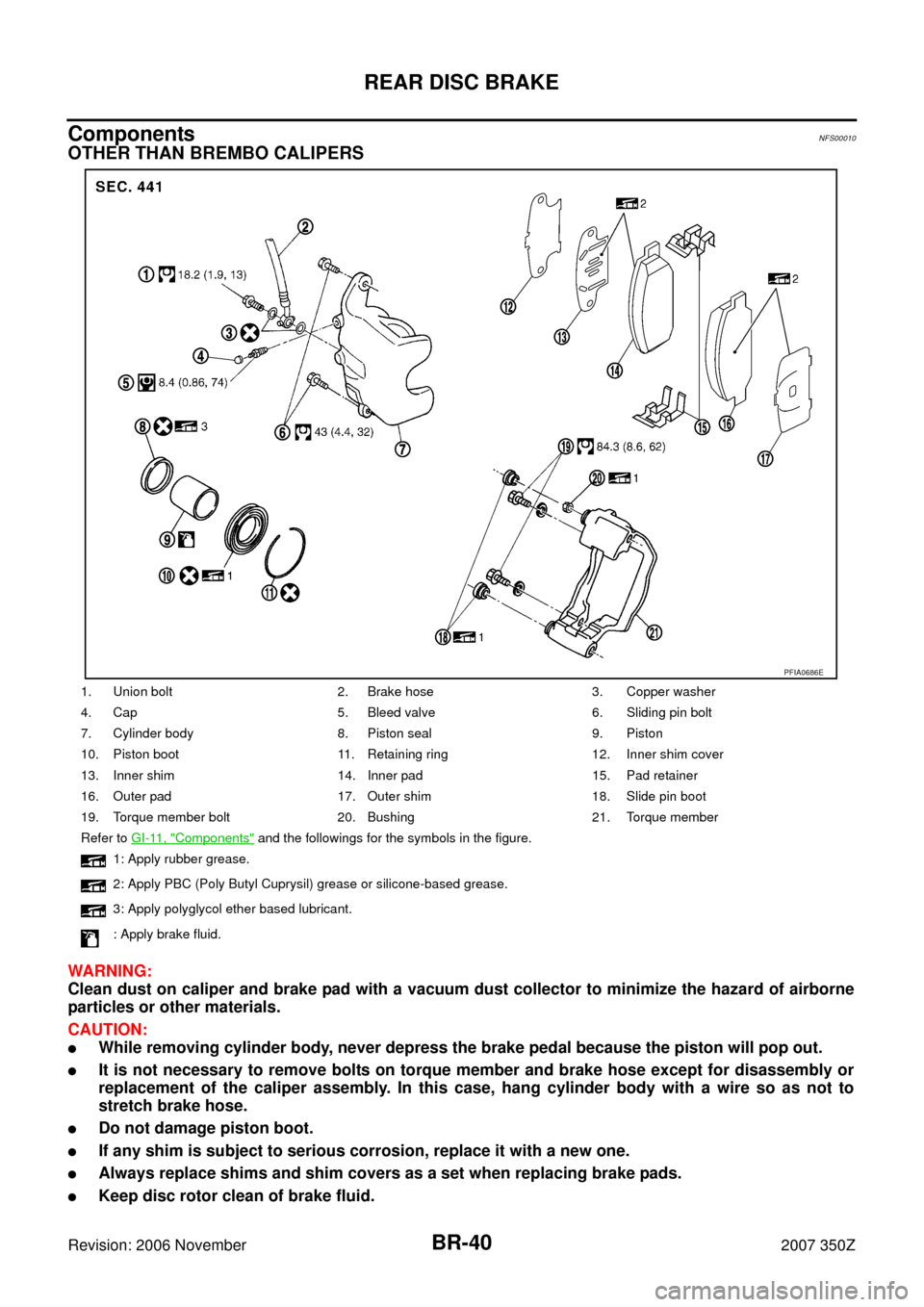

ComponentsNFS00010
OTHER THAN BREMBO CALIPERS
WARNING:
Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne
particles or other materials.
CAUTION:
While removing cylinder body, never depress the brake pedal because the piston will pop out.
It is not necessary to remove bolts on torque member and brake hose except for disassembly or
replacement of the caliper assembly. In this case, hang cylinder body with a wire so as not to
stretch brake hose.
Do not damage piston boot.
If any shim is subject to serious corrosion, replace it with a new one.
Always replace shims and shim covers as a set when replacing brake pads.
Keep disc rotor clean of brake fluid.
1. Union bolt 2. Brake hose 3. Copper washer
4. Cap 5. Bleed valve 6. Sliding pin bolt
7. Cylinder body 8. Piston seal 9. Piston
10. Piston boot 11. Retaining ring 12. Inner shim cover
13. Inner shim 14. Inner pad 15. Pad retainer
16. Outer pad 17. Outer shim 18. Slide pin boot
19. Torque member bolt 20. Bushing 21. Torque member
Refer to GI-11, "
Components" and the followings for the symbols in the figure.
1: Apply rubber grease.
2: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.
3: Apply polyglycol ether based lubricant.
: Apply brake fluid.
PFIA0686E
Page 41 of 54
REAR DISC BRAKE
BR-41
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2006 November2007 350Z
WITH BREMBO CALIPERS
NOTE:
Refer to BR-43, "
HOW TO APPLY GREASE TO THE BRAKE PAD" for how to apply grease to brake pads.
WARNING:
Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne
particles or other materials.
CAUTION:
While removing cylinder body, never depress the brake pedal because the piston will pop out.
Apart from caliper assembly, disassembly or replacement, there is no need to remove caliper bolts
or brake hose or tube.
Do not damage piston boot.
Always replace shim covers as a set when replacing brake pads.
Keep disc rotor clean of brake fluid.
1. Piston 2. Piston seal 3. Piston boot
4. Cap 5. Bleed valve 6. Bolt
7. Washer 8. Caliper 9. Pad pins
10. Clips 11. Inner shim cover 12. Brake pad
13. Cross spring 14. Pad wear sensor 15. Outer shim cover
Refer to GI-11, "
Components" and the followings for the symbols in the figure.
1: Apply rubber grease.
2: Apply polyglycol ether based lubricant.
: Apply brake fluid.
PFIA0703E
