DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-111
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

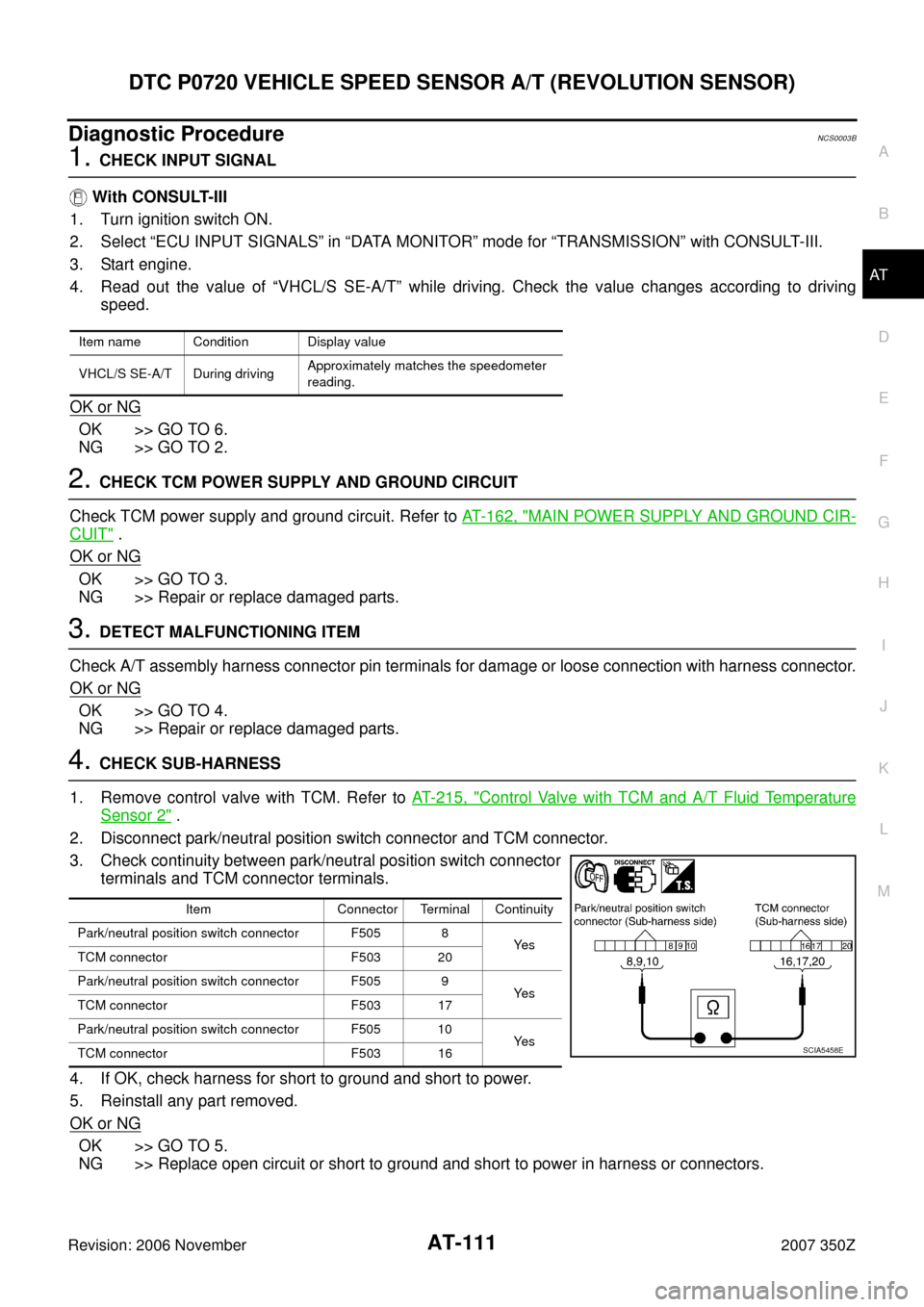

Diagnostic ProcedureNCS0003B
1. CHECK INPUT SIGNAL
With CONSULT-III
1. Turn ignition switch ON.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start engine.
4. Read out the value of “VHCL/S SE-A/T” while driving. Check the value changes according to driving
speed.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 6 2 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SUB-HARNESS
1. Remove control valve with TCM. Refer to AT- 2 1 5 , "
Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect park/neutral position switch connector and TCM connector.
3. Check continuity between park/neutral position switch connector
terminals and TCM connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Replace open circuit or short to ground and short to power in harness or connectors.
Item name Condition Display value
VHCL/S SE-A/T During drivingApproximately matches the speedometer
reading.
Item Connector Terminal Continuity
Park/neutral position switch connector F505 8
Ye s
TCM connector F503 20
Park/neutral position switch connector F505 9
Ye s
TCM connector F503 17
Park/neutral position switch connector F505 10
Ye s
TCM connector F503 16
SCIA5458E
Page 113 of 312
DTC P0725 ENGINE SPEED SIGNAL
AT-113
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
DTC P0725 ENGINE SPEED SIGNALPFP:24825
DescriptionNCS0003C
The engine speed signal is sent from the ECM to the TCM.
CONSULT-III Reference ValueNCS0003D
On Board Diagnosis LogicNCS0003E
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0725 ENGINE SPEED SIG” with CONSULT-III or 16th judgment flicker without
CONSULT-III is detected when TCM does not receive the ignition signal from ECM during engine cranking
or running.
Possible CauseNCS0003F
Harness or connectors
(ECM to TCM circuit is open or shorted.)
DTC Confirmation ProcedureNCS0003G
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III
and check monitor “VHCL/S SE-A/T”, “ACCELE POSI” and “SLCT LVR POSI”.
3. Touch “START”.
4. Start engine and maintain the following conditions for at least 10 consecutive seconds.
VHCL/S SE-A/T: 10 km/h (6 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
5. If DTC is detected, go to AT- 11 4 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value
ENGINE SPEED Engine running Closely matches the tachometer reading.
Page 114 of 312
AT-114
DTC P0725 ENGINE SPEED SIGNAL
Revision: 2006 November2007 350Z
Diagnostic ProcedureNCS0003H
1. CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to AT- 8 6 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 9 2 , "Diagnostic Procedure
Without CONSULT-III" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 9 4 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK DTC WITH TCM
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. While monitoring engine speed, check for engine speed change corresponding to wide-open throttle posi-
tion signal.
OK or NG
OK >> GO TO 3.
NG >> Check the ignition signal circuit. Refer to EC-698, "
IGNITION SIGNAL" .
3. CHECK DTC
Perform AT- 11 3 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 6 2 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace control valve with TCM. Refer to AT- 2 1 5 , "Control Valve with TCM and A/T Fluid Temper-
ature Sensor 2" .
NG >> Repair or replace damaged parts.
Item name Condition Display value
ENGINE SPEED Engine running Closely matches the tachometer reading.
Page 115 of 312
DTC P0731 A/T 1ST GEAR FUNCTION
AT-115
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
DTC P0731 A/T 1ST GEAR FUNCTIONPFP:31940
DescriptionNCS001SB
This malfunction is detected when the A/T does not shift into 1st gear position as instructed by TCM. This is
not only caused by electrical malfunction (circuits open or shorted) but also by mechanical malfunction such
as control valve sticking, improper solenoid valve operation.
On Board Diagnosis LogicNCS001SC
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0731 A/T 1ST GR FNCTN” with CONSULT-III or 18th judgment flicker without
CONSULT-III is detected when TCM detects any inconsistency in the actual gear ratio.
Possible CauseNCS001SD
Harness or connectors
(Solenoid circuits are open or shorted.)
Input clutch solenoid valve
Front brake solenoid valve
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureNCS001SE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start the engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Make sure that “ATF TEMP 1” is within the following range.
ATF TEMP 1: 20°C – 140°C
If out of range, drive vehicle to warm ATF or stop engine to cool ATF.
3. Select “1ST GR FNCTN P0731” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III.
4. Drive vehicle and maintain the following conditions.
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACCELE POSI: 0.6/8 or more
ENGINE SPEED: TURBINE REV − 50 rpm or more
TURBINE REV: 300 rpm or more
GEAR: “1” position
MANU MODE SW: ON
5. Keep the current driving status for at least 5 consecutive seconds if CONSULT-III screen changes from
“OUT OF CONDITION” to “TESTING”.
CAUTION:
If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAG RESULTS”. In
case a 1st trip DTC other than P0731 is shown, refer to “AT- 8 6 , "
Display Items List" ”.
If “COMPLETED RESULT NG” is detected, go to AT- 11 6 , "
Diagnostic Procedure" .
If “STOP VEHICLE” is detected, go to the following step.
6. Stop vehicle.
7. Drive vehicle in “D” position allowing it to shift from 1st to 5th gear and check shift timing and shift shock.
–Touch “OK” to complete the inspection when normally shifted from the 1st to 5th gear.
–Touch “NG” when an unusual shift shock, etc. occurs in spite of shifting from the 1st to 5th gear. Go to AT-
52, "ROAD TEST" .
Page 117 of 312
DTC P0732 A/T 2ND GEAR FUNCTION
AT-117
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
DTC P0732 A/T 2ND GEAR FUNCTIONPFP:31940
DescriptionNCS001SG
This malfunction is detected when the A/T does not shift into 2nd gear position as instructed by TCM. This is
not only caused by electrical malfunction (circuits open or shorted) but also by mechanical malfunction such
as control valve sticking, improper solenoid valve operation.
On Board Diagnosis LogicNCS001SH
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0732 A/T 2ND GR FNCTN” with CONSULT-III or 19th judgment flicker without
CONSULT-III is detected when TCM detects any inconsistency in the actual gear ratio.
Possible CauseNCS001SI
Harness or connectors
(Solenoid circuits are open or shorted.)
Input clutch solenoid valve
Front brake solenoid valve
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureNCS001SJ
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start the engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Make sure that “ATF TEMP 1” is within the following range.
ATF TEMP 1: 20°C – 140°C
If out of range, drive vehicle to warm ATF or stop engine to cool ATF.
3. Select “2ND GR FNCTN P0732” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III.
4. Drive vehicle and maintain the following conditions.
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACCELE POSI: 0.6/8 or more
ENGINE SPEED: TURBINE REV − 50 rpm or more
TURBINE REV: 300 rpm or more
GEAR: “2” position
MANU MODE SW: ON
5. Keep the current driving status for at least 5 consecutive seconds if CONSULT-III screen changes from
“OUT OF CONDITION” to “TESTING”.
CAUTION:
If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAG RESULTS”. In
case a 1st trip DTC other than P0732 is shown, refer to “AT- 8 6 , "
Display Items List" ”.
If “COMPLETED RESULT NG” is detected, go to AT- 11 8 , "
Diagnostic Procedure" .
If “STOP VEHICLE” is detected, go to the following step.
6. Stop vehicle.
7. Drive vehicle in “D” position allowing it to shift from 1st to 5th gear and check shift timing and shift shock.
–Touch “OK” to complete the inspection when normally shifted from the 1st to 5th gear.
–Touch “NG” when an unusual shift shock, etc. occurs in spite of shifting from the 1st to 5th gear. Go to AT-
52, "ROAD TEST" .
Page 119 of 312
DTC P0733 A/T 3RD GEAR FUNCTION
AT-119
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
DTC P0733 A/T 3RD GEAR FUNCTIONPFP:31940
DescriptionNCS001SL
This malfunction is detected when the A/T does not shift into 3rd gear position as instructed by TCM. This is
not only caused by electrical malfunction (circuits open or shorted) but also by mechanical malfunction such
as control valve sticking, improper solenoid valve operation.
On Board Diagnosis LogicNCS001SM
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0733 A/T 3RD GR FNCTN” with CONSULT-III or 20th judgment flicker without
CONSULT-III is detected when TCM detects any inconsistency in the actual gear ratio.
Possible CauseNCS001SN
Harness or connectors
(Solenoid circuits are open or shorted.)
Input clutch solenoid valve
Front brake solenoid valve
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureNCS001SO
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start the engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Make sure that “ATF TEMP 1” is within the following range.
ATF TEMP 1: 20°C – 140°C
If out of range, drive vehicle to warm ATF or stop engine to cool ATF.
3. Select “3RD GR FNCTN P0733” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III.
4. Drive vehicle and maintain the following conditions.
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACCELE POSI: 0.6/8 or more
ENGINE SPEED: TURBINE REV − 50 rpm or more
TURBINE REV: 300 rpm or more
GEAR: “3” position
MANU MODE SW: ON
5. Keep the current driving status for at least 5 consecutive seconds if CONSULT-III screen changes from
“OUT OF CONDITION” to “TESTING”.
CAUTION:
If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAG RESULTS”. In
case a 1st trip DTC other than P0732 is shown, refer to “AT- 8 6 , "
Display Items List" ”.
If “COMPLETED RESULT NG” is detected, go to AT- 1 2 0 , "
Diagnostic Procedure" .
If “STOP VEHICLE” is detected, go to the following step.
6. Stop vehicle.
7. Drive vehicle in “D” position allowing it to shift from 1st to 5th gear and check shift timing and shift shock.
–Touch “OK” to complete the inspection when normally shifted from the 1st to 5th gear.
–Touch “NG” when an unusual shift shock, etc. occurs in spite of shifting from the 1st to 5th gear. Go to AT-
52, "ROAD TEST" .
Page 121 of 312
DTC P0734 A/T 4TH GEAR FUNCTION
AT-121
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
DTC P0734 A/T 4TH GEAR FUNCTIONPFP:31940
DescriptionNCS001SQ
This malfunction is detected when the A/T does not shift into 4th gear position as instructed by TCM. This is
not only caused by electrical malfunction (circuits open or shorted) but also by mechanical malfunction such
as control valve sticking, improper solenoid valve operation.
On Board Diagnosis LogicNCS001SR
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0734 A/T 4TH GR FNCTN” with CONSULT-III or 21th judgment flicker without
CONSULT-III is detected when TCM detects any inconsistency in the actual gear ratio.
Possible CauseNCS001SS
Harness or connectors
(Solenoid circuits are open or shorted.)
Input clutch solenoid valve
Front brake solenoid valve
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureNCS001ST
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start the engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Make sure that “ATF TEMP 1” is within the following range.
ATF TEMP 1: 20°C – 140°C
If out of range, drive vehicle to warm ATF or stop engine to cool ATF.
3. Select “4TH GR FNCTN P0734” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III.
4. Drive vehicle and maintain the following conditions.
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACCELE POSI: 0.6/8 or more
ENGINE SPEED: TURBINE REV − 50 rpm or more
TURBINE REV: 300 rpm or more
GEAR: “4” position
MANU MODE SW: ON
5. Keep the current driving status for at least 5 consecutive seconds if CONSULT-III screen changes from
“OUT OF CONDITION” to “TESTING”.
CAUTION:
If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAG RESULTS”. In
case a 1st trip DTC other than P0734 is shown, refer to “AT- 8 6 , "
Display Items List" ”.
If “COMPLETED RESULT NG” is detected, go toAT- 1 2 2 , "
Diagnostic Procedure" .
If “STOP VEHICLE” is detected, go to the following step.
6. Stop vehicle.
7. Drive vehicle in “D” position allowing it to shift from 1st to 5th gear and check shift timing and shift shock.
–Touch “OK” to complete the inspection when normally shifted from the 1st to 5th gear.
–Touch “NG” when an unusual shift shock, etc. occurs in spite of shifting from the 1st to 5th gear. Go to AT-
52, "ROAD TEST" .
Page 123 of 312
DTC P0735 A/T 5TH GEAR FUNCTION
AT-123
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
DTC P0735 A/T 5TH GEAR FUNCTIONPFP:31940
DescriptionNCS001SV
This malfunction is detected when the A/T does not shift into 5th gear position as instructed by TCM. This is
not only caused by electrical malfunction (circuits open or shorted) but also by mechanical malfunction such
as control valve sticking, improper solenoid valve operation.
On Board Diagnosis LogicNCS001SW
This is an OBD-II self-diagnostic item.
Diagnostic trouble code “P0735 A/T 5TH GR FNCTN” with CONSULT-III or 22th judgment flicker without
CONSULT-III is detected when TCM detects any inconsistency in the actual gear ratio.
Possible CauseNCS001SX
Harness or connectors
(Solenoid circuits are open or shorted.)
Input clutch solenoid valve
Front brake solenoid valve
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureNCS001SY
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start the engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Make sure that “ATF TEMP 1” is within the following range.
ATF TEMP 1: 20°C – 140°C
If out of range, drive vehicle to warm ATF or stop engine to cool ATF.
3. Select “5TH GR FNCTN P0735” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III.
4. Drive vehicle and maintain the following conditions.
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACCELE POSI: 0.6/8 or more
ENGINE SPEED: TURBINE REV − 50 rpm or more
TURBINE REV: 300 rpm or more
GEAR: “5” position
MANU MODE SW: ON
5. Keep the current driving status for at least 5 consecutive seconds if CONSULT-III screen changes from
“OUT OF CONDITION” to “TESTING”.
CAUTION:
If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAG RESULTS”. In
case a 1st trip DTC other than P0735 is shown, refer to “AT- 8 6 , "
Display Items List" ”.
If “COMPLETED RESULT NG” is detected, go to AT- 1 2 4 , "
Diagnostic Procedure" .
If “STOP VEHICLE” is detected, go to the following step.
6. Stop vehicle.
7. Drive vehicle in “D” position allowing it to shift from 1st to 5th gear and check shift timing and shift shock.
–Touch “OK” to complete the inspection when normally shifted from the 1st to 5th gear.
–Touch “NG” when an unusual shift shock, etc. occurs in spite of shifting from the 1st to 5th gear. Go to AT-
52, "ROAD TEST" .
