108

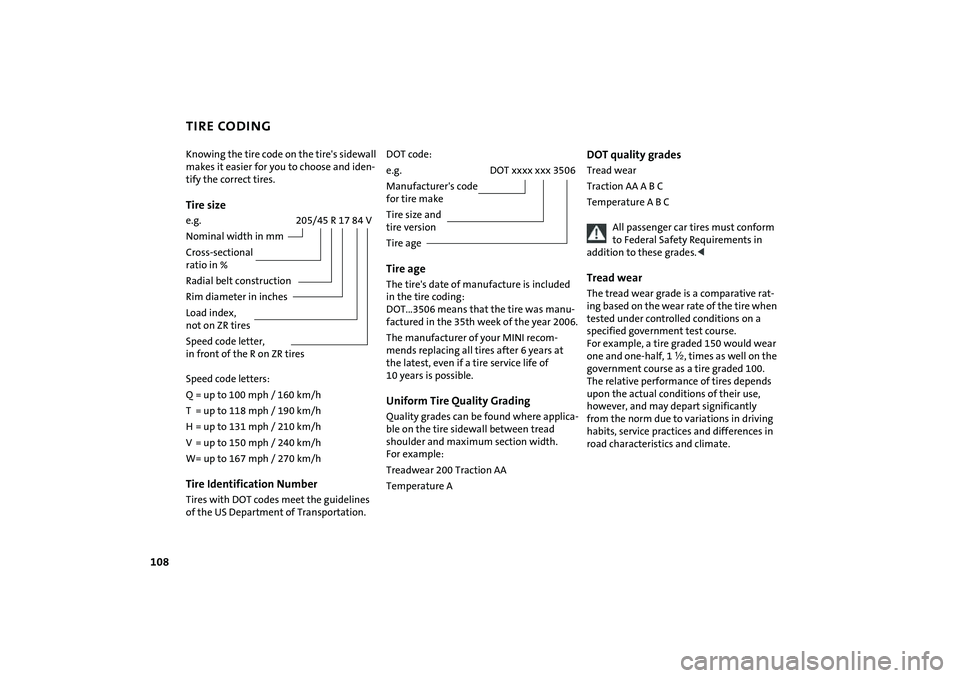

TIRE CODINGKnowing the tire code on the tire's sidewall
makes it easier for you to choose and iden-
tify the correct tires.Tire sizee.g. 205/45 R 17 84 V
Nominal width in mm
Cross-sectional
ratio in %
Radial belt construction
Rim diameter in inches
Load index,
not on ZR tires
Speed code letter,
in front of the R on ZR tires
Speed code letters:
Q = up to 100 mph / 160 km/h
T = up to 118 mph / 190 km/h
H = up to 131 mph / 210 km/h
V = up to 150 mph / 240 km/h
W= up to 167mph/ 270km/hTire Identification NumberTires with DOT codes meet the guidelines
of the US Department of Transportation.DOT code:
e.g. DOT xxxx xxx 3506
Manufacturer's code
for tire make
Tire size and
tire version
Tire age
Tire ageThe tire's date of manufacture is included
in the tire coding:
DOT...3506 means that the tire was manu-
factured in the 35th week of the year 2006.
The manufacturer of your MINI recom-
mends replacing all tires after 6 years at
the latest, even if a tire service life of
10 years is possible.Uniform Tire Quality GradingQuality grades can be found where applica-
ble on the tire sidewall between tread
shoulder and maximum section width.
For example:
Treadwear 200 Traction AA
Temperature A
DOT quality gradesTread wear
Traction AA A B C
Temperature A B C
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
ing based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course.
For example, a tire graded 150 would wear
one and one-half, 1γ, times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use,
however, and may depart significantly
from the norm due to variations in driving
habits, service practices and differences in
road characteristics and climate.
EVERYTHING FROM A TO Z
166
Tires
age108
break-in procedures98
changing135
condition109
damage110
flat tire111,133
inflation pressure104
replacement112
size, refer to New wheels and
tires112
storage113
tread109
wear indicator, refer to Tire
tread109
winter tires113
Tires with emergency
properties, refer to Run-Flat
Tires111
Tools, refer to Onboard tool
kit128
Torque
engine148
lug bolts136
Tow bar144
Tow rope144
Towing143
with automatic
transmission144,145
Towing eyelet143
Tow-starting145 Track width, refer to
Dimensions149,150
Traction grades109
Transmission
automatic transmission with
Steptronic56
manual transmission55
Transmission lock, refer to
Range selection56
Transmission malfunction,
refer to Malfunction58
Transporting children safely50
Transporting securely, refer to
Securing the load94
Trash container, refer to
Ashtray86
Tread depth, refer to Tire
tread109
Treadwear grade108
Trip odometer67
Trunk, refer to Luggage
compartment in the MINI
Convertible91
Turn signal indicators61
indicator lamp19
Turn signal indicators on the
side, bulb replacement131
Turning circle, refer to
Dimensions149,150 U
Uniform Tire Quality
Grading108
Units
average consumption71
average speed71
temperature70
Universal garage door
opener88
Universal remote control88
Unlocking
bonnet114
from inside28
from outside26
Used batteries, refer to
Disposal140
Using antifreeze64,118
V
Vacuum cleaner, connecting,
refer to Cigarette lighter
socket87
Valve
core137
dust cap135
remover137
spare137
Valve remover, refer to
Onboard tool kit137 Valve stem and replacement
valve, refer to Onboard tool
kit137
Vanity mirror, illuminated48
Vehicle
battery140
break-in procedures98
care122
dimensions149
loading cargo92
parking100
storage125
washing122
weight151,152
Vehicle battery140
Vehicle identification number,
refer to Engine
compartment115,116
Vehicle illumination, refer to
Lamps60
Vehicle Memory49
Ventilation, draft-free81,84
Ventilation, refer to
Air conditioning system81
Automatic climate control83
Ventilation, refer to Draft-free
ventilation81,84
Volume
luggage
compartment151,152
EVERYTHING FROM A TO Z
167
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
W
Warning and indicator
lamps16
Washer fluid64
Washer fluid reservoir,
capacity153
Washer fluid reservoir, refer to
Washer/wiper system64
Washer systems64
Washer/wiper system63
Washing your vehicle122
Water on roadways, deep
water100
Wear indicators in the tires,
refer to Tire condition110
Weights151,152
Wheel stud wrench
MINI Mobility System137
space-saver spare tire133
Wheel/tire combination112
Wheelbase, refer to
Dimensions149,150
Wheels and tires112
Wheelslip control
All Season traction Control
(ASC)72
Dynamic Stability Control
(DSC)72
Width, refer to Dimensions149
Wind deflector40 Window washer reservoir64
capacity, refer to
Capacities153
Window washer system
washer fluid64
washer/wiper system63
Windows, convenience
operation26,27
Windscreen wipers
replacement128,129
Windshield heating
air conditioning system
80
automatic climate control83
Windshield washer jets64
Windshield wiper blades
care124
replacement128,129
Windshield wipers
intermittent operation63
Windshield wipers, refer to
Washer/wiper system63
Windshield, cleaning64
Winter tires113
changing135
condition109
Run-Flat Tires112
storage113
Wood paneling124
Work in the engine
compartment114 Wrench/screwdriver, refer to
Onboard tool kit128
X
Xenon lamps
bulb replacement130
Y
Your individual vehicle6
