2007 MINI COOPER CONVERTIBLE headlamp

116
1 Reservoir for windshield and rear
window washer system
*
64
2 Vehicle identification number3 Coolant expansion tank118
4 Engine oil filler neck117
5 Auxiliary terminal for
jump-starting1426 Brake fluid reservoir120
7 Reservoir for headlamp cleaning
system
*
64
8 Engine oil dipstick117
ENGINE COMPARTMENT: MINI COOPER S AND MINI COOPER S CONVERTIBLE

123
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
CARING FOR YOUR VEHICLEdamage caused by undesired wiper activa-
tion. If necessary, for example before
entering a car wash or a garage with
elevator ramp, remove the rod antenna.
To do so, grip the rod antenna at the base
and unscrew it from the antenna foot by
turning it to the left.<
Headlamps
When cleaning the headlamps,
please note: do not rub the head-
lamps dry and do not use any abrasive or
caustic cleaning products. Remove dirt and
contamination, such as insects, by soaking
with shampoo and then rinsing with plenty
of water. Always use a deicer spray to
remove accumulated ice and snow; never
use a scraper.<
Vehicle paintwork Regular care contributes greatly to driving
safety and value retention.
Environmental influences varying from one
region to the next can affect the vehicle
paintwork. Please base the frequency and
scope of car care on these various influ-
ences.Care of upholsteryDepressions that come about on the uphol-
stery material of the seats in daily use can
be brushed out using a slightly damp brush
against the grain.
The fact that velour lays down is not a qual-
ity defect, but rather is inevitable in the
case of home textiles or clothing materials.
In the case of strong sunlight and longer
parking periods, cover the seats or all win-
dows to prevent discoloration.
Care of special parts>Light-alloy wheels
*:
Use wheel cleaner especially during the
winter months, but do not use any
aggressive, acidic, strong alkali or rough
cleansers or steam jets above 1407/
606. Observe the manufacturer's
instructions
>Chrome parts
* such as the bonnet grille,
door handles, and similar parts:
Particularly if they were exposed to road
salt, clean these parts carefully with
plenty of water and shampoo additive, if
necessary. For additional treatment, use
chrome polish
>Rubber components:
Treat only with water or rubber care
products.
Do not use silicon sprays or other
silicon-containing care products,
otherwise noise and damage could
occur.<
>Plastic parts, artificial leather surfaces,
headliner, lamp lenses, cover glass over
display elements as well as matt-black
die-cast parts:
Clean these parts with water and plastic
care products, if necessary. Do not
dampen seats and the headliner.
Never use solvents such as lacquer thin-

130
LAMPS AND BULBS1 Low beamsH7 bulb, 55 watts2High beams H7 bulb, 55 watts
The H7 bulb is pressurized. Therefore,
wear safety glasses and protective
gloves. If the lamp is damaged there is a
risk of injury.<
For checking and adjusting headlamp
aim, please contact your MINI
Dealer. net.
1. Gently pull the retaining wire of the
headlamp cover and guide it outwards
2. Fold down the headlamp cover
3. Disconnect the cable connector from the
bulb socket and pull out the bulb
4. Place the bulb holder on the lower edge
of the mounting and press it in until it
engages in the bulb socket
5. Reconnect the cable connector and
install the headlamp cover again.Xenon lamps*The service life of these bulbs is very long
and the probability of a failure is very low,
provided that they are not switched on and
off an unusual number of times. If one of
these bulbs should nevertheless fail, it is
possible to continue driving with great cau-
tion using the fog lamps, provided traffic
laws in your area do not prohibit this.
Have any work on the xenon lamp
system, including bulb replacement,
carried out only by a MINI Dealer or a work-
shop that has specially trained personnel
working in accordance with the specifica-
tions of the MINI manufacturer. Due to
high voltage, there is a risk of fatal injury if
work on the xenon lamps is carried out
improperly.<
Turn signal indicators, front 21 watt bulb
1. Open the bonnet
2. Reach into the opening for the turn sig-
nal indicators from above
3. Apply gentle pressure to the bulb holder
while turning it to the left
4. Remove and replace the bulb.Parking lamps and standing lamps5watt bulb
The parking lamps and standing lamps are
integrated in the lamp housing of the turn
signal indicator.
1. Turn the bulb holder to the left and pull
out
2. Remove and replace the bulb.

153
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
CAPACITIES
Notes
Fuel tank
Reservegal./liters
gal./litersapprox. 13.2/50
approx. 2.1/8Fuel quality, refer to page101
Window washer system
Headlamp washer systemquarts/liters
quarts/litersapprox. 2.4/2.3
approx. 2.6/2.5 More details, refer to page64
Cooling system including heater circuit quarts/liters
quarts/liters5.6/5.3 MINI COOPER and
MINI COOPER Convertible
6.3/6.0 MINI COOPER S and
MINI COOPER S ConvertibleMore details, refer to page118

EVERYTHING FROM A TO Z
160
Flat tire
Flat Tire Monitor74,75
MINI Mobility System137
Run-Flat Tires75
space-saver spare tire133
Flat Tire Monitor74
indicator lamp17
issuing a flat tire warning75
malfunction75
Flat tire, refer to Changing
tires135
Flat tire, refer to Tire
condition109
Floor coverings, carpets124
Floor mats124
Fog lamps62
indicator lamp62
Foldable rear backrest90,91
Folding roof, refer to
Convertible top with
integrated sliding sunroof35
Foot braking, refer to General
driving notes99
Fresh air nozzles,
refer to Draft-free
ventilation81
Front airbags76
Front turn signal indicators,
bulb replacement130 Fuel101
average consumption71
gauge67,68
quality101
tank capacity153
Fuel filler door101
unlocking in the event of
electrical
malfunction102,103
Fuses141

G
Garage door opener, refer to
Integrated universal remote
control88
Gas cap101
Gas, refer to Average
consumption71
Gas, refer to Fuel quality101
Gasoline gauge, refer to Fuel
gauge67,68
Gasoline, refer to Fuel
quality101
Gear indicator, for automatic
transmission with
Steptronic57
Gear shifts, automatic
transmission with
Steptronic56 Gearshift lever
automatic transmission with
Steptronic56
manual transmission55
General driving notes98
Glass sunroof, electric33
convenience operation27
opening and closing in the
event of an electrical
malfunction34
remote control26
Glove compartment85
Gross weight, refer to
Weights151,152
H
Handbrake, refer to Parking
brake54
Hazard warning flashers12
Head airbags76
Head restraints44
Headlamp flasher61
indicator lamp19
Headlamp washer reservoir64
capacity, refer to
Capacities153
Headlamp washer system
cleaning headlamps64

washer fluid64 Headlamps
bulb replacement130
care123
Heated rear window
air conditioning system80
automatic climate control83
Heating79
exterior mirrors48
mirrors48
rear window80,83
seats47
windshield80,83
Heavy load, refer to Loading94
Height adjustment
seats43
steering wheel47
Height, refer to
Dimensions149,150
High beams61
bulb replacement130
headlamp flasher61
indicator lamp19
High Performance Synthetic
Oil, refer to Engine oil118
recommended oils118
specified oils118
Holders for beverages86
Horn12
Hot exhaust system100
Hydraulic brake120
Hydroplaning99

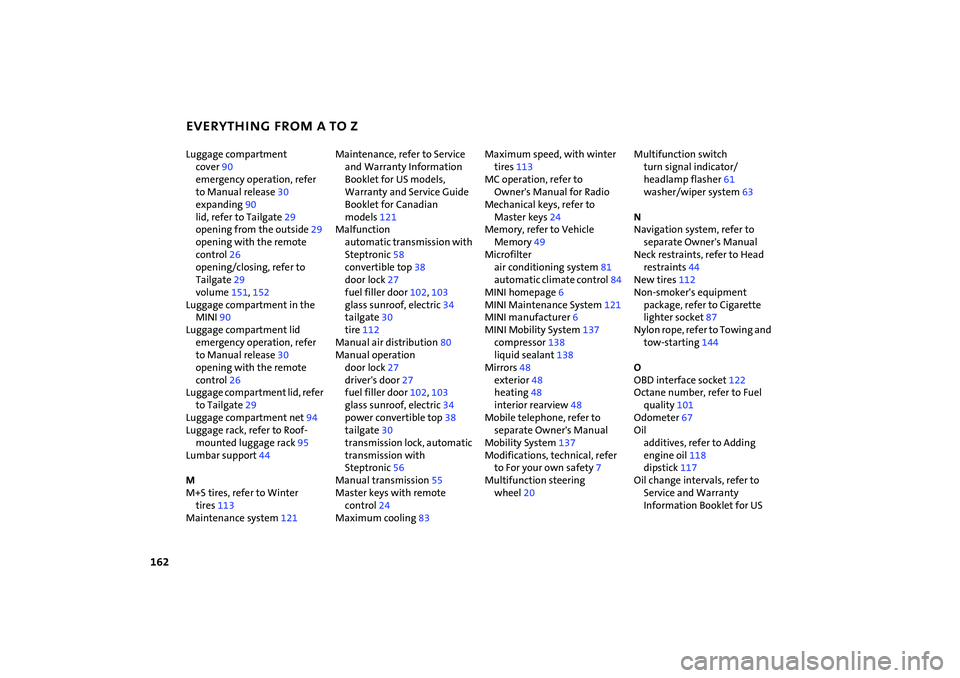

EVERYTHING FROM A TO Z
162
Luggage compartment
cover90
emergency operation, refer
to Manual release30
expanding90
lid, refer to Tailgate29
opening from the outside29
opening with the remote
control26
opening/closing, refer to
Tailgate29
volume151,152
Luggage compartment in the
MINI90
Luggage compartment lid
emergency operation, refer
to Manual release30
opening with the remote
control26
Luggage compartment lid, refer
to Tailgate29
Luggage compartment net94
Luggage rack, refer to Roof-
mounted luggage rack95
Lumbar support44
M
M+S tires, refer to Winter
tires113
Maintenance system121 Maintenance, refer to Service
and Warranty Information
Booklet for US models,
Warranty and Service Guide
Booklet for Canadian
models121
Malfunction
automatic transmission with
Steptronic58
convertible top38
door lock27
fuel filler door102,103
glass sunroof, electric34
tailgate30
tire112
Manual air distribution80
Manual operation
door lock27
driver's door27
fuel filler door102,103
glass sunroof, electric34
power convertible top38
tailgate30
transmission lock, automatic
transmission with
Steptronic56
Manual transmission55
Master keys with remote
control24
Maximum cooling83 Maximum speed, with winter
tires113
MC operation, refer to
Owner's Manual for Radio
Mechanical keys, refer to
Master keys24
Memory, refer to Vehicle
Memory49
Microfilter
air conditioning system81
automatic climate control84
MINI homepage6
MINI Maintenance System121
MINI manufacturer6
MINI Mobility System137
compressor138
liquid sealant138
Mirrors48
exterior48
heating48
interior rearview48
Mobile telephone, refer to
separate Owner's Manual
Mobility System137
Modifications, technical, refer
to For your own safety7
Multifunction steering
wheel20 Multifunction switch
turn signal indicator/
headlamp flasher61
washer/wiper system63
N
Navigation system, refer to
separate Owner's Manual
Neck restraints, refer to Head
restraints44
New tires112
Non-smoker's equipment
package, refer to Cigarette
lighter socket87
Nylon rope, refer to Towing and
tow-starting144
O
OBD interface socket122
Octane number, refer to Fuel
quality101
Odometer67
Oil
additives, refer to Adding
engine oil118
dipstick117
Oil change intervals, refer to
Service and Warranty
Information Booklet for US
