2007 Mercury Montego heater

Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
airflow selector in the OFF or with recirculated air engaged.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•For maximum cooling performance (MAX A/C):
In AUTO mode, press AUTO control and set to desired temperature.
In manual override control, select
or, A/C and recirculated
air
and set the temperature to 60°F (16°C). Set the fan to the
highest speed initially, then adjust to maintain passenger comfort.
•To improve the A/C cool down, drive with the windows slightly open
for 2–3 minutes after starting the vehicle or until the vehicle has
“aired out.”
In extremely cold temperatures, to maximize overall heater performance
it is suggested to not operate the auxiliary system (if so equipped) until
the engine temperature gauge crosses into the normal operating range.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan to the highest speed.
5. Direct the outer instrument panel vents towards the side windows.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
50

Trip elapsed drive time
Select this function from the INFO
menu to display a timer.
To operate the Trip Elapsed Drive
Time perform the following:
1. Press and release RESET in order
to start the timer.
2. Press and release RESET to pause the timer.
3. Press and hold RESET for 2 seconds in order to reset the timer.
Compass display
Select this function from the INFO menu. Press the INFO button
repeatedly until the Compass and Odometer are displayed. (Do not
select Trip, DTE, or AFE. The top of the message center must be blank).
The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.
Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer toCompass zone/calibration
adjustment.
Most geographic areas (zones) have a magnetic north compass point that
varies slightly from the northerly direction on maps. This variation is four
degrees between adjacent zones and will become noticeable as the
vehicle crosses multiple zones. A correct zone setting will eliminate this
error. Refer toCompass zone/calibration adjustment.
Compass zone adjustment
Perform the following steps on an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater / air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.
1. Turn ignition to the ON position.
2. Start the engine.
3. Press the INFO button repeatedly until the Compass and Odometer
are displayed. (Do not select Trip, DTE, or AFE. The top of the message
center must be blank).
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
80

Note:If message center displays the messageSLOW CIRCLES TO
CALIBRATE, then perform the CALIBRATION PROCEDURE.
4. Determine your magnetic zone by
referring to the zone map.
5. Press and hold the RESET until
the message center display changes
to show the current zone setting.
6. Release the RESET control, then
slowly press RESET down again.
7. Press the SETUP control
repeatedly until the correct zone
setting for your geographic location
is displayed on the message center. To exit the zone setting mode press
and release the RESET control.
8. If necessary, press the RESET control to start the compass calibration
function.
Compass calibration adjustment
Perform the following steps on an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater / air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.
1. Turn ignition to the ON position.
2. Start the engine.
3. Press the INFO button repeatedly until the Compass and Odometer
are displayed. (Do not select Trip, DTE, or AFE. The top of the message
center must be blank).
1 2 3
4
5
6 7 8 9 101112 13 14 15
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
81

Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least one inch (2.5 cm) or adjust the heating
or air conditioning to bring in fresh air.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and heater/defroster performance. Use of an engine block heater is
strongly recommended if you live in a region where temperatures reach
-10°F (-23°C) or below. For best results, plug the heater in at least three
hours before starting the vehicle. The heater can be plugged in the night
before starting the vehicle.
To reduce the risk of electrical shock, do not use your heater
with ungrounded electrical systems or two-pronged (cheater)
adapters.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toBrake system warning
lightin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an Anti-lock Braking System (ABS). This
system helps you maintain steering control during emergency stops by
P!
BRAKE
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
180

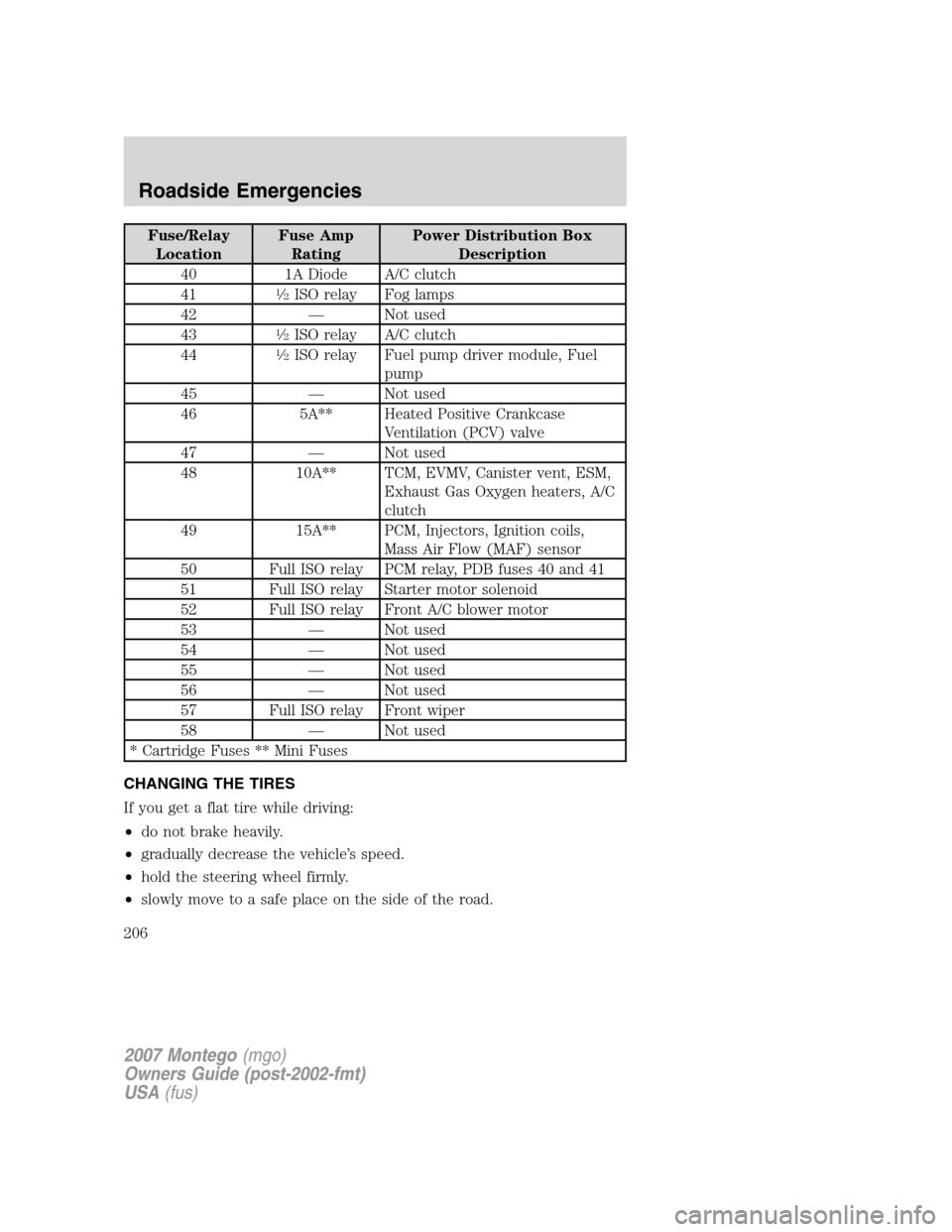

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
40 1A Diode A/C clutch
41
12ISO relay Fog lamps
42 — Not used
43
12ISO relay A/C clutch
44
12ISO relay Fuel pump driver module, Fuel
pump
45 — Not used
46 5A** Heated Positive Crankcase
Ventilation (PCV) valve
47 — Not used
48 10A** TCM, EVMV, Canister vent, ESM,
Exhaust Gas Oxygen heaters, A/C
clutch
49 15A** PCM, Injectors, Ignition coils,
Mass Air Flow (MAF) sensor
50 Full ISO relay PCM relay, PDB fuses 40 and 41
51 Full ISO relay Starter motor solenoid
52 Full ISO relay Front A/C blower motor
53 — Not used
54 — Not used
55 — Not used
56 — Not used
57 Full ISO relay Front wiper
58 — Not used
* Cartridge Fuses ** Mini Fuses
CHANGING THE TIRES
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
206

Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
transmission must relearn its shift strategy. As a result, the transmission
may have firm and/or soft shifts. This operation is considered normal and
will not affect function or durability of the transmission. Over time, the
adaptive learning process will fully update transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
214

wheels ......................................229
wiper blades ............................230
Climate control (see Air
conditioning or Heating) ......46, 48
Clock ............................................63
Clock adjust
6-CD in dash .............................23
AM/FM/CD
.................................17
Compass, electronic
set zone adjustment
.................80
Console
........................................64
overhead
....................................63
Controls
power seat
...............................108
steering column
........................72
Coolant
checking and adding
..............245
refill capacities
................250, 266
specifications
..........................266
Cruise control
(see Speed control)
....................69
Cupholder(s)
.............................113
Customer Assistance
................197
Ford Extended Service
Plan
..........................................225
Getting assistance outside the
U.S. and Canada
.....................226
Getting roadside assistance
...197
Getting the service you
need
.........................................221
Ordering additional owner’s
literature
.................................227
Utilizing the
Mediation/Arbitration
Program
...................................225D
Daytime running lamps
(see Lamps) ................................54
Dipstick
automatic transmission
fluid ..................................262–263
engine oil .................................239
Driving under special
conditions ..........................191, 194
sand .........................................192
snow and ice ...........................195
through water .................193, 196
E
Electronic message center .........78
Emergencies, roadside
jump-starting ..........................213
Emission control system ..........259
Engine ........................................268
cleaning ...................................229
coolant .....................................245
idle speed control ...................243
lubrication specifications .......266
refill capacities ........................266
service points ..........................237
starting after a collision .........199
Engine block heater .................180
Engine oil ..................................239
change oil soon warning,
message center .......................239
checking and adding ..............239
dipstick ....................................239
filter, specifications ........242, 265
recommendations ...................242
refill capacities ........................266
specifications ..........................266
Exhaust fumes ..........................180
F
Fluid capacities .........................266
2007 Montego(mgo)
Owners Guide (post-2002-fmt)
USA(fus)
Index
274
