Maintenance and Specifications 230
Engine compartment 232
Engine oil 235
Battery 239
Engine coolant 241
Fuel information 247
Air filter(s) 261
Part numbers 262
Maintenance product specifications and capacities 264
Engine data 267
Accessories 270
Index 272
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2006 Ford Motor Company
Table of Contents
3
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
11

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
2.3L I4 engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Automatic transmission dipstick
4. Brake fluid reservoir
5. Air filter assembly
6. Power distribution box
7. Battery
8. Engine oil filler cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
232

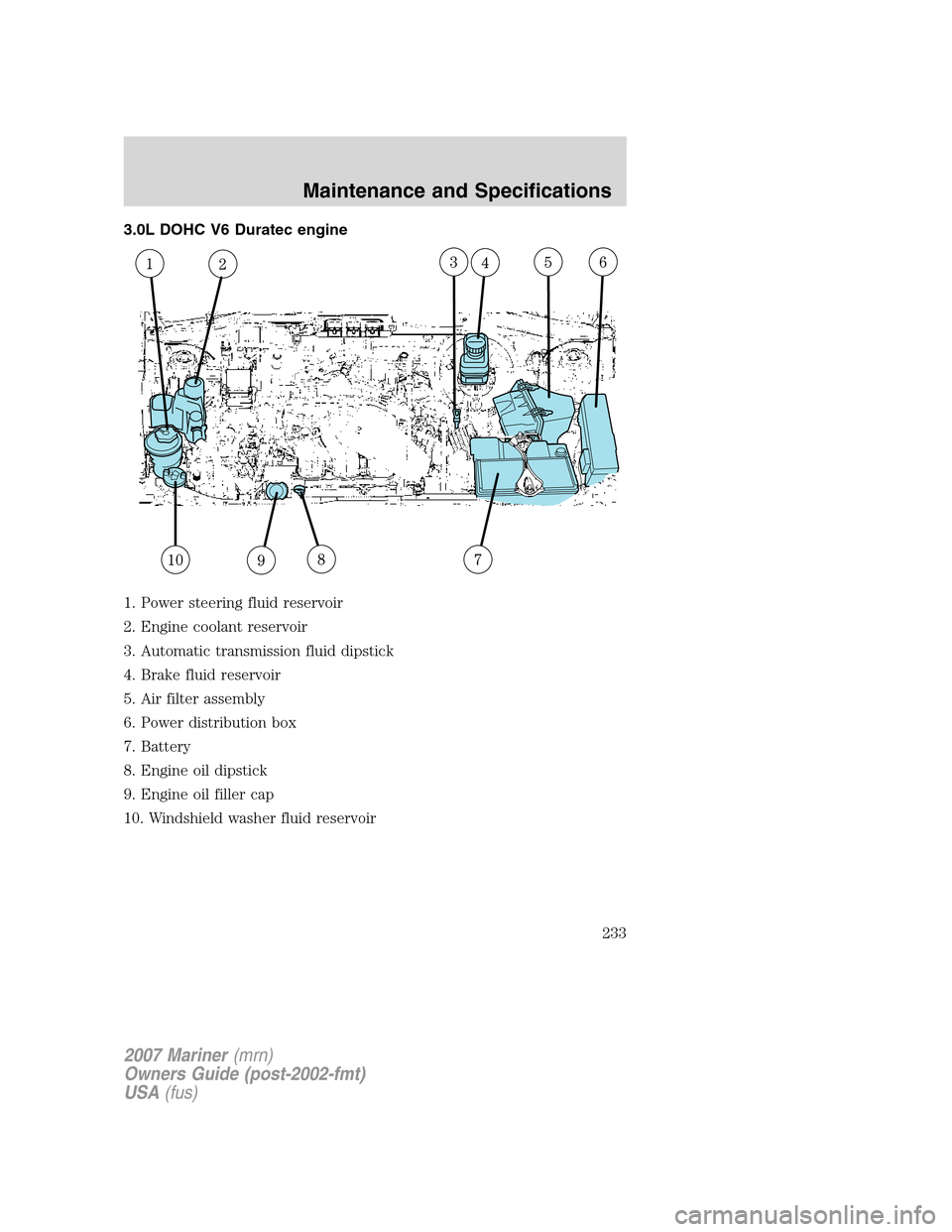

3.0L DOHC V6 Duratec engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Automatic transmission fluid dipstick
4. Brake fluid reservoir
5. Air filter assembly
6. Power distribution box
7. Battery
8. Engine oil dipstick
9. Engine oil filler cap
10. Windshield washer fluid reservoir
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
233

To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine’s warranty use Motorcraft SAE 5W-20 or an
equivalent SAE 5W-20 oil meeting Ford specification WSS-M2C930-A.
SAE 5W-20 oil provides optimum fuel economy and durability
performance meeting all requirements for your vehicle’s engine.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed inscheduled maintenance information.
Ford production and aftermarket (Motorcraft) oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft oil filter (or
another brand meeting Ford specifications) for your engine application.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
238

6. Install a new air filter element. Be
careful not to crimp the filter
element edges between the air filter
housing and cover. This could cause
filter damage and allow unfiltered
air to enter the engine if not
properly seated.
7. Replace the air filter housing cover and secure the clamps.
8. Replace the air inlet tube and secure the clamp.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
MOTORCRAFT PART NUMBERS
Component 2.3L I4 engine 3.0L DOHC V6 Duratec
engine
Air filter element
1FA-1683 FA-1683
Fuel filter FG-800-A FG-800-A
Battery BXT-40R BXT-40R
Oil filter FL-910 FL-820-S
PCV valve
2
Spark Plugs3
1
Failure to use the correct air filter element may result in severe engine
damage. The customer warranty may be void for any damage to the
engine if the correct air filter element is not used.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and design
specifications for your vehicle, such as a Motorcraft or equivalent
replacement part. The customer warranty may be void for any
damage to the emissions system if such a PCV valve is not used.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
262

plastic parts ............................226
washing ....................................223
waxing .....................................224
wheels ......................................224
wiper blades ............................226
Climate control (see Air
conditioning or Heating) ............31
Clock adjust
6-CD in dash .............................26
AM/FM/CD .................................20
Single CD ..................................20
Compass, electronic ....................49
calibration .................................51
set zone adjustment .................50
Console ........................................46
overhead ....................................46
Controls
power seat .................................84
Coolant
checking and adding ..............241
refill capacities ................244, 264
specifications ..........................264
Cruise control
(see Speed control) ....................52
Customer Assistance ................187
Ford Extended Service
Plan ..........................................219
Getting assistance outside
the U.S. and Canada ..............220
Getting roadside assistance ...187
Getting the service you
need .........................................215
Ordering additional owner’s
literature .................................221
Utilizing the
Mediation/Arbitration
Program ...................................219D
Defrost
rear window ..............................32
Dipstick
automatic transmission
fluid ..........................................259
engine oil .................................235
Driving under special
conditions ..................176, 181, 183
sand .........................................182
snow and ice ...........................184
through water .................182, 186
E
Electronic message center .........56
Emergencies, roadside
jump-starting ..........................207
Emission control system ..........255
Engine ........................................267
cleaning ...................................224
coolant .....................................241
fail-safe cooling .......................245
idle speed control ...................239
lubrication specifications .......264
refill capacities ........................264
service points ..................232–233
starting after a collision .........189
Engine block heater .................168
Engine oil ..................................235
checking and adding ..............235
dipstick ....................................235
filter, specifications ........238, 262
recommendations ...................238
refill capacities ........................264
specifications ..........................264
Exhaust fumes ..........................167
