2007 Mercury Mariner air conditioning

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Entertainment Systems 19
AM/FM stereo with CD/MP3 19
AM/FM stereo with in-dash six CD 23
Climate Controls 31
Manual heating and air conditioning 31
Rear window defroster 32
Lights 33
Headlamps 33
Turn signal control 37
Bulb replacement 39
Driver Controls 44
Windshield wiper/washer control 44
Steering wheel adjustment 45
Power windows 47
Mirrors 51
Speed control 52
Moon roof 55
Message center 56
Locks and Security 68
Keys 68
Locks 68
Anti-theft system 77
Table of Contents
1
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)

MANUAL HEATING AND AIR
CONDITIONING SYSTEM
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Air flow selections:Controls
the direction of the airflow in the
vehicle. See the following for a brief
description on each control.
MAX A/C:Uses recirculated air to cool the vehicle. Air flows from the
instrument panel vents only.
A/C:Uses outside air to cool the vehicle. Air flows from the instrument
panel vents only.
:Distributes outside air through the instrument panel vents.
:Distributes outside air through the instrument panel vents and the
floor vents.
(OFF):Outside air is shut out and the fan will not operate.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield defroster vents and
floor vents. The air conditioner will automatically turn on to dehumidify
the air.
:Distributes outside air through the windshield defroster vents. The
air conditioner will automatically turn on to dehumidify the air.
3.Temperature selection:Controls the temperature of the airflow in
the vehicle.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
air flow selector in the O (OFF) or MAX A/C position.
•Under normal weather conditions, do not leave the air flow selector in
MAX A/C or O (OFF) when the vehicle is parked. This allows the
vehicle to “breathe” using the outside air inlet vents.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
31

Compass calibration adjustment
Perform compass calibration in an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater/air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.
1. Start the vehicle.
2. Locate the reset button on the compass sensor mounted on the base
of mirror.
3. To calibrate, press and hold the
reset button on the compass module
for approximately eight seconds and
release.
4. Slowly drive the vehicle in a
circle (less than 5 km/h [3 mph]) until the CIRCLE SLWLY TO
CALIBRATE display changes to CALIBRATION COMPLETED. It will take
up to five circles to complete calibration.
5. The compass is now calibrated.
EXTERIOR MIRRORS
Power side view mirrors
To adjust your mirrors:
1. Rotate the control, located on the
instrument panel left of the steering
wheel, clockwise to adjust the right
mirror and rotate the control
counterclockwise to adjust the left
mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
51

Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least one inch (2.5 cm) or adjust the heating
or air conditioning to bring in fresh air.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and heater/defroster performance. Use of an engine block heater is
strongly recommended if you live in a region where temperatures reach
-10°F (-23°C) or below. For best results, plug the heater in at least three
hours before starting the vehicle. The heater can be plugged in the night
before starting the vehicle.
To reduce the risk of electrical shock, do not use your heater
with ungrounded electrical systems or two-pronged (cheater)
adapters.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toBrake system warning
lightin theInstrument Cluster
chapter for information on the brake
system warning light.
Under normal operating conditions, brake dust may accumulate on the
wheels. Some brake dust is inevitable as brakes wear and does not
contribute to brake noise. The use of modern friction materials with
emphasis on improved performance and environmental considerations
can lead to more dust than in the past. Brake dust can be cleaned by
weekly washing with soapy water and a soft sponge. Heavier deposits can
be removed with Motorcraft Wheel and Tire Cleaner (ZC-37–A).
!
BRAKE
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
168

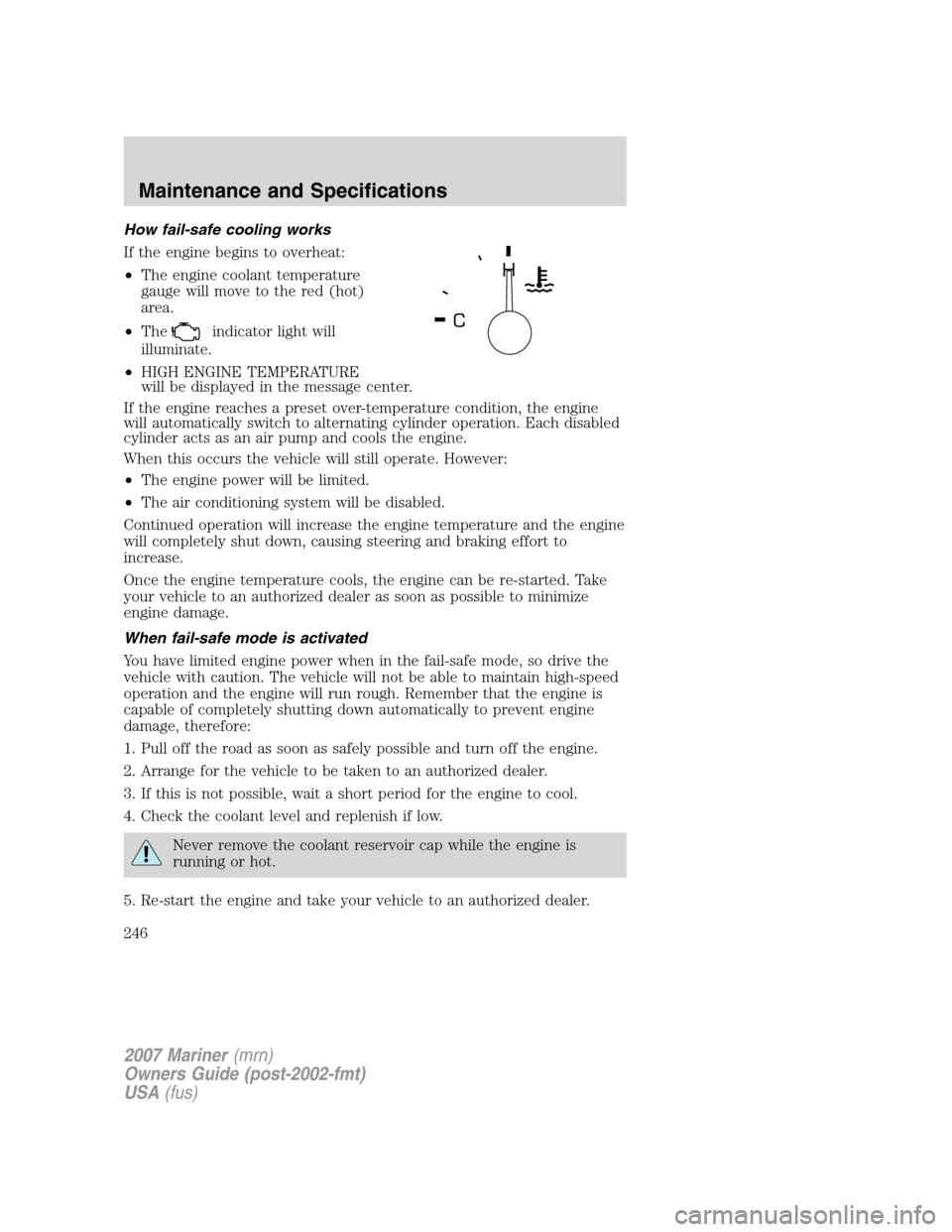

How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•The
indicator light will
illuminate.
•HIGH ENGINE TEMPERATURE
will be displayed in the message center.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature and the engine
will completely shut down, causing steering and braking effort to
increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Re-start the engine and take your vehicle to an authorized dealer.
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
246

plastic parts ............................226
washing ....................................223
waxing .....................................224
wheels ......................................224
wiper blades ............................226
Climate control (see Air
conditioning or Heating) ............31
Clock adjust
6-CD in dash .............................26
AM/FM/CD .................................20
Single CD ..................................20
Compass, electronic ....................49
calibration .................................51
set zone adjustment .................50
Console ........................................46
overhead ....................................46
Controls
power seat .................................84
Coolant
checking and adding ..............241
refill capacities ................244, 264
specifications ..........................264
Cruise control
(see Speed control) ....................52
Customer Assistance ................187
Ford Extended Service
Plan ..........................................219
Getting assistance outside
the U.S. and Canada ..............220
Getting roadside assistance ...187
Getting the service you
need .........................................215
Ordering additional owner’s
literature .................................221
Utilizing the
Mediation/Arbitration
Program ...................................219D
Defrost
rear window ..............................32
Dipstick
automatic transmission
fluid ..........................................259
engine oil .................................235
Driving under special
conditions ..................176, 181, 183
sand .........................................182
snow and ice ...........................184
through water .................182, 186
E
Electronic message center .........56
Emergencies, roadside
jump-starting ..........................207
Emission control system ..........255
Engine ........................................267
cleaning ...................................224
coolant .....................................241
fail-safe cooling .......................245
idle speed control ...................239
lubrication specifications .......264
refill capacities ........................264
service points ..................232–233
starting after a collision .........189
Engine block heater .................168
Engine oil ..................................235
checking and adding ..............235
dipstick ....................................235
filter, specifications ........238, 262
recommendations ...................238
refill capacities ........................264
specifications ..........................264
Exhaust fumes ..........................167
2007 Mariner(mrn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
273
