2007 Mercury Mariner Hybrid headlamp

Replacing headlamp bulbs
1. Make sure that the headlamp control is in the OFF position and open
the hood.
2. Remove the battery tie down and move the battery to the back of the
battery tray (Drivers side only).
Note:Do not disconnect the battery terminal connectors as this may
cause loss of radio memory.
3. Disconnect the electrical
connector from the bulb socket by
depressing the connector latch and
then pulling rearward.
4. Remove bulb by turning it
counterclockwise, then pull it
straight out.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its metal base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
If the bulb is accidentally touched, it should be cleaned with rubbing
alcohol before being used.
Install the new bulb in reverse order.
Replacing front parking lamp/turn signal bulbs
1. Make sure that the headlamp control is in the OFF position.
2. Open the hood.
3. Disconnect the electrical connector from the bulb socket by
depressing the connector latch and then pulling rearward.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
78

4. Remove bulb socket from the
headlamp assembly by turning it
counterclockwise, then pull it
straight out.
5. Pull bulb straight out of socket
and press in the new bulb.
Install the bulb socket in reverse
order.
Replacing front sidemarker bulbs
For bulb replacement, see your authorized dealer.
Replacing side turn-signal bulbs
1. Make sure the headlamp switch is
turned to the OFF position.
2. Push the lamp rearward and pull
the front edge of the lamp outward
to remove it from the fender.
3. Rotate the bulb socket
counterclockwise, replace the bulb
and reinstall the bulb socket.
4. To reinstall the lamp, place the
front edge of the lamp in the hole
and push the lamp inward to lock it in place.
Replacing brake/tail/turn/backup lamp bulbs
The brake/tail/turn/backup lamp bulbs are located in the tail lamp
assembly, one just below the other. Follow the same steps to replace
either bulb:
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
79

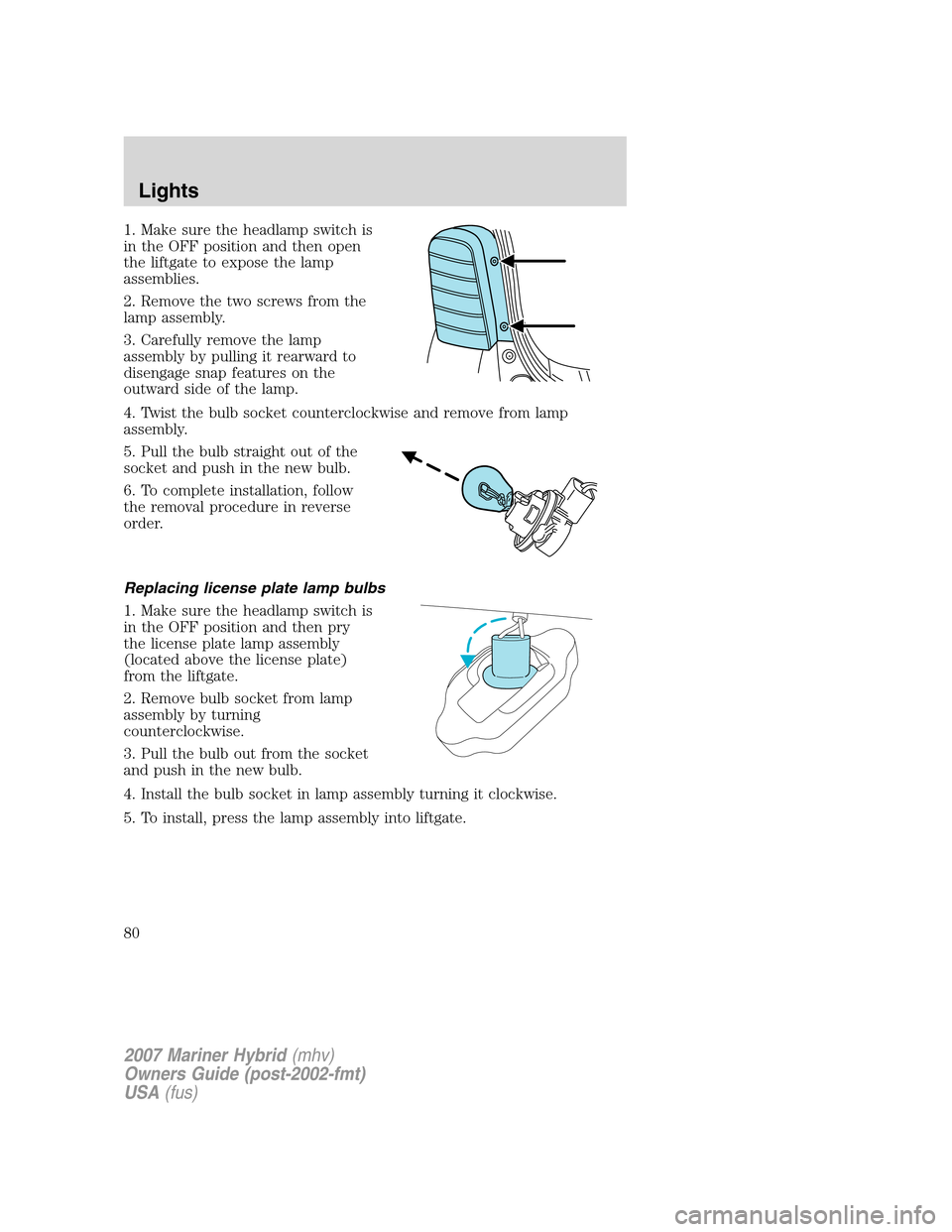

1. Make sure the headlamp switch is
in the OFF position and then open
the liftgate to expose the lamp
assemblies.
2. Remove the two screws from the
lamp assembly.
3. Carefully remove the lamp
assembly by pulling it rearward to
disengage snap features on the
outward side of the lamp.
4. Twist the bulb socket counterclockwise and remove from lamp
assembly.
5. Pull the bulb straight out of the
socket and push in the new bulb.
6. To complete installation, follow
the removal procedure in reverse
order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position and then pry
the license plate lamp assembly
(located above the license plate)
from the liftgate.
2. Remove bulb socket from lamp
assembly by turning
counterclockwise.
3. Pull the bulb out from the socket
and push in the new bulb.
4. Install the bulb socket in lamp assembly turning it clockwise.
5. To install, press the lamp assembly into liftgate.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
80

Warnings Status
Liftgate ajar Warning returns after the ignition key
is turned from LOCK to RUN.
Service emission sys
Check fuel cap
Low brake fluid
Service brake system
Regen disabled
Performance reduced
Low tire pressure
Tire pressure monitor fault
Tire pressure sensor fault
Check left headlamp
Check right headlamp
Check left high beam
Check right high beam
Check left turn lamps
Check right turn lamps
Check brake lamps
Engine oil change soon
Engine oil change now
reminder
Low fuel
Service pwr steering
Service4X4
Turn signal on (if equipped) Will reset after the ignition key is
turned from LOCK to RUN.
Speed control on
4X4 locked temporarily Temporary alert
4X4 disabled temporarily
4X4 auto restored
STOP SAFELY NOW.Displayed when the Master electrical hazard
warning lamp is illuminated indicating a Hybrid component failure. If this
warning occurs, the vehicle will soon shutdown without further warning,
stop the vehicle as soon as safely possible and contact your authorized
dealer as soon as possible.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
97

CHECK FUEL CAP.Displayed when the fuel filler cap is not properly
installed. Check the fuel filler cap for proper installation. Refer toFuel
filler capin theMaintenance and Specificationschapter.
SERVICE BRAKE SYSTEM.Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
REGEN DISABLED.Indicates the regenerative braking system is
disabled at this moment. Please see your authorized dealer if this
warning remains present over several days.
SERVICE PWR STEERING.Displayed when the power steering system
is not operating properly. If this warning and the
service soon
indicator light stays on or continues to come on, contact your authorized
dealer for service as soon as possible.
LOW TIRE PRESSURE.Displayed when one or more tires on your
vehicle have low tire pressure. Refer toInflating Your Tiresin the
Tires, Wheels and Loadingchapter.
TIRE PRESSURE MONITOR FAULT.Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, have the system inspected by your authorized
dealer.
TIRE PRESSURE SENSOR FAULT.Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring Systemin theTires,
Wheels and Loadingchapter. If the warning stays on or continues to
come on, have the system inspected by your authorized dealer
CHECK LEFT OR RIGHT HEADLAMPS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT HIGH BEAMS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT TURN LAMPS.Displayed when the turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced.
LOW FUEL.Displayed as an early reminder of a low fuel condition. The
function will display “LOW FUEL LEVEL” and sound a tone for one
second when you have low fuel level indicated on the fuel gauge.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
99

Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
3. Make sure the parking brake is
set.
4. Make sure the gearshift is in P
(Park).
5. Turn the key to 3 (RUN) without
turning the key to 4 (START).
Some warning lights will briefly illuminate. SeeWarning lights and
chimesin theInstrument Clusterchapter for more information
regarding the warning lights.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
200

•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray Motorcraft Engine Shampoo and Degreaser (ZC-20) on all parts
that require cleaning and pressure rinse clean.
•Cover the highlighted areas to prevent water damage when cleaning
the engine.Note:As with all transmissions, be especially careful as
water entry into the vents can damage internal parts.
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3–A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
257

choosing the right fuel ...........281
comparisons with EPA fuel
economy estimates .................285
detergent in fuel .....................282
filling your vehicle
with fuel ..................278, 280, 283
filter, specifications ........278, 293
fuel pump/high voltage
shut-off switches ....................220
improving fuel economy ........283
octane rating ...................282, 297
quality ......................................282
running out of fuel .................282
safety information relating to
automotive fuels .....................278
Fuses ..................................221, 223
G
Gas cap (see Fuel cap) ............280
Gas mileage
(see Fuel economy) .................283
Gauges .........................................18
H
Hazard flashers .........................219
Head restraints .................119, 122
Headlamps ...................................71
aiming ........................................74
autolamp system .......................71
bulb specifications ....................77
daytime running lights .............73
flash to pass ..............................72
high beam .................................72
replacing bulbs .........................78
turning on and off ....................71
Hood ..........................................264
I
Ignition ...............................199, 297Illuminated visor mirror .............84
Infant seats
(see Safety seats) .....................160
Inspection/maintenance (I/M)
testing ........................................287
Instrument panel
cleaning ...................................258
cluster ........................................14
lighting up panel and
interior .......................................74
J
Jump-starting your
vehicle ................................240, 244
K
Keyless entry system ...............113
autolock ...................................106
keypad .....................................113
locking and unlocking doors ..114
programming entry code .......113
Keys ...........................................115
positions of the ignition .........199
L
Lamps
autolamp system .......................71
bulb replacement
specifications chart ..................77
daytime running light ...............73
fog lamps ...................................73
headlamps .................................71
headlamps, flash to pass ..........72
instrument panel, dimming .....74
interior lamps .....................75–77
replacing bulbs .........................78
Lane change indicator
(see Turn signal) ........................75
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
328
