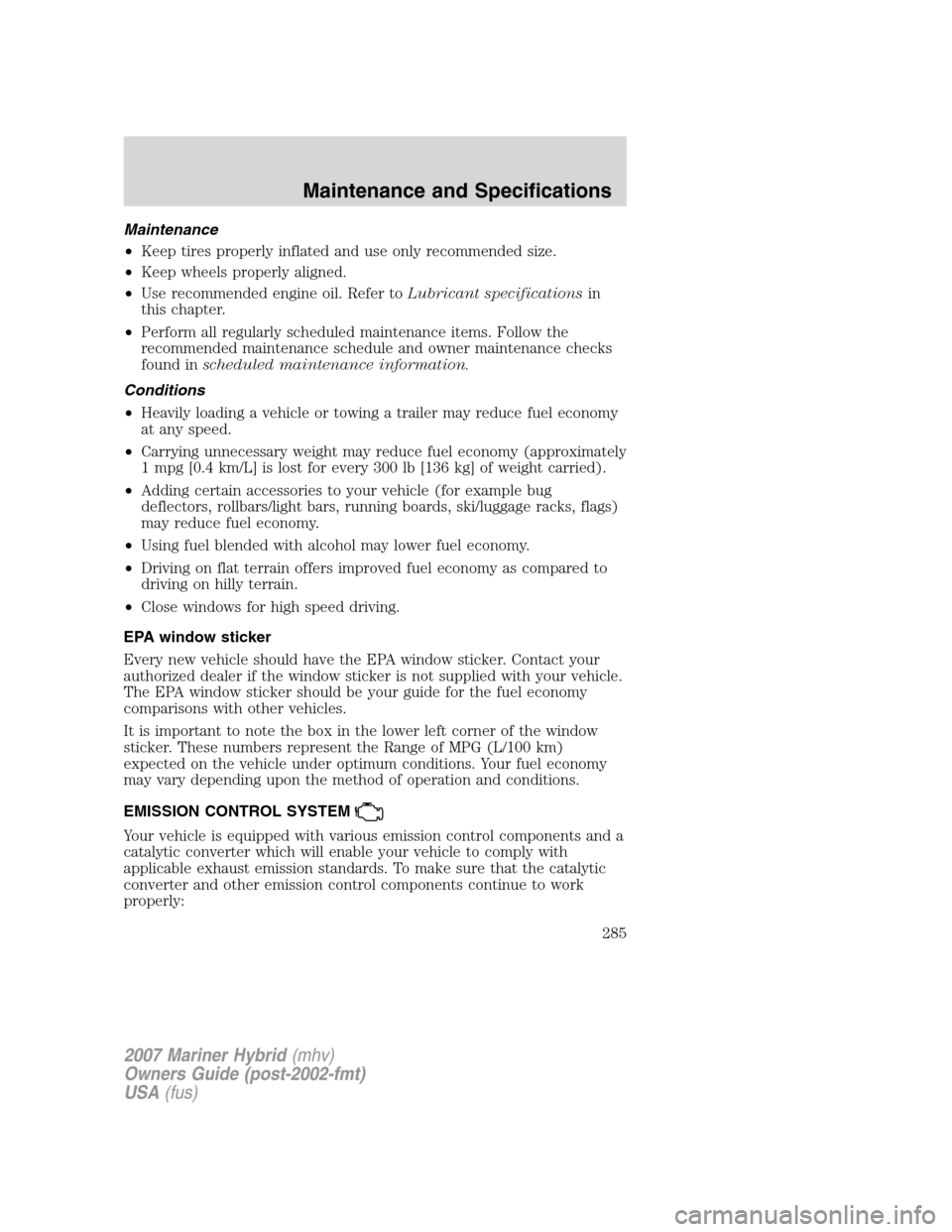

Maintenance
•Keep tires properly inflated and use only recommended size.
•Keep wheels properly aligned.
•Use recommended engine oil. Refer toLubricant specificationsin
this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 300 lb [136 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks, flags)
may reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Close windows for high speed driving.
EPA window sticker
Every new vehicle should have the EPA window sticker. Contact your
authorized dealer if the window sticker is not supplied with your vehicle.
The EPA window sticker should be your guide for the fuel economy
comparisons with other vehicles.
It is important to note the box in the lower left corner of the window
sticker. These numbers represent the Range of MPG (L/100 km)
expected on the vehicle under optimum conditions. Your fuel economy
may vary depending upon the method of operation and conditions.
EMISSION CONTROL SYSTEM
Your vehicle is equipped with various emission control components and a
catalytic converter which will enable your vehicle to comply with
applicable exhaust emission standards. To make sure that the catalytic
converter and other emission control components continue to work
properly:
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
285

Convenience
To make your service visit even more convenient, in many cases, you’ll
find extended evening hours and Saturday hours. How’s that for quality
service?
Factory-trained Technicians
Ford and Lincoln Mercury service technicians participate in extensive
factory-sponsored training to help them become the experts on the
operation of your vehicle. Many participate in Ford-sponsored training to
become certified. Ask your dealer about the training and certification
their technicians have received.
Factory Authorized Systems Checks
In the event that your vehicle experiences a component related concern,
please contact your Ford or Lincoln Mercury dealership. The Ford Motor
Company Trained Technicians who work at Ford or Lincoln Mercury
dealerships are specifically trained to understand your vehicle.
A proper repair begins with a thorough system check. A Factory
Authorized Systems Check can ONLY be found at a Ford or Lincoln
Mercury dealership. In some circumstances, the technician may need to
request your authorization to perform additional operations to determine
the final diagnosis. The technician’s goal is to ensure that your vehicle is
fixed right the first time, at the best value to you.
The following list represents several of the Factory Authorized Systems
Checks available at a participating Ford or Lincoln Mercury dealers:
•Air Conditioning
•Check Engine Light
•All Wheel Drive and4X4
•Automatic Transmission
•Engine Cooling and Cabin Heating
•Steering and Suspension
•Charge/Start/Battery
•Wheel Alignment
•Anti-Lock Brake System
Genuine Ford and Motorcraft Replacement Parts
Ford and Lincoln Mercury dealerships stock Ford and Motorcraft
branded replacement parts. These parts meet or exceed Ford Motor
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Scheduled Maintenance Guide
304

Company’s specifications, and we stand behind them. Maintenance parts
installed at your Ford or Lincoln Mercury dealership carry a nationwide,
12 months, 12,000 mile parts and labor limited warranty. Your dealer can
give you details.
Value Shopping for Your Vehicle’s Maintenance Needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your Ford and
Lincoln Mercury dealers can offer.
WHICH MAINTENANCE SCHEDULE SHOULD YOU FOLLOW?
Owner Checks and Services
Refer to Mileage Intervals for Additional Checks and Services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in thisOwner’s
Guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Maximum Oil Change Interval
❑12 months, 10,000 miles (16,000 km) or 200 hours of engine operation.
Motorcraft Premium Gold Engine Coolant change interval
❑6 years or 100,000 miles (160,000 km) - change Motorcraft Premium Gold Engine Coolant (whichever comes first)❑After initial change - change Motorcraft Premium Gold Engine Coolant every 3 years or 50,000 miles (80,000 km).
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and correct air pressure, including spare tire
❑Check windshield washer fluid level
❑Check engine oil level
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Scheduled Maintenance Guide
305

Multi-point Inspection
In order to keep your vehicle running right, it is important that you have
the systems on your vehicle checked regularly. This can help identify any
potential issue before there are any problems. Ford Motor Company
suggests the following multi-point inspection to be performed at every
scheduled maintenance as the way to ensure your vehicle keeps running
right.
NORMAL SCHEDULED MAINTENANCE AND LOG
The following section contains the “Normal Schedule”. This schedule is
presented at specific mileage (kilometer) intervals with exceptions
noted.
ADDITIONAL INFORMATION AVAILABLE ON THE WEB
To learn more about the importance of routine and dealer-performed
maintenance on your vehicle, please visit the Ford Customer Service Web
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check that externally mounted spare tire is properly stowed (tight)
❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, air bag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check low voltage (underhood) battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
Multi-point inspection - Recommended at every visit
❑Check and top up fluid levels: brake, engine coolant recovery reservoir, motor/electronics reservoir and window washer.❑Inspect tires for wear and correct air pressure.
❑Check exhaust system for leaks, damage, loose parts and foreign materials.
❑Check low voltage (underhood) battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers and heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air cleaner filter and elements.
❑Inspect half-shaft dust boots.
❑Check shocks, struts and other suspension components for leaks and damage.
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Scheduled Maintenance Guide
306

A
Accessory delay ..........................86
Air cleaner filter ...............291–293
Airbag supplemental restraint
system ........................141, 150, 153
and child safety seats ............143
description ..............141, 150, 153
disposal ....................................156
driver airbag ............143, 151, 154
indicator light .........149, 152, 155
operation .................143, 151, 154
passenger airbag .....143, 151, 154
side airbag ...............................150
All Wheel Drive (AWD),
driving off road .........................211
Ambulance packages ..................10
Anti-lock brake system
(see Brakes) ......................202–203
Anti-theft system ..............114, 117
arming the system ..................117
disarming a triggered
system .....................................118
triggering .................................118
Audio system (see Radio) .........20
Automatic transaxle
fluid, adding ............................289
fluid, checking ........................289
Automatic transmission
driving an automatic
overdrive .................................207
fluid, refill capacities ..............295
fluid, specification ..................295
Auxiliary power point .................84
Axle
lubricant specifications ..........295
refill capacities ........................295
B
Battery .......................................270acid, treating emergencies .....270
jumping a disabled
battery .............................240, 244
maintenance-free ....................270
replacement, specifications ...293
servicing ..................................270
BeltMinder .................................137
Brakes ........................................202
anti-lock ...........................202–203
anti-lock brake system (ABS)
warning light ...........................203
fluid, checking and adding ....288
fluid, refill capacities ..............295
fluid, specifications .................295
lubricant specifications ..........295
parking ....................................204
shift interlock ..........................206
Bulbs ............................................77
C
Capacities for refilling fluids ....295
Cargo area shade ......................102
Cell phone use ............................11
Child safety restraints ..............157
child safety belts ....................157
Child safety seats ......................160
attaching with tether straps ..164
in front seat ............................161
in rear seat ..............................161
Cleaning your vehicle
engine compartment ..............256
instrument panel ....................258
interior .....................................259
interior trim ............................259
plastic parts ............................257
washing ....................................255
waxing .....................................255
wheels ......................................256
wiper blades ............................257
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
326

Liftgate ......................................101
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........203
Load limits .................................188
Loading instructions .................194
Locks
autolock ...................................106
childproof ................................108
Lubricant specifications ...........295
Lug nuts ....................................239
Luggage rack .............................103
M
Manual transmission
fluid capacities ........................295
lubricant specifications ..........295
Message center ...........................92
english/metric button ...............95
system check button ................94
warning messages .....................95
Mirrors .........................................87
automatic dimming rearview
mirror ........................................87
fold away ...................................87
heated ........................................88
side view mirrors (power) .......87
Moon roof ....................................91
Motorcraft parts ........260, 278, 293
N
Navigation system .......................30
quick start .................................35
radio functions ..........................40
setting the clock .......................66
O
Octane rating ............................282Oil (see Engine oil) ..................267
P
Parking brake ............................204
Parts (see Motorcraft parts) ....293
Passenger Occupant
Classification Sensor .................129
Power distribution box
(see Fuses) ...............................225
Power door locks ......................105
Power mirrors .............................87
Power point .................................84
Power steering ..........................204
Power Windows ...........................85
Preparing to drive your
vehicle ........................................205
R
Radio ............................................20
Rear window defroster ...............70
Relays ........................................221
Remote entry system ...............108
illuminated entry ............112–113
locking/unlocking
doors ................................105, 109
panic alarm .............................110
replacement/additional
transmitters .............................111
replacing the batteries ...........110
Reverse sensing system ...........208
Roadside assistance ..................218
Roof rack ...................................103
S
Safety Belt Maintenance ..........136
2007 Mariner Hybrid(mhv)
Owners Guide (post-2002-fmt)
USA(fus)
Index
329
