IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
4.6L SOHC V8 engine
1. Brake fluid reservoir
2. Engine oil dipstick
3. Windshield washer fluid reservoir
4. Air filter assembly
5. Power steering fluid reservoir
6. Engine coolant reservoir
7. Battery
8. Power distribution box
9. Engine oil filler cap
10. Automatic transmission fluid dipstick
2007 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
224

BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels below the “MAX” line
that do not trigger the brake system
warning lamp are within the normal
operating range, there is no need to
add fluid. If the fluid levels are outside of the normal operating range,
the performance of your brake system could be compromised, seek
service from your authorized dealer immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid (if equipped)
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic during hot
weather or pulling a trailer, the vehicle should be turned off for about
30 minutes to allow fluid to cool before checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
M
AX
2007 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
251

Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick. Refer toMaintenance
product specifications and capacitiesin this chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint (250 ml) increments through the filler
tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause
shift and/or engagement concerns and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
To reduce the risk of vehicle damage and/or personal burn
injuries do not start your engine with the air cleaner removed
and do not remove it while the engine is running.
Changing the air filter element
1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves of the air filter housing.
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
2007 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
253

Item Capacity Ford part nameFord part number /
Ford specification
Automatic
transmission fluid
(4R75E)13.9 quarts
(13.2L)
3
Motorcraft MERCONVATF
4
XT-5-QM /
MERCONV
Rear axle fluid
5
5.0 pints (2.4L)
6
Motorcraft SAE 80W-90
Premium Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A
Windshield washer
fluidFill to line on
reservoirMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel Tank19.0 gallons
(71.9L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCONV should only use MERCONV fluid or fluid that
is specified dual usage MERCON/MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.5Rear axles are considered lubricated for life when the vehicle is used for normal service. For
severe duty requirements, seeExceptions and / or Special Operating Conditionsinscheduled
maintenance information.Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of Traction-Lok rear axles.6Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6 mm to 14
mm) below the bottom of the filler hole.
2007 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
257

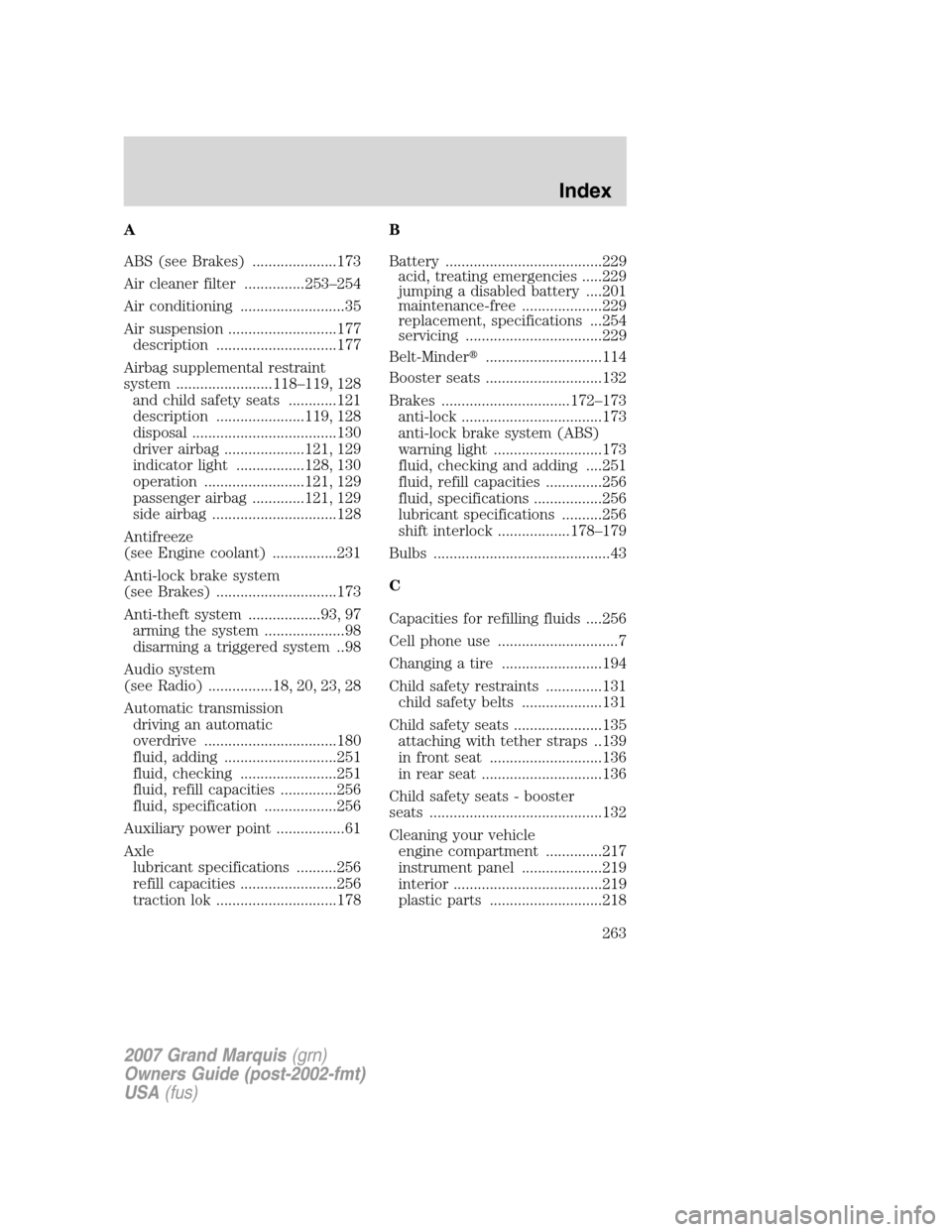

A
ABS (see Brakes) .....................173
Air cleaner filter ...............253–254
Air conditioning ..........................35
Air suspension ...........................177
description ..............................177
Airbag supplemental restraint
system ........................118–119, 128
and child safety seats ............121
description ......................119, 128
disposal ....................................130
driver airbag ....................121, 129
indicator light .................128, 130
operation .........................121, 129
passenger airbag .............121, 129
side airbag ...............................128
Antifreeze
(see Engine coolant) ................231
Anti-lock brake system
(see Brakes) ..............................173
Anti-theft system ..................93, 97
arming the system ....................98
disarming a triggered system ..98
Audio system
(see Radio) ................18, 20, 23, 28
Automatic transmission
driving an automatic
overdrive .................................180
fluid, adding ............................251
fluid, checking ........................251
fluid, refill capacities ..............256
fluid, specification ..................256
Auxiliary power point .................61
Axle
lubricant specifications ..........256
refill capacities ........................256
traction lok ..............................178B
Battery .......................................229
acid, treating emergencies .....229
jumping a disabled battery ....201
maintenance-free ....................229
replacement, specifications ...254
servicing ..................................229
Belt-Minder.............................114
Booster seats .............................132
Brakes ................................172–173
anti-lock ...................................173
anti-lock brake system (ABS)
warning light ...........................173
fluid, checking and adding ....251
fluid, refill capacities ..............256
fluid, specifications .................256
lubricant specifications ..........256
shift interlock ..................178–179
Bulbs ............................................43
C
Capacities for refilling fluids ....256
Cell phone use ..............................7
Changing a tire .........................194
Child safety restraints ..............131
child safety belts ....................131
Child safety seats ......................135
attaching with tether straps ..139
in front seat ............................136
in rear seat ..............................136
Child safety seats - booster
seats ...........................................132
Cleaning your vehicle
engine compartment ..............217
instrument panel ....................219
interior .....................................219
plastic parts ............................218
2007 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
263

washing ....................................215
waxing .....................................216
wheels ......................................216
wiper blades ............................218
Climate control (see Air
conditioning or Heating) ............35
Clock adjust
6-CD in dash .............................31
AM/FM .......................................19
AM/FM/CD .................................22
AM/FM/Tape/CD .......................26
Compass, electronic
set zone adjustment .................54
Console ........................................52
overhead ..............................52–53
Controls
power seat ...............................101
steering column ........................68
Coolant
checking and adding ..............231
refill capacities ................235, 256
specifications ..........................256
Cruise control
(see Speed control) ....................65
Cupholder(s) .............................104
Customer Assistance ................184
Ford Extended Service
Plan ..........................................211
Getting assistance outside the
U.S. and Canada .....................212
Getting roadside assistance ...184
Getting the service you
need .........................................207
Ordering additional owner’s
literature .................................213
Utilizing the
Mediation/Arbitration
Program ...................................211D
Daytime running lamps
(see Lamps) ................................39
Defrost
rear window ..............................37
Dipstick
automatic transmission
fluid ..........................................251
engine oil .................................226
Driving under special
conditions ..................................183
through water .........................183
E
Electronic message center .........74
Emergencies, roadside
jump-starting ..........................201
Emission control system ..........247
Engine ........................................258
cleaning ...................................217
coolant .....................................231
fail-safe cooling .......................236
idle speed control ...................229
lubrication specifications .......256
refill capacities ........................256
service points ..........................224
starting after a collision .........186
Engine block heater .................172
Engine oil ..................................226
change oil soon warning,
message center .......................226
checking and adding ..............226
dipstick ....................................226
filter, specifications ........228, 254
recommendations ...................228
refill capacities ........................256
specifications ..........................256
Event data recording ....................6
2007 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
264

recreational towing
.................167
trailer towing
..........................164
wrecker
....................................206
Traction control
........................175
Traction-lok rear axle
...............178
Transmission
.............................178
brake-shift interlock
(BSI)
................................178–179
fluid, checking and adding
(automatic)
.............................251
fluid, refill capacities
..............256
lubricant specifications
..........256
Trunk
...........................................86
remote release
....................82, 88
Turn signal
..................................42V
Vehicle Identification Number
(VIN) ..........................................259
Vehicle loading ..........................158
Ventilating your vehicle ...........171
W
Warning lights (see Lights) .......10
Washer fluid ..............................225
Water, Driving through .............183
Windows
power .........................................62
Windshield washer fluid and
wipers ..........................................50
checking and adding fluid .....225
replacing wiper blades ...........225
Wrecker towing .........................206
2007 Grand Marquis(grn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
268
