2007 MERCEDES-BENZ SLK55AMG display

238 Controls in detail
Power windows
Opening
Push the retractable hardtop switch in
quick succession twice in direction of
arrow1.
All side windows open.
Closing
Push the retractable hardtop switch in
quick succession twice in direction of
arrow2.
Keep the retractable hardtop switch
pushed the second time until all win-
dows are closed.
The windows in the driver’s and pas-
senger door will close first, followed by
the rear side windows.Opening and closing the windows with
the SmartKey*
The retractable hardtop (
page 240) will
also be opened or closed when the power
windows are operated with the SmartKey.
Aim transmitter eye at the outside
driver’s or passenger door handle.
The SmartKey must be in close
proximity to the respective outside
door handle.Opening (Summer opening feature)
Press and hold buttonŒ.
The windows and retractable hardtop
begin to open after approximately
1 second.
In the multifunction display you will see
the message
Retractable roof in
operation
.
Release buttonΠon the SmartKey
to interrupt procedure.
Closing (Convenience closing feature)
Press and hold lock button‹.
The windows and retractable hardtop
begin to close after approximately
1 second.
In the multifunction display you will see
the message
Retractable roof in
operation
.
Release button‹on the SmartKey
to interrupt procedure.
iYou can operate the rear side windows only
by using the retractable hardtop switch.
iWhen the retractable hardtop is open, only
the windows in the driver’s and passenger door
will close. The rear side windows remain open.

243 Controls in detail
Retractable hardtop
If the retractable hardtop is not properly
locked, lock it as described below.Unlocked status noticed when stopped
Switch on the ignition (page 37).
To lock the retractable hardtop in its
fully closed position, push the retract-
able hardtop switch forward until the
retractable hardtop is fully closed.
or:
To lock the retractable hardtop in its
fully opened position, push the retract-
able hardtop switch rearward until the
retractable hardtop is fully open.
Warning!G
If the retractable hardtop does not com-
pletely open or close, the roof hydraulics will
lose pressure and the retractable hardtop is
lowered

after approximately 7 minutes when the
ignition is switched on.

after approximately 15 seconds when
the ignition is switched off.
Shortly before the hardtop is lowered, a
warning will sound. In the multifunction dis-
play you will seeK and the message
Retractable roof being opened.

Properly lock the retractable hardtop
before continuing to drive (
page 243).
Warning!G
The hardtop is not fully closed and locked or
not fully opened and locked if:

the message Retractable roof in
operation
is shown in the multifunc-
tion display

a warning sounds for 10 seconds when
driving and a message in the multifunc-
tion display appears (
page 374).

245 Controls in detail
Retractable hardtop
Opening (Summer opening feature)
Press and hold unlock buttonΠun-
til the retractable hardtop is complete-
ly open.
The retractable hardtop and windows
begin to open after approximately
1 second. In the multifunction display
you will see the message
Retractable
roof in operation
.
Release buttonΠon the SmartKey
to interrupt procedure.
Closing (Convenience closing feature)
Press and hold lock button‹until
the retractable hardtop is fully closed.
The retractable hardtop and windows
begin to close after approximately
1 second. In the multifunction display
you will see the message
Retractable
roof in operation
.
Release button‹on the SmartKey
to interrupt procedure.
Warning!G
When closing the side windows and retract-
able hardtop, make sure that there is no
danger of anyone being harmed by the
closing procedure.
If potential danger exists, proceed as fol-
lows:

Release button‹to stop the closing
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button‹.
Warning!G
If the retractable hardtop does not com-
pletely open or close, the roof hydraulics will
lose pressure and the retractable hardtop is
lowered

after approximately 7 minutes when the
ignition is switched on.

after approximately 15 seconds when
the ignition is switched off.
Shortly before the hardtop is lowered, a
warning will sound. In the multifunction dis-
play you will seeK and the message
Retractable roof being opened.

Properly lock the retractable hardtop
before continuing to drive (
page 243).

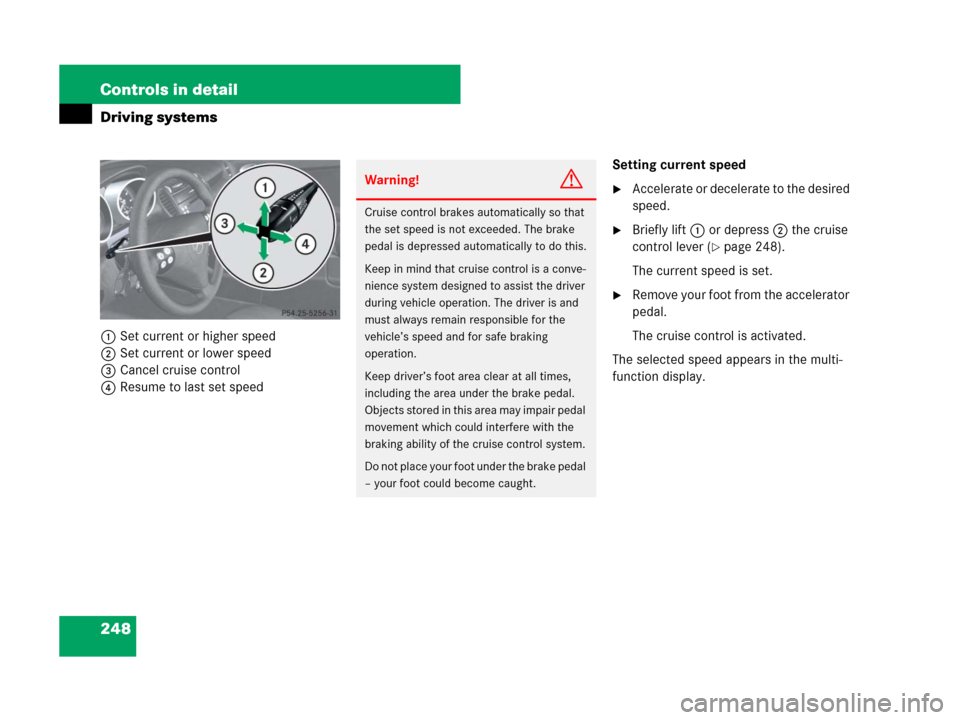

248 Controls in detail
Driving systems
1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume to last set speedSetting current speed
Accelerate or decelerate to the desired
speed.
Briefly lift1 or depress2 the cruise
control lever (
page 248).
The current speed is set.
Remove your foot from the accelerator
pedal.
The cruise control is activated.
The selected speed appears in the multi-
function display.
Warning!G
Cruise control brakes automatically so that
the set speed is not exceeded. The brake
pedal is depressed automatically to do this.
Keep in mind that cruise control is a conve-
nience system designed to assist the driver
during vehicle operation. The driver is and
must always remain responsible for the
vehicle’s speed and for safe braking
operation.
Keep driver’s foot area clear at all times,
including the area under the brake pedal.
Objects stored in this area may impair pedal
movement which could interfere with the
braking ability of the cruise control system.
Do not place your foot under the brake pedal
– your foot could become caught.

250 Controls in detail
Driving systems
Setting a higher speed
Lift the cruise control lever in direction
of arrow1 (
page 248) and hold it
up until the desired speed is reached.
Release the cruise control lever.
The new speed is set.
Setting a lower speed
Depress the cruise control lever in
direction of arrow2 (
page 248) and
hold it down until the desired speed is
reached.
Release the cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster
Briefly tip the cruise control lever in
direction of arrow1 (
page 248).
Slower
Briefly tip the cruise control lever in
direction of arrow2 (
page 248).Setting to last stored speed
(“Resume” function)
Briefly pull the cruise control lever in
direction of arrow4 (
page 248).
The cruise control resumes the last set
speed.
Remove your foot from the accelerator
pedal.
The last set speed appears in the multi-
function display.iWhen you use the cruise control lever to
decelerate, the brake system will automatically
brake the vehicle if the engine’s braking power
does not brake the vehicle sufficiently.
Warning!G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.

260 Controls in detail
Useful features
Example illustration
1Insert the mobile phone
2Connector contact
3Mobile phone cradle
Slide the lower end of the mobile phone
into connector contact 2 on mobile
phone cradle3.
Push the top of the mobile phone in di-
rection of arrow 1, until the lug on the
mobile phone release button engages.
The mobile phone is connected to the
network via the external antenna. The mobile phone is linked to the
hands-free device and the multifunc-
tion steering wheel.
The battery is charged depending on its
charge status and the position of the
SmartKey in the starter switch. The
charge procedure will be indicated in
the mobile phone’s display.
You can place or receive phone calls. You
can control other functions of the mobile
phone via the control system
(
page 149), audio system (page 219),
or COMAND* (see separate operating in-
structions). Removing mobile phone from mobile
phone cradleExample illustration
1Release catch for mobile phone
2Mobile phone cradle
Press release catch in direction of
arrow1 and take mobile phone out of
mobile phone cradle2.
iWhen you take the SmartKey out of the
starter switch, the mobile phone remains
switched on for approximately 10 minutes. If
you place or receive a call during this time, the
mobile phone switches off 10 minutes after the
call has been completed.iWhen using a flip-style mobile phone, open
flip top before removing from the cradle while a
call is connected. Otherwise, the call will be dis-
connected.


262 Controls in detail
Useful features
The Tele Aid* system
(Tele
matic Alarm Identification on
D
emand)
The Tele Aid system consists of three
types of response:

Automatic and manual emergency

Roadside Assistance

Information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the multifunction steering wheel. To
raise, press buttonæ and to lower,
press buttonç or use the volume knob
on your audio system or COMAND* head
unit.
To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
iThe SOS button is located in the overhead
control panel.
The Roadside Assistance button•
(
page 265) and the Information button¡
(
page 267) are located below the center
armrest cover.
!The Tele Aid system utilizes the cellular net-
work for communication and the GPS (Global
Positioning System) satellites for vehicle loca-
tion. If either of these signals are unavailable,
the Tele Aid system may not function and if this
occurs, assistance must be summoned by other
means.
iWhen a Tele Aid call has been initiated, the
audio system or COMAND* system audio is mut-
ed and the selected mode (radio, tape or CD)
pauses. The optional cellular phone* (if installed)
and inserted in cradle switches off. If you must
use this phone, we recommend that you use it
only with the vehicle at a standstill in a safe loca-
tion. Remove the phone from the cradle and
place the call. The COMAND* navigation system
(if engaged) will continue to run. The display in
the instrument cluster is available for use, and
spoken commands are only available by pressing
the RPT button on the COMAND* unit. A pop-up
window will appear in the COMAND* display to
indicate that a Tele Aid call is in progress. After
the Tele Aid call has ended, the optional cellular
phone switches on again. A PIN entry might be
necessary.

263 Controls in detail
Useful features
System self-check
Initially, after switching on ignition, mal-
functions are detected and indicated (the
indicator lamps in the SOS button, the
Roadside Assistance button•, and the
Information button¡ stay on longer
than 10 seconds or do not come on). The
message
Tele Aid inoperative appears
for approximately 10 seconds in the multi-
function display.Emergency calls
An emergency call is initiated automatical-
ly following an accident in which the emer-
gency tensioning devices (ETDs) or
air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 264) for instruc-
tions on initiating an emergency call man-
ually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call
appears in the multifunction display and
the audio system is muted. When the con-
nection is established, the message
Call connected appears in the multifunc-
tion display. All information relevant to the
emergency, such as the location of the ve-
hicle (determined by the GPS satellite loca-
tion system), vehicle model, identification
number and color are generated.
Warning!G
If the indicator lamps in the SOS button, in
the Roadside Assistance button, and/or in
the Information button do not come on
during the system self-check or if any of
these indicators remain illuminated
constantly in red and/or the message
Tele Aid inoperative is displayed in the
multifunction display after the system
self-check, a malfunction in the system has
been detected.
If a malfunction is indicated as outlined
above, the system may not operate as ex-
pected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
