Contents
DOT, Tire Identification
Number (TIN) ............................... 322
Maximum tire load ....................... 324
Maximum tire inflation pressure .. 324
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 325
Tire ply material ........................... 327
Tire and loading terminology ........ 327
Rotating tires ............................... 330
Winter driving .................................... 332
Winter tires .................................. 332
Snow chains................................. 333
Maintenance ...................................... 334
Maintenance service indicator
message....................................... 334
Clearing the maintenance
service indicator message............ 335
Maintenance service term
exceeded ..................................... 335
Calling up the maintenance
service indicator display............... 335
Resetting the maintenance
service indicator........................... 336
Vehicle care ....................................... 337
Cleaning and care of vehicle ........ 337
Practical hints.................................. 345
What to do if … ................................... 346
Lamps in instrument cluster ......... 346
Lamp in center console................. 354
Vehicle status messages in the
multifunction display..................... 356
Where will I find...? ............................. 382
First aid kit .................................... 382
Vehicle tool kit, vehicle jack ......... 382
Spare wheel with collapsible tire .. 385
Spare wheel bolts ......................... 386
Unlocking/locking in an emergency... 387
Unlocking the vehicle.................... 387
Locking the vehicle ....................... 388
Manually unlocking the gear
selector lever
(automatic transmission*) ............ 389
Opening/closing in an emergency ..... 390
Raising retractable hardtop
manually ....................................... 390
Replacing SmartKey batteries ............ 391
SmartKey ...................................... 391Replacing bulbs .................................. 393
Bulbs............................................. 393
Replacing bulbs for front lamps .... 396
Replacing bulbs for rear lamps ..... 397
Replacing wiper blades ...................... 399
Placing wiper arms in vertical
position......................................... 399
Removing wiper blades ................. 400
Installing wiper blades .................. 400
Flat tire............................................... 401
Preparing the vehicle .................... 401
Sealing tires with TIREFIT ............. 401
Mounting the spare wheel ............ 407
MOExtended system* ................... 414
Battery ............................................... 415
Disconnecting the battery ............ 416
Removing the battery ................... 417
Charging and reinstalling battery .. 417
Reconnecting the battery ............. 418
Jump starting...................................... 419
Towing the vehicle.............................. 421
Installing towing eye bolt .............. 422
Fuses.................................................. 425
Fuse box in passenger
compartment ................................ 425
Fuse box in engine compartment . 426

293 Operation
At the gas station
Coolant
For normal replenishing, use water
(potable water quality).
For more information on coolant, see
“Coolant level” (
page 300) and “Fuels,
coolants, lubricants, etc.” (
page 443).
Engine oil level
For information on engine oil, see “Engine
oil” (
page 296).Vehicle lighting
Check function and cleanliness.
For more information on vehicle lighting,
see “Replacing bulbs” (
page 393).
For information on switching on the exteri-
or lighting, see “Exterior lamp switch”
(
page 109).
Tire inflation pressure
For information on tire inflation pressure,
see “Important notes on tire inflation
pressure” (
page 313).

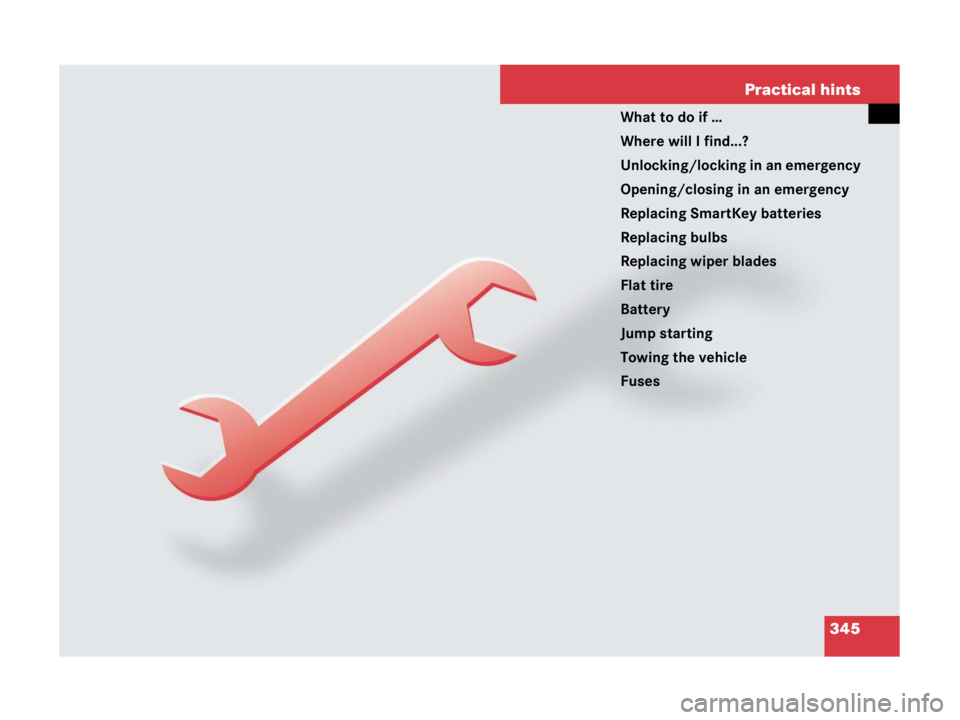

345 Practical hints
What to do if …
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

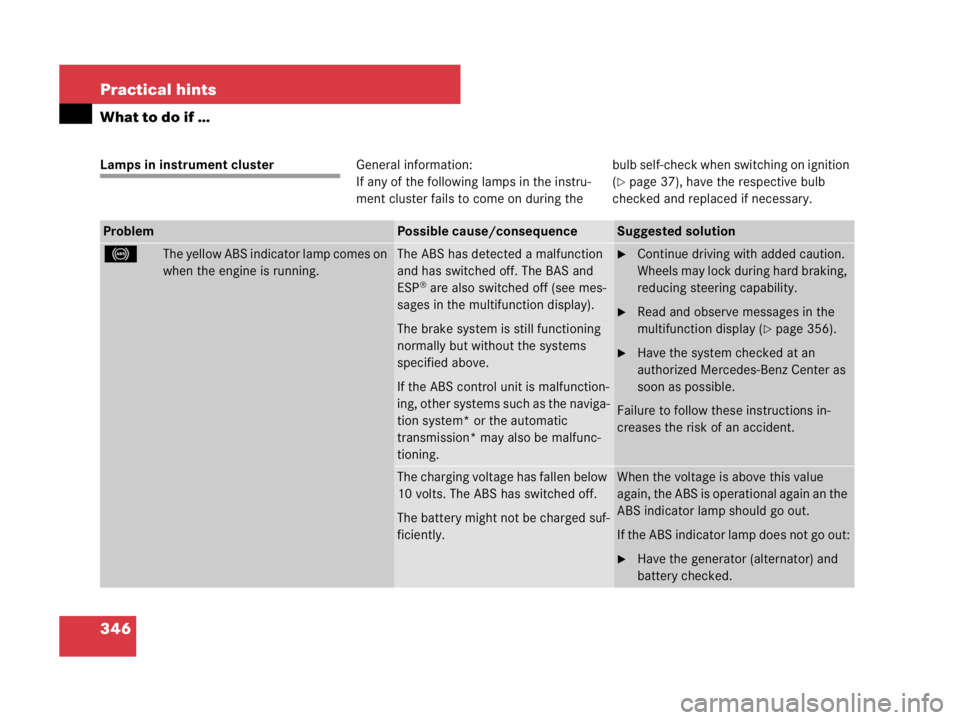

346 Practical hints
What to do if …
Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on ignition
(
page 37), have the respective bulb
checked and replaced if necessary.
ProblemPossible cause/consequenceSuggested solution
-The yellow ABS indicator lamp comes on
when the engine is running.The ABS has detected a malfunction
and has switched off. The BAS and
ESP
® are also switched off (see mes-
sages in the multifunction display).
The brake system is still functioning
normally but without the systems
specified above.
If the ABS control unit is malfunction-
ing, other systems such as the naviga-
tion system* or the automatic
transmission* may also be malfunc-
tioning.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Read and observe messages in the
multifunction display (
page 356).
Have the system checked at an
authorized Mercedes-Benz Center as
soon as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery might not be charged suf-
ficiently.When the voltage is above this value
again, the ABS is operational again an the
ABS indicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and
battery checked.

376 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
.Brake-/tail lamp
leftThe left brake lamp is malfunction-
ing. This message will only appear if
a critical number of LEDs have
stopped working.Contact an authorized Mercedes-Benz
Center as soon as possible.
Brake-/tail lamp
rightThe right brake lamp is malfunction-
ing. This message will only appear if
a critical number of LEDs have
stopped working.Contact an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp
leftThe left front fog lamp is malfunc-
tioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Front foglamp
rightThe right front foglamp is malfunc-
tioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Rear foglamp
Auxiliary bulb onThe rear fog lamp on the driver’s
side is malfunctioning. A backup
bulb has been brought into use.Replace the bulb as soon as
possible (
page 393).
High beam
leftThe left high beam lamp (halogen
headlamps)/high beam flasher
lamp (Bi-Xenon* headlamps) is
malfunctioning.Replace the bulb as soon as
possible (
page 393).

377 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
.High beam
rightThe right high beam lamp (halogen
headlamps)/high beam flasher
lamp (Bi-Xenon* headlamps) is
malfunctioning.Replace the bulb as soon as
possible (
page 393).
License plate lamp
leftThe left license plate lamp is
malfunctioning.Replace the bulb as soon as
possible (
page 393).
License plate lamp
rightThe right license plate lamp is
malfunctioning.Replace the bulb as soon as
possible (
page 393).
Reverse lamp
leftThe left backup lamp is malfunc-
tioning.Replace the bulb as soon as
possible (
page 393).
Reverse lamp
rightThe right backup lamp is malfunc-
tioning.Replace the bulb as soon as
possible (
page 393).
Low beam
leftThe left low beam lamp is malfunc-
tioning.Halogen headlamp:
Replace the bulb as soon as
possible (
page 393).
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Center as soon as possible.

378 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
.Low beam
rightThe right low beam lamp is malfunc-
tioning.Halogen headlamp:
Replace the bulb as soon as
possible (
page 393).
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp, front left
Auxiliary bulb onThe left front parking lamp is
malfunctioning. A backup bulb has
been brought into use.Replace the bulb as soon as
possible (
page 393).
Parking lamp, front right
Auxiliary bulb onThe right front parking lamp is
malfunctioning. A backup bulb has
been brought into use.Replace the bulb as soon as
possible (
page 393).
Front left
marker lampThe left front side marker lamp is
malfunctioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Front right
marker lampThe right front side marker lamp is
malfunctioning.Contact an authorized Mercedes-Benz
Center as soon as possible.
Rear left
marker lampThe left rear side marker lamp is
malfunctioning. This message will
only appear if a critical number of
LEDs have stopped working.Contact an authorized Mercedes-Benz
Center as soon as possible.

379 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
.Rear right
marker lampThe right rear side marker lamp is
malfunctioning. This message will
only appear if a critical number of
LEDs have stopped working.Contact an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp, left
Auxiliary bulb onThe left tail lamp is malfunctioning.
This message will only appear if a
critical number of LEDs have
stopped working. A backup bulb
has been brought into use.Contact an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp, right
Auxiliary bulb onThe right tail lamp is malfunction-
ing. This message will only appear if
a critical number of LEDs have
stopped working. A backup bulb
has been brought into use.Contact an authorized Mercedes-Benz
Center as soon as possible.
Turn off
lightsYou have removed the SmartKey
from the starter switch, opened the
driver’s door and left the headlamps
on.Switch off the headlamps (page 61).
Turn off lights or
remove keyThe exterior lamp switch is set to
positionU, and you have forgot-
ten to remove the SmartKey from
the starter switch. The parking
lamps remain switched on.Switch off the headlamps (page 61).
or
Remove the SmartKey from the starter
switch.
