2007 MERCEDES-BENZ S CLASS navigation

86 Control systemsCOMAND introductionEntering charactersIllustration: entering a navigation destina-
tionSelecting characters
Slide omp or rotate ymz.

Confirming selection: Press n.
COMAND completes your entry as
soon as it can be clearly identified. In
this case, you do not need to switch to
the list.Deleting individual characters

Select and press ) repeatedly in the
bottom line.
Deleting entire words or numbers

Press and hold ) in the bottom line
until the word or number is deleted.
Exiting character entry

Select and press “Back” in the bottom
line.
or

Press back button L in the center
console (
page 80).
Switching to the list

Slide qm.
or

Select and press ? in the second line
from the bottom.

To exit list, slide om to select “Back”.Accepting first entry

Press nuntil you exit the character
entry window.
Selecting list item
Illustration: list of towns and cities for navi-
gation1Symbol for other selection options
(e.g. county)
Selecting a line: Slide rmq or
rotateymz.

89 Control systems
COMAND introduction
Main menus of COMAND
Sound
Muting: Press the F shortcut but-
ton in the center console (
page 80).
The sound of the current audio source
is switched on or is muted.Switching off navigation announce-
ments entirely

Canceling navigation message:
Briefly press F shortcut button dur-
ing an announcement.

Switching off navigation messages:
Press and hold F during an an-
nouncement until the announcement is
switched off.
You will see the message “The driving
instructions have been muted.” for a
short while.Adjusting volume
1Thumbwheel

Adjusting: Turn, thumbwheel.
The volume of the currently selected
audio source changes.
i
The components and operating principles of
COMAND can be found on (
page 79).
i
When the sound is muted, you will see the
symbol
F
in the status line. When you
change the audio source, the sound is automati-
cally switched on. You will be able to hear an-
nouncements from the navigation system even
when the sound is muted.
i
The announcements remain switched off
even if you start a new route guidance or if
COMAND is switched off/on with theo but-
ton.
If you switch COMAND off by removing the
SmartKey from the starter switch and then
switch the ignition back on after more than
3 minutes, the announcements are automatical-
ly switched back on.

90 Control systemsCOMAND introductionVolume of navigation announcements
You can adjust the volume of the naviga-
tion announcements independently from
the volume of the respective audio source.
During a navigation announcement:
turn thumbwheel,
or

pressæ or ç on the multifunc-
tion steering wheel.
Adjusting volume for telephone calls
In hands-free mode, you can adjust the vol-
ume of a telephone call while the call is
currently active.
During a telephone call:

turn thumbwheel,
or

pressæ or ç on the multifunc-
tion steering wheel.Selecting sound settings
You can select different sound settings for
each individual audio source. The respec-
tive sound menu can be found via the sub-
menu for which you wish to make settings.
Example:
“Audio”
“Audio”
“FM/AM Radio”

“Sound” Adjusting treble or bass

Select “Sound”
“Treble” or “Bass”.
The setting last selected is indicated by
an outlined bar.
Adjusting treble and bass1Setting last selected
2Current setting
Changing setting: Slide rmq or
rotateymz until desired treble or bass
setting is reached.

Exiting menu: Press n, L or
Slideomp.
The setting is saved.

139 Control systems
COMAND telephone*

Proceed as described in the “Selecting
a number category” paragraph in the
“Adding a telephone number to an ex-
isting address book entry” section
(page 135).
Exiting the SMS inbox

Select “Back”.
The main telephone menu appears.
Reading an SMS message

In the SMS inbox, select an SMS mes-
sage and press n.
The SMS message appears.Using data in a text message

Selecting data from the text:
Rotateymz or slide qmr.

Using data: Press n
“Use”.
If you have selected a telephone num-
ber, the telephone connects the call.
If you have selected a navigable ad-
dress, it is transferred to the navigation
system.
Calling an SMS sender

Press n
“Call”.
The telephone connects the call.Saving SMS sender as new address book
entry

Press n
“Save Number”
“New
Entry”.

Proceed as described in the “Selecting
a number category” paragraph in the
“Saving SMS sender as new address
book entry” section (
page 138).
Adding an SMS sender’s telephone num-
ber to an existing address book entry

Press n
“Save Number”
“Add”.

Proceed as described in the “Selecting
a number category” paragraph in the
“Adding a telephone number to an ex-
isting address book entry” section
(page 135).
Closing an SMS message and returning
to SMS inbox

Press n
“Back”.
i
If the SMS message contains telephone
numbers or navigable address data, you can se-
lect this data and place a telephone call or trans-
fer the address data to the navigation system.
i
This function is not possible with all SMS
senders.
i
This function is not possible with all SMS
senders.

140 Control systemsCOMAND navigation (introduction)Safety precautions
Map software
The digital maps generated by the map
software become outdated in the same
way as conventional road maps. Optimum
route guidance can only be provided by the
navigation system in conjunction with the
most up-to-date map software.
Information about new map software ver-
sions can be obtained from an authorized
Mercedes-Benz Center.
Warning!
G
For safety reasons, only enter a destination
when the vehicle is stationary. When the ve-
hicle is in motion, a passenger should enter
the destination. Study manual and select
route before driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
COMAND calculates the route to the desti-
nation without taking account of the follow-
ing, for example:

Traffic lights


Stop and right-of-way signs


Parking or stopping prohibited areas


Lane merging


Other road and traffic rules and regula-
tions


Narrow bridges
COMAND may give incorrect navigation
commands if the data in the digital map
does not correspond with the actual
road/traffic situation. DVD maps do not
cover all areas nor all routes within an area.
For example, if the traffic routing has been
changed or the direction of a one-way road
has been reversed.
For this reason, you must always observe
applicable road and traffic rules and regula-
tions during your journey. Road and traffic
rules and regulations always have priority
over the navigation commands generated by
the system.
Warning!
G
Navigation announcements are intended to
direct you while driving without diverting
your attention from the road and driving.
Please always use this feature instead of
consulting the map display for directions.
Consulting the symbols or map display for
directions may cause you to divert your at-
tention from driving and increase your risk
of an accident.

141 Control systems
COMAND navigation (introduction)
Updating the map software
You can update the map software yourself
using a DVD.
Notes about handling DVDs

Only hold discs by the edge.


Handle discs carefully to prevent read
problems.


Avoid getting scratches, fingerprints
and dust on discs.


Use a commercially-available cleaning
cloth to clean discs. Do not wipe them
with a circular motion, but only in
straight lines from the center out-
wards.


Place discs back in their boxes after
use.


Protect discs from heat and direct sun-
light.
Updating process
The updating process has the following
phases:

Loading a DVD into the DVD changer
(page 142)


Updating process (
page 142)
i
The updating process can take between 10
and 60 minutes, depending on the size of the
map software. If the radio was switched on be-
fore you started the updating process, you can
still adjust the volume. You can also use
COMAND to operate the automatic air condition-
ing and to cancel the process. Other functions
are not operational.
If possible, carry out the update when the vehicle
is stationary.
i
If you carry out the update with the engine
switched off and the vehicle battery has insuffi-
cient power, COMAND may automatically switch
off during the process in order to protect the bat-
tery. If this occurs, restart the update with the
engine running period. Similarly, if the SmartKey
position is unintentionally switched to 0, restart
the update.Warning!
G
Never leave the engine running in an en-
closed space. The exhaust gases contain
carbon monoxide. Inhaling exhaust gases
constitutes a health hazard and could lead
to loss of consciousness or even death.

142 Control systemsCOMAND navigation (introduction)Loading a DVD into the DVD changer
1Disc slot
2Magazine tray buttons 1 – 6
Switch on COMAND (
page 79).

Press one of the magazine tray
buttons2.
If a disc is loaded, it will be ejected.

Take disc out of slot 1.

Wait until LED for magazine button 2
which you pressed flashes quickly.

Slide DVD into slot 1 with printed side
facing upwards.
COMAND loads the DVD.
Updating
After you have loaded the DVD, you will
see a message to the effect that the disc
does not contain a recognizable audio for-
mat.
Confirming message: Press n.
COMAND checks whether the map
software on the DVD is compatible with
the vehicle’s navigation system and
whether it is compatible with the cur-
rent system software.Map software is compatible with the
navigation system and the current sys-
tem software
COMAND now checks whether the map
data on the DVD is already installed.
Map data is not yet installed
You will see a comparison of the version
statuses in the display and a prompt will
appear asking whether you want to contin-
ue with the update.

Select “Yes” or “No”.
If you select “No”, COMAND automati-
cally ejects the DVD and the map data
is not updated.
Take DVD out of the slot.
If you select “Yes”, the map data is up-
dated.
i
Each magazine tray button 2 indicates the
status of the corresponding magazine tray by
means of an LED.


LED off = magazine tray is empty


LED constantly lit = magazine tray is loaded


LED flashes = CD/DVD changer requesting
disc to be loaded

143 Control systems
COMAND navigation (introduction)
Map data is already installed
You will see a message that the map data
is already installed and a prompt will ap-
pear asking you whether you want to con-
tinue with the update.
Select “Yes” or “No”.
If you select “No”, COMAND automati-
cally ejects the DVD and the map data
is not updated.
Take DVD out of slot.
If you select “Yes”, the existing map
data is saved again.

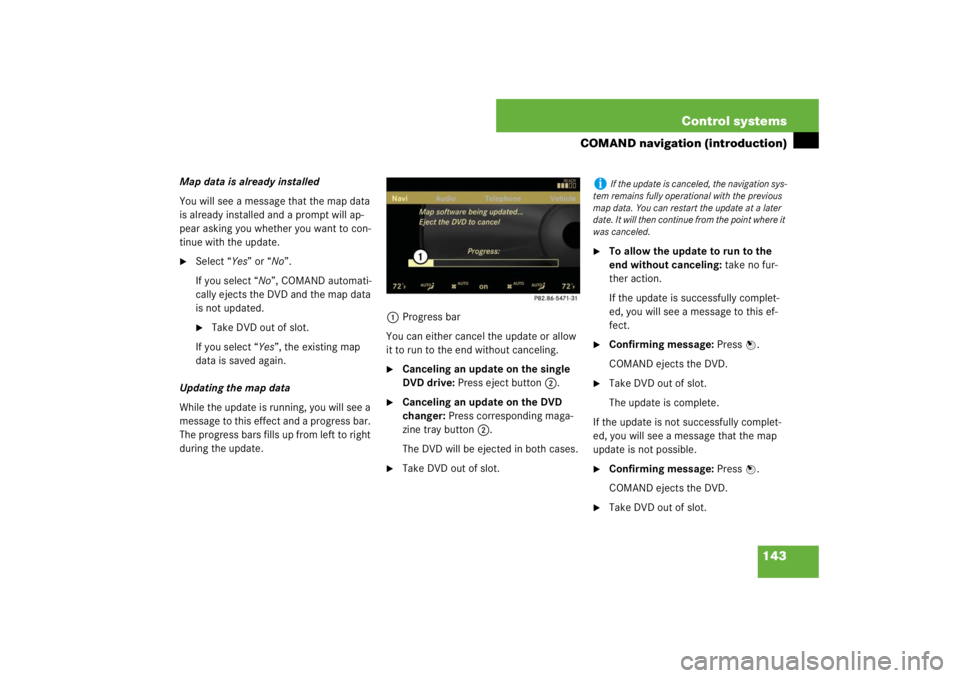

Updating the map data
While the update is running, you will see a
message to this effect and a progress bar.
The progress bars fills up from left to right
during the update.1Progress bar
You can either cancel the update or allow
it to run to the end without canceling.

Canceling an update on the single
DVD drive: Press eject button 2.

Canceling an update on the DVD
changer: Press corresponding maga-
zine tray button 2.
The DVD will be ejected in both cases.

Take DVD out of slot.

To allow the update to run to the
end without canceling: take no fur-
ther action.
If the update is successfully complet-
ed, you will see a message to this ef-
fect.

Confirming message: Press n.
COMAND ejects the DVD.

Take DVD out of slot.
The update is complete.
If the update is not successfully complet-
ed, you will see a message that the map
update is not possible.

Confirming message: Press n.
COMAND ejects the DVD.

Take DVD out of slot.
i
If the update is canceled, the navigation sys-
tem remains fully operational with the previous
map data. You can restart the update at a later
date. It will then continue from the point where it
was canceled.
