2007 MERCEDES-BENZ S CLASS engine coolant

433 Controls in detail
Automatic climate control
Residual engine heat and ventilation
With the engine switched off, it is possible
to continue to heat or ventilate the interior.
This feature makes use of the residual heat
produced by the engine.Activating

Switch off the ignition (
page 315).

Press buttonT (
page 426) up or
down.
The indicator lamp on the button
comes on.
Deactivating

Press buttonT (
page 426) up or
down.
The indicator lamp on the button goes
out.Front passenger compartment adjust-
able air vents
Opening/closing the air vents:
Turn thumbwheels 3, 5, 6 and 8
(page 425).
i
If you switch on the residual heat function
when outside temperatures are high, only the
ventilation will be switched on.
i
Regardless of the selected air volume, the
blower operates at low speed when heating. In
case of ventilation the blower operates at higher
speed.
i
How long the system will provide heating de-
pends on


the coolant temperature


the temperature set by the operator
i
The residual heat is automatically turned off:


when the ignition is switched on


after approximately 30 minutes


if the battery voltage drops


if the coolant temperature is too low

488 OperationDriving instructionsEmission control
Certain systems of the engine serve to
keep the toxic components of the exhaust
gases within permissible limits required by
law.
These systems, of course, will function
properly only when maintained strictly ac-
cording to factory specifications. Any ad-
justments on the engine should, therefore,
be carried out only by qualified
Mercedes-Benz Center authorized techni-
cians.
Engine adjustments should not be altered
in any way. The specified service jobs must
be carried out regularly according to
Mercedes-Benz servicing requirements.
For details please refer to the Maintenance
Booklet.
Coolant temperature
During severe operating conditions,
e.g. stop-and-go traffic, the coolant tem-
perature may rise close to approximately
248°F (120°C).The engine should not be operated with
the coolant temperature over 248°F
(120°C). Doing so may cause serious en-
gine damage which is not covered by the
Mercedes-Benz Limited Warranty.Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open at all times.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids, which
may have leaked into the engine com-
partment, to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the hood. Stay away from
the engine if you see or hear steam com-
ing from it.
Stop the vehicle in a safe location away from
other traffic. Turn off the engine, get out of
the vehicle and do not stand near the vehicle
until the engine has cooled down.

490 OperationAt the gas station
Take off fuel filler cap and set it in di-
rection of arrow 2 in the recess on the
inside of fuel filler flap 4.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or over-
fill.

Replace fuel cap by turning it clockwise
until it audibly engages.

Close the fuel filler flap.
Check regularly and before a long tripExample illustration from S 5501Coolant level
2Brake fluid
3Windshield washer and headlamp
cleaning system
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.
i
Only use premium unleaded gasoline with a
minimum Posted Octane Rating of 91 (average of
96 RON/86 MON).
Information on gasoline quality can normally be
found on the fuel pump.
More information on gasoline can be found in the
Factory Approved Service Products pamphlet.
i
Leaving the engine running and the fuel cap
open can cause the yellow engine malfunction
indicator lamp ± to illuminate.
For more information, see the “Practical hints”
section (
page 547).
i
Opening the hood (
page 492).


491 Operation
At the gas station
Windshield washer system and head-
lamp cleaning system
For more information on refilling the wash-
er reservoir, see “Windshield washer sys-
tem and headlamp cleaning system”
(page 498).
Coolant
For more information on coolant, see
“Coolant level” (
page 497) and see “Fu-
els, coolants, lubricants, etc.”
(
page 661).Brake fluid
For information on brake fluid, see “Brake
fluid” (
page 663)
Engine oil level
For more information on engine oil, see
“Engine oil” (
page 494).Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 621).
For more information, see “Lighting”
(
page 342).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(page 511).
!
If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Center immediately.
Do not add brake fluid as this will not solve the
problem. For more information, see “Practical
hints” (page 545).

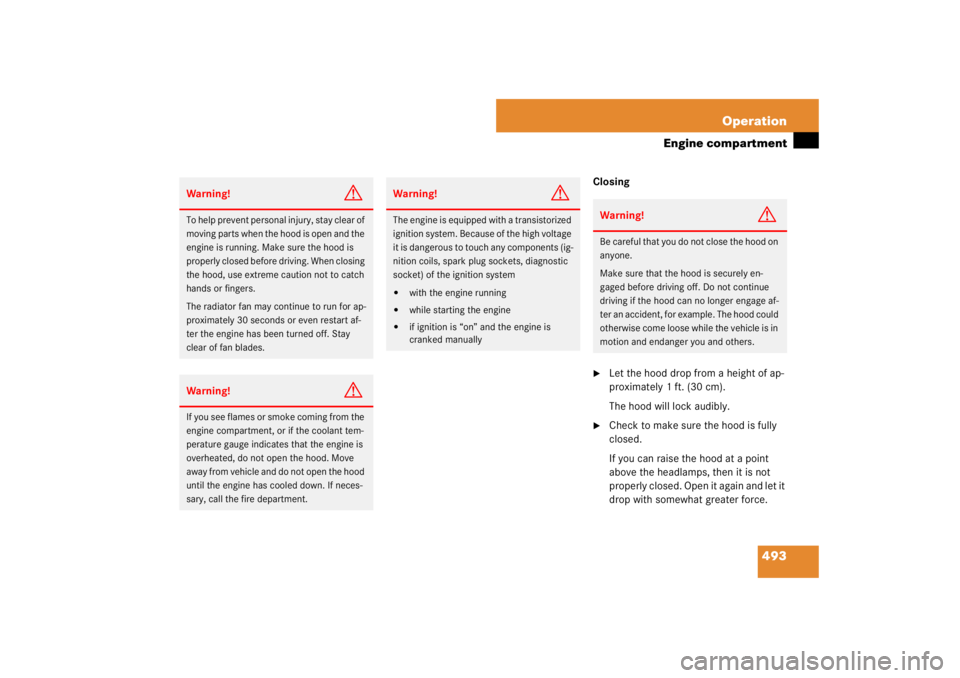

493 Operation
Engine compartment
Closing
Let the hood drop from a height of ap-
proximately 1 ft. (30 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled down. If neces-
sary, call the fire department.
Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
cranked manually
Warning!
G
Be careful that you do not close the hood on
anyone.
Make sure that the hood is securely en-
gaged before driving off. Do not continue
driving if the hood can no longer engage af-
ter an accident, for example. The hood could
otherwise come loose while the vehicle is in
motion and endanger you and others.

497 Operation
Engine compartment
Example illustration from S 5501Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap1 back on filler neck.For more information on engine, see the
“Technical data” section (
page 661) and
(
page 663).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.Active Body Control* (ABC*) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC-system.
Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
!
Excess oil must be siphoned or drained off.
It will cause damage to the engine and catalytic
converter not covered by the Mercedes-Benz
Limited Warranty.
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


498 OperationEngine compartmentThe coolant expansion tank is located on
the passenger side of the engine compart-
ment.Example illustration from S 5501Cap
2Coolant expansion tank

Using a rag, turn cap1 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.

Continue turning the cap counterclock-
wise and remove it.
The coolant level is correct if the level


for cold coolant: reaches the white
marking (plastic bridge) inside the cool-
ant expansion tank


for warm coolant: is approximately
0.6 in (1.5 cm) higher

Add coolant as required.

Replace and tighten cap1.
For more information on coolant, see the
“Technical data” section (
page 665). Windshield washer system and
headlamp cleaning system
The washer fluid reservoir is located on the
left-hand side of the engine compartment
when looking in the direction of travel. It
supplies the windshield washer system
and headlamp cleaning system* with
washer fluid.S 550 with Airmatic1Cap


Using a rag, slowly open the cap approx-
imately
1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.

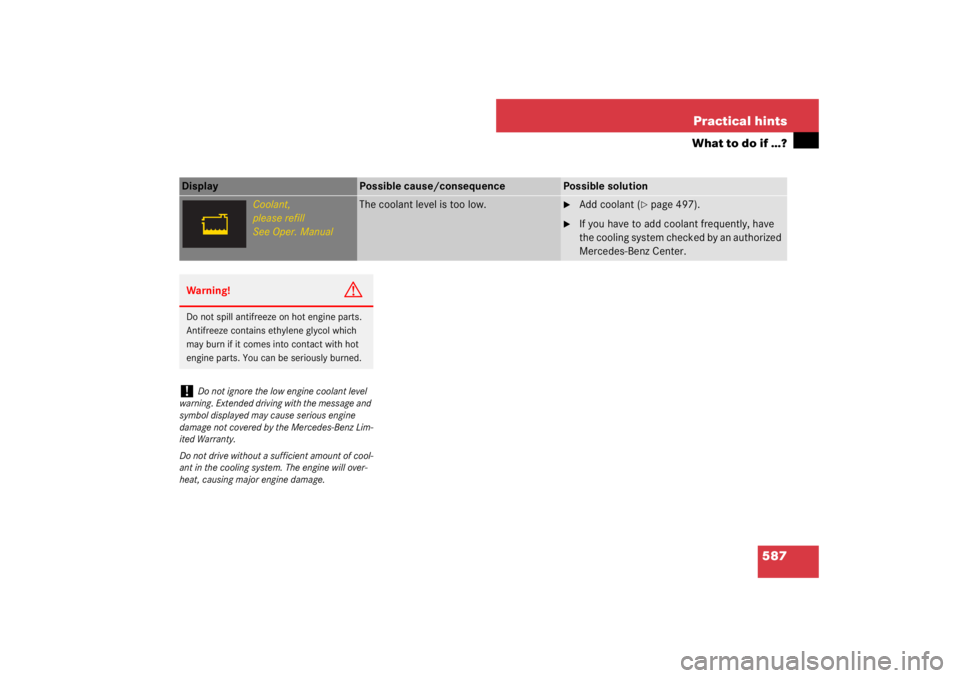

587 Practical hints
What to do if …?
Display
Possible cause/consequence
Possible solution
Coolant,
please refill
See Oper. Manual
The coolant level is too low.

Add coolant (
page 497).

If you have to add coolant frequently, have
the cooling system checked by an authorized
Mercedes-Benz Center.
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You can be seriously burned.!
Do not ignore the low engine coolant level
warning. Extended driving with the message and
symbol displayed may cause serious engine
damage not covered by the Mercedes-Benz Lim-
ited Warranty.
Do not drive without a sufficient amount of cool-
ant in the cooling system. The engine will over-
heat, causing major engine damage.
