60 Getting started
Driving
Diesel engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P.
Depress the brake pedal during the
starting procedure.
Do not depress the accelerator.
Press KEYLESS-GO start / stop
button1 once.
The engine preglows and starts if the
SmartKey with KEYLESS-GO is in the
vehicle.Starting difficulties
If the engine does not start as described,
carry out the following steps:
If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.
If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better
detection of the SmartKey with
KEYLESS-GO*.
Or:
Remove KEYLESS-GO* start/stop
button from starter switch (
page 43).
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO*.
Repeat the starting procedure
(
page 57). Remember that extended
starting attempts can drain the battery.
Get a jump start (page 538).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Contact an authorized Mercedes-Benz
Light Truck Center or call Roadside
Assistance.
Parking brake
1Parking brake pedal
2Release handle
iIf the engine is at operating temperature,
the time the engine needs to preglow is reduced.

71 Getting started
Parking and locking
Releasing seat belts
Press the seat belt release button
(
page 56).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Locking
Exit the vehicle and close all doors and
the tailgate.
!Make sure the seat belt retracts fully so that
the seat belt and/or latch plate cannot get
caught or pinched in the door or in the seat
mechanism. This can damage the seat belt and
impair the effectiveness of the seat belt, and/or
cause damage to the door and/or door trim
panel. Such damage is not covered by the
Mercedes-Benz Limited Warranty.
Damaged seat belts must be replaced. Contact
an authorized Mercedes-Benz Light Truck
Center.
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you, and
lock your vehicle. Do not leave children un-
attended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
iIf you hear a warning signal you have
forgotten to switch off the headlamps before
opening the driver’s door.
In addition the message
Switch off lights
appears in the multifunction display.
Switch off the headlamps.
!Failure to switch off the headlamps when
leaving the vehicle may result in a discharged
battery.

145 Controls in detail
Lighting
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 62)
and “Turn signals” (
page 63).

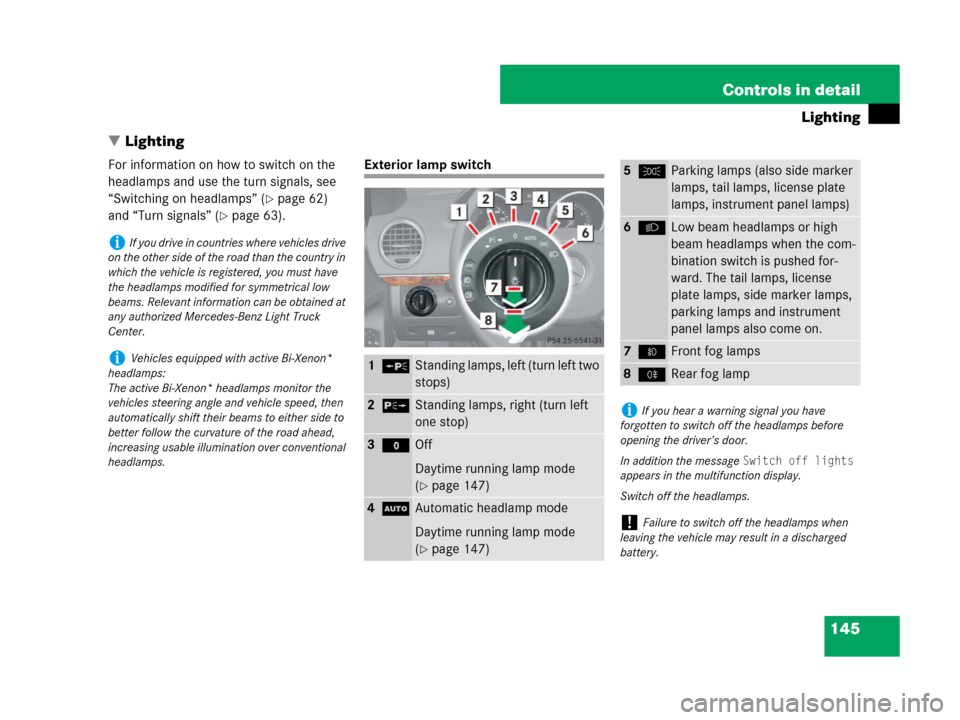

Exterior lamp switch
iIf you drive in countries where vehicles drive
on the other side of the road than the country in
which the vehicle is registered, you must have
the headlamps modified for symmetrical low
beams. Relevant information can be obtained at
any authorized Mercedes-Benz Light Truck
Center.
iVehicles equipped with active Bi-Xenon*
headlamps:
The active Bi-Xenon* headlamps monitor the
vehicles steering angle and vehicle speed, then
automatically shift their beams to either side to
better follow the curvature of the road ahead,
increasing usable illumination over conventional
headlamps.1‚Standing lamps, left (turn left two
stops)
2ˆStanding lamps, right (turn left
one stop)
3MOff
Daytime running lamp mode
(
page 147)
4UAutomatic headlamp mode
Daytime running lamp mode
(
page 147)
5CParking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
6BLow beam headlamps or high
beam headlamps when the com-
bination switch is pushed for-
ward. The tail lamps, license
plate lamps, side marker lamps,
parking lamps and instrument
panel lamps also come on.
7‡Front fog lamps
8†Rear fog lamp
iIf you hear a warning signal you have
forgotten to switch off the headlamps before
opening the driver’s door.
In addition the message
Switch off lights
appears in the multifunction display.
Switch off the headlamps.
!Failure to switch off the headlamps when
leaving the vehicle may result in a discharged
battery.

330 Controls in detail
Useful features
Please contact an authorized
Mercedes-Benz Light Truck Center for
information on features available for your
mobile phone of choice.
The cradle is located in the front center
armrest.
Open telephone tray (page 318).
Inserting mobile phone in mobile phone
cradle
Once the mobile phone has been inserted
in the mobile phone cradle, you have to
use the hands-free device to respond dur-
ing phone calls.
If applicable, remove the cover for the
external antenna connection from the
back of the mobile phone and store it in
a s a f e p l a c e . B e s u r e t o c o m p l y w i t h t h e
mobile phone’s operating instructions
as well.

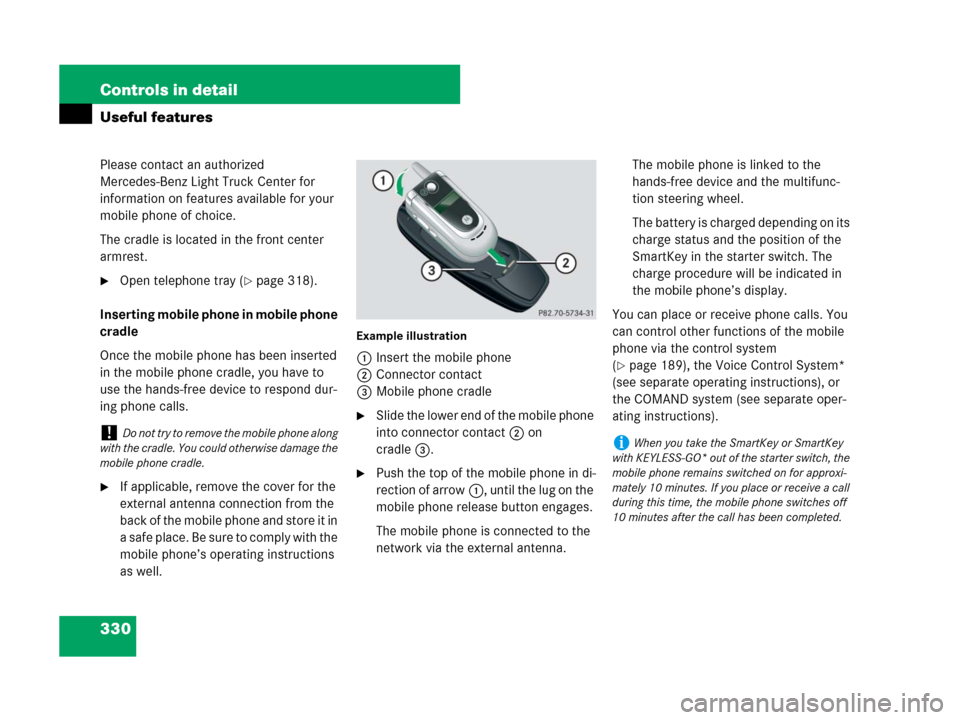

Example illustration
1Insert the mobile phone
2Connector contact
3Mobile phone cradle
Slide the lower end of the mobile phone
into connector contact2 on
cradle3.
Push the top of the mobile phone in di-
rection of arrow1, until the lug on the
mobile phone release button engages.
The mobile phone is connected to the
network via the external antenna.The mobile phone is linked to the
hands-free device and the multifunc-
tion steering wheel.
The battery is charged depending on its
charge status and the position of the
SmartKey in the starter switch. The
charge procedure will be indicated in
the mobile phone’s display.
You can place or receive phone calls. You
can control other functions of the mobile
phone via the control system
(
page 189), the Voice Control System*
(see separate operating instructions), or
the COMAND system (see separate oper-
ating instructions).
!Do not try to remove the mobile phone along
with the cradle. You could otherwise damage the
mobile phone cradle.iWhen you take the SmartKey or SmartKey
with KEYLESS-GO* out of the starter switch, the
mobile phone remains switched on for approxi-
mately 10 minutes. If you place or receive a call
during this time, the mobile phone switches off
10 minutes after the call has been completed.

424 Operation
Maintenance
Calling up the maintenance service
indicator display
You can call up the maintenance service in-
dicator display at any time to check when
the next maintenance service is due.
Switch on the ignition (page 42).
Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display appears in
the multifunction display (
page 164).
Press buttonk orj until the
maintenance service indicator display
with the service symbol9 and the
service deadline appears in the multi-
function display.Resetting the maintenance service
indicator
In the event that the maintenance service
on your vehicle is not carried out by an
authorized Mercedes-Benz Light Truck
Center, you can have the maintenance
service indicator reset. The automotive
maintenance facility carrying out the
maintenance service will find the informa-
tion for resetting the maintenance service
indicator in the maintenance-relevant
information for your vehicle. Such informa-
tion is available from either your
authorized Mercedes-Benz Light Truck
Center or directly from Mercedes-Benz.
iIf the battery is disconnected, the days of
disconnection will not be included in the count
shown by the maintenance service indicator.To arrive at the true maintenance service dead-
line, you will need to subtract these days from
the days shown in the maintenance service indi-
cator message or maintenance service indicator
display.
Do not confuse the maintenance service indica-
tor with the engine oil level indicatorN.
!If the maintenance service indicator was
inadvertently reset, have an authorized
Mercedes-Benz Light Truck Center correct it.
Only reset if the proper maintenance service has
been performed. Resetting the system without
performing the proper service as called for by
the maintenance service indicator will result in
engine damage and/or other vehicle damage not
covered by the Mercedes-Benz Limited
Warranty.

436 Practical hints
What to do if …
Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on the
ignition, have the respective bulb checked
and replaced if necessary.

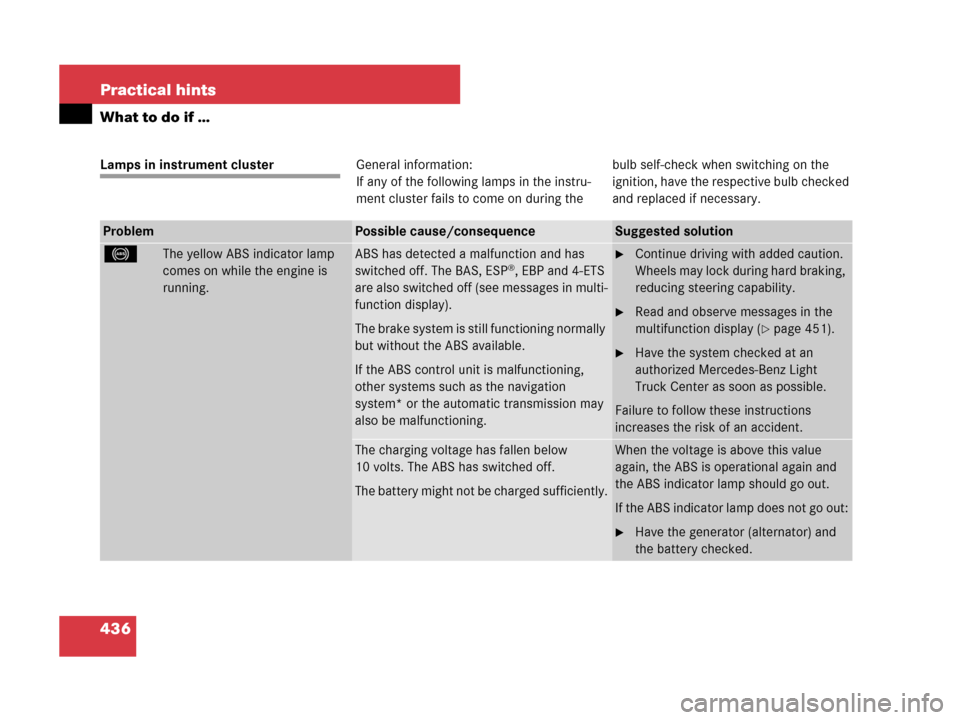

ProblemPossible cause/consequenceSuggested solution
-The yellow ABS indicator lamp
comes on while the engine is
running.ABS has detected a malfunction and has
switched off. The BAS, ESP®, EBP and 4-ETS
are also switched off (see messages in multi-
function display).
The brake system is still functioning normally
but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as the navigation
system* or the automatic transmission may
also be malfunctioning.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Read and observe messages in the
multifunction display (
page 451).
Have the system checked at an
authorized Mercedes-Benz Light
Truck Center as soon as possible.
Failure to follow these instructions
increases the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery might not be charged sufficiently.When the voltage is above this value
again, the ABS is operational again and
the ABS indicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and
the battery checked.

453 Practical hints
What to do if …
Text messages

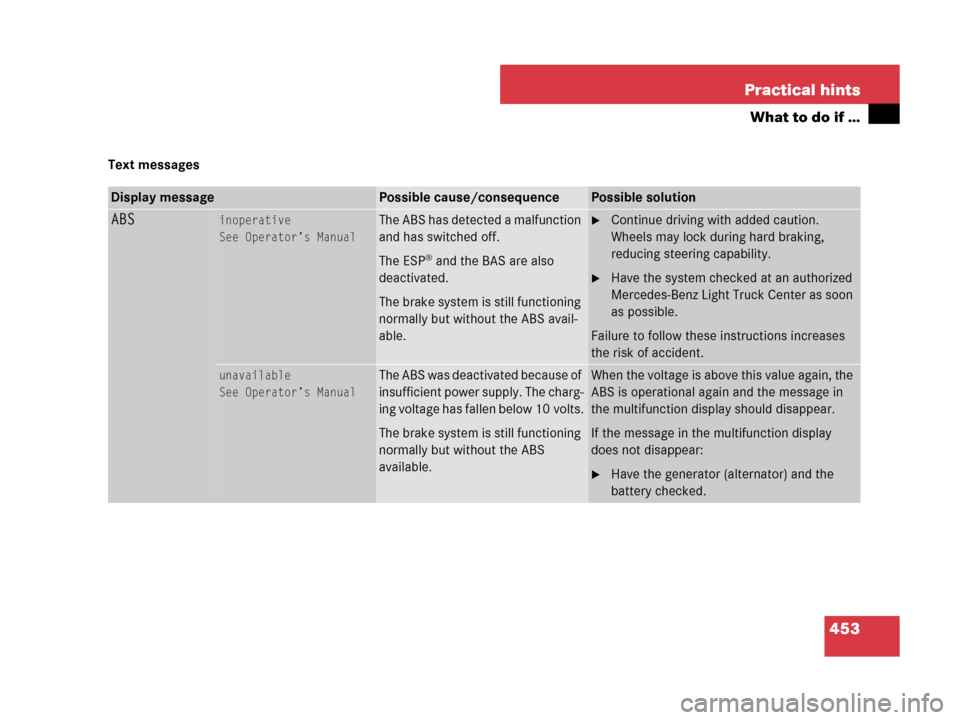

Display messagePossible cause/consequencePossible solution
ABSinoperative
See Operator’s ManualThe ABS has detected a malfunction
and has switched off.
The ESP
® and the BAS are also
deactivated.
The brake system is still functioning
normally but without the ABS avail-
able.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Have the system checked at an authorized
Mercedes-Benz Light Truck Center as soon
as possible.
Failure to follow these instructions increases
the risk of accident.
unavailable
See Operator’s ManualThe ABS was deactivated because of
insufficient power supply. The charg-
ing voltage has fallen below 10 volts.
The brake system is still functioning
normally but without the ABS
available.When the voltage is above this value again, the
ABS is operational again and the message in
the multifunction display should disappear.
If the message in the multifunction display
does not disappear:
Have the generator (alternator) and the
battery checked.

468 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
Tire pressure monitor
inoperativeThe TPMS or Advanced TPMS* is
malfunctioning.Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Tire pressure monitor
inoperative
No wheel sensorsThere are wheels without appropriate wheel
sensors mounted (e.g. winter tires).Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Tire pressure monitor
Wheel sensor missingOne or more sensors defect (e.g. battery is
empty).
One or more wheels without appropriate
wheel sensors mounted (e.g. spare tire).Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Vehicles with Advanced TPMS*:
The tire pressure for the respective tire is shown in
the multifunction display.
Tire pressure monitor
currently
unavailableThe TPMS or Advanced TPMS* is unable to
monitor the tire pressure due to

a nearby radio interference source.

excessive wheel sensor temperatures.
As soon as the causes of the malfunction have been
removed, the TPMS or Advanced TPMS* automati-
cally becomes active again after a few minutes driv-
ing.
