2007 MERCEDES-BENZ G-Class display

121 Navigation*
Destination input
or
Press the List soft key.
The street list will appear. You can now
select a street.
Selecting a street
Select street list
Push the joystick to g or G to
select a street.
Available soft keys:
Press the Details soft key to see all
information about the street entry.
Use the Page V and Page v soft keys
to display the next or previous page.
Press the Back s o f t k e y t o r e t u r n t o t h e
previous menu.
Confirming a street (list)
Press E to confirm your selection.
The Enter house number menu will
appear.Entering a house number
Enter house number menu
The first line shows the available house
number range.
i
You can enter an intersection instead
of the house number. You cannot enter
both.

123 Navigation*
Destination input
The Start route guidance menu
(
page 135) will appear, if the entered
address information (street name and
house number) is unique in the
selected state or province.
or
The Ent er cit y menu will a ppear if more
than 7 cities share the entered address
information (street name and house
number).
Confirming a city
Select city list
Push the joystick to g or G to
select a city.
Available soft keys:
Press the Details soft key to see all
information about the city entry.
Use the Page V and Page v soft keys
to display the next or previous page (if
available).
Press the Back s o f t k e y t o r e t u r n t o t h e
previous menu.
Press E to confirm your selection.
The Start route guidance menu
(
page 135) will appear.
Entering a cross street
You can enter a cross street with the
previously entered street.
In the Enter house number menu
(
page 121), press the Cross st
soft key.
Push the joystick to h, H, g or
G to select the characters. After each
selection, press E.
Push the joystick to F or f to
select characters diagonally.
or
Press one of the number keys 1 to
9 and 0.
i
The status bar shows the number of
current matches.

124 Navigation*
Destination input
Press the Delete soft key if
necessary.
The character last entered is deleted.
Back to the previous menu
Press the Back soft key.Confirming a cross street (menu)
Press E longer than 2 seconds to
confirm your entry.
or
Select the ( symbol. Push the
joystick to h, H, g or G to do
so.
Press E.
or
Press the List soft key.
The Select cross street list will appear.
You can now select a street.Selecting a cross streetPush the joystick to g or G to
select a city.
Available soft keys:
Press the Details soft key to see all
information about the street entry.
Use the Page V and Page v soft keys
to display the next or previous page.
Press the Back soft key to return to the
previous menu.
i
For quicker input, COMAND offers
available characters from the character
set based on your selections and the
names of the streets stored on the
navigation DVD. The character
selected appears magnified.
Greyed out characters are not available
and cannot be selected.

127 Navigation*
Destination input
or
Press the List soft key.
The city list will appear. You can now
select a city.
Selecting a city
Push the joystick to g or G to
select a city.Available soft keys:
Press the Details soft key to see all
information about the city entry.
Use the Page V and Page v soft keys
to display the next or previous page.
Press the Back s o f t k e y t o r e t u r n t o t h e
previous menu.
Press E to confirm your selection.
The Enter street menu will appear. You
can now enter a street.Enter parking
The Start route guidance menu will appear
after entering a destination address.
Here you can select parking nearby.
Start route guidance menu
Press the Parking soft key.
The Parking lot selection map is
displayed.
or
The message
No parking near the
destination
will appear.

128 Navigation*
Destination input

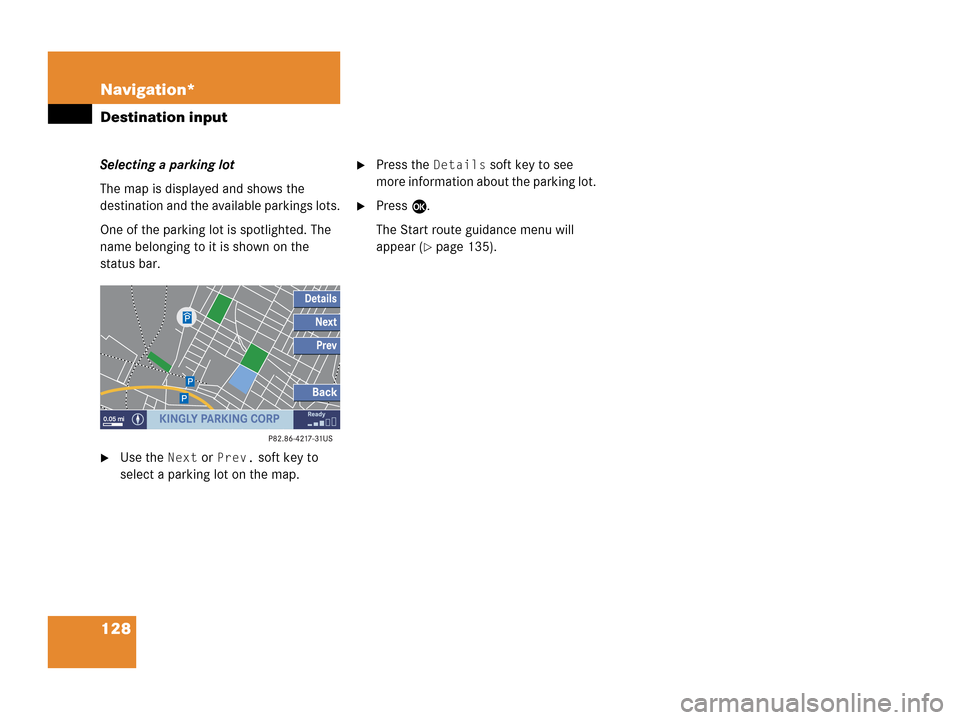

Selecting a parking lot
The map is displayed and shows the
destination and the available parkings lots.
One of the parking lot is spotlighted. The
name belonging to it is shown on the
status bar.
Use the Next or Prev. soft key to
select a parking lot on the map.
Press the Details soft key to see
more information about the parking lot.
Press E.
The Start route guidance menu will
appear (
page 135).

129 Navigation*
Destination input
Selecting a destination using the map
Press c.
Push the joystick to H, h, g, G,
F, f.
or
Press the Map soft key, e.g. in the Start
route guidance menu (
page 135).
The map is shown in full view and
cross-hairs appear.If soft key displays are hidden:
Press any soft key.
The soft key displays will appear.Available soft keys
POIs soft key:
Spotlight a POI if POIs are on the map
(
page 166).
Memory soft key:
Set a memory point and saved it in the
Last destinations memory
(
page 117).
i
Select a destination using the map
when vehicle is stationary. If you
choose to confirm a selected
destination by pressing E while the
vehicle is in motion, the message
It
is not possible to set a
destination via map during
driving
will appear in the display.
i
The system automatically places the
cross-hairs on the current destination
address.
i
c was pressed:
If no soft key is selected within approx.
8 seconds, the soft key display will
disappear again.
i
The POIs, Memory and Display soft
keys are available if the
Map soft key
was pressed.

130 Navigation*
Destination input
Display soft key:
The Map view display will appear.
(
page 153).
Soft key +:
Enlarge visible map section.
Soft key ):
Reduce visible map section.
Back soft key:
Returns you to the previous menu.
Push the joystick to H, h, g, G
to move the cross-hairs.
Push the joystick to F or f to move
the cross-hairs diagonally.This allows you to select your destination.
Release the button.
If the system is able to assign a street
name to the selected location, it is
displayed on the status bar.
If a street name can not be assigned,
COMAND increases the zoom by one
increment each time E is pressed
until a street name can be selected.
Press E.
The system uses the point at the center
of the cross-hairs as destination.
The Start route guidance menu will
appear (
page 135).
i
If you press the Back soft key, your
selection will be discarded. The system
then uses the data of the previous
destination.
i
If a POI is close to the center of the
cross-hairs, a selection list will appear.
You can now select between a POI and
the address destination.

132 Navigation*
Destination input
selecting a destination from the Last
destinations memory (
page 159)
selecting a Point of Interest
(
page 163)
entering a POI by phone number
(
page 167)
selecting a destination from the
Today’s plan memory (
page 169)After entering the address the screen may
look as follows
Press E.
The home address is saved.
The Start route guidance menu will
appear (
page 135).If your vehicle is equipped with Navigation
Activate the Navigation main menu
(
page 114).
or
Activate the Info menu (page 147).
Press the Compass soft key.
The Compass screen will appear.
If your vehicle is not equipped with
Navigation
Press b or c.
The Compass screen will appear.
Displaying the compass screen
