2007 MERCEDES-BENZ CL-CLASS engine

512 Operation
Engine compartment
Hood
Opening1Release lever
Pull release lever 1.
The hood is unlocked.
2Lever for opening the hood
Push lever 2 on the hood upwards.
Pull up on the hood and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
This could cause the hood to come loose
and injure you and/or others.
Warning!G
You could be injured when the hood is open
– even when the engine is turned off.
Parts of the engine can become very hot. To
prevent burns, only touch owner serviceable
components described in the Operator’s
Manual and comply with all relevant safety
precautions.
!To avoid damage to the windshield wipers or
hood, never open the hood if the wiper arms are
folded forward away from the windshield.
Warning!G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.
ProCarManuals.com

513 Operation
Engine compartment
Closing
Let the hood drop from a height of ap-
proximately 1 ft (30 cm).
The hood will lock audibly.
Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new

the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled down. If neces-
sary, call the fire department.
Warning!G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running

while starting the engine

if ignition is “on” and the engine is
cranked manually
Warning!G
When closing the hood, use extreme caution
not to catch hands or fingers. Be careful that
you do not close the hood on anyone.
Make sure that the hood is securely en-
gaged before driving off. Do not continue
driving if the hood can no longer engage af-
ter an accident, for example. The hood could
otherwise come loose while the vehicle is in
motion and endanger you and/or others.
!Do not use any special lubricant additives,
as these may damage the drive assemblies. Us-
ing special additives not approved by
Mercedes-Benz may cause damage not covered
by the Mercedes-Benz Limited Warranty.
More information on this subject is available at
any Mercedes-Benz Center.
ProCarManuals.com

514 Operation
Engine compartment
Notes about checking engine oil level
When checking the oil level

the vehicle must be parked on level
ground

with the engine at operating tempera-
ture, the vehicle must have been
stationary for at least 5 minutes with
the engine turned off

with the engine not at operating tem-
perature yet, the vehicle must have
been stationary for at least 30 minutes
with the engine turned offChecking engine oil level with the
control system (CL 600)
To check the engine oil level via the multi-
function display, do the following:
Switch on the ignition (page 336).
Press( or& to select the menu
“Service”.
Press$ or% to select “Engine
oil level”.
Press#.
The following message is seen in the multi-
function display:
“Engine oil level
Measuring now
Correct measurement
only if vehicle is level”One of the following messages will
subsequently appear in the multifunction
display:

“Engine oil level
OK”

“Add 1.0 qts. engine oil
at next refueling”
(Canada: “1.0 l”)

“Add 1.5 qts. engine oil
at next refueling”
(Canada: “1.5 l”)

“Add 2.0 qts. engine oil
at next refueling”
(Canada: “2.0 l”)
If necessary, add engine oil
(
page 516).
For more information on engine oil, see the
“Technical data” section (
page 684) and
(
page 686).
iThe menu overview can be found on
(
page 258).
iIf you want to interrupt the checking proce-
dure, press buttonL on the multifunction
steering wheel.
ProCarManuals.com

515 Operation
Engine compartment
Other display messages
If the SmartKey or KEYLESS-GO* start/
stop button is not in position 2, the follow-
ing message will appear:
“For engine oil level,
turn on ignition”
Switch on the ignition (page 336).
If you see the message
“Waiting period for,
engine oil level
not complete”
If engine is at operating temperature,
wait 5 minutes before repeating check
procedure.
If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.If you see the message
“Engine oil level
Not when engine on”
Turn off the engine.
If the engine is at operating tempera-
ture, wait 5 minutes before checking
oil.
If the engine is not at operating temper-
ature yet, you must wait 30 minutes
before checking oil.If there is excess engine oil with the engine
at operating temperature, the following
message will appear:
“Engine oil level
Reduce oil level”
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 580).
!Excess oil must be siphoned or drained off.
It could cause damage to the engine and catalyt-
ic converter (gasoline engine) not covered by the
Mercedes-Benz Limited Warranty.
ProCarManuals.com

516 Operation
Engine compartment
Checking engine oil level with the oil
dipstick (CL 550)
To check the engine oil level with the oil
dipstick, do the following:
Open the hood (page 512).
CL 550
1Oil dipstick
2Upper mark
3Lower mark
Pull out oil dipstick1.
Wipe oil dipstick1 clean.
Fully insert oil dipstick1 into the dip-
stick guide tube.
Pull out oil dipstick1 again after ap-
proximately 3 seconds to obtain accu-
rate reading.
The oil level is correct when it is between
lower mark3 (min.) and upper mark2
(max.) mark of the oil dipstick.
If necessary, add engine oil.
For adding engine oil (
page 516).
For more information on engine oil, see the
“Technical data” section (
page 684) and
(
page 686).
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 580).Adding engine oil
iThe filling quantity between the upper and
lower marks on the oil dipstick is approximately
2.1 US qt. (2.0 l).
!Only use approved engine oils and oil filters
required for vehicles with Maintenance System
(U.S. vehicles. Canada vehicles, depending on
vehicle production date) or FSS PLUS (Canada
vehicles, depending on vehicle production date).
For a listing of approved engine oils and oil fil-
ters, refer to the Factory Approved Service
Products pamphlet (USA only) in your vehicle
literature portfolio, or contact an authorized
Mercedes-Benz Center.
Using engine oils and oil filters of specification
other than those expressly required for the Main-
tenance System (U.S. vehicles. Canada vehicles,
depending on vehicle production date) or
FSS PLUS (Canada vehicles, depending on vehi-
cle production date), or changing of oil and oil fil-
ter at change intervals longer than those called
for by the Maintenance System (U.S. vehicles.
Canada vehicles, depending on vehicle produc-
tion date) or FSS PLUS (Canada vehicles, de-
pending on vehicle production date) will result in
engine or emission control system damage not
covered by the Mercedes-Benz Limited
Warranty.
ProCarManuals.com

517 Operation
Engine compartment
Example illustration from CL 550
1Filler cap
Unscrew filler cap1 from filler neck.
Add engine oil as required. Be careful
not to overfill with oil.Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine, see the
“Technical data” section (
page 684) and
(
page 686).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.
Active Body Control (ABC) fluid level
Regular fluid level check is not required. If
you notice fluid leaks or malfunction mes-
sages in the multifunction display, have an
authorized Mercedes-Benz Center check
the ABC-system.
!Excess oil must be siphoned or drained off.
It will cause damage to the engine and emission
control system not covered by the
Mercedes-Benz Limited Warranty.
ProCarManuals.com

518 Operation
Engine compartment
Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze.
When checking the coolant level,

the vehicle must be parked on level
ground

the coolant temperature must be
below 158°F (70°C)
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
Example illustration from CL 550
1Cap
2Coolant expansion tank
Using a rag, turn cap1 slowly approx-
imately one half turn counterclockwise
to release any excess pressure.
Continue turning the cap counterclock-
wise and remove it.
The coolant level is correct if the level

for cold coolant: reaches the white
marking (plastic bridge) inside the cool-
ant expansion tank

for warm coolant: is approximately
0.6 in (1.5 cm) higher
Add coolant as required.
Replace and tighten cap1.
For more information on coolant, see the
“Technical data” section (
page 689).
Warning!G
In order to avoid potentially serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.

Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.

Using a rag, slowly open the cap approx-
imately 1/2 turn to relieve excess pres-
sure. If opened immediately, scalding
hot fluid and steam will be blown out un-
der pressure.

Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may burn if it comes into con-
tact with hot engine parts.
ProCarManuals.com

519 Operation
Engine compartment
Windshield washer system and

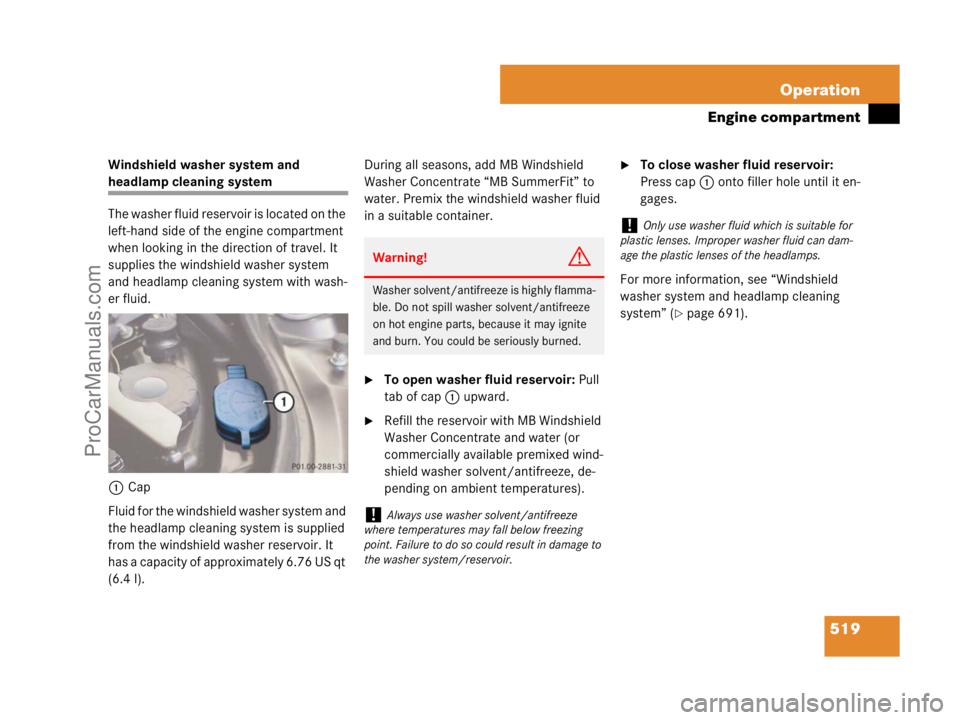

headlamp cleaning system
The washer fluid reservoir is located on the
left-hand side of the engine compartment
when looking in the direction of travel. It
supplies the windshield washer system
and headlamp cleaning system with wash-
er fluid.
1Cap
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approximately 6.76 US qt
(6.4 l).During all seasons, add MB Windshield
Washer Concentrate “MB SummerFit” to
water. Premix the windshield washer fluid
in a suitable container.
To open washer fluid reservoir: Pull
tab of cap1 upward.
Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed wind-
shield washer solvent/antifreeze, de-
pending on ambient temperatures).
To close washer fluid reservoir:
Press cap1 onto filler hole until it en-
gages.
For more information, see “Windshield
washer system and headlamp cleaning
system” (
page 691).
Warning!G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
!Always use washer solvent/antifreeze
where temperatures may fall below freezing
point. Failure to do so could result in damage to
the washer system/reservoir.
!Only use washer fluid which is suitable for
plastic lenses. Improper washer fluid can dam-
age the plastic lenses of the headlamps.
ProCarManuals.com
