2007 MERCEDES-BENZ C350 technical data

Contents
Technical data.................................. 395
Parts service ...................................... 396
Warranty coverage ............................. 397
Loss of Service and Warranty
Information Booklet...................... 397
Identification labels............................ 398
Layout of poly-V-belt drive ................. 400
Engine ................................................ 401
Rims and Tires ................................... 403
Same size tires ............................. 404
Mixed size tires ............................ 405
Minispare wheel ........................... 406
Electrical system................................ 407
Main dimensions and weights............ 408
Main dimensions .......................... 408
Weights ........................................ 408Fuels, coolants, lubricants, etc. ......... 409
Capacities .................................... 409
Engine oils.................................... 412
Engine oil additives ...................... 412
Air conditioning refrigerant .......... 412
Brake fluid .................................... 412
Premium unleaded gasoline ......... 413
Gasoline additives ........................ 413
Fuel requirements ........................ 414
Flexible Fuel Vehicles
(C 230/C 230 Sport only) ............ 414
Coolants....................................... 416
Windshield washer and
headlamp cleaning system* ......... 418Index................................................. 419

14 Introduction
Where to find it
This Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. Each section
has its own reference color.
At a glance
Here you will find an overview of all the
controls that can be operated from the
driver’s seat.
Getting started
Here you will find all the information you
need for your first drive. You should read
this section first if this is your first
Mercedes-Benz vehicle or if you are rent-
ing or borrowing this vehicle.
Safety and Security
Here you will find descriptions of the safety
and security features of your vehicle.
Controls in detail
Here you will find detailed information
about the equipment installed in your vehi-
cle. This section expands on the “Getting
started” section and also describes techni-
cal innovations. If you are already familiar
with the basic functions of your vehicle,
this section will be of particular interest to
you.
Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.
Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.
Indexes
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:

this Operator’s Manual

the Maintenance Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your
vehicle.

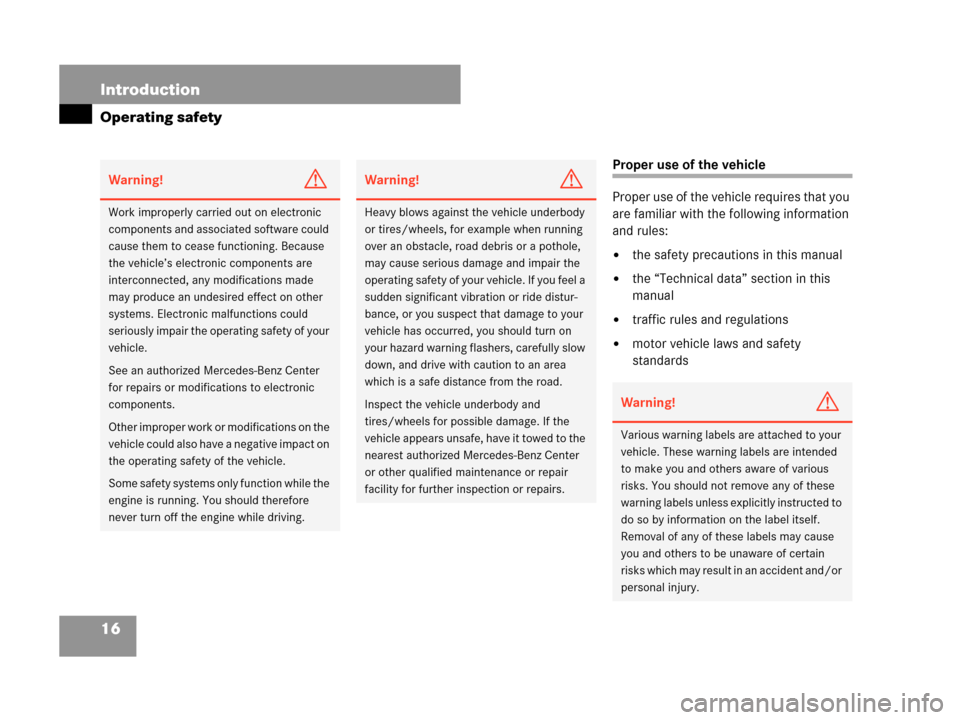

16 Introduction
Operating safety
Proper use of the vehicle
Proper use of the vehicle requires that you
are familiar with the following information
and rules:

the safety precautions in this manual

the “Technical data” section in this
manual

traffic rules and regulations

motor vehicle laws and safety
standards
Warning!G
Work improperly carried out on electronic
components and associated software could
cause them to cease functioning. Because
the vehicle’s electronic components are
interconnected, any modifications made
may produce an undesired effect on other
systems. Electronic malfunctions could
seriously impair the operating safety of your
vehicle.
See an authorized Mercedes-Benz Center
for repairs or modifications to electronic
components.
Other improper work or modifications on the
vehicle could also have a negative impact on
the operating safety of the vehicle.
Some safety systems only function while the
engine is running. You should therefore
never turn off the engine while driving.
Warning!G
Heavy blows against the vehicle underbody
or tires/wheels, for example when running
over an obstacle, road debris or a pothole,
may cause serious damage and impair the
operating safety of your vehicle. If you feel a
sudden significant vibration or ride distur-
bance, or you suspect that damage to your
vehicle has occurred, you should turn on
your hazard warning flashers, carefully slow
down, and drive with caution to an area
which is a safe distance from the road.
Inspect the vehicle underbody and
tires/wheels for possible damage. If the
vehicle appears unsafe, have it towed to the
nearest authorized Mercedes-Benz Center
or other qualified maintenance or repair
facility for further inspection or repairs.
Warning!G
Various warning labels are attached to your
vehicle. These warning labels are intended
to make you and others aware of various
risks. You should not remove any of these
warning labels unless explicitly instructed to
do so by information on the label itself.
Removal of any of these labels may cause
you and others to be unaware of certain
risks which may result in an accident and/or
personal injury.

266 Operation
Driving instructions
Mercedes-Benz recommends winter tires
(
page 308) with a minimum tread depth
of approximately 1/6in (4 mm) on all four
wheels for the winter season to ensure
normal balanced handling characteristics.
On packed snow, they can reduce your
stopping distance compared to summer
tires. Stopping distance, however, is still
considerably greater than when the road is
not covered with snow or ice. Exercise ap-
propriate caution.
Tire speed rating
Regardless of the tire speed rating, local
speed limits should be obeyed. Use
prudent driving speeds appropriate to
prevailing conditions.
An electronic speed limiter prevents your
vehicle from exceeding a speed
of 130 mph (210 km/h).The factory equipped tires on your vehicle
may have a tire speed rating above the
maximum speed permitted by the
electronic speed limiter.
Make sure your tires have the required tire
speed rating as specified for your vehicle in
the "Technical data" section (
page 403),
for example when purchasing new tires.
For Information on how to identify the tire
speed rating on a tire’s sidewall, see “Tire
size designation, load and speed rating”
(
page 295).
If you are uncertain about the correct read-
ing of the information given on a tire’s side-
wall, any authorized Mercedes-Benz
Center will be glad to assist you.!Avoid spinning of a drive wheel. This may
cause serious damage to the drivetrain which is
not covered by the Mercedes-Benz Limited War-
ranty.
Warning!G
Even when permitted by law, never operate
a vehicle at speeds greater than the maxi-
mum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire
failure, causing loss of vehicle control and
possibly resulting in an accident and/or
personal injury and possible death, for you
and for others.
iFor information on speed rating for winter
tires, see “Winter tires” (
page 308).
For additional general information on tire speed
markings on tire sidewall, see “Tire speed rating”
(
page 297).

277 Operation
Engine compartment
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 348).
Adding engine oil
1Filler cap
Unscrew filler cap1 from filler neck.
Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
For more information on engine oil, see the
“Technical data” section (
page 409) and
(
page 412).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.
!Only use approved engine oils and oil filters
required for vehicles with Maintenance System
(U.S. vehicles) or FSS (Canada vehicles). For a
listing of approved engine oils and oil filters,
refer to the Factory Approved Service Products
pamphlet in your vehicle literature portfolio, or
contact an authorized Mercedes-Benz Center.
Using engine oils and oil filters of specification
other than those expressly required for the
Maintenance System (U.S. vehicles) or FSS
(Canada vehicles), or changing of oil and oil filter
at change intervals longer than those called for
by the Maintenance System (U.S. vehicles) or
FSS (Canada Vehicles) will result in engine or
emission control system damage not covered by
the Mercedes-Benz Limited Warranty.
!Excess oil must be siphoned or drained off.
It could cause damage to the engine and emis-
sion control system not covered by the
Mercedes-Benz Limited Warranty.

288 Operation
Tires and wheels
Certification label
Even after careful determination of the
combined weight of all occupants, cargo
and the trailer tongue load (if applicable)
(
page 288) as to not exceed the permis-
sible load limit, you must make sure that
your vehicle never exceeds the Gross Vehi-
cle Weight Rating (GVWR) and the Gross
Axle Weight Rating (GAWR) for either the
front or rear axle. You can obtain the
GVWR and GAWR from the certification la-
bel. The certification label can be found on
the driver’s door B-pillar, see “Technical
data” (
page 398).Gross Vehicle Weight Rating (GVWR): The
total weight of the vehicle, all occupants,
all cargo, and the trailer tongue load
(
page 288) must never exceed the
GVWR.
Gross Axle Weight Rating (GAWR): The to-
tal allowable weight that can be carried by
a single axle (front or rear).
To assure that your vehicle does not ex-
ceed the maximum permissible weight
limits (GVWR and GAWR for front and rear
axle), have the loaded vehicle (including
driver, passengers and all cargo and, if ap-
plicable, trailer fully loaded) weighed on a
suitable commercial scale.Trailer tongue load
The tongue load of any trailer is an impor-
tant weight to measure because it affects
the load you can carry in your vehicle. If a
trailer is towed, the tongue load must be
added to the weight of all occupants riding
and any cargo you are carrying in the
vehicle. The tongue load typically is ten
percent of the trailer weight and every-
thing loaded in it.
Your Mercedes-Benz has been designed
primarily to carry passengers and their
cargo. Mercedes-Benz does not recom-
mend trailer towing with your vehicle.

309 Operation
Winter driving
Block heater (Canada only)
The engine is equipped with a block
heater.
The electrical cable may be installed at an
authorized Mercedes-Benz Center.
Snow chains
Snow chains should only be driven on
snow-covered roads at speeds not higher
than 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.
Please observe the following guidelines
when using snow chains:

Using snow chains is not permissible
with all wheel/tire combinations
(
page 403).

Use snow chains in pairs and on rear
wheels only. Follow the manufacturer's
mounting instructions.

Only use snow chains that are
approved by Mercedes-Benz. Any
authorized Mercedes-Benz Center will
be glad to advise you on this subject.

Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.

Do not use snow chains on the spare
wheel (
page 406).
Warning!G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Center.!Some tire sizes do not leave adequate clear-
ance for snow chains. To help avoid serious dam-
age to your vehicle or tires, make sure that the
use of snow chains is permissible as specified in
the "Technical data" section of this Operator’s
Manual, see “Rims and Tires” (
page 403).
!If snow chains are mounted to the front
wheels, they may scrape against the body or axle
components. The tires or the vehicle could be
damaged as a result.
iWhen driving with snow chains, you may
wish to deactivate the ESP® (page 86) before
setting the vehicle in motion. This will improve
the vehicle‘s traction.

395 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and Tires
Electrical system
Main dimensions and weights
Weights
Fuels, coolants, lubricants, etc.
