2007 MAZDA MODEL RX 8 dashboard

Black plate (7,1)
1Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.
Dashboard and Interior Overview .............................................. 1-2
Exterior Overview ......................................................................... 1-4
1-1
RX-8_8V89-EA-06F_Edition1 Page7
Friday, May 19 2006 9:49 AM
Form No.8V89-EA-06F

Black plate (8,1)
The equipment and installation position varies by model.
Refer to Navigation System at the end of the manual (if equipped).
1-2
Your Vehicle at a Glance
Dashboard and Interior Overview
RX-8_8V89-EA-06F_Edition1 Page8
Friday, May 19 2006 9:49 AM
Form No.8V89-EA-06F

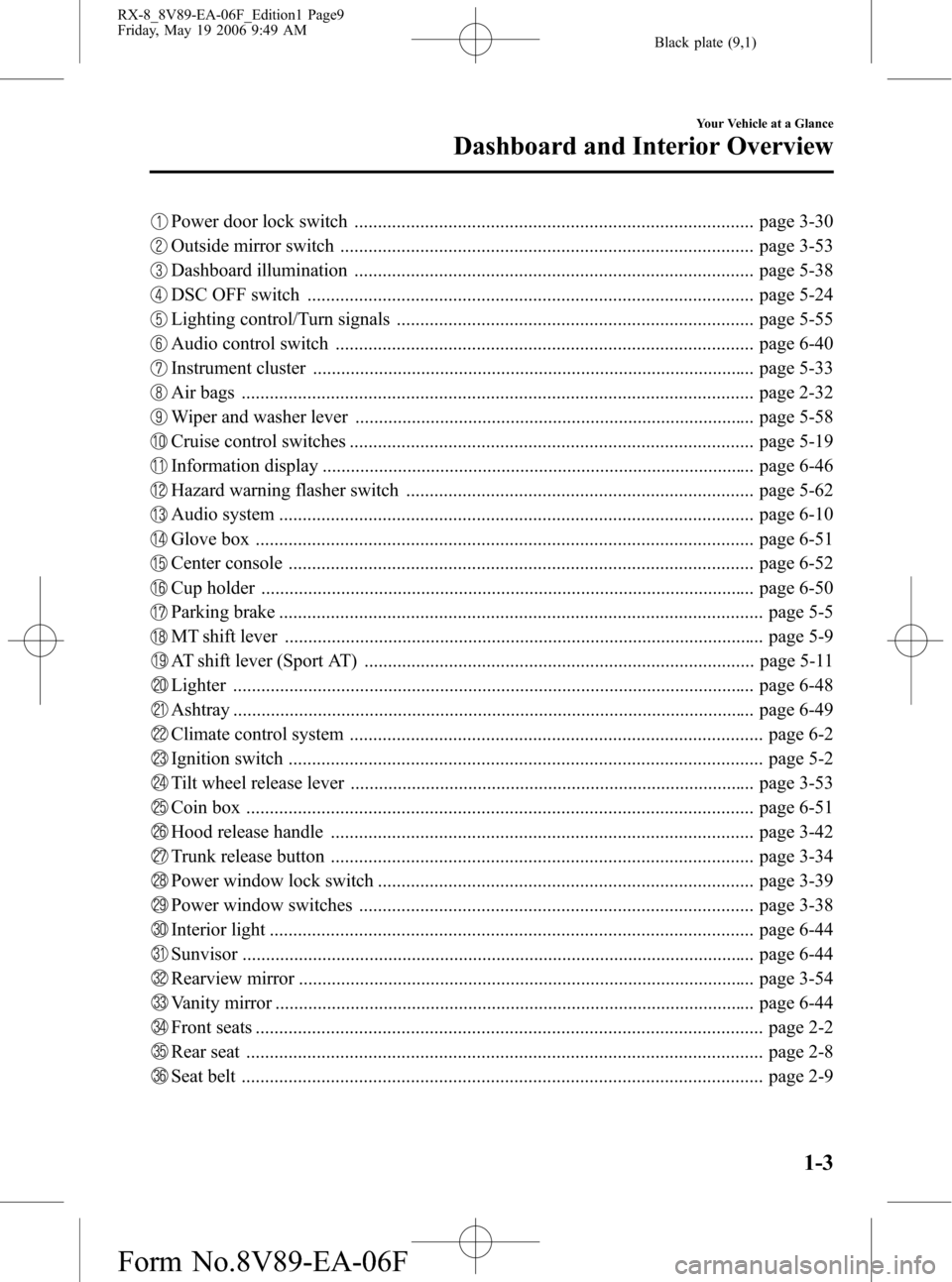

Black plate (9,1)
Power door lock switch ..................................................................................... page 3-30
Outside mirror switch ........................................................................................ page 3-53
Dashboard illumination ..................................................................................... page 5-38
DSC OFF switch ............................................................................................... page 5-24
Lighting control/Turn signals ............................................................................ page 5-55
Audio control switch ......................................................................................... page 6-40
Instrument cluster .............................................................................................. page 5-33
Air bags ............................................................................................................. page 2-32
Wiper and washer lever ..................................................................................... page 5-58
Cruise control switches ...................................................................................... page 5-19
Information display ............................................................................................ page 6-46
Hazard warning flasher switch .......................................................................... page 5-62
Audio system ..................................................................................................... page 6-10
Glove box .......................................................................................................... page 6-51
Center console ................................................................................................... page 6-52
Cup holder ......................................................................................................... page 6-50
Parking brake ....................................................................................................... page 5-5
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-11
Lighter ............................................................................................................... page 6-48
Ashtray ............................................................................................................... page 6-49
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-53
Coin box ............................................................................................................ page 6-51
Hood release handle .......................................................................................... page 3-42
Trunk release button .......................................................................................... page 3-34
Power window lock switch ................................................................................ page 3-39
Power window switches .................................................................................... page 3-38
Interior light ....................................................................................................... page 6-44
Sunvisor ............................................................................................................. page 6-44
Rearview mirror ................................................................................................. page 3-54
Vanity mirror ...................................................................................................... page 6-44
Front seats ............................................................................................................ page 2-2
Rear seat .............................................................................................................. page 2-8
Seat belt ............................................................................................................... page 2-9
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
RX-8_8V89-EA-06F_Edition1 Page9
Friday, May 19 2006 9:49 AM
Form No.8V89-EA-06F

Black plate (44,1)
Supplemental Restraint Systems (SRS) Precautions
The front and side supplemental restraint systems (SRS) include up to 6 air bags (verify
“SRS AIRBAG”location indicator marks).
They are located in:
lThe steering wheel hub (driver air bag)
lThe front passenger dashboard (front passenger air bag)
lThe outboard sides of the front seatbacks (side air bags)
lThe front and rear window pillars, and the roof edge along both sides (curtain air bags)
These systems operate independently depending on the type of accident encountered; if
you have side and curtain air bags, the side and curtain air bags are not likely to deploy on
both sides in the same accident because a vehicle is not often hit from both sides. The side
and curtain air bags and the frontal air bag system will not normally deploy during the
same type of accident unless a combination of frontal and side impacts occur.
The air bag supplemental restraint systems are designed to provide supplemental protection
only in the front seats in certain situations and the rear outside passenger positions only in
same-side collisions, so seat belts are always important in the following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
lKeep the occupant from being thrown into an inflating air bag.
lReduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
lReduce the possibility of injuries in frontal or side collisions that are not severe enough
to activate the air bags.
lReduce the possibility of being thrown from your vehicle.
lReduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
lHold the driver in a position which allows better control of the vehicle.
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-19).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
2-32
Essential Safety Equipment
SRS Air Bags
RX-8_8V89-EA-06F_Edition1 Page44
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (49,1)
Supplemental Restraint System Components
The supplemental restraint systems (SRS) have two basic subsystems:
lThe air bag system with inflators and air bags.
lThe electrical system with crash sensors and diagnostic module.
The air bags are mounted in the following locations:
lThe steering wheel hub
lThe front passenger dashboard
lThe outboard sides of the front seatbacks
lThe front and rear window pillars, and the roof edge along both sides
The air bags are out of sight until activated.
Essential Safety Equipment
SRS Air Bags
2-37
RX-8_8V89-EA-06F_Edition1 Page49
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (62,1)
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If either of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to“Front passenger
seat weight sensors”(page 2-40).
WARNING
Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components:
Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that they
will work in any subsequent accident.
Driving with an expended or damaged
air bag or pretensioner unit will not
afford you the necessary protection in
the event of any subsequent accident
which could result in serious injury or
death.
Do not remove interior air bag parts:
Removing any components such as the
front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag components.
The air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
2-50
Essential Safety Equipment
SRS Air Bags
RX-8_8V89-EA-06F_Edition1 Page62
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (68,1)
CAUTION
lBecause the advanced key uses low-intensity radio waves, it may not function
correctly under the following conditions:
lThe advanced key is carried with communication devices such as cellular phones.lThe advanced key contacts or is covered by a metal object.lThe advanced key is near electronic devices such as personal computers.lNon-Mazda genuine electronic equipment is installed in the vehicle.lThere is equipment which discharges radio waves near the vehicle.lIf the vehicle is near equipment such as wireless pay devices installed at certain gas
stations.
lThe advanced key may consume battery power excessively if it receives high-
intensity radio waves. Do not place the advanced key near electronic devices such as
televisions or personal computers.
lTo avoid damage to the advanced key, DO NOT:
lDrop the advanced key.lGet the advanced key wet.lDisassemble the advanced key.lExpose the advanced key to high temperatures on places such as the dashboard or
hood, under direct sunlight.
lPlace heavy objects on the advanced key.lPut the advanced key in an ultrasonic cleaner.lPut any magnetized objects close to the advanced key.
NOTE
lBattery life is about one year. Replace the battery when the KEY indicator light
(green) flashes in the instrument cluster.
Refer to Advanced Key Battery Dead Warning on page 3-19.
lAdditional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6
advanced keys can be used with the advanced keyless functions per vehicle.
3-4
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8V89-EA-06F_Edition1 Page68
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (72,1)
NOTE
lThe trunk is out of the operational
range, however, starting the engine
may be possible.
lThe engine may not start if the
advanced key is placed in the
following areas:
lAround the dashboardlIn the storage compartments such
as the glove box
lOn the rear parcel shelf
lStarting the engine may be possible
even if the advanced key is outside
of the vehicle and extremely close to
a door and window, however, always
start the engine from the driver's seat.
If the vehicle is started and the
advanced key is not in the vehicle,
the vehicle will not restart after it is
shut off and the ignition switch is
turned to the lock position.
lIf the advanced key is detected
within operational range, the
operation indicator light flashes
momentarily.
qLocking, Unlocking the Doors
with Request Switch
All doors can be locked/unlocked by
pressing the request switch on the front
doors while the advanced key is being
carried.
Request switch
To lock
To lock the doors, press the request
switch. A beep sound will be heard once
and the hazard warning lights will flash
once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors , press the request
switch again within 3 seconds and two
more beep sounds will be heard.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8V89-EA-06F_Edition1 Page72
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F
