Black plate (131,1)
Installing the chains
1. Secure the chains on the rear tires as
tightly as possible. Always follow the
chain manufacturer's instructions.
2. Retighten the chains after driving 1/2
―1 km (1/4―1/2 mile).Driving In Flooded Area
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
CAUTION
Make sure water does not enter the
vehicle interior or the engine area.
Interior materials could get moldy, and
many electronic devices in the cabin
and the engine could be damaged.
Before Driving Your Mazda
Driving Tips
4-11
RX-8_8V89-EA-06F_Edition1 Page131
Friday, May 19 2006 9:50 AM
Form No.8V89-EA-06F

Black plate (174,1)
Signal Warning/Indicator Lights Page
Door-Ajar Warning Light 5-46
Low Washer Fluid Level Warning Light 5-46
Automatic Transmission Warning Light 5-46
Tire Pressure Monitoring System Warning Light 5-46
KEY Warning Light (Red)/KEY Indicator Light (Green) 5-48
Security Indicator Light 5-50
Headlight High-Beam Indicator Light 5-50
Shift Position Indicator Light 5-50
TCS/DSC Indicator Light 5-51
DSC OFF Indicator Light 5-51
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 5-51
Light-On Indicator Light 5-52
Power Steering Malfunction Indicator Light 5-52
Headlight Auto-Leveling Malfunction Indicator Light 5-52
Turn Signal/Hazard Warning Indicator Lights 5-52
5-40
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8V89-EA-06F_Edition1 Page174
Friday, May 19 2006 9:51 AM
Form No.8V89-EA-06F

Black plate (178,1)
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the
engine coolant level (page 8-14). If it's
low, add engine coolant.
3. Check the light.
If the light remains illuminated even after
you add engine coolant, have your vehicle
towed to an Authorized Mazda Dealer.
CAUTION
Don't run the engine if the engine
coolant level is low. It could result in
extensive engine damage.
qCheck Engine Light
This indicator light illuminates when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
lThe fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If either of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
5-44
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8V89-EA-06F_Edition1 Page178
Friday, May 19 2006 9:51 AM
Form No.8V89-EA-06F

Black plate (180,1)
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
qDoor-Ajar Warning Light
This warning light comes on when any
door isn't securely closed.
qLow Washer Fluid Level
Warning Lightí
This warning light indicates that little
washer fluid remains. Add fluid (page
8-17).
qAutomatic Transmission Warning
Light
This warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
The light illuminates when the
transmission has a problem.
CAUTION
If the automatic transmission warning
light illuminates, the transmission has
an electrical problem. Continuing to
drive your Mazda in this condition
could cause damage to your
transmission. Consult an Authorized
Mazda Dealer as soon as possible.
qTire Pressure Monitoring System
Warning Lightí
This warning light illuminates for a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the warning light illuminates
when tire pressure is too low in one or
more tires, and flashes when there is a
system malfunction.
5-46
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
RX-8_8V89-EA-06F_Edition1 Page180
Friday, May 19 2006 9:51 AM
Form No.8V89-EA-06F

Black plate (184,1)
NOTE
The advanced key can be set so that the
KEY indicator light (green) does not
flash even if the battery power is low.
Refer to Setting Change (Function
Customization)(page 3-20).
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transmission)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
5-50
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
RX-8_8V89-EA-06F_Edition1 Page184
Friday, May 19 2006 9:51 AM
Form No.8V89-EA-06F

Black plate (253,1)
To open, squeeze the latch and pull the lid
down.
When closing the storage box, put the
storage box back in its original position
until you hear a click sound.
NOTE
When using the storage box to store
heavy accessories, remove the storage
box before placing or removing the
accessories.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock Unlock
Loading long objects with storage box
removed
The storage box can be removed for
convenient loading of long objects such as
skis placed through the trunk.
WARNING
Secure long objects in the trunk so
that they cannot be thrown forward in
the cabin and avoid sudden breaking
or maneuvering:
Sudden braking or maneuvering while
long objects are loaded through the
removed storage box area and into the
trunk is dangerous. Operation of the
shift/selector lever could be obstructed
resulting in a serious accident.
Interior Comfort
Interior Equipment
6-53
RX-8_8V89-EA-06F_Edition1 Page253
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

Black plate (258,1)
qJack
To remove the jack
1. Open the tool box.
2. Turn the jack screw counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
A temporary spare tire is not equipped
with your Mazda. If an emergency tire
repair is needed, repair the flat tire with
the emergency flat tire repair kit (page
7-5). If you require a temporary spare tire,
consult an Authorized Mazda Dealer.
When installing a temporary spare tire,
follow the manufacturer's instructions for
the temporary spare tire.The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tire
in place of a driving wheel:
Driving with the temporary spare tire
on one of the driving wheels is
dangerous. Especially on ice or snow.
Handling will be affected. You could
lose control of the vehicle and have an
accident. Move a regular tire to a
driving wheel and install the
temporary spare tire to the non-driving
wheel.
CAUTION
lWhen using the temporary spare tire,
driving stability may decrease
compared to when using only the
conventional tire.
Drive carefully.
7-4
In Case of an Emergency
Flat Tire
RX-8_8V89-EA-06F_Edition1 Page258
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F

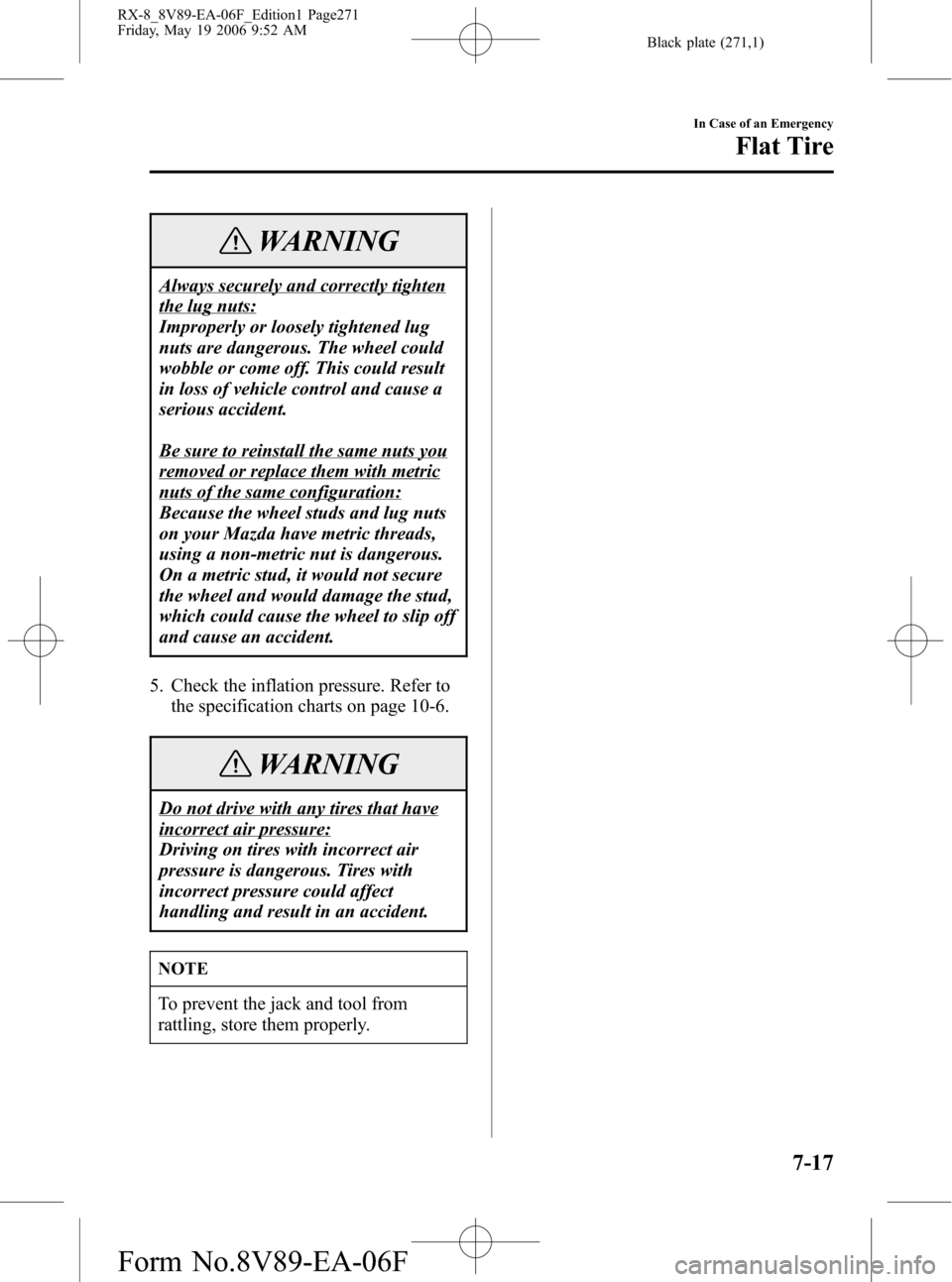

Black plate (271,1)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.
5. Check the inflation pressure. Refer to
the specification charts on page 10-6.
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
NOTE
To prevent the jack and tool from
rattling, store them properly.
In Case of an Emergency
Flat Tire
7-17
RX-8_8V89-EA-06F_Edition1 Page271
Friday, May 19 2006 9:52 AM
Form No.8V89-EA-06F
