Black plate (255,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-9
Owner Maintenance Schedule .................................................. 8-9
Owner Maintenance Precautions ............................................. 8-10
Engine Compartment Overview .............................................. 8-12
Engine Oil ............................................................................... 8-13
Engine Coolant ....................................................................... 8-15
Brake/Clutch Fluid .................................................................. 8-17
Power Steering Fluid ............................................................... 8-18
Washer Fluid ........................................................................... 8-18
Body Lubrication .................................................................... 8-19
Wiper Blades ........................................................................... 8-20
Battery ..................................................................................... 8-22
Tires ........................................................................................ 8-24
Light Bulbs ............................................................................. 8-28
Fuses ....................................................................................... 8-34
Appearance Care ........................................................................ 8-39
How to Minimize Environmental Paint Damage .................... 8-39
Exterior Care ........................................................................... 8-41
Interior Care ............................................................................ 8-44
8-1
Mazdaspeed6_8V77-EA-06F_Edition1 Page255
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (261,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fluid levelIIIIIIIIIIII
Disc brakesIIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkages I I
Power steering fluid levelIIIIIIIIIIII
Front and rear suspension and ball joints, and
wheel bearing axial playII
Rear differential oil
*4*5
Transfer oil*5
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Maintenance and Care
Scheduled Maintenance
8-7
Mazdaspeed6_8V77-EA-06F_Edition1 Page261
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (263,1)
Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
qWhen Refueling
lBrake and clutch fluid level (page 8-17)
lEngine coolant level (page 8-15)
lEngine oil level (page 8-14)
lWasher fluid level (page 8-18)
qAt Least Monthly
Tire inflation pressures (page 8-24)
qAt Least Twice a Year (For Example, Every Spring and Fall)
lPower steering fluid level (page 8-18)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
lEngine coolant (page 8-15)
lEngine oil (page 8-13)
Maintenance and Care
Owner Maintenance
8-9
Mazdaspeed6_8V77-EA-06F_Edition1 Page263
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (266,1)

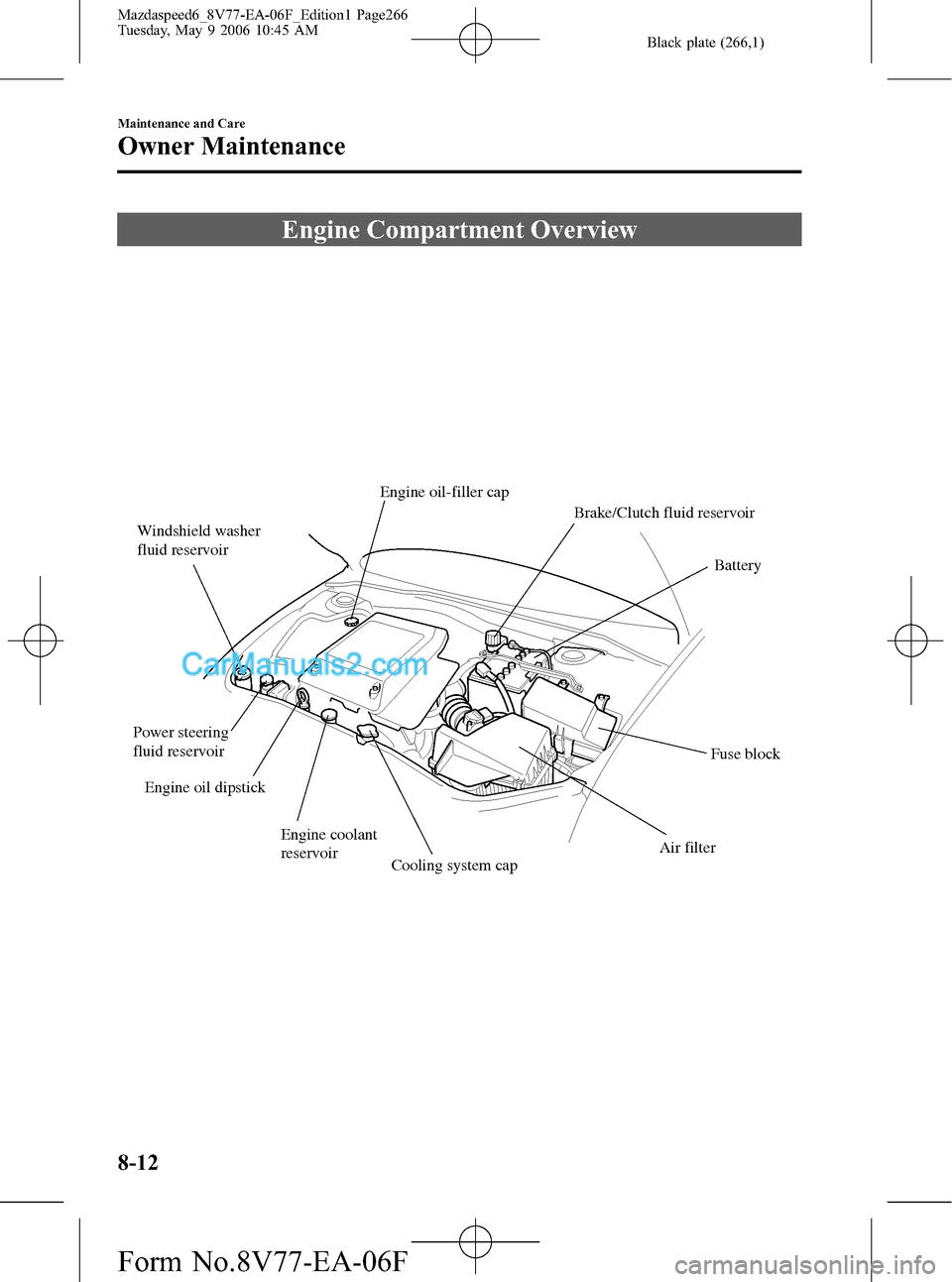

Engine Compartment Overview
Cooling system cap Power steering
fluid reservoirWindshield washer
fluid reservoir
Engine oil dipstickEngine oil-filler cap
Battery
Fuse block
Air filter Brake/Clutch fluid reservoir
Engine coolant
reservoir
8-12
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page266
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (272,1)
Power Steering Fluid
qInspecting Power Steering Fluid
Level
CAUTION
To avoid damage to the power steering
pump, don't operate the vehicle for long
periods when the power steering fluid
level is low.
NOTE
Use specified power steering fluid
(page 10-4).
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.
The level must be kept between MIN and
MAX.
Visually examine the lines and hoses for
leaks and damage.
If new fluid is required frequently, consult
an Authorized Mazda Dealer.
Washer Fluid
qInspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result
in an accident.
Using Washer Fluid Without Anti-
freeze Protection in Cold Weather:
Operating your vehicle in
temperatures below 4 degrees C (40
degrees F) using washer fluid without
anti-freeze protection is dangerous as
it could cause impaired windshield
vision and result in an accident. In
cold weather, always use washer fluid
with anti-freeze protection.
NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
8-18
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8V77-EA-06F_Edition1 Page272
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (344,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 9.5
qElectrical System
Item Classification
Battery12V-48AH/5HR
12V-55AH/5HR
Spark-plug numberL3K9 18 110A
*1
L3Y3 18 110
Spark-plug gap 0.70―0.80 mm (0.028―0.031 in)
*1 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oilRefer to the recommended SAE viscosity numbers on
page 8-13.
Manual transaxle oil API Service GL-4 (SAE 75W-90)
Transfer case oil API Service GL-5 (SAE 80W-90)
Rear differential oil API Service GL-5 (SAE 80W-90)
Power steering fluid ATF M-III, M-V, or equivalent (e.g. Dexron® II)
Brake/Clutch fluid SAE J1703, or FMVSS116 DOT-3
10-4
Specifications
Mazdaspeed6_8V77-EA-06F_Edition1 Page344
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F

Black plate (353,1)
O
Outside Mirrors ................................. 3-54
Overhead Console ............................. 6-49
Overhead Lights ................................ 6-41
Overheating ....................................... 7-11
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-39
Parking Brake ..................................... 5-5
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-27
Power Steering .................................. 5-11
Fluid ........................................... 8-18
Power Windows ................................ 3-34
Push-Starting ..................................... 7-17
R
Rear Door Child Safety Locks .......... 3-28
Rear Seat ............................................. 2-9
Rear Window Defroster .................... 5-40
Rearview Mirror ................................ 3-55
Recreational Towing ......................... 7-21
Registering Your Vehicle in A Foreign
Country ............................................. 9-12
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-38
S
Seat Belt System
Automatic locking ...................... 2-13
Belt minder ................................. 2-22
Center-rear lap/shoulder ............. 2-18
Emergency locking .................... 2-13
Except center-rear position ......... 2-14
Extender ..................................... 2-21
Pregnant women ........................ 2-13
Pretensioner and load limiting .... 2-16
Seat belt precautions .................. 2-11
Warning light/beep ..................... 2-22
Seats
Front seat
(Electrically operated seats) ......... 2-5
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-9
Security System
Immobilizer system
(with advanced key) ................... 3-46
Immobilizer system
(without advanced key) .............. 3-49
Theft-deterrent system ............... 3-52
Service Publications .......................... 9-40
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-21
SRS Air Bags
How the Air Bags Work ............. 2-48
Supplemental restraint systems
precautions ................................. 2-40
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-54
Horn ........................................... 5-41
Index
11-5
