2007 MAZDA MODEL MAZDASPEED 6 lock

Black plate (8,1)
The equipment and installation position varies by vehicle.
Refer to Navigation System at the end of the manual (if equipped).
Power window lock switch ................................................................................ page 3-37
Power window switch ........................................................................................ page 3-34
Power door lock switch ..................................................................................... page 3-27
1-2
Your Vehicle at a Glance
Dashboard and Interior Overview
Mazdaspeed6_8V77-EA-06F_Edition1 Page8
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (11,1)
Trunk lid ............................................................................................................ page 3-29
Antenna ............................................................................................................. page 6-10
Rear window defroster ....................................................................................... page 5-40
Power windows ................................................................................................. page 3-34
Tires ................................................................................................................... page 8-24
Light bulbs ......................................................................................................... page 8-28
Hood .................................................................................................................. page 3-42
Windshield wiper blades .................................................................................... page 8-20
Moonroof ........................................................................................................... page 3-44
Child safety locks .............................................................................................. page 3-28
Fuel-filler lid ...................................................................................................... page 3-41
Doors and keys .................................................................................................. page 3-26
Outside mirror .................................................................................................... page 3-54
Your Vehicle at a Glance
Exterior Overview
1-5
Mazdaspeed6_8V77-EA-06F_Edition1 Page11
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (14,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, an
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
WARNING
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
2-2
Essential Safety Equipment
Seats
Mazdaspeed6_8V77-EA-06F_Edition1 Page14
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (15,1)
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
WARNING
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazdaspeed6_8V77-EA-06F_Edition1 Page15
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (23,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
Essential Safety Equipment
Seat Belt Systems
2-11
Mazdaspeed6_8V77-EA-06F_Edition1 Page23
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

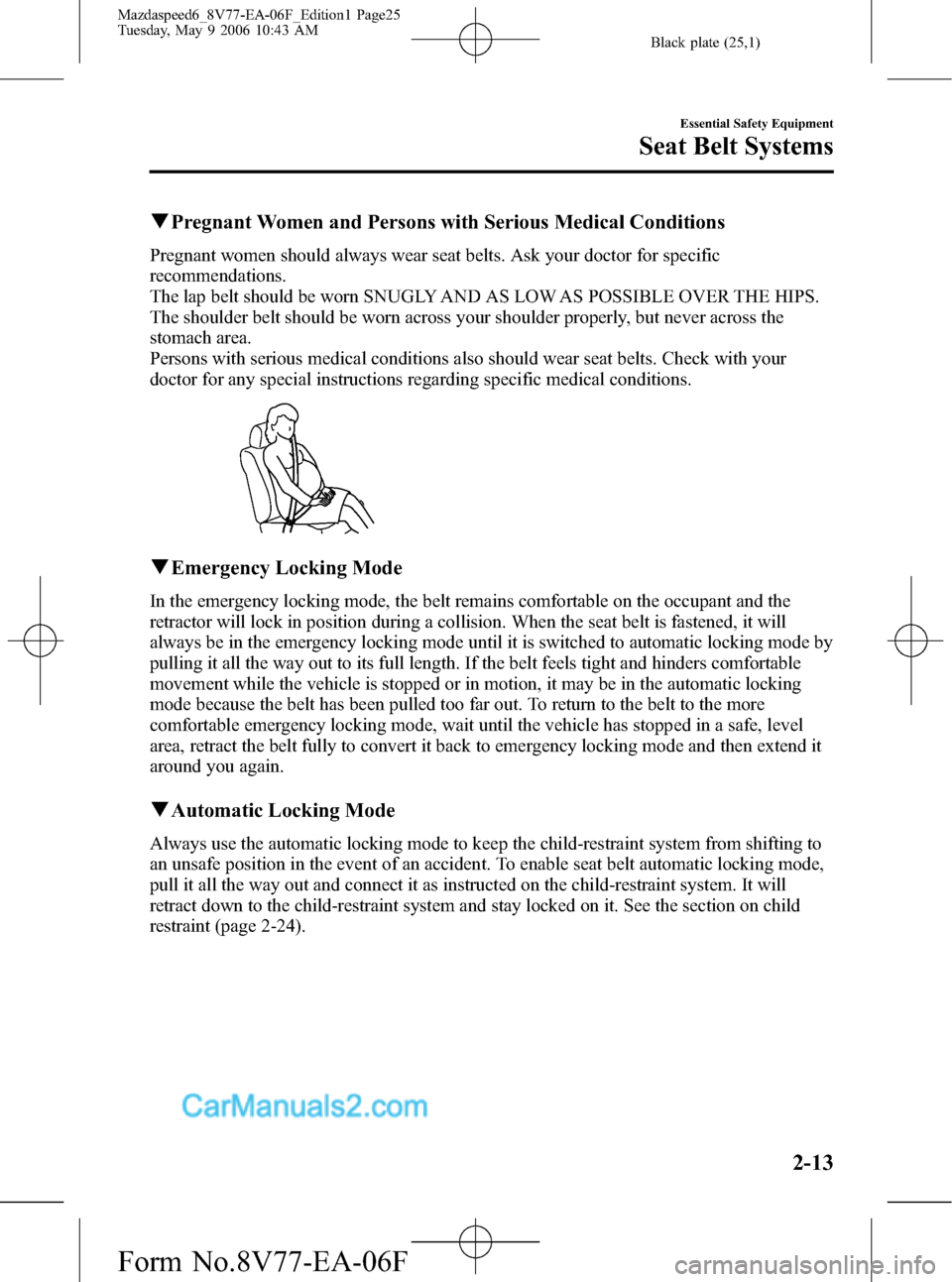

Black plate (25,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-24).
Essential Safety Equipment
Seat Belt Systems
2-13
Mazdaspeed6_8V77-EA-06F_Edition1 Page25
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (27,1)
qUnfastening the Seat Belt
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at
an Authorized Mazda Dealer.
qShoulder Belt Adjuster (Front
Seat Belts)
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the knob and slide it down.
Make sure the adjuster is locked.
WARNING
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
Essential Safety Equipment
Seat Belt Systems
2-15
Mazdaspeed6_8V77-EA-06F_Edition1 Page27
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (32,1)
qUnfastening the Lap Portion of
the Seat Belt
Insert a small object such as a key in the
anchor buckle (B) slot.
(B)
(A)
NOTE
To encourage rear seat passengers to
wear their seat belts, we suggest leaving
the center-rear lap position of the belt
fastened at all times.
qFastening the Lap Portion of the
Seat Belt
Grasp tongue (A) and insert it into the
anchor buckle (B) until you hear a click. It
is now secure for passenger use.
qStowing and pulling out the
Center-Rear Position Seat Belt
The center-rear position seat belt can be
stowed using the following procedure.
CAUTION
When stowing the seat belt, make sure
the belt is locked securely into the
recess. If the seat belt is not properly
stowed, it might get caught in the seats
and be damaged.
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the recess.
(A)
(C)
To pull out the seat belt, slide tongues
with your finger, and slowly pull out the
seat belt from the recess.
NOTE
Pulling out the seat belt all the way out
will switch it to automatic locking
mode. If automatic locking mode is not
needed, retract the seat belt fully to
convert it back to emergency locking
mode.
2-20
Essential Safety Equipment
Seat Belt Systems
Mazdaspeed6_8V77-EA-06F_Edition1 Page32
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F
