Black plate (176,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
Fog Lights
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the
position.
The headlight switch must be in the
position to turn on the front fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
The fog lights will turn off when the
headlights are set at high beam.
5-38
Driving Your Mazda
Switches and Controls
Mazdaspeed6_8V77-EA-06F_Edition1 Page176
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (184,1)
qSelecting the Airflow Mode
Defroster and Floor Vents Dashboard Vents
Floor VentsDefroster Vents Dashboard and Floor Vents
6-4
Interior Comfort
Climate Control System
Mazdaspeed6_8V77-EA-06F_Edition1 Page184
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (217,1)
Audio Control Switch
Operation (Steering Wheel)
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
Because the audio unit will be turned
off under the following conditions, the
switches will be inoperable.
lWhen the ignition switch is turned to
the LOCK position.
lWhen the power button on the audio
unit is pressed and the audio unit is
turned off.
lWhen all CDs are ejected.
NOTE
Mazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on the
dashboard.
Always make safe driving your first
priority.
qAdjusting the Volume
To increase the volume, press the volume
button (
).
To decrease the volume, press the volume
button (
).
qChanging the Source
Press the mode switch () to change
the audio source (FM1 radio> FM2 radio>
AM radio> CD changer> Cassette tape
player> SIRIUS1> SIRIUS2> SIRIUS3>
cyclical).
Interior Comfort
Audio System
6-37
Mazdaspeed6_8V77-EA-06F_Edition1 Page217
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (291,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18―― ―
19 IG KEY 1 30A Engine control, SAS, Instrument cluster, Lighter
20 P.WIND 30A Power windows
21 FUEL PUMP 30A Fuel pump
22 INJ DRIVE 30A Injector
23―― ―
24 BLOWER 40A Blower motor
25 BTN 40A Overhead light, Power door lock
26 IG KEY 2 40A Wiper and washer, Climate control unit
27 DEFOG 40A Rear window defroster
28 ABS 60A DSC
29 FAN2 30A Cooling fan
30 FAN1 30A Cooling fan
31 TAIL 10A Taillights, License plate lights
32 ILLUMI 10A Dashboard illumination
33 MAG 10A Magnet clutch
34 AUDIO 15A Audio system
35 P.SEAT 30A Power seat
í
36―― ―
37―― ―
38 H/CLEAN 20A―
39 FOG 15A Fog lights
40 MAIN 120A For protection of all circuits
Maintenance and Care
Owner Maintenance
8-37íSome models. Mazdaspeed6_8V77-EA-06F_Edition1 Page291
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (298,1)
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with adampsoft cloth; then dry
and buff it with adrysoft cloth.
Fabricí
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.
8-44
Maintenance and Care
íSome models.
Appearance Care
Mazdaspeed6_8V77-EA-06F_Edition1 Page298
Tuesday, May 9 2006 10:45 AM
Form No.8V77-EA-06F

Black plate (342,1)

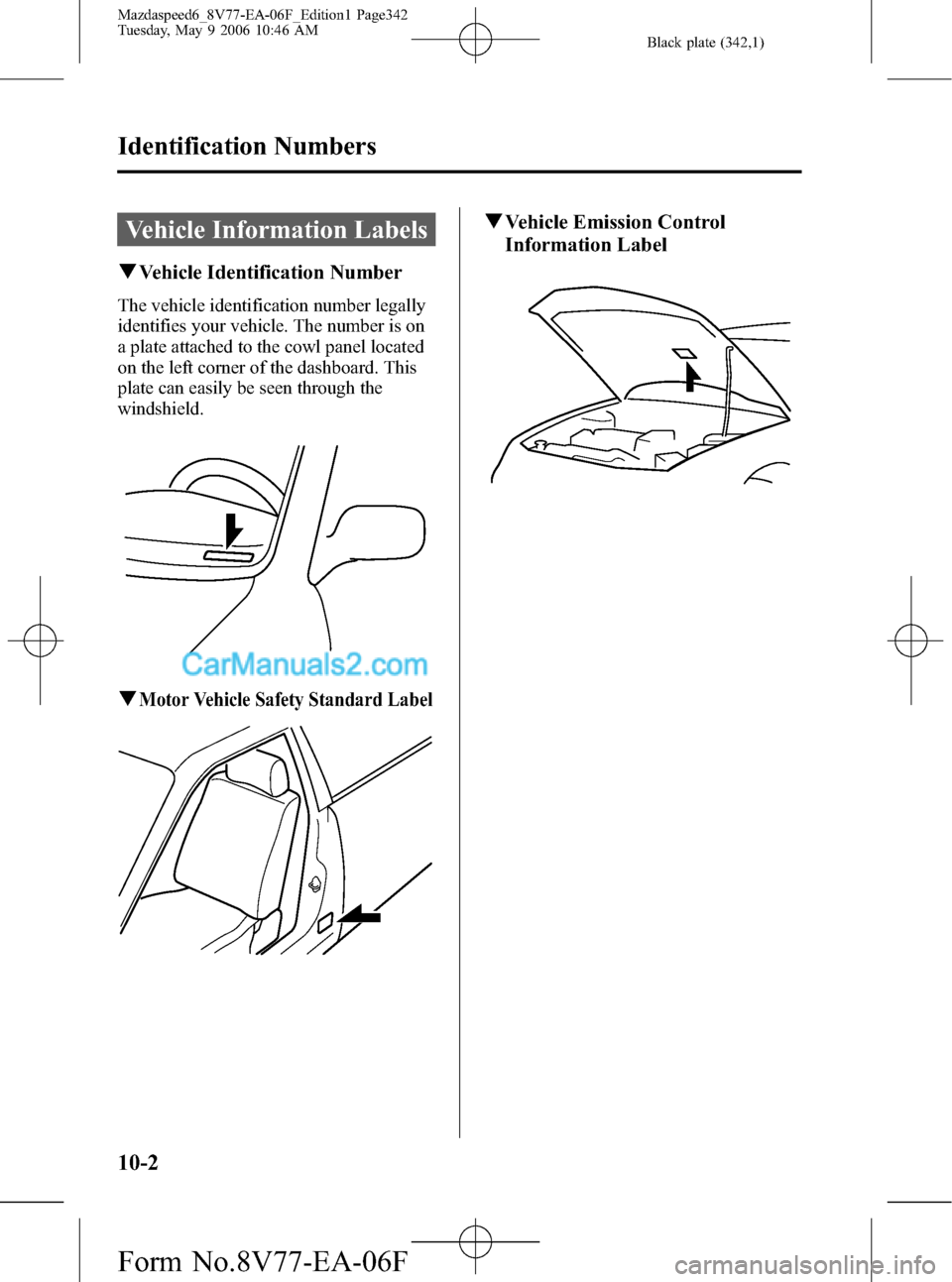

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qVehicle Emission Control
Information Label
10-2
Identification Numbers
Mazdaspeed6_8V77-EA-06F_Edition1 Page342
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F

Black plate (351,1)
D
Dashboard Illumination .................... 5-23
Daytime Running Lights ................... 5-37
Defroster
Rear window .............................. 5-40
Dimensions ....................................... 10-5
Door Locks ....................................... 3-26
Driving In Flooded Area ..................... 4-9
Driving Tips ........................................ 4-6
Break-in period ............................ 4-6
Driving in flooded area ................ 4-9
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Turbocharged vehicles ............... 4-11
Winter driving .............................. 4-8
Dynamic Stability Control (DSC) ..... 5-18
DSC OFF indicator light ............ 5-19
DSC OFF switch ........................ 5-19
TCS/DSC Indicator light ............ 5-18
E
Emergency Starting ........................... 7-13
Jump-starting .............................. 7-14
Push-starting .............................. 7-17
Emergency Towing ........................... 7-18
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-15
Exhaust gas .................................. 4-4
Hood release .............................. 3-42
Oil .............................................. 8-13
Overheating ................................ 7-11
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-12
Engine Coolant
Overheating ................................ 7-11
E
Engine Coolant Temperature
Gauge ................................................ 5-22
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-41
F
Flasher
Hazard warning .......................... 5-42
Headlights .................................. 5-36
Flat Tire ............................................... 7-3
Changing ...................................... 7-5
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ..................... 8-9
Fog Lights ......................................... 5-38
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel
Filler lid and cap ........................ 3-41
Gauge ......................................... 5-23
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-34
Panel description ........................ 8-36
Replacement ............................... 8-34
G
Glove Box ......................................... 6-50
H
Hazard Warning Flasher .................... 5-42
Index
11-3
Mazdaspeed6_8V77-EA-06F_Edition1 Page351
Tuesday, May 9 2006 10:46 AM
Form No.8V77-EA-06F

15
Getting started
Menu appears when pressing .
Display Menu screen will be shown when you press (DISP) and hold.
Note
Display Menu screen will be disappeared when they have been unused during a few seconds.
nAdjusting the screen quality
lAdjusts the screen brightness
Select "ADJ", and then "BRIGHT". The screen will brighten when scrolling to the right, or
darken when scrolling to the left.
lAdjusts the screen contrast
Select "ADJ", and then "CONTRAST". The screen will lighten when scrolling to the right, or
deepen when scrolling to the left.
Note
lAdjust by scrolling the Joystick to the right and left.
lRestore the adjustment value to the default when selecting “RESET”, press .
nClearing the screen
Select “DISP OFF”, press and the screen will disappear.
The screen will appear again when pressing any buttons.
nDaytime screen/Night screen
When the headlights are on, daytime mode can also be selected (if extra screen certain
nighttime conditions). This selection can only be done when the headlights are on. Press
to switch between day and night modes.
lThe screen can be returned to the daytime screen while the headlights or running lights
are on using the dashboard illumination switch in the dashboard (Black-out meter).
Menu
Screen adjustments and settings
MENU
Destination Entry and Route Search ( page 18)
Address Book ( page 34)
Cancel Guidance ( page 29)
Route Options ( page 30)
Volume ( page 38)
Navigation Set Up ( page 40)
VOICE
ENTER
ENTER
ENTER
MAZDASPEED6_NAVI_EA.book Page 15 Wednesday, May 10, 2006 4:29 PM
