2007 MAZDA MODEL CX-7 stop start

Black plate (89,1)
CAUTION
Don't try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the battery.
10. After starting the engine, let it idle for
about 10 seconds.
NOTE
lIn extremely cold weather, below
_
18° C (0° F), or after the vehicle
has not been driven in several days,
let the engine warm up without
operating the accelerator.
lWhether the engine is cold or warm,
it should be started without use of
the accelerator.
Turning off the engine
1. Shift the shift lever to the P position.
2. Turn the ignition switch from the ON
position to the ACC position.
NOTE
When the engine is turned off and the
ignition switch it turned from the ACC
position to the LOCK position, the
KEY indicator light (green) flashes in
the instrument cluster for about 30
seconds if the battery power of the
advanced key is low. Replace the
battery with a new one.
Refer to Battery Replacement (page
3-6).3. Push in the start knob from the ACC
position and turn it to the LOCK
position.
CAUTION
When leaving the vehicle, make sure
the ignition switch is turned to the
LOCK position.
NOTE
lWhen turning the ignition switch to
the LOCK position, the ignition
switch has to be pushed in from the
ACC position and turned. Without
being pushed in, the ignition switch
stops at the ACC position and the
vehicle battery may be discharged if
the ignition switch is left in the ACC
position. When leaving the vehicle,
make sure the ignition switch is
turned to the LOCK position.
lIf the vehicle is left with the ignition
switch not in the LOCK position, a
beep sound is heard and the indicator
light flashes to notify the driver.
Refer to Warning Beep (page 3-17).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
CX-7_8V28-EA-06B_Edition2 Page89
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (92,1)
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any
door or the liftgate is open or closed.
(Turning on the alarm)
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
NOTE
However, if the driver is too close to the
vehicle the panic button may not
function.
(Turning off the alarm)
The alarm stops by pressing any button on
the transmitter.
qAuxiliary Key Function
Use the auxiliary key stored in the
advanced key in the event of a dead
transmitter battery or malfunction.
Removing the auxiliary key
Pull out the auxiliary key from the
advanced key.
Locking, unlocking the doors
The doors can be locked/unlocked using
the auxiliary key, refer to Locking,
Unlocking with Key (page 3-28).
Starting the engine
The engine can be started with the
auxiliary key, refer to Starting the Engine
(page 5-3).
3-16
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8V28-EA-06B_Edition2 Page92
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (94,1)
qAdvanced Key Removed from
Vehicle Warning Beep
Under the following conditions, a beep
will be heard 6 times and the KEY
warning light (red) will flash continuously
when the start knob has not been returned
to the LOCK position to notify the driver
that the advanced key has been removed.
The KEY warning light (red) will stop
flashing when the advanced key is back
inside the vehicle:
lThe start knob has not been returned to
the LOCK position, the driver's door is
open, and the advanced key is removed
from the vehicle.
However the beep will be heard
continuously when the start knob is in
the ACC position and the door is open
due to the activation of the warning
beep indicating that the start knob is
not in the LOCK position.
lThe start knob has not been returned to
the LOCK position and all the doors
are closed after removing the advanced
key from the vehicle.
NOTE
Because the advanced key utilizes low-
intensity radio waves, the Advanced
Key Removed From Vehicle Warning
may activate if the advanced key is
carried together with a metal object or it
is placed in a poor signal reception area.
qRequest Switch Inoperable
Warning Beep
Under the following conditions, if the
request switch for a front door or the
liftgate is pressed while the advanced key
is being carried, a beep will be heard 6
times to indicate that the front doors and
the liftgate cannot be locked.
lA door is open (door ajar included).
lThe start knob has not been returned to
the LOCK position.
lThe auxiliary key is inserted into the
ignition switch.
qAdvanced Key Battery Dead
Warning
When the start knob is returned to the
ACC or LOCK position from the ON
position, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery
power is low. Replace with a new battery
before the advanced key becomes
unusable.
Refer to Advanced Key Maintenance
(page 3-5).
NOTE
The advanced key can be set so that the
KEY indicator light (green) does not
flash even if the battery power is low.
Refer to Setting Change (page 3-20).
3-18
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8V28-EA-06B_Edition2 Page94
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (113,1)
NOTE
lThe two-step down function cannot
be canceled if the procedure is not
completed within the specified times,
or the procedure is changed along
the way. To redo the procedure, first
turn the ignition switch to the LOCK
position and proceed from the
beginning.
lIf you are unable to cancel the
function despite doing the
cancellation procedure, consult an
Authorized Mazda Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function
despite doing the restore procedure,
consult an Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
stopping. If fingers are caught, serious
injuries could occur.
NOTE
Depending on driving conditions, a
closing power window could stop and
start opening when the window feels a
shock that is similar to something
blocking it.
In the event the jam-safe function
activates and the power window cannot
be closed automatically using the auto-
opening method, pull and hold the
switch fully and the window will close.
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC
or LOCK position with all doors closed. If
either front door is opened, the power
window will be inoperable.
Knowing Your Mazda
Doors and Locks
3-37
CX-7_8V28-EA-06B_Edition2 Page113
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (116,1)

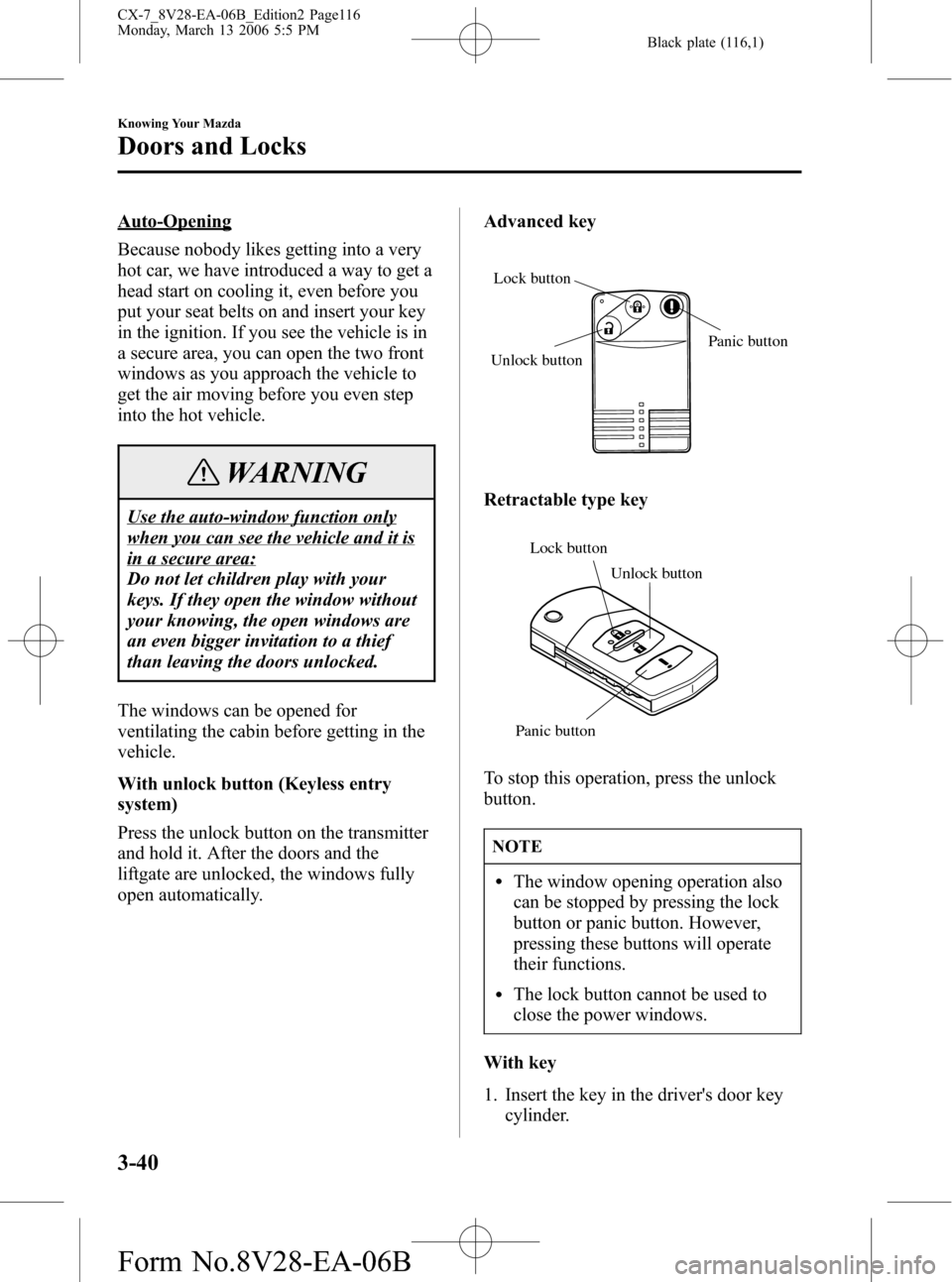

Auto-Opening
Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the two front
windows as you approach the vehicle to
get the air moving before you even step
into the hot vehicle.
WARNING
Use the auto-window function only
when you can see the vehicle and it is
in a secure area:
Do not let children play with your
keys. If they open the window without
your knowing, the open windows are
an even bigger invitation to a thief
than leaving the doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press the unlock button on the transmitter
and hold it. After the doors and the
liftgate are unlocked, the windows fully
open automatically.Advanced key
Panic button
Unlock buttonLock button
Retractable type key
Lock button
Unlock button
Panic button
To stop this operation, press the unlock
button.
NOTE
lThe window opening operation also
can be stopped by pressing the lock
button or panic button. However,
pressing these buttons will operate
their functions.
lThe lock button cannot be used to
close the power windows.
With key
1. Insert the key in the driver's door key
cylinder.
3-40
Knowing Your Mazda
Doors and Locks
CX-7_8V28-EA-06B_Edition2 Page116
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (123,1)
NOTE
The moonroof cannot be opened or
closed from outside the vehicle under
the following condition:
lA door or the liftgate is opened.
lThe key is inserted into the ignition
switch.
l(With advanced key)
The start knob is pushed into the
ignition switch.
Auto-Opening
Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the moonroof
as you approach the vehicle to get the air
moving before you even step into the hot
vehicle.
WARNING
Use the auto-moonroof function only
when you can see the vehicle and it is
in a secure area:
Do not let children play with your
keys. If they open the moonroof
without your knowing, the open
moonroof is an even bigger invitation
to a thief than leaving the doors
unlocked.
The moonroof can be opened for
ventilating the cabin before getting in the
vehicle.With unlock button (Keyless entry
system)
Press the unlock button on the transmitter
and hold it. After the doors and the
liftgate are unlocked, the moonroof fully
opens automatically.
Advanced key
Panic button
Unlock buttonLock button
Retractable type key
Lock button
Unlock button
Panic button
To stop this operation, press the unlock
button.
Knowing Your Mazda
Doors and Locks
3-47
CX-7_8V28-EA-06B_Edition2 Page123
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (125,1)
2. Press the request switch on the driver's
door and hold it. After the doors and
the liftgate are locked, the moonroof
closes while the request switch is
pressed.
Request switch
qJam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof during closing
operation, the moonroof will stop and
open halfway.
WARNING
Make sure nothing blocks the
moonroof just before it reaches the
fully closed position:
Blocking the moonroof just before it
reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
stopping. If fingers are caught, serious
injuries could occur.
NOTE
lDepending on driving conditions, a
closing moonroof could stop and
start opening when the moonroof
feels a shock that is similar to
something blocking it.
lThe moonroof's jam-safe function
does not function while the
moonroof is initializing.
qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
lThe sunshade does not tilt. To avoid
damaging the sunshade, do not push
up on it.
lDo not close the sunshade while the
moonroof is opening. Trying to force
the sunshade closed could damage it.
Knowing Your Mazda
Doors and Locks
3-49
CX-7_8V28-EA-06B_Edition2 Page125
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (133,1)
NOTE
Locking the doors with the inside door-
lock knob will not arm the system.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.
lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
l(With advanced key)
lPress a request switch or the unlock
button on the transmitter.
lTurn the start knob to the ON
position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.
lPress the unlock button on the keyless
entry system transmitter.
l(With advanced key)
lPress a request switch.lPress the unlock button on the
transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized
Mazda Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove box.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
Knowing Your Mazda
Security System
3-57
CX-7_8V28-EA-06B_Edition2 Page133
Monday, March 13 2006 5:6 PM
Form No.8V28-EA-06B
