2007 MAZDA MODEL 6 key

Black plate (98,1)
Trunk Lid (Sedan)
WARNING
Never allow a person to ride in thetrunk:
Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously injured
or killed during sudden braking or a
collision.
Keep the trunk closed when driving:
Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death.
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid, lock the rearseatbacks and do not allow children toplay inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being atempting place to play by locking rearseats, doors and the trunk, andkeeping the keys where children cannot play with them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
CAUTION
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to the
rear spoiler and the trunk lid.
3-20
Knowing Your Mazda
Doors and Locks
Mazda6_8W89-EA-06K_Edition1 Page98
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (99,1)
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with thetransmitter
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Opening the trunk lid with the remoterelease button
Push the release button.
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Knowing Your Mazda
Doors and Locks
3-21
Mazda6_8W89-EA-06K_Edition1 Page99
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (100,1)
Inside Trunk Release
Lever (Sedan)
Your vehicle is equipped with an inside
trunk release handle that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside release handle so
that all children can be told about it in an
appropriate way, keeping in mind that
most vehicles don't have such handles.
WARNING
Close the trunk lid, lock the rearseatbacks and do not allow children toplay inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being atempting place to play by locking rearseats, doors and the trunk, andkeeping the keys where children cannot play with them:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car, the rear
folding seats or the trunk unlocked.
3-22
Knowing Your Mazda
Doors and Locks
Mazda6_8W89-EA-06K_Edition1 Page100
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (106,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate apower window, keep the power windowlock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
NOTE
When the power window lock switch is
in the locked position, the light on front
passenger's power window switch turns
off. The light may be difficult to see
depending on the surrounding
brightness.
qOpening/Closing the Power
Windows from Outside
The front power windows can be opened
or closed from outside the vehicle after
the doors and the hatch/liftgate/trunk lid
are closed.
The front power windows may be
operated when the power window lock
switch on the driver's door is in the lock
or unlocked position.
WARNING
Make sure the opening is clear beforeclosing a window:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children.
NOTE
The power windows cannot be opened
or closed from outside the vehicle under
the following condition:
lA door or the hatch/liftgate/trunk lid
is opened.
lThe key is inserted into the ignition
switch.
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the two front windows as you
approach the vehicle to get the air moving
before you get in.
3-28
Knowing Your Mazda
Doors and Locks
Mazda6_8W89-EA-06K_Edition1 Page106
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

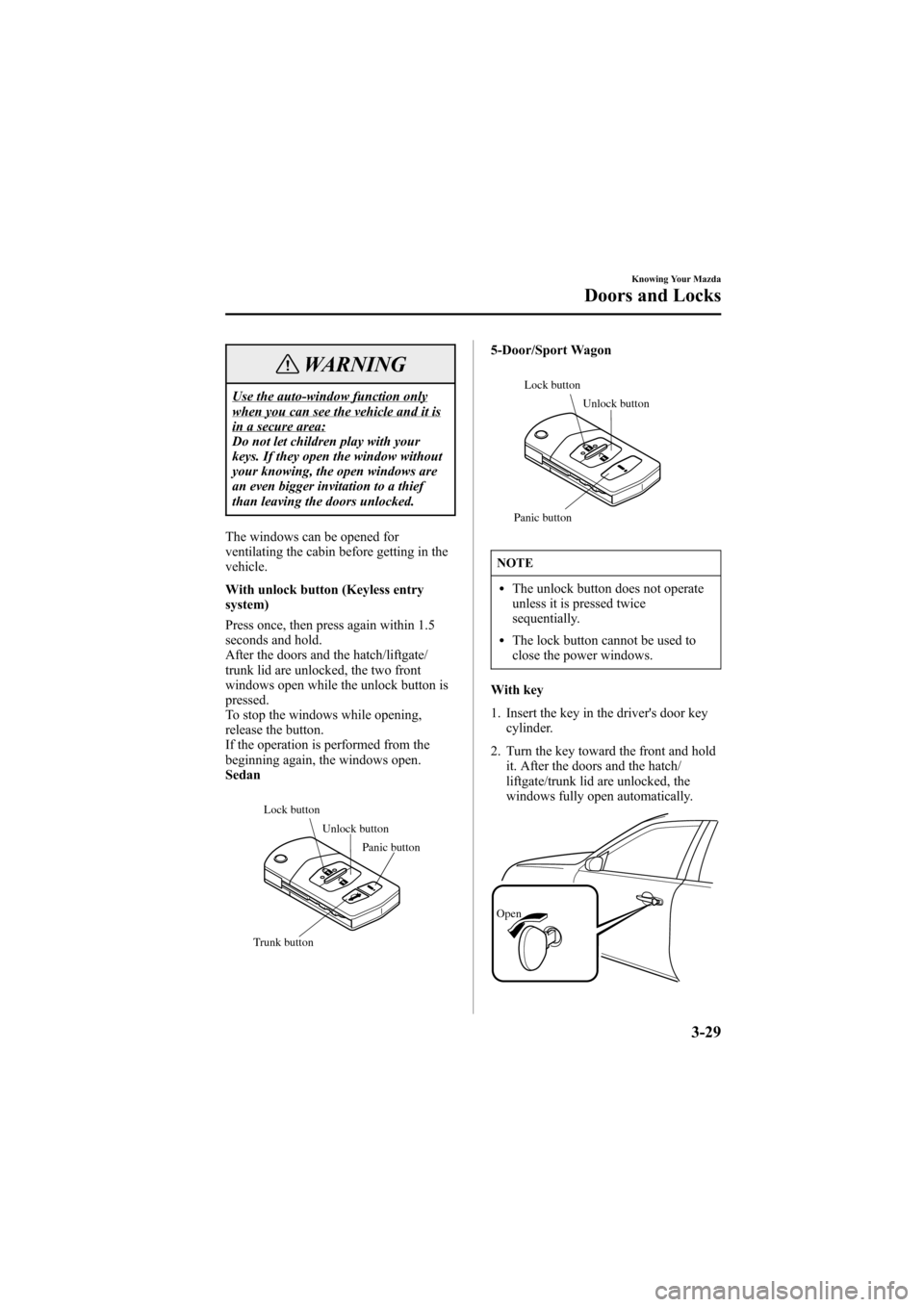

Black plate (107,1)
WARNING
Use the auto-window function onlywhen you can see the vehicle and it isin a secure area:
Do not let children play with your
keys. If they open the window without
your knowing, the open windows are
an even bigger invitation to a thief
than leaving the doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press once, then press again within 1.5
seconds and hold.
After the doors and the hatch/liftgate/
trunk lid are unlocked, the two front
windows open while the unlock button is
pressed.
To stop the windows while opening,
release the button.
If the operation is performed from the
beginning again, the windows open.
Sedan
Lock button
Unlock button
Trunk buttonPanic button
5-Door/Sport Wagon
Lock button
Unlock button
Panic button
NOTE
lThe unlock button does not operate
unless it is pressed twice
sequentially.
lThe lock button cannot be used to
close the power windows.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key toward the front and hold
it. After the doors and the hatch/
liftgate/trunk lid are unlocked, the
windows fully open automatically.
Open
Knowing Your Mazda
Doors and Locks
3-29
Mazda6_8W89-EA-06K_Edition1 Page107
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (108,1)
To stop this operation, turn the key to the
center position, then turn it toward the
front again.
NOTE
The window opening operation also can
be stopped by turning the key toward
the back. However, the doors and the
hatch/liftgate/trunk lid will lock.
Closing
The windows can be closed in case they
are left open after getting out of the
vehicle.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key toward the back and hold
it. After the doors and the hatch/
liftgate/trunk lid are locked, the
windows close as long as the key is
turned.
Close
Fuel-Filler Lid and Cap
WARNING
When removing the fuel cap, loosenthe cap slightly and wait for anyhissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.
Before refueling, stop the engine, andalways keep sparks and flames awayfrom the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
3-30
Knowing Your Mazda
Doors and Locks
Mazda6_8W89-EA-06K_Edition1 Page108
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (113,1)
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
lRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
lTo avoid damage to the key, do not:
lDrop the key.lGet the key wet.lExpose the key to any kind of
magnetic field.
lExpose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.
CAUTION
When starting the engine do not allow
the following, as the engine may not
start due to the electronic signal from
the ignition key not being transmitted
correctly.
lA key ring rests on the key grip.
lMetal parts of other keys or metal
objects touch the key grip.
lSpare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key
grip.
lDevices for electronic purchases, or
security passage touch or come near
the key.
Knowing Your Mazda
Security System
3-35
Mazda6_8W89-EA-06K_Edition1 Page113
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (114,1)
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
qOperation
Arming
The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
NOTE
lIf the security indicator light comes
on and stays on when the ignition
switch is turned to the ON position,
the engine will not start.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are using
the proper key and your engine fails
to start, check the security indicator
light. If it is flashing, remove the
ignition key and wait 2 seconds or
more, then reinsert it and try starting
the engine again. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the engine
while the light is flashing you won't
be able to restart it.
3-36
Knowing Your Mazda
Security System
Mazda6_8W89-EA-06K_Edition1 Page114
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
