4. To get the retractor into the automaticlocking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
5. Push the child-restraint system firmlyinto the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in the
automatic locking mode. If the belt
does not lock the seat down tight,
repeat this step.
NOTE
Inspect this function before each use of the
child-restraint system. You should not be able
to pull the shoulder belt out of the retractor
while the system is in the automatic locking
mode. When you remove the child-restraint
system, be sure the belt fully retracts to return
the system to emergency locking mode before
occupants use the seat belts.
6. If your child-restraint system requiresthe use of a tether strap, refer to the
manufacturer's instructions to hook and
tighten the tether strap after raising the
head restraint (Second-row seats).
Anchor bracket location (Second-row
seats)
Marking
Tether strap position (Second-row
seats)
Tether strap
Anchor
bracket
Essential Safety Equipment
Child Restraint
2-31
Mazda5_8X91-EA-07E_Edition1 Page43
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (84,1)

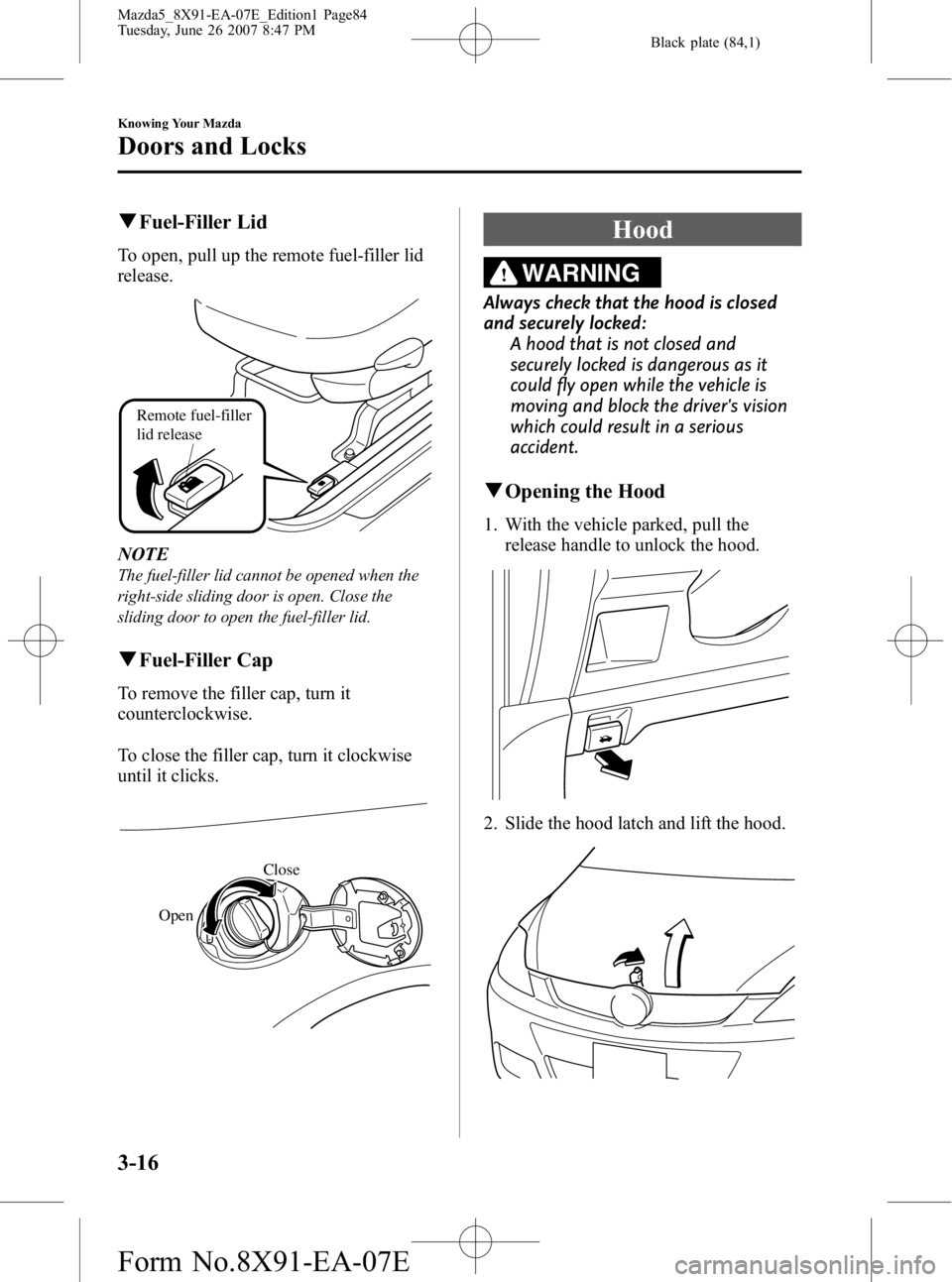

qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
NOTE
The fuel-filler lid cannot be opened when the
right-side sliding door is open. Close the
sliding door to open the fuel-filler lid.
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Open Close
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Slide the hood latch and lift the hood.
3-16
Knowing Your Mazda
Doors and Locks
Mazda5_8X91-EA-07E_Edition1 Page84
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (136,1)
CAUTION
Driving with an overheated engine
can cause serious engine damage
(page 7-13).
qFuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
Low fuel
warning light
NOTE
The direction of the arrow () shown next to
the low fuel warning light indicates that the
fuel-filler lid is on the right side of the vehicle.
q Dashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
The brightness of dashboard illuminations can
be adjusted when the headlight switch is in the
orposition.
Dim
Bright
Canceling the illumination dimmer
(Dashboard illumination)í
When the headlight switch is in theor
position, the illumination of the
information display dims.
When driving on snowy or foggy roads,
or in other situations when information
display's visibility is reduced due to glare
from surrounding brightness, cancel the
illumination dimmer and increase the
illumination intensity.
To cancel the illumination dimmer, rotate
the knob clockwise fully. You will hear a
beep sound and the illumination dimmer
will be canceled.
NOTE
If the dashboard illumination knob is kept at
the illumination dimmer cancel position, the
information display will not dim when the
headlight switch is turned to the
or
position again.
5-30
Driving Your Mazda
íSome models.
Instrument Cluster and Indicators
Mazda5_8X91-EA-07E_Edition1 Page136
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (166,1)
Manual Typeí
Temperature control dial Fan control dial Mode selector dialA/C switchAir intake selector
Some models.
qControl Switches
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
This dial allows variable fan speeds.
0― Fan off
1 ― Low speed
2 ― Medium low speed
3 ― Medium high speed
4 ― High speed
6-6
Interior Comfort
íSome models.
Climate Control System
Mazda5_8X91-EA-07E_Edition1 Page166
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (171,1)
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
ColdHot
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Slow
Fast
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
lWith the airflow mode set toposition
and the temperature control dial set at a
medium temperature, heated air is directed
to the feet and a comparably lower air
temperature will flow through the central,
left and right vents.
lTo set the air vent to, press the
windshield defroster switch.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
Interior Comfort
Climate Control System
6-11
Mazda5_8X91-EA-07E_Edition1 Page171
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (175,1)
Antenna
qDetachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
Install
Remove
CAUTION
Ø To prevent damage to the
antenna, remove it before entering
a car wash facility or passing
beneath a low overhead clearance.
Ø Be careful around the antenna
when removing snow from the
roof. Otherwise the antenna could
be damaged.
NOTE
When leaving your vehicle unattended, we
recommend that you remove the antenna and
store it inside the vehicle.
Operating Tips for Audio
System
WARNING
Do not adjust the audio control
switches while driving the vehicle: Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the
vehicle operation which could lead to
a serious accident. Always adjust the
audio while the vehicle is stopped.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
For the purposes of safe driving,
adjust the audio volume to a level
that allows you to hear sounds
outside of the vehicle.
NOTE
lDo not use the audio for long periods of
time while the engine is off. Otherwise the
battery could go dead.
lIf a cellular phone or CB radio is used in
or near the vehicle, it could cause noise to
occur from the audio system, however, this
does not indicate that the system has been
damaged.
Interior Comfort
Audio System
6-15
Mazda5_8X91-EA-07E_Edition1 Page175
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (208,1)
Information Display
Climate control display/
Ambient temperature display
Clock Audio display
q
Information Display Functions
