2007 MAZDA MODEL 5 fuse

Black plate (287,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 30 A Cooling fan
3 P.WIND 40 A ―
4 IG KEY1 30 A ―
5 ABS-V 20 A ABS
6 ABS-P 30 A ABS
7 IG KEY2 20 A For protection of various circuits
8 HEATER
DEICER 20 A
―
9 BLOWER 40 A Blower motor
10 GLOW
IG KEY1 40 A For protection of various circuits
11 BTN 40 A For protection of various circuits
12 IG KEY2 40 A ―
13 CLOSER
P.SLIDE LH 20 A Easy closer (LH)
í
14CLOSER
P.SLIDE RH 20 A Easy closer (RH)í
Maintenance and Care
Owner Maintenance
8-45íSome models.
Mazda5_8X91-EA-07E_Edition1 Page287
Tuesday, June 26 2007 8:48 PM
Form No.8X91-EA-07E

Black plate (288,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
15 EHPAS 80 A EHPAS
16 FOG 15 A Front fog lights
í
17 D.LOCK 20 A Power door lock
18 P.WIND
H/CLEAN 20 A
―
19 MAG 10 A Magnet clutch
20 DEFOG 25 A Rear window defroster
21 ENG+B 10 A PCM
22 STOP 10 A Brake lights
23 FUEL 20 A Fuel pump
24 HAZARD 10 A Turn signals, Hazard warning flashers
25 ROOM 15 AOverhead lights, Map lights, Luggage compartment light, For
protection of various circuits
26 ―― ―
27 ―― ―
28 GLOW SIG 7.5 A ―
29 HEAD HR 10 A Headlight high beam (RH)
30 HEAD HL 10 A Headlight high beam (LH)
31 HORN 15 A Horn
32 SUN ROOF 20 A Moonroof
í
33 ETC MIRROR
BURGLAR 7.5 A PCM
34 HEAD LR 15 A Headlight low beam (RH), Manual headlight leveling
í
35 HEAD LL 15 A Headlight low beam (LH)
36 ENG BAR2 15 A PCM
37 ENG BAR 15 A Air flow sensor, Engine control system
38 INJ 20 A Injector
39 ILLUMI 10 A Illumination
40 TAIL 10 A Taillights, Parking lights, License plate lights, For protection of
various circuits
8-46
Maintenance and Care
íSome models.
Owner Maintenance
Mazda5_8X91-EA-07E_Edition1 Page288
Tuesday, June 26 2007 8:48 PM
Form No.8X91-EA-07E

Black plate (289,1)

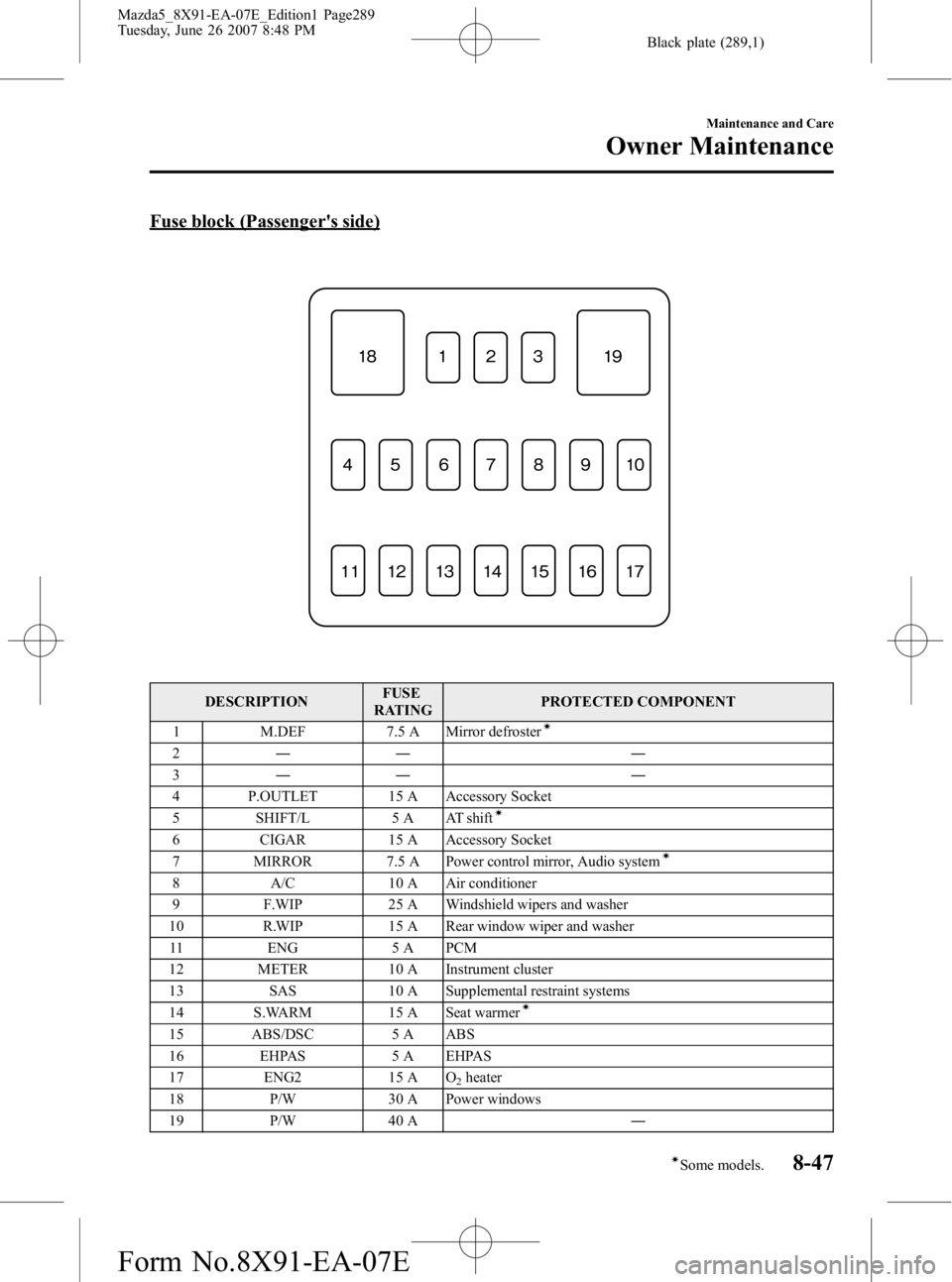

Fuse block (Passenger's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 M.DEF 7.5 A Mirror defroster
í
2―― ―
3 ―― ―
4 P.OUTLET 15 A Accessory Socket
5 SHIFT/L 5 A AT shift
í
6 CIGAR 15 A Accessory Socket
7 MIRROR 7.5 A Power control mirror, Audio systemí
8 A/C 10 A Air conditioner
9 F.WIP 25 A Windshield wipers and washer
10 R.WIP 15 A Rear window wiper and washer
11 ENG 5 A PCM
12 METER 10 A Instrument cluster
13 SAS 10 A Supplemental restraint systems
14 S.WARM 15 A Seat warmer
í
15 ABS/DSC 5 A ABS
16 EHPAS 5 A EHPAS
17 ENG2 15 A O
2heater
18 P/W 30 A Power windows
19 P/W 40 A ―
Maintenance and Care
Owner Maintenance
8-47íSome models.
Mazda5_8X91-EA-07E_Edition1 Page289
Tuesday, June 26 2007 8:48 PM
Form No.8X91-EA-07E

Black plate (345,1)
qFuses
Refer to the fuse rating on page 8-43.
Specifications
10-7
Mazda5_8X91-EA-07E_Edition1 Page345
Tuesday, June 26 2007 8:48 PM
Form No.8X91-EA-07E

Black plate (349,1)
D
DefrosterRear window .............................. 5-51
Dimensions ....................................... 10-5
Door Locks ......................................... 3-6
Driving In Flooded Area ..................... 4-9
Driving Tips ........................................ 4-6 Automatic transaxle ................... 5-16
Break-in period ............................ 4-6
Driving in flooded area ................ 4-9
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-7
Winter driving .............................. 4-8
E
Easy Closure ..................................... 3-11
Emergency Starting ........................... 7-15
Flooded engine ........................... 7-15
Jump-starting .............................. 7-16
Push-starting .............................. 7-19
Emergency Towing ........................... 7-20
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-20
Exhaust gas .................................. 4-4
Hood release .............................. 3-16
Oil .............................................. 8-18
Overheating ................................ 7-13
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-13
Engine Coolant Temperature
Gauge ................................................ 5-29
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-50
F
Flasher
Hazard warning .......................... 5-53
Headlights .................................. 5-43
Flat Tire ............................................... 7-3 Changing ...................................... 7-7
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-47 Front ........................................... 5-47
Foot Brake .......................................... 5-4
Front Seats .......................................... 2-2
Fuel Filler lid and cap ........................ 3-15
Gauge ......................................... 5-30
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-43
Panel description ........................ 8-45
Replacement ............................... 8-43
G
Glove Box ......................................... 6-52
H
Hazard Warning Flasher .................... 5-53
Hazardous Driving .............................. 4-7
HeadlightsControl ....................................... 5-43
Flashing ...................................... 5-45
High-low beam .......................... 5-45
Leveling ..................................... 5-45
On reminder ............................... 5-45
Hood Release .................................... 3-16
Horn .................................................. 5-52
Index
11-3
Mazda5_8X91-EA-07E_Edition1 Page349
Tuesday, June 26 2007 8:48 PM
Form No.8X91-EA-07E

55
Before
UseGetting
started
RoutingAddress
BookVoice
Recognition
Navigation
Set Up
If necessary
Troubleshooting
Note
There may be some problems due to operational errors or mistakes. Please read this manual
again and verify that there really is a problem before calling an Expert Dealer, we recommend
an Authorized Mazda Dealer to ask for repair services.
No picturel Check if a fuse has blown.
Consult an Expert Dealer, we recommend an Authorized
Mazda Dealer.
l Check if the voltage level of the vehicle battery is low.
Recharge the battery or change batteries.
Display does
not open or
close
The vehicle
position is not
correct
lCheck if the vehicle position changed when ACC was set to
OFF.
When, for example,
• The vehicle was transported by a ferry boat.
• The vehicle was rotated on a turn table in a parking lot.
• The vehicle was transported by a tow track or other such
vehicle. Drive the vehicle for a while where you are receiving
GPS signals.
