2007 MAZDA MODEL 3 HATCHBACK clock

Black plate (90,1)
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with the remote
release lever
Pull up the release lever next to the
driver's seat.
Release lever
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Security
In some situations you may want to
prevent the trunk from being opened with
the remote trunk lid release lever.
Give your key only to someone you trust.
To secure the trunk lid, lock the rear
seatbacks (page 2-8), push the trunk lock
lever up, and close the trunk.
To cancel the security feature, insert the
key into the lock, turn the key clockwise,
and pull the trunk lock lever down.
Unlock
Lock
Trunk lock lever
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
3-16
Knowing Your Mazda
Doors and Locks
Mazda3_8V66-EA-06F_Edition3 Page90
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (96,1)
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
OpenClose
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Slide the hood latch and lift the hood.
Type A
3-22
Knowing Your Mazda
Doors and Locks
Mazda3_8V66-EA-06F_Edition3 Page96
Wednesday, August 23 2006 11:19 AM
Form No.8V66-EA-06F

Black plate (190,1)
Manual Typeí
Air intake selector
A/C switch Mode selector dialTemperature control dial
Fan control dial
Some models.
qControl Switches
Temperature control dial
ColdHot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
This dial allows variable fan speeds.
0―Fan off
1―Low speed
2―Medium low speed
3―Medium high speed
4―High speed
6-6
Interior Comfort
íSome models.
Climate Control System
Mazda3_8V66-EA-06F_Edition3 Page190
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (196,1)
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold Hot
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
SlowFast
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
With the airflow mode set to
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature will
flow through the central, left and right
vents.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F). (Indicator
remains on even when system is off.)
6-12
Interior Comfort
Climate Control System
Mazda3_8V66-EA-06F_Edition3 Page196
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (200,1)
Antenna
qDetachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
RemoveInstall
Type A
Type B
Install
Remove
CAUTION
lTo prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
lBe careful around the antenna when
removing snow from the roof.
Otherwise the antenna could be
damaged.
NOTE
When leaving your vehicle unattended,
we recommend that you remove the
antenna and store it inside the vehicle.
6-16
Interior Comfort
Audio System
Mazda3_8V66-EA-06F_Edition3 Page200
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (232,1)

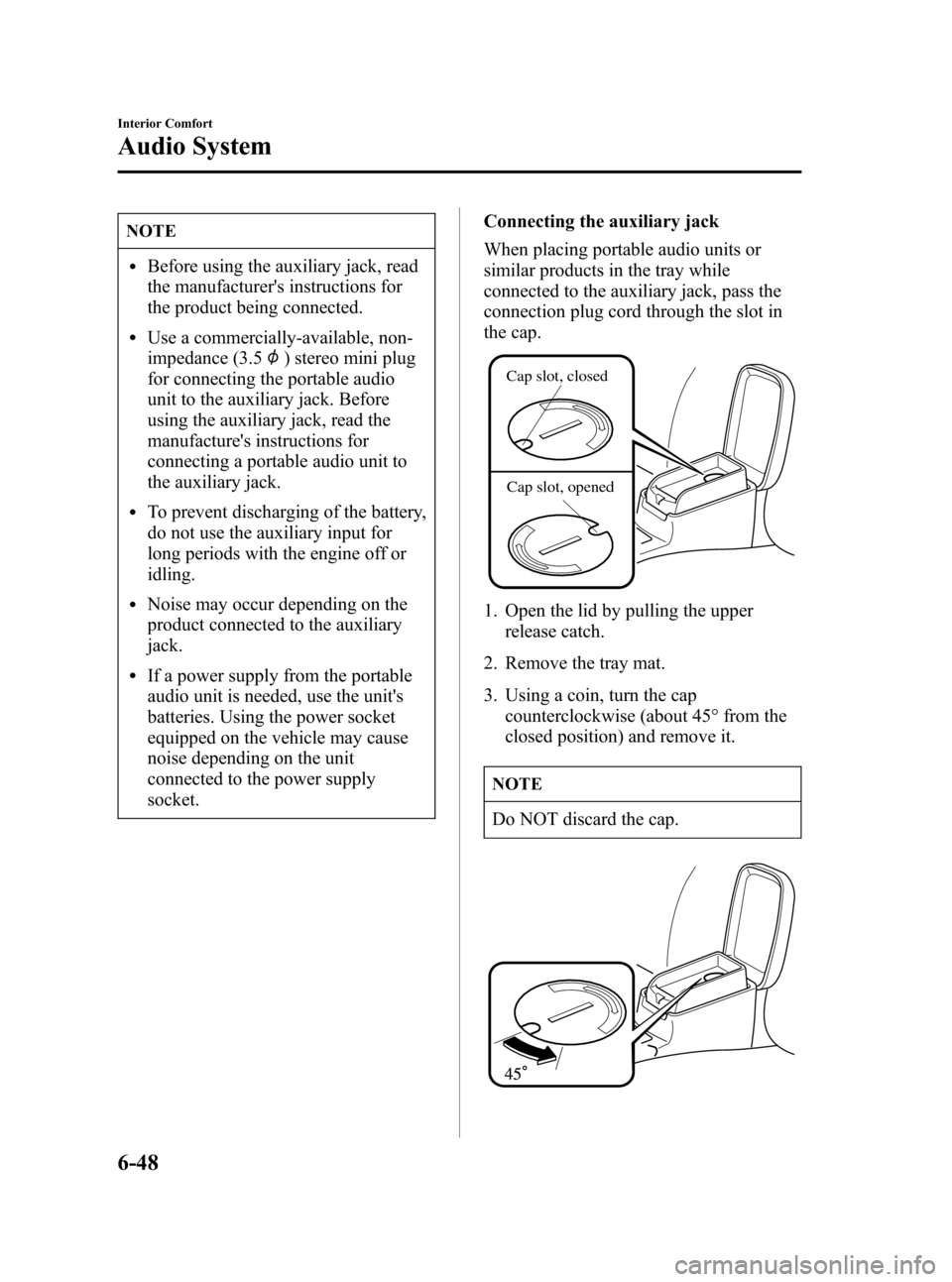

NOTE
lBefore using the auxiliary jack, read
the manufacturer's instructions for
the product being connected.
lUse a commercially-available, non-
impedance (3.5
) stereo mini plug
for connecting the portable audio
unit to the auxiliary jack. Before
using the auxiliary jack, read the
manufacture's instructions for
connecting a portable audio unit to
the auxiliary jack.
lTo prevent discharging of the battery,
do not use the auxiliary input for
long periods with the engine off or
idling.
lNoise may occur depending on the
product connected to the auxiliary
jack.
lIf a power supply from the portable
audio unit is needed, use the unit's
batteries. Using the power socket
equipped on the vehicle may cause
noise depending on the unit
connected to the power supply
socket.Connecting the auxiliary jack
When placing portable audio units or
similar products in the tray while
connected to the auxiliary jack, pass the
connection plug cord through the slot in
the cap.
Cap slot, closed
Cap slot, opened
1. Open the lid by pulling the upper
release catch.
2. Remove the tray mat.
3. Using a coin, turn the cap
counterclockwise (about 45° from the
closed position) and remove it.
NOTE
Do NOT discard the cap.
6-48
Interior Comfort
Audio System
Mazda3_8V66-EA-06F_Edition3 Page232
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (233,1)
4. Open the tray by pulling the lower
release catch.
5. Pass the connection plug cord through
the hole of the tray and insert the plug
in the auxiliary jack.
Plug
WARNING
Do not allow the connection plug cord
to get tangled with the parking brake
or the shift lever:
Allowing the plug cord to become
tangled with the parking brake or the
shift lever is dangerous as it could
interfere with driving, resulting in an
accident.
CAUTION
Do not place objects or apply force to
the auxiliary jack with the plug
connected.
NOTE
lInsert the plug to the auxiliary jack
securely.
lInsert or remove the plug with the
plug perpendicular to the auxiliary
jack hole.
lInsert or remove the plug by holding
its base.
6. Make sure the connection plug cord is
running through the cap slot; reinstall
the cap and turn it clockwise (about
45° to the opened position).
Connection plug
cord
7. Pass the connection plug cord through
the slit in the tray mat and then set the
tray mat in place.
Interior Comfort
Audio System
6-49
Mazda3_8V66-EA-06F_Edition3 Page233
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (239,1)
Information Display
With trip computer
Without trip computerTrip computer/ClockAudio display
Climate control display/Ambient
temperature display
qInformation Display Functions
The information display has the following functions:
lClock
lAmbient Temperature Display (Outside Temperature Display)í
lClimate Control Display (Fully Automatic Type)
lAudio Display
lTrip Computerí
Interior Comfort
Interior Equipment
6-55íSome models. Mazda3_8V66-EA-06F_Edition3 Page239
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F
