2007 LINCOLN NAVIGATOR Power steering fluid

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
9

Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of a AdvanceTrac
with
RSC event is an indication that at least some of the tires have
exceeded their ability to grip the road; this may lead to an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death. If you experience a severe road event, SLOW DOWN.
If a failure is detected in the AdvanceTrac
with RSC system, and the
AdvanceTrac
with RSC button has not been pushed, the warning
indicator light in the instrument cluster will stay on. If the warning
indicator light in the instrument cluster remains on while the engine is
running, have the system serviced by an authorized dealer immediately.
STEERING
Your vehicle is equipped with power steering. Power steering uses energy
from the engine to decrease the driver’s effort in steering the vehicle.
To help prevent damage to the power steering pump:
•Never hold the steering wheel to the extreme right or the extreme left
for more than a few seconds when the engine is running.
•Do not operate the vehicle with the power steering pump fluid level
below the MIN mark on the reservoir.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the MAX mark on
the reservoir, as this may result in leaks from the reservoir.
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•Underinflated tire(s) on any wheel(s)
•Uneven vehicle loading
•High crown in center of road
•High crosswinds
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
203

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
5.4L 3V–V8 engine
1. Windshield washer fluid reservoir
2. Engine oil dipstick
3. Brake fluid reservoir
4. Engine coolant reservoir
5. Air filter assembly
6. Power steering fluid reservoir
7. Power distribution box
8. Engine oil filler cap
9. Battery
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
267

Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid. Refer to thescheduled maintenance
informationfor the service interval schedules. If adding fluid is
necessary, use MERCON
AT F.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating range the performance of the system
could be compromised; seek service from your authorized dealer
immediately.
MAX
MIN
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
292

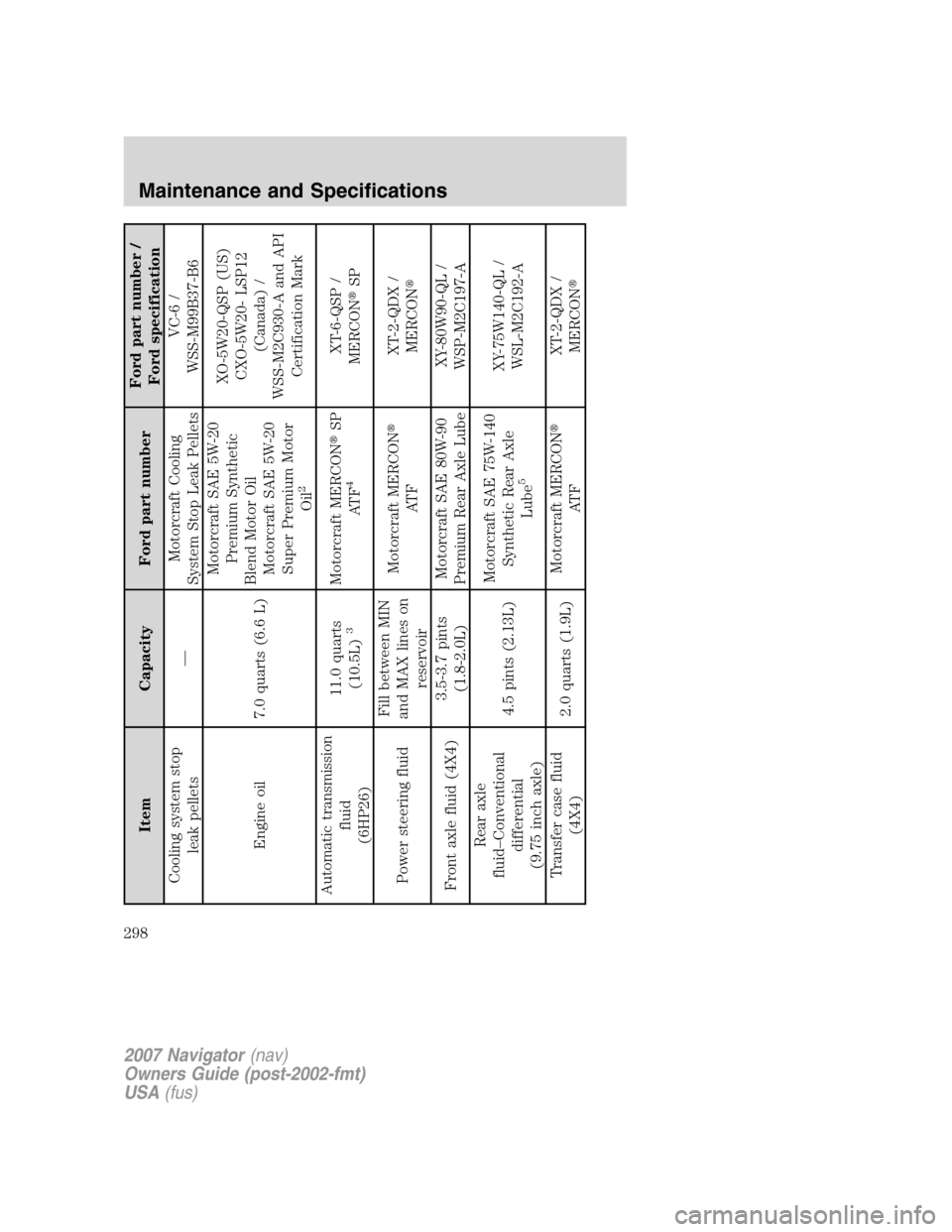

Item Capacity Ford part numberFord part number /
Ford specification
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil 7.0 quarts (6.6 L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil
Motorcraft SAE 5W-20
Super Premium Motor
Oil
2
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Automatic transmission
fluid
(6HP26)11.0 quarts
(10.5L)
3
Motorcraft MERCON
SP
AT F
4
XT-6-QSP /
MERCON
SP
Power steering fluidFill between MIN
and MAX lines on
reservoirMotorcraft MERCON

AT FXT-2-QDX /
MERCON

Front axle fluid (4X4)3.5-3.7 pints
(1.8-2.0L)Motorcraft SAE 80W-90
Premium Rear Axle LubeXY-80W90-QL /
WSP-M2C197-A
Rear axle
fluid–Conventional
differential
(9.75 inch axle)4.5 pints (2.13L)Motorcraft SAE 75W-140
Synthetic Rear Axle
Lube
5
XY-75W140-QL /
WSL-M2C192-A
Transfer case fluid
(4X4)2.0 quarts (1.9L)Motorcraft MERCON

AT FXT-2-QDX /
MERCON

2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
298

wiper blades ............................261
Clock ............................................54
Compass, electronic
set zone adjustment .................72
Console ........................................53
overhead ..............................51–52
rear ............................................53
Controls
power seat ...............................107
steering column ........................64
Coolant
checking and adding ..............275
refill capacities ................278, 297
specifications ..........................297
Cruise control (see Speed
control) ........................................61
Customer Assistance ................221
Ford Extended Service
Plan ..........................................254
Getting assistance outside
the U.S. and Canada ..............255
Getting roadside assistance ...221
Getting the service you
need .........................................250
Ordering additional owner’s
literature .................................256
Utilizing the
Mediation/Arbitration
Program ...................................254
D
Daytime running lamps
(see Lamps) ................................40
Defrost
rear window ..............................38
Dipstick
automatic transmission
fluid ..........................................293engine oil .................................270
Driving under special
conditions ..................209, 215, 218
sand .........................................216
snow and ice ...........................219
through water .................217, 220
DVD system .................................32
E
Electronic message center .........71
Emergencies, roadside
jump-starting ..........................241
Emission control system ..........289
Engine ........................................300
cleaning ...................................260
coolant .....................................275
fail-safe cooling .......................279
idle speed control ...................273
lubrication specifications .......297
refill capacities ........................297
service points ..........................267
starting after a collision .........223
Engine block heater .................195
Engine oil ..................................270
change oil soon warning,
message center .......................270
checking and adding ..............270
dipstick ....................................270
filter, specifications ........272, 296
recommendations ...................272
refill capacities ........................297
specifications ..........................297
Exhaust fumes ..........................195
F
Fail safe cooling ........................279
Floor mats ...................................83
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
306

L
Lamps
autolamp system .......................39
bulb replacement
specifications chart ..................44
daytime running light ...............40
fog lamps ...................................39
headlamps .................................39
headlamps, flash to pass ..........40
interior lamps ...............42–43, 45
replacing bulbs .........................47
Lane change indicator
(see Turn signal) ........................42
Liftgate ......................83, 87, 95–96
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........197
Load limits .................................178
Loading instructions .................184
Locks
autolock ...............................89, 91
childproof ..................................93
doors ..........................................89
Lubricant specifications ...........297
Lug nuts ....................................241
Luggage rack ...............................88
Lumbar support, seats .............106
M
Message center ...........................71
english/metric button ...............78
system check button ................78
warning messages .....................79
Mirrors .........................................58
automatic dimming rearview
mirror ........................................57
fold away ...................................58heated ........................................59
programmable memory ............97
signal .........................................59
Moon roof ....................................66
Motorcraft parts ........263, 281, 296
N
Navigation system .......................32
O
Octane rating ............................284
Oil (see Engine oil) ..................270
P
Panic alarm feature, remote
entry system ................................96
Parking brake ............................198
Parts (see Motorcraft parts) ....296
Pedals (see Power adjustable
foot pedals) .................................59
Power adjustable foot pedals .....59
Power deployable running
boards ..........................................60
Power distribution box
(see Fuses) .......................225, 228
Power door locks ........................89
Power liftgate ..............................83
Power mirrors .............................58
Power point .................................54
Power steering ..................203–204
fluid, checking and adding ....292
fluid, refill capacity ................297
fluid, specifications .................297
Power Windows ...........................55
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
308
