2007 LINCOLN NAVIGATOR instrument panel

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Not used (Spare)
31 10A Compass, Automatic dimming rear
view mirror
32 10A Restraints control module
33 10A Ebrake
34 5A Not used (spare)
35 10A Rear park assist, 4x4
36 5A PATS transceiver
37 10A Climate control
38 20A
Subwoofer/Amp (Audiophile radio)
39 20A Radio
40 20A Instrument panel amp, DSP,
Radio, 4x4 module
41 15A Radio
42 10A Upfitter relay coil, Trailer tow,
Battery charge coil
43 10A Rear wiper logic
44 10A Customer access feed
45 5A Front wiper logic
46 7.5A Not used (Spare)
47 30A Circuit
BreakerPower windows, Moon roof
48 — Delayed accessory relay
Note:Relays R301–R305 are not serviceable components; see your
authorized dealer for assistance.
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
227

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellant
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32–A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
INSTRUMENT PANEL AND CLUSTER LENS
Clean the instrument panel with a damp cloth, then with a clean, dry
cloth, or use Motorcraft Dash & Vinyl Cleaner (ZC-38-A).
•Avoid cleaners or polish that increase the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
261

Do not use chemical solvents or strong detergents when cleaning
the steering wheel or instrument panel to avoid contamination of
the airbag system.
•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the interior painted
surfaces.
INTERIOR TRIM
•Clean the interior trim areas with a damp cloth, then with a clean, dry
cloth; you may also use Motorcraft Dash & Vinyl Cleaner (ZC-38-A).
•Do not use household or glass cleaners as these may damage the
finish.
INTERIOR
For fabric, carpets, cloth seats and safety belts:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with Motorcraft Professional Strength
Carpet & Upholstery Cleaner (ZC-54).
•If grease or tar is present on the material, spot-clean the area first
with Motorcraft Spot and Stain Remover (ZC-14).
•If a ring forms on the fabric after spot cleaning, clean the entire area
immediately (but do not oversaturate) or the ring will set.
•Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
Do not use cleaning solvents, bleach or dye on the vehicle’s
seatbelts, as these actions may weaken the belt webbing.
CLEANING THE CLIMATE CONTROLLED SEATS (IF EQUIPPED)
Remove dust and loose dirt with a whisk broom or a vacuum cleaner.
Remove fresh spots immediately. Clean the seat with a damp cloth, using
a mild soap and water solution, if necessary.
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
262

OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located under the
bottom of the instrument panel.
2. Go to the front of the vehicle and
release the auxiliary latch that is
located under the front center of
the hood.
3. Lift the hood until the lift
cylinders hold it open.
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
266

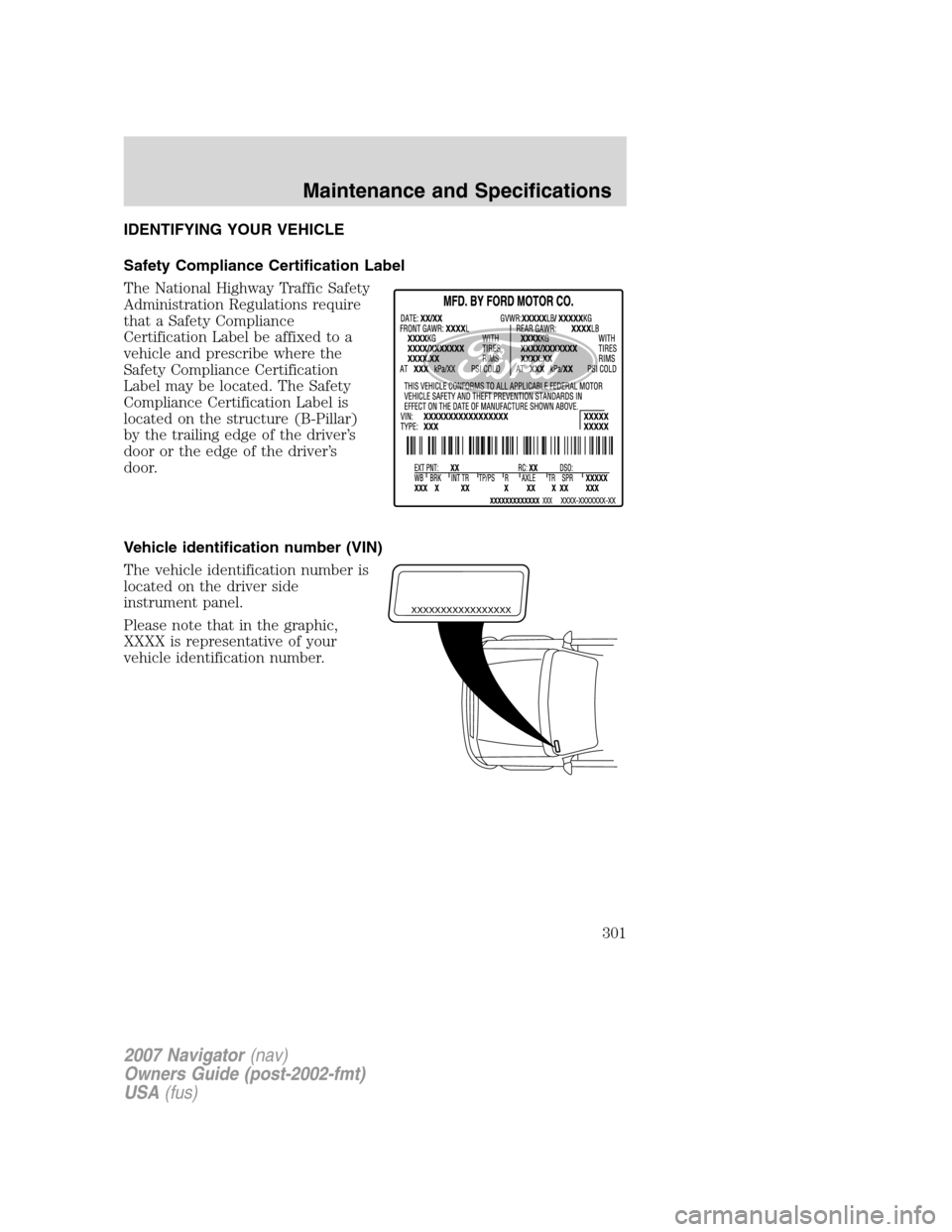

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
301

A
ABS (see Brakes) .....................196
Accessory delay ..........................57
AdvanceTrac ..............................199
Air cleaner filter ...............293, 296
Air suspension ...........................204
description ..............................204
Airbag supplemental restraint
system ........................133, 137, 139
and child safety seats ............135
description ..............133, 137, 139
disposal ....................................142
driver airbag ............135, 138, 140
indicator light .................137, 142
operation .................135, 138, 140
passenger airbag .....135, 138, 140
side airbag ...............................137
Antifreeze
(see Engine coolant) ................275
Anti-lock brake system
(see Brakes) ......................196–197
Anti-theft system
arming the system ..................103
Audio system (see Radio) .........18
Automatic transmission
driving an automatic
overdrive .................................207
fluid, adding ............................293
fluid, checking ........................293
fluid, refill capacities ..............297
fluid, specification ..................297
Auxiliary Input Jack ...................24
Auxiliary power point .................54
Axle
lubricant specifications ..........297
refill capacities ........................297
B
Battery .......................................273acid, treating emergencies .....273
jumping a disabled battery ....241
maintenance-free ....................273
replacement, specifications ...296
servicing ..................................273
BeltMinder
...............................129
Brakes ........................................196
anti-lock ...........................196–197
anti-lock brake system (ABS)
warning light ...........................197
fluid, checking and adding ....292
fluid, refill capacities ..............297
fluid, specifications .................297
lubricant specifications ..........297
parking ....................................198
shift interlock ..........................205
Bulbs ............................................44
C
Capacities for refilling fluids ....297
Cargo management system ........87
Cell phone use ..............................7
Changing a tire .........................232
Child safety restraints ..............143
child safety belts ....................143
Child safety seats ......................146
in front seat ............................148
in rear seat ......................148, 150
Cleaning your vehicle
engine compartment ..............260
instrument panel ....................261
interior .....................................262
interior trim ............................262
plastic parts ............................260
safety belts ..............................262
washing ....................................258
waxing .....................................259
wheels ......................................259
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
305

Fluid capacities .........................297
Foglamps .....................................39
Four-Wheel Drive vehicles .......212
control trac .............................212
description ..............................212
driving off road .......................213
indicator light .........................212
preparing to drive your
vehicle .....................................205
Fuel ............................................281
calculating fuel
economy ............................74, 286
cap ...........................................283
capacity ...................................297
choosing the right fuel ...........284
comparisons with EPA fuel
economy estimates .................289
detergent in fuel .....................285
filling your vehicle with
fuel ...........................281, 283, 286
filter, specifications ........281, 296
fuel pump shut-off switch .....223
improving fuel economy ........286
octane rating ...................284, 300
quality ......................................285
running out of fuel .................285
safety information relating to
automotive fuels .....................281
Fuses ..................................224–225
G
Gas cap (see Fuel cap) ............283
Gas mileage
(see Fuel economy) .................286
Gauges .........................................15
H
Hazard flashers .........................222Headlamps ...................................39
aiming ........................................41
autolamp system .......................39
bulb specifications ....................44
daytime running lights .............40
flash to pass ..............................40
high beam .................................40
turning on and off ....................39
Homelink wireless control
system ..........................................67
Hood ..........................................266
I
Ignition ...............................192, 300
Illuminated visor mirror .............51
Infant seats
(see Safety seats) .....................146
Inspection/maintenance (I/M)
testing ........................................291
Instrument panel
cleaning ...................................261
cluster ........................................10
J
Jack ............................................232
positioning ...............................232
storage .....................................232
Jump-starting your vehicle ......241
K
Keyless entry system
autolock ...............................89, 91
keypad .....................................101
locking and unlocking doors ..102
programming entry code .......101
Keys ...................................102–104
positions of the ignition .........192
2007 Navigator(nav)
Owners Guide (post-2002-fmt)
USA(fus)
Index
307
