2007 LEXUS LX470 engine coolant

104
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the target
region.

The following gauges, meters and display illuminate when the ignition
key is turned to the “ON” position.
Voltmeter
Displays the charge state.
Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Engine oil pressure gauge
Displays the engine oil pressure.
Engine coolant temperature gauge
Displays the engine coolant temperature.

106
2-2. Instrument cluster
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (“H”). In this case, immediately stop the vehicle in a safe place. Check
the engine after it has cooled completely. ( P. 363)
■While driving
●When the voltmeter indicates more than 19 V or less than 9 V, the battery may be
malfunctioning. Have your vehicle checked at your Lexus dealer.
●When the engine oil pressure gauge do es not work properly, immediately stop
the engine and contact your Lexus dealer.

156
2-5. Driving information
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■ Pre-winter preparations
●Use fluids that are appropria te to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.

168
2-5. Driving information
●Due to the added load of the trailer, your vehicle’s engine may overheat
on hot days (at temperatures over 85
F[30C] when driving up a long
or steep grade. If the engine coolant temperature gauge indicates
overheating, immediately turn off th e air conditioning (if in use), pull
your vehicle off the road and stop in a safe spot. (
P. 363)
● Always place wheel blocks under both the vehicle and the trailer
wheels when parking. Apply the pa rking brake firmly, and put the
transmission in P. Avoid parking on a slope, but if unavoidable, do so
only after performing the following:
Apply the brakes and keep them applied.
Have someone place wheel blocks under both the vehicle and
trailer wheels.
When the wheel blocks are in pl ace, release the brakes slowly
until the blocks absorb the load.
Apply the parking brake firmly.
Shift into “P” and turn off the engine.
● When restarting after parking on a slope:
With the transmission in the “P” position, start the engine. Be sure
to keep the brake pedal pressed.
Shift into 3, 2, 1, or “R” position (if reversing).
Release the parking brake and br ake pedal, and slowly pull or
back away from the wheel blocks. Stop and apply the brakes.
Have someone retrieve the blocks.
STEP1STEP1
STEP2STEP2
STEP1STEP3STEP3
STEP1STEP4
STEP1STEP5STEP5
STEP1STEP1
STEP2STEP2
STEP1STEP3STEP3
STEP1STEP4

267
4-2. Maintenance
4
Maintenance and care
General maintenance
Engine compartment
ItemsCheck points
Battery• Maintenance-free (P. 2 8 8 )
Brake fluid• At the correct level? ( P. 2 8 4 )
Engine coolant• At the correct level? ( P. 2 8 2 )
Engine oil• At the correct level? ( P. 2 7 7 )
Exhaust system• No fumes or strange sounds?
Power steering fluid• At the correct level? (P. 2 8 6 )
Radiator/condenser/hoses • Not blocked with foreign matter?
(P. 2 8 3 )
Suspension fluid• At the correct level? ( P. 2 8 7 )
Wa s h e r f l u i d• At the correct level? ( P. 2 9 1 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recomme nded that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

272
4-3. Do-it-yourself maintenance
ItemsPa r t s a n d t o o l s
Engine coolant level (P. 2 8 2 )
• “Toyota Super Long Life Coolant”
or similar high quality ethylene gly-
col based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding cool-
ant)
Engine oil level ( P. 2 7 7 )
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding
engine oil)
Power steering fluid ( P. 2 8 6 )
• Automatic transmission fluid
DEXRON®II or III
•Rag or paper towel
• Funnel (used only for adding power
steering fluid)
Radiator and condenser (P. 2 8 3 )

274
4-3. Do-it-yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury.
■When working on the engine compartment
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, inverter, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
■When working near the electric cooling fan or radiator grille
Be sure the ignition is off. With the ignition in on, the electric cooling fan may auto-
matically start to run if the air conditioning is on and/or if the coolant temperature is
high.
(  P. 2 8 3 )
■When working on or under the vehicle
●Do not get under the vehicle with just the jack supporting it.
Always use automotive jack stands or other solid supports.
●Use eye protection to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.

276
4-3. Do-it-yourself maintenance

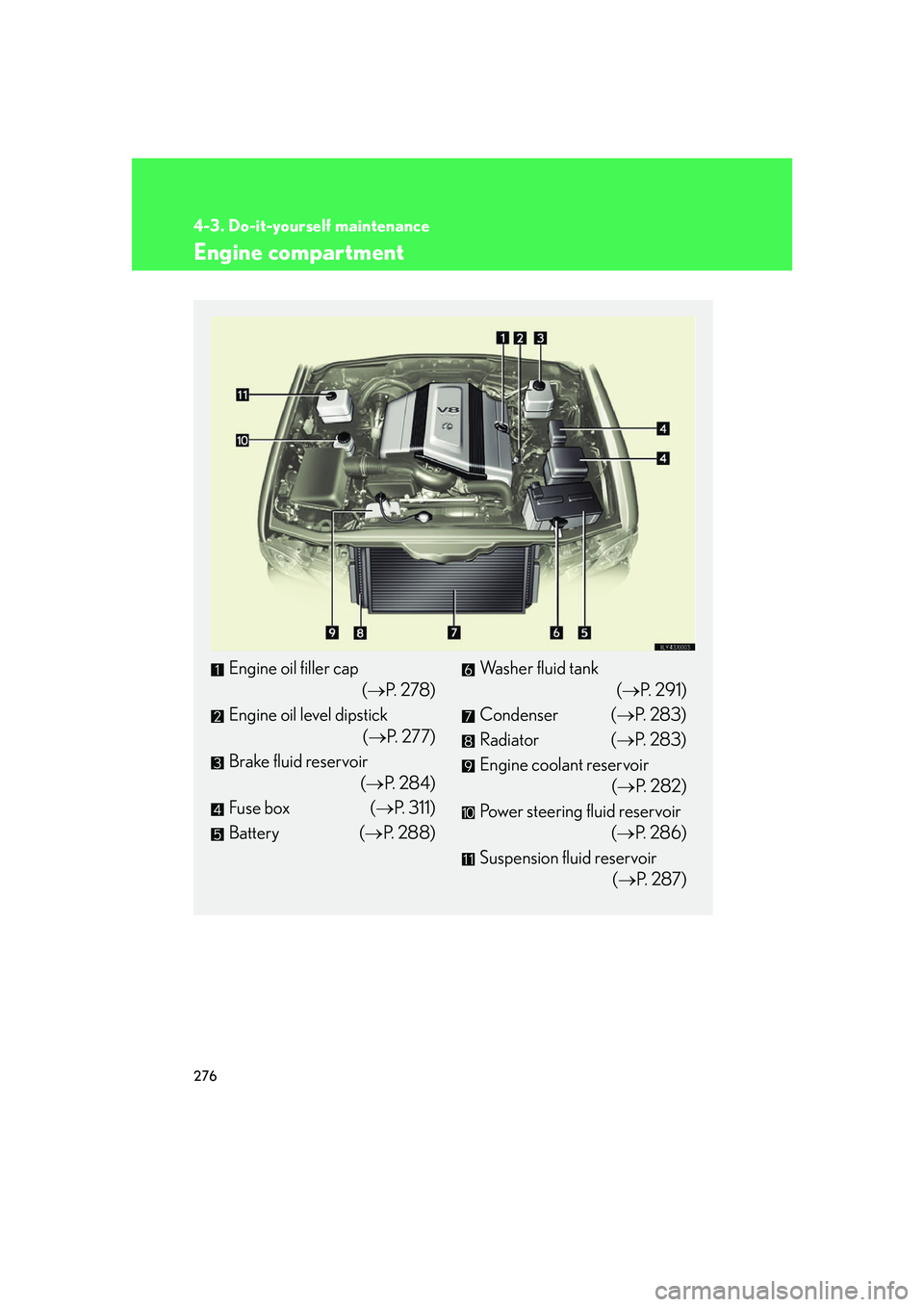

Engine compartment
Engine oil filler cap(P. 2 7 8 )
Engine oil level dipstick (P. 277)
Brake fluid reservoir (P. 2 8 4 )
Fuse box ( P. 311)
Battery ( P. 2 8 8 )Washer fluid tank
(P. 2 9 1 )
Condenser ( P. 283)
Radiator ( P. 283)
Engine coolant reservoir (P. 2 8 2 )
Power steering fluid reservoir (P. 2 8 6 )
Suspension fluid reservoir (P. 2 8 7 )
