2007 Lexus GX470 flat tire

TABLE OF CONTENTS
i
1Before drivingAdjusting and operating features such as door locks, mir-
rors, and steering column.
2When drivingDriving, stopping and safe-driving information.
3Interior featuresAir conditioning and audio systems, as well as other interior
features for a comfortable driving experience.
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-your-
self maintenance, and maintenance information.
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident.
6Vehicle
specificationsDetailed vehicle information.
7For US ownersReporting safety defects for US owners.
IndexAlphabetical listing of informat ion contained in this manual.

TABLE OF CONTENTSIndex
iv
Using the DVD player (MP3 discs) .................................. 215
Using the video mode ................. 217
Changing the initial setting ....... 218
3-4. Using the interior lights .......... 225 Interior lights list............................ 225
3-5. Using the storage features ..................................... 228
List of storage fe atures............... 228
3-6. Other interior features........... 233 Sun visors......................................... 233
Vanity mirror .................................. 234
Clock ................................................. 235
Outside temperature display ............................................ 236
Ashtrays ........................................... 237
Cigarette lighter .......................... 238
Power outlet ................................... 239
Seat heaters ..................................... 241
Armrest ............................................ 243
Floor mats........................................ 244
Luggage compartment features .......................................... 245
Garage door opener ................. 248
Compass.......................................... 253
Lexus Link System ....................... 257 4-1. Maintenance and care............ 272
Cleaning and protecting the vehicle exterior .......................... 272
Cleaning and protecting the vehicle interior............................ 274
4-2. Maintenance.............................. 277 Maintenance requirements ..... 277
General maintena nce ................ 279
Emission inspection and maintenance (I/M)
programs ...................................... 282
4-3. Do-it-yourself maintenance........................... 283
Do-it-yourself service precautions ................................. 283
Hood.................................................. 286
Engine compartment.................. 287
Tires .................................................. 302
Tire inflation pressure................ 309
Wheels............................................... 313
Air conditioning filter................... 315
Wireless remote control battery ............................................. 317
Rear seat entertainment system controller ........................ 319
Checking and replacing fuses ................................................. 321
Light bulbs ........................................ 331
4Maintenance and care

1
2
3
4
5
6
7
v
5-1. Essential information .............. 338If your vehicle needs to be towed............................................. 338
If you think something is wrong ............................................. 343
Fuel pump shut off system ........ 344
Event data recorder .................... 345
5-2. Steps to take in an emergency ............................... 347
If a warning light turns on or a warning buzzer sounds... ....... 347
If you have a flat tire..................... 356
If the engine will not start .......... 367
If the shift lever cannot be shifted from P ............................. 368
If you lose your keys .................... 369
If the vehicle battery is discharged ................................... 370
If your vehicle overheats ........... 373
If the vehicle becomes stuck................................................ 375 6-1. Specifications ............................ 378
Maintenance data ........................ 378
Fuel information ............................ 387
Tire information ........................... 390
6-2. Customization .......................... 398 Customizable features ............. 398
6-3. Initialization ................................ 401 Items to initialize ............................ 401
Reporting safety defects for U.S. owners.................................. 404
Alphabetical index................... 406
What to do if................................ 414
5When trouble arises6Vehicle specifications
7For US owners
Index

vii
Tire
●Rotation
● Replacement
● Inflation pressure
● Information
P. 302
P. 356
P. 385
P. 390
Tail lights P. 111
Side marker light P. 111
Back door P. 11
Rear window defogger

P. 169
Door P. 6
Fuel filler door P. 46
Turn signal light P. 101

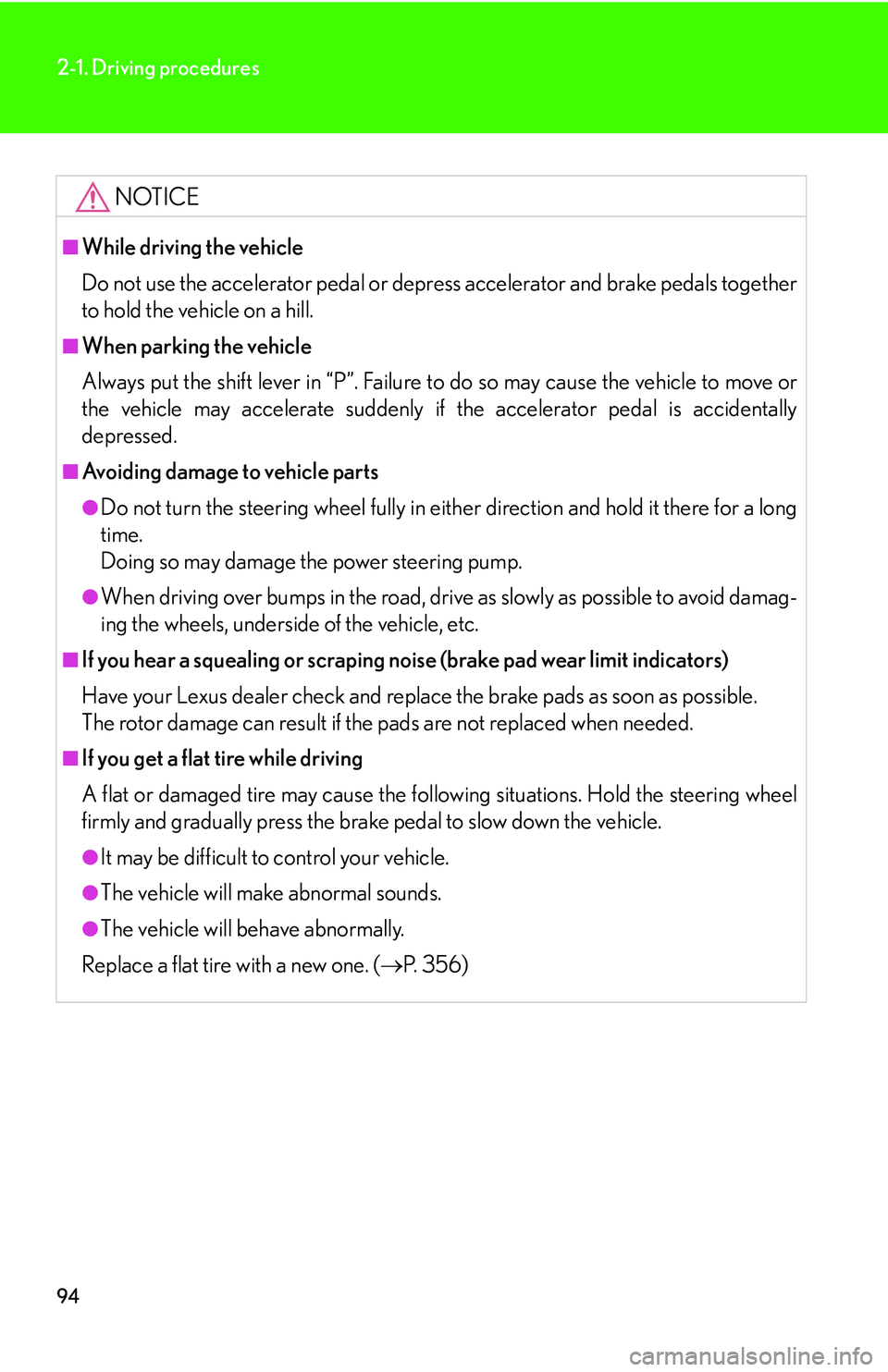

94
2-1. Driving procedures
NOTICE
■While driving the vehicle
Do not use the accelerator pedal or depress accelerator and brake pedals together
to hold the vehicle on a hill.
■When parking the vehicle
Always put the shift lever in “P”. Failure to do so may cause the vehicle to move or
the vehicle may accelerate suddenly if the accelerator pedal is accidentally
depressed.
■Avoiding damage to vehicle parts
●Do not turn the steering wheel fully in either direction and hold it there for a long
time.
Doing so may damage the power steering pump.
●When driving over bumps in the road, drive as slowly as possible to avoid damag-
ing the wheels, underside of the vehicle, etc.
■If you hear a squealing or scraping no ise (brake pad wear limit indicators)
Have your Lexus dealer check and replac e the brake pads as soon as possible.
The rotor damage can result if the pads are not replaced when needed.
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brak e pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( P. 3 5 6 )

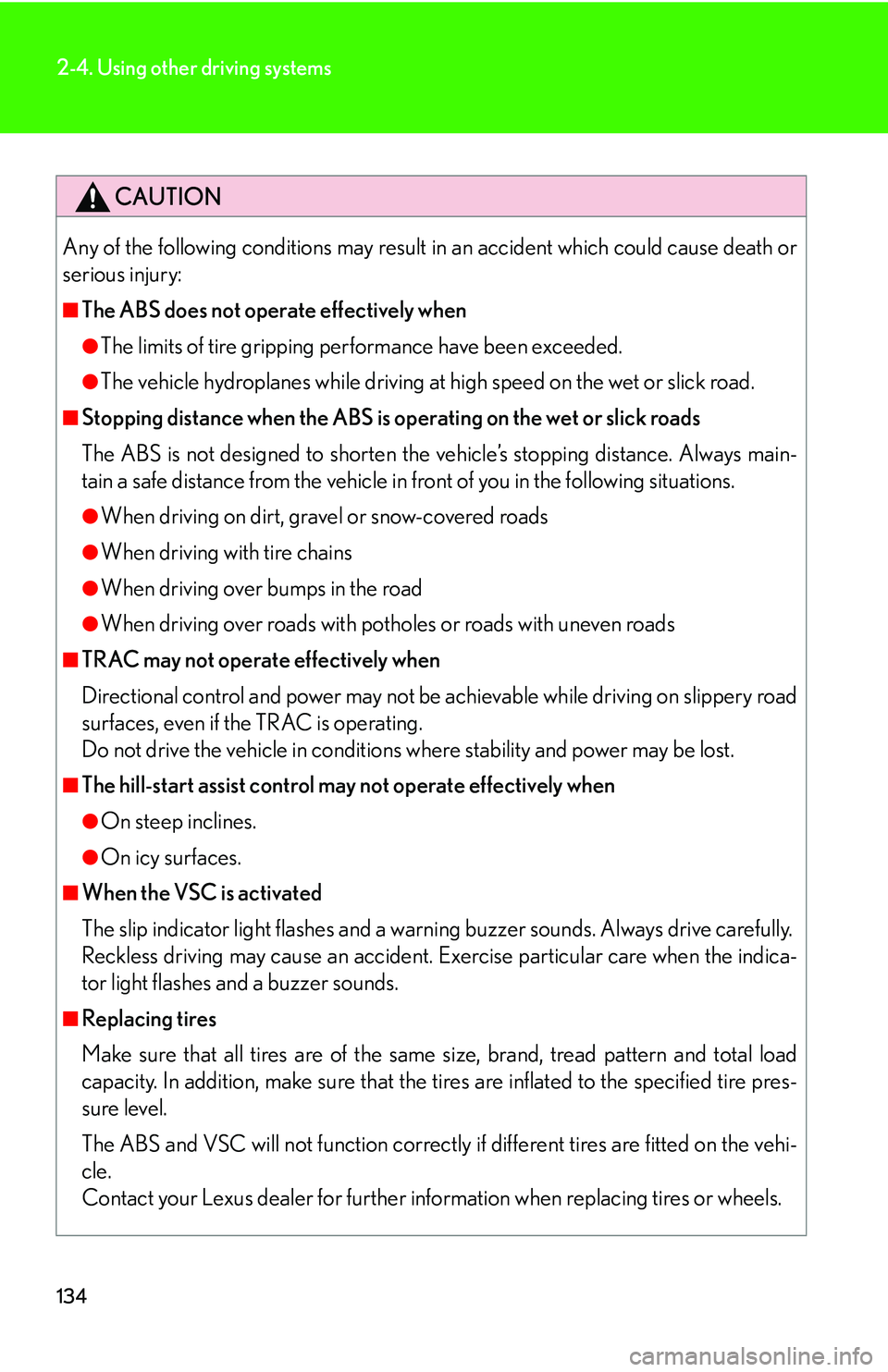

134
2-4. Using other driving systems
CAUTION
Any of the following conditions may result in an accident which could cause death or
serious injury:
■The ABS does not operate effectively when
●The limits of tire gripping performance have been exceeded.
●The vehicle hydroplanes while driving at high speed on the wet or slick road.
■Stopping distance when the ABS is operating on the wet or slick roads
The ABS is not designed to shorten the vehicle’s stopping dist ance. Always main-
tain a safe distance from the vehicle in front of you in the following situations.
●When driving on dirt, gravel or snow-covered roads
●When driving with tire chains
●When driving over bumps in the road
●When driving over roads with potholes or roads with uneven roads
■TRAC may not operate effectively when
Directional control and power may not be ac hievable while driving on slippery road
surfaces, even if the TRAC is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
■The hill-start assist control may not operate effectively when
●On steep inclines.
●On icy surfaces.
■When the VSC is activated
The slip indicator light flashes and a warning buzzer sounds. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the indica-
tor light flashes and a buzzer sounds.
■Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total load
capacity. In addition, make sure that the ti res are inflated to the specified tire pres-
sure level.
The ABS and VSC will not function correctly if different tires are fitted on the vehi-
cle.
Contact your Lexus dealer for further info rmation when replacing tires or wheels.

148
2-5. Driving information
■Snow chain installation
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires.
●Install tire chains in accordance with the accompanying instructions.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or serious
injury.
●Use tires of the size specified for your vehicle.
●Maintain the specified level of tire inflation pressure.
●Do not drive in excess of 65 mph (105 km/h), regardless of the type of snow tires
being used.
●Snow tires should be installed on all wheels.
■Driving with snow chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being used,
or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden turns and braking, as use of chains may adversely affect vehicle
handling.
●Slow down sufficiently before entering a curve to ensure that vehicle control is
maintained.

154
2-5. Driving information
■Before towing
Check that the following conditions are met:
●The vehicle’s tires are properly inflated. (P. 3 8 5 )
●Trailer tires are inflated according to the trailer manufacturer’s recommenda-
tion.
●All trailer lights work.
●All lights work each time you connect them.
●The trailer ball is set up at the proper height for the coupler on the trailer.
●The vehicle remains level when a loaded or unloaded trailer is hitched. Do not
drive if the vehicle is not level, and check for improper tongue load, overloading,
worn suspension, or other possible causes.
●The trailer cargo is securely loaded.
●The rear view mirrors conform to all applicable federal, state/provincial or local
regulations. If they do not, install rear view mirrors appropriate for towing pur-
poses.
■Break-in schedule
Lexus recommends that you do not use a new vehicle or a vehicle with any new
power train components (engine, transmission, differential, wheel bearings, etc.) to
tow a trailer for the first 500 miles (800 km) of driving.
■Maintenance
●If you tow a trailer, your vehicle will require more frequent maintenance due to
the additional load. (See “Warranty and Services Guide/Owner’s Manual Sup-
plement/Scheduled Maintenance”.)
●Retighten the fixing bolts of the towing ball and bracket after approximately
600 miles (1000 km) of trailer towing.
