2007 Lexus GX470 emergency towing

338
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only attempted on hard, surfaced roads for short dis-
tances at low speeds.
A driver must be in the vehicle to s teer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towi ng, and abide by all state/provincial
and local laws.
The wheels and axle on the ground must be in good condition.
If they are damaged, use a to wing dolly or flat bed truck.

5
When trouble arises
339
5-1. Essential information

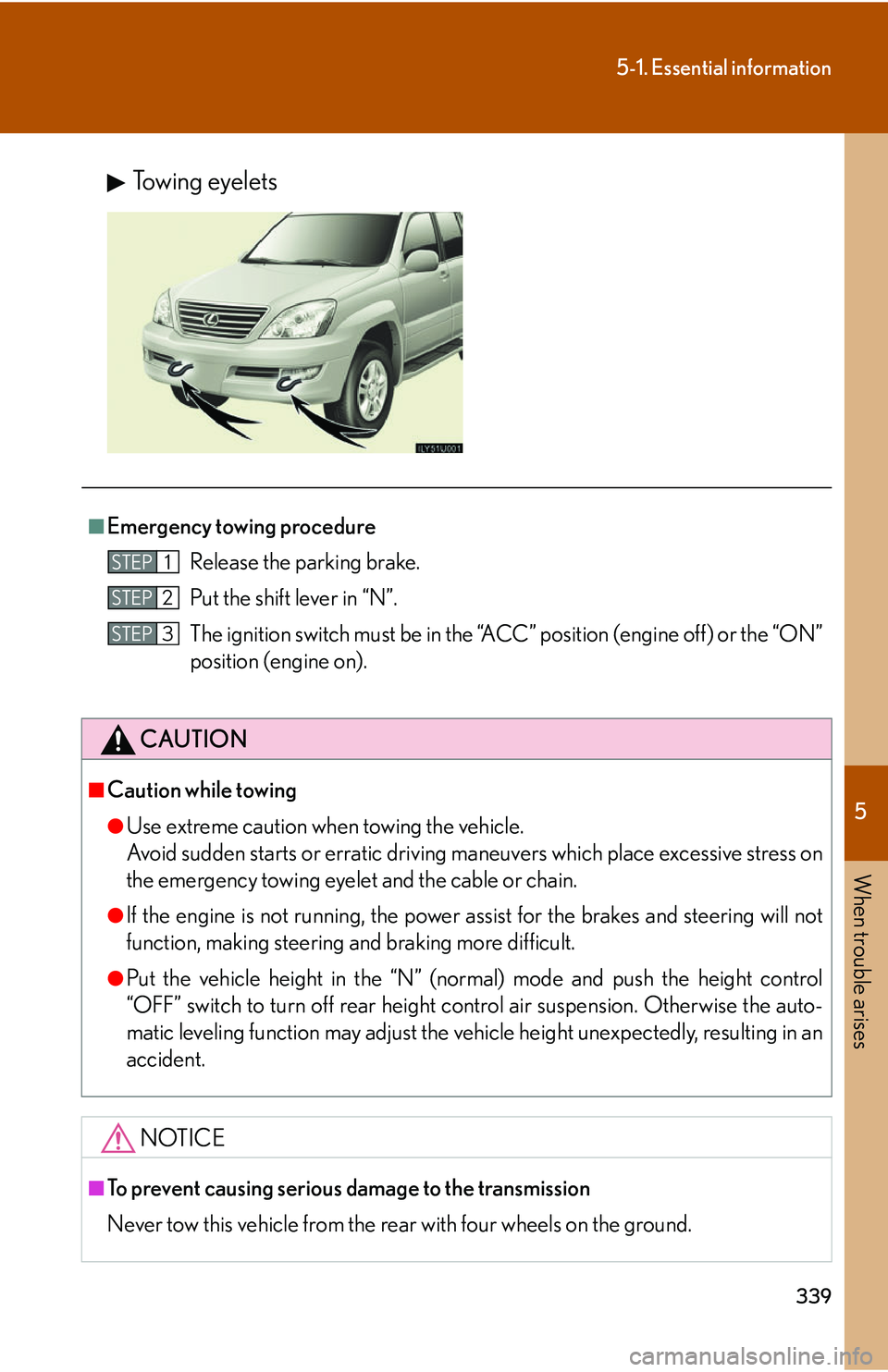

Towing eyelets
■Emergency towing procedureRelease the parking brake.
Put the shift lever in “N”.
The ignition switch must be in the “ACC” position (engine off) or the “ON”
position (engine on).
CAUTION
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain.
●If the engine is not running, the power assi st for the brakes and steering will not
function, making steering and braking more difficult.
●Put the vehicle height in the “N” (normal) mode and push the height control
“OFF” switch to turn off rear height co ntrol air suspension. Otherwise the auto-
matic leveling function may adjust the vehicle height unexpectedly, resulting in an
accident.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the rear with four wheels on the ground.
STEP1
STEP2
STEP3

5
When trouble arises
363
5-2. Steps to take in an emergency
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
83 ft•lbf (112 N•m, 11.5 kgf•m)
Reinstall the wheel ornament.
Stowing the flat/spare tire, jack and toolsLay down the tire with the outer
side facing up, and install the hold-
ing bracket.
Raise the tire.
Vehicles with kinetic dynamic su spension: Pull the tire towards
the rear of the vehicle when raising. After raising, visually check
that the tire is not interfering with suspension components.
Stow the tools and jack securely, and replace all covers.
STEP4
STEP5
STEP1
STEP5STEP2
STEP5STEP3

366
5-2. Steps to take in an emergency

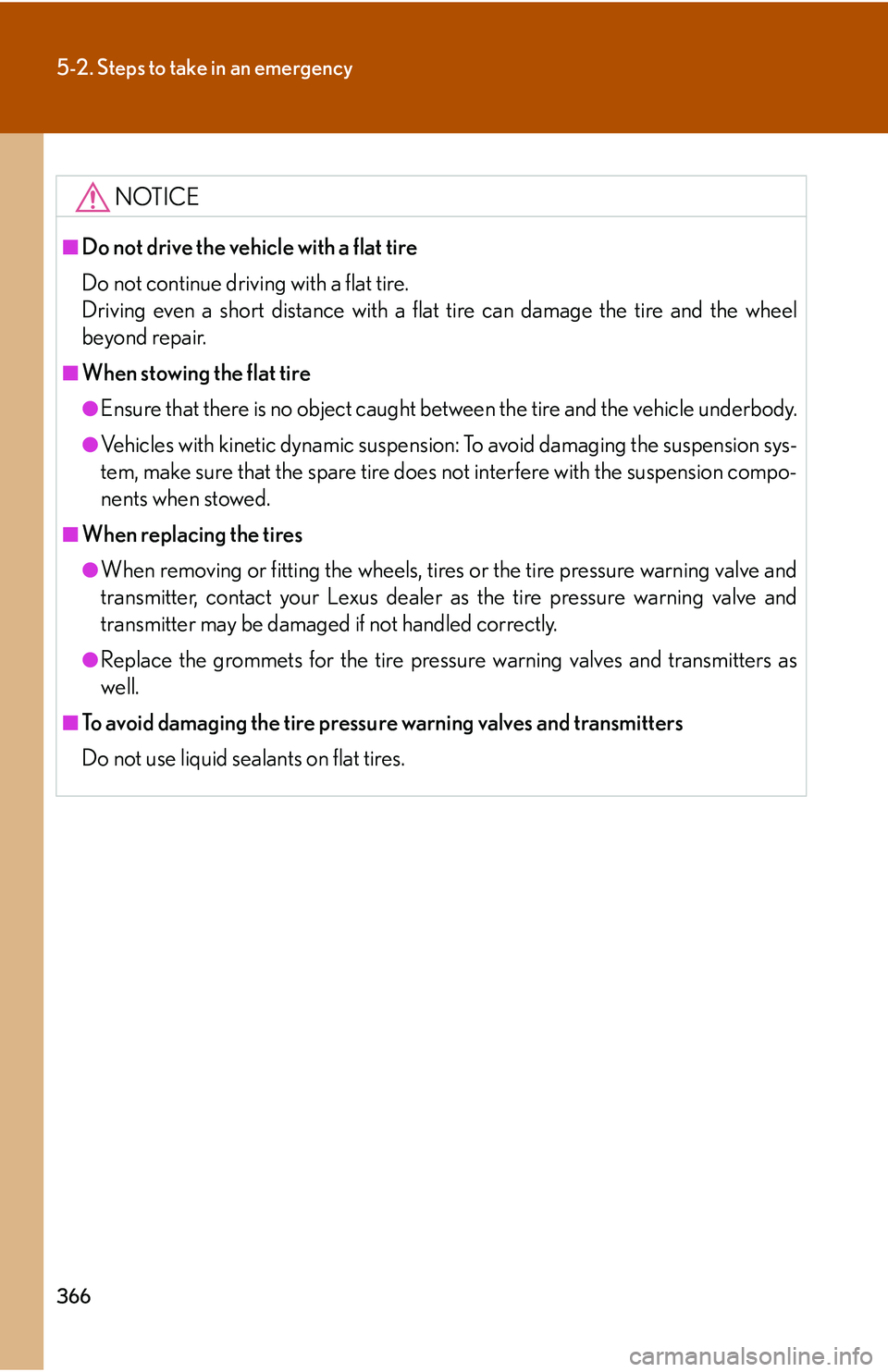

NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
■When stowing the flat tire
●Ensure that there is no object caught between the tire and the vehicle underbody.
●Vehicles with kinetic dynamic suspension: To avoid damaging the suspension sys-
tem, make sure that the spare tire does not interfere with the suspension compo-
nents when stowed.
■When replacing the tires
●When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and
transmitter may be damaged if not handled correctly.
●Replace the grommets for the tire pressure warning valves and transmitters as
well.
■To avoid damaging the tire pressu re warning valves and transmitters
Do not use liquid sealants on flat tires.

5
When trouble arises
375
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and racing the engine.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift lever
to “P”.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, large stones or so me other material to help pro-
vide traction under the tires.
Restart the engine.
Lock the center differential to turn off the vehicle stability con-
trol system. ( P. 121)
Carefully apply the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

412
Alphabetical index
Steering wheelAdjustment............................................... 35
Audio switches .................................... 198
Driving position memory...................24
Storage feature......................................228
Stuck If your vehicle becomes stuck..... 375
Sun visors .................................................233
Switch “2nd STRT” switch ............................... 99
Center differential lock switch ........121
“DAC” switch ....................................... 130
Fog light switch .......................................113
Height control off switch.................. 123
Light switches ........................................... 111
Power door lock switch ........................6
Power window switch .......................... 41
“RSCA OFF” switch............................ 68
Window lock switch ............................. 41
Wipers and washer switch ...............114
Tail lights Switch ........................................................... 111
Theft deterrent system Alarm ............................................................ 51
Theft prevention labels .......................... 53
Tire inflation pressure ........................ 385
Tire information Glossary.................................................395
Size ........................................................... 392
Tire identification number ...............391
Uniform Tire Quality Grading.... 393 Tires
Chains....................................................... 147
Checking............................................... 302
If you have a flat tire ......................... 356
Inflation pressure ............................... 385
Information ........................................... 390
Pressure warning system .............. 302
Replacing .............................................. 356
Rotating tires........................................ 302
Size ........................................................... 385
Snow tires................................................ 148
Tools........................................................... 356
Total load capacity .................................144
Towing Dinghy towing ......................................160
Emergency towing ........................... 339
Trailer towing ........................................150
Trip information display ...................... 108
Trip meter ................................................. 103
Turn signal lights Replacing light bulbs ......................... 331
Switch ..........................................................101
Wattage ................................................. 386
Vanity lights Vanity lights...........................................234
Wattage ................................................. 386
Vanity mirrors ............................................234
Vehicle identification number......... 379
Vehicle load limits ..................................144
VSC (Vehicle Stability Control) ......132
T
V
