2007 Lexus GS450h lock

28
1-3. Opening, closing and locking the doors and trunk
■Setting and canceling the functions
To switch between setting and canceling, follow the procedure below:
Close all the doors and switch the po
wer switch to “IG-ON”
mode. (Perform step 2 within 10 seconds.)
Shift the shift lever to “P” or “N”, press and hold the driver's door
lock switch (
or ) for 5 seconds then release.
The shift lever and switch position s corresponding to the desired func -
tion to be set or canceled are shown as follows.

When the setting or canceling operat ion is complete, all doors are locked
and then unlocked.
STEP1
STEP2
FunctionShift lever positionSwitch position
Shift position linked door locking
function
“P”Shift position linked door unlock-
ing function
Speed linked door locking function
“N”Driver's door linked door unlocking
function

29
1-3. Opening, closing and locking the doors and trunk
1
Before driving
■Closing the front doors from outside with the inside lock button set in the locked
position
The door cannot be locked if the power switch is in “ACC” or “IG-ON” mode, or
the e
lectronic key is left in the vehicle. (However, depending on the key's location,
the system may not be able to detect it. In these instances the door lock protection
function will not operate properly.)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( P.
4 6 9 )
■Customization
Settings (e.g. unlocking function using a key) can be changed. (P. 5 0 0 )
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle. 
Failing to do so may result in a door openin g and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the front door while driving.
●Set the rear door child protector locks when children are seated in the rear seat.

30
1-3. Opening, closing and locking the doors and trunk
Tr u n k
The trunk can be opened using the trun k opener, entry function or wireless
remote control.
■ Wireless remote control
 P.
2 3
■ T
runk opener
Open the trunk lid.
■ Smar
t access system with push-button start
 P.
1 5

31
1-3. Opening, closing and locking the doors and trunk
1
Before driving
Luggage security system
The trunk opener feature using the trunk opener switch, wireless remote
control and smart access system with push-button start can be disabled
by turning off a switch inside the glove box. This function allows you to
keep valuables safety locked in the trunk when leaving a key with a park -
ing attendant.
Enabled
Disabled
After turning off the trunk opener main s
witch, lock the glove box using
the mechanical key. Take the mechanic al key for your own use and pro-
vide the attendant with the electronic key only. ( P. 1 2 )

32
1-3. Opening, closing and locking the doors and trunk
■Tr u n k l i d c l o s e r
In the event that the trunk lid is left sligh
tly open (not latched properly), the trunk
easy closer will automatically close it to the fully closed position.
■Tr u n k l i g h t
When the trunk light switch is set to ON, the tr
unk light turns on when the trunk is
opened.
■Tr u n k h a n d l e
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. ( P.
4 6 9 )
ON
OFF
Use the trunk handle when closing the trunk.
The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of trunk lid.
The lever will continue to glow for some time
after the trunk lid is closed.

33
1-3. Opening, closing and locking the doors and trunk
1
Before driving

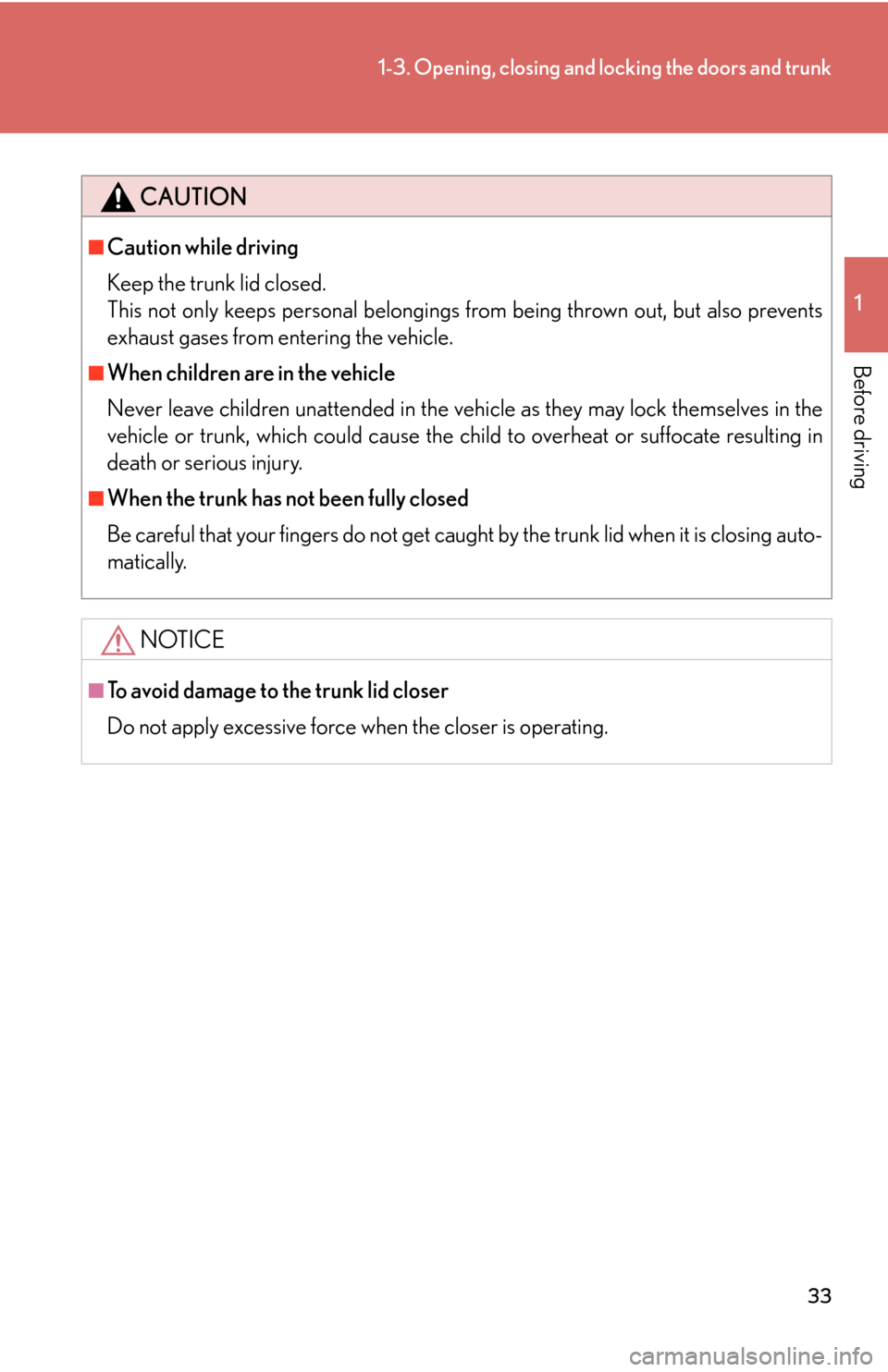

CAUTION
■Caution while driving
Keep the trunk lid closed.
This not only keeps personal belongings from being thrown out, but also prevents
exhaust gases from entering the vehicle.
■When children are in the vehicle
Never leave children unattended in the vehicle as they may lock themselves in the
vehicle or trunk, which could cause the child to overheat or suffocate resulting in
death or serious injury.
■When the trunk has not been fully closed
Be careful that your fingers do not get caught by the trunk lid when it is closing auto-
matically.
NOTICE
■To avoid damage to the trunk lid closer
Do not apply excessive force when the closer is operating.

36
1-4. Adjustable components
Driving position memory system (if equipped)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be entered into the computer's
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.

Three different driving positions can be entered into memory.
The same buttons are found on the front passenger's side, allowing the
position of the fr

ont passenger's seat to be memorized.
■Entering a position to memory
Check that the shift lever is set in “P”.
Switch to “IG-ON” mode.
Adjust the driver’s seat, steering wheel, and outside r
ear view
mirrors to the desired positions.
While pushing the “SET” button,
push button
“1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ -
ously recorded position will be
o
verwritten.
STEP1
STEP2
STEP3STEP3

37
1-4. Adjustable components
1
Before driving
Linking driving position memory with door unlock operation (driver
side only)
Memorized driving positions can be recalled when you unlock the
driver’s door using the entry functi on or wireless remote control and
open the driver’s door. Steering wh eel position is recalled when the
power switch is set to the “IG-ON” mode.
■ Setting the link
ed door unlock operation
Set the driving positions into the memor
y system using the “1”, “2”
or “3” buttons on the driver’s side. ( P. 36 )
Turn the power switch to the “OFF” mode, then close the driver’s
door.
Push the “1”, “2” or “3” button on
the driv
er’s side and the or

button on the wireless remote con-
trol at the same time for about 1
second until you hear a beep.
■Recalling the memorized position
Check that the shift lever is set in “P”.
Switch to “IG-ON” mode. Push button “1”, “2” or “3” to
r
ecall the desired position.
STEP1
STEP2
STEP1
STEP2
STEP3
