2007 Lexus GS450h display

305
3-4. Using the hands-free system
3
Interior features
To change the device name, touch in the “Device Name”
section, and input the name on the
“Name” scr
een (max. 20 charac -
ters).
To change the passkey, touch
in the “Passkey” section,
and input 4 - 8 digits on the “Pass -
key” screen.
■ Setting the Bluetooth® settings to default
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
To u c h on the “Bluetooth* Settings” screen.
A confirmation message is display
ed. If everything is correct,
touch .
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP5
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

306
3-4. Using the hands-free system
■To delete the Bluetooth® settings
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
To u c h in the “Bluetooth* Telephone” section of the 
“Bluetooth* Settings” screen.
On the “Delete Telephone” screen, select the phone to delete.
To check the device address, touch .
If you touch , a confirmation message is display ed. If every-
thing is correct, touch .
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7

319
3-7. Other interior features
3
Interior features
Clock
■The clock is displayed when
The power switch is in “ACC” or “IG-ON” mode.
■When the 12 volt battery is disconnected
The time display will automatically be set to 1:00.
■Adjust clock
With navigation system:  “Navigation System Owner's Manual”. 
Without navigation system: Perform the following steps.
Press .
To u c h .
Adjust hours.
Adjust minutes.
Round the nearest hour.
Turn daylight saving time on.
Turn daylight saving time off.
After setting, touch .
STEP1
STEP2
STEP3

320
3-7. Other interior features
Outside temperature display
■Operating conditions
The power switch is in “IG-ON” mode.
■When --- is displayed
The system may be malfunctioning. Take
your vehicle to your Lexus dealer.
The displayed temperature ranges from -40°F (-40°C) up to 122°F
(50°C).

339
3-7. Other interior features
3
Interior features

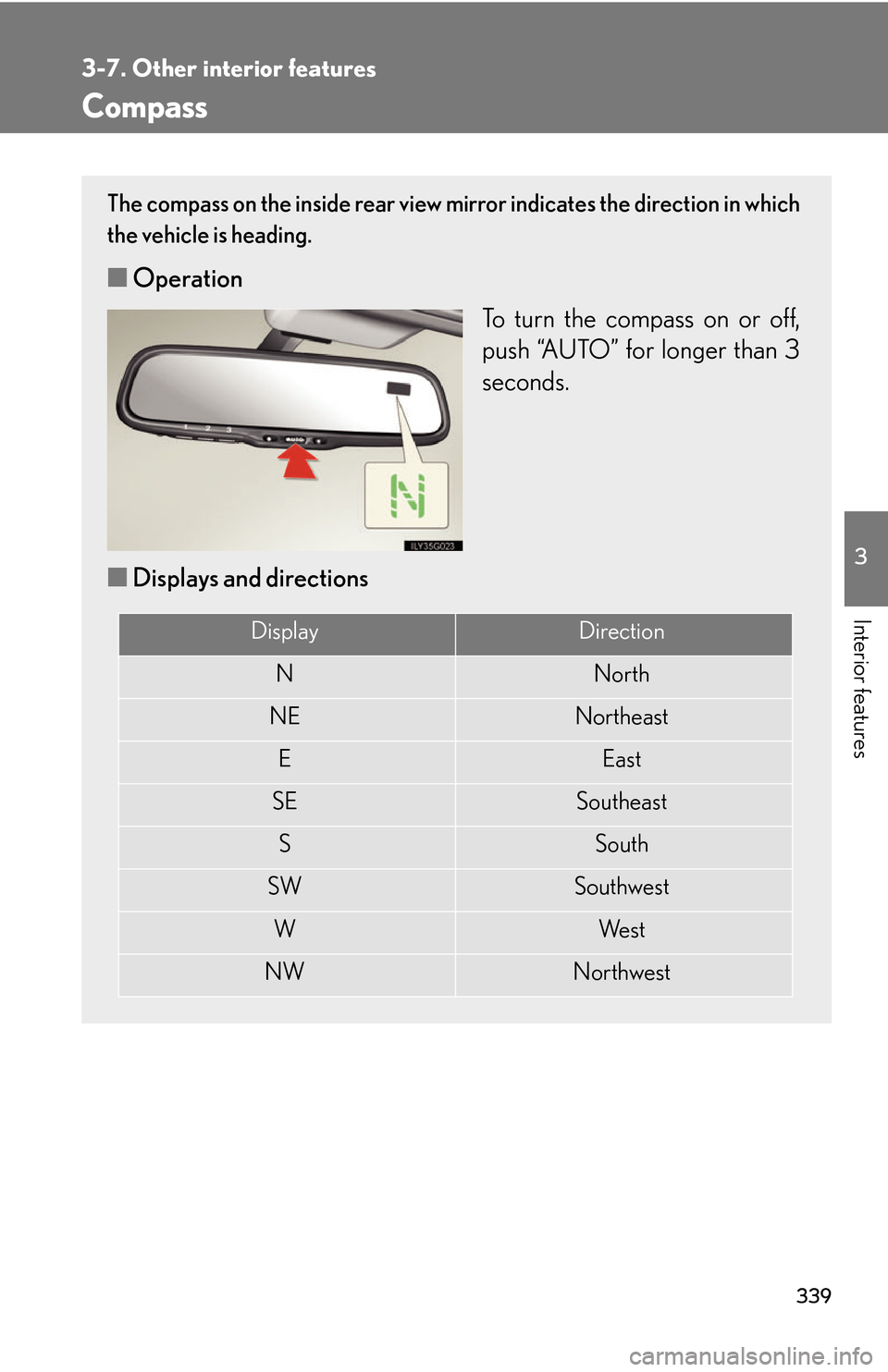

Compass
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
■ Operation
To turn the compass on or off,
push “
AUTO” for longer than 3
seconds.
■ Display
s and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWe s t
NWNorthwest

340
3-7. Other interior features

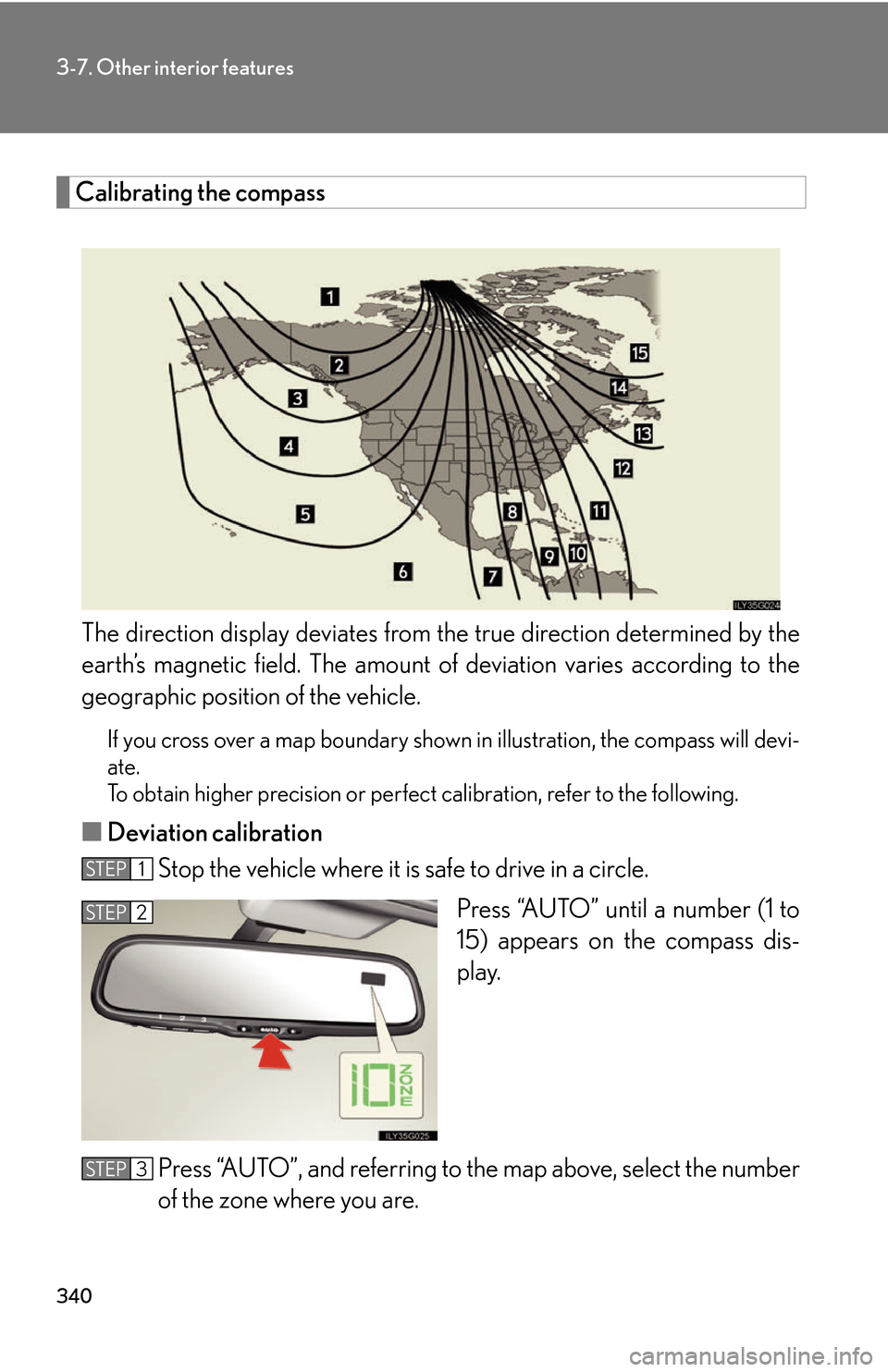

Calibrating the compass
The direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will devi-
ate. 
To obtain higher precision or perfec t calibr
ation, refer to the following.
■Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Press “AUTO” until a number (1 to
15) appears on the compas
s dis-
play.
Press “AUTO”, and referring to the map above, select the number
of the zone where you are.
STEP1
STEP2
STEP3

341
3-7. Other interior features
3
Interior features
Wait a few seconds until the compass direction is displayed.
The calibration is complete.
■Circling calibration
If “CAL” appears on the display,
driv
e the vehicle at 5 mph (8 km/
h) or less in a circ le until a direction
is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis -
played.
STEP4
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth's magnetic field is subject to interfer -
ence by artificial magnetic fields (underground car park/parking lot, under a
st
eel tower, between buildings, roof car pa rk/parking lot, near an intersection,
near a large vehicle, etc.).
●The vehicle has become magnetized. 
(There is a magnet or metal object near the inside rear view mirror.)
●The 12 volt battery has been disconnected.
●A door is open.

342
3-7. Other interior features
CAUTION
■Caution while driving
Do not adjust the display.
Be sure to adjust the display on ly when the vehicle is stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror. 
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate electr ic systems (moon roof, power windows,
etc.) as they may interfere with the calibration.
