2007 Lexus GS450h clock

422
4-3. Do-it-yourself maintenance

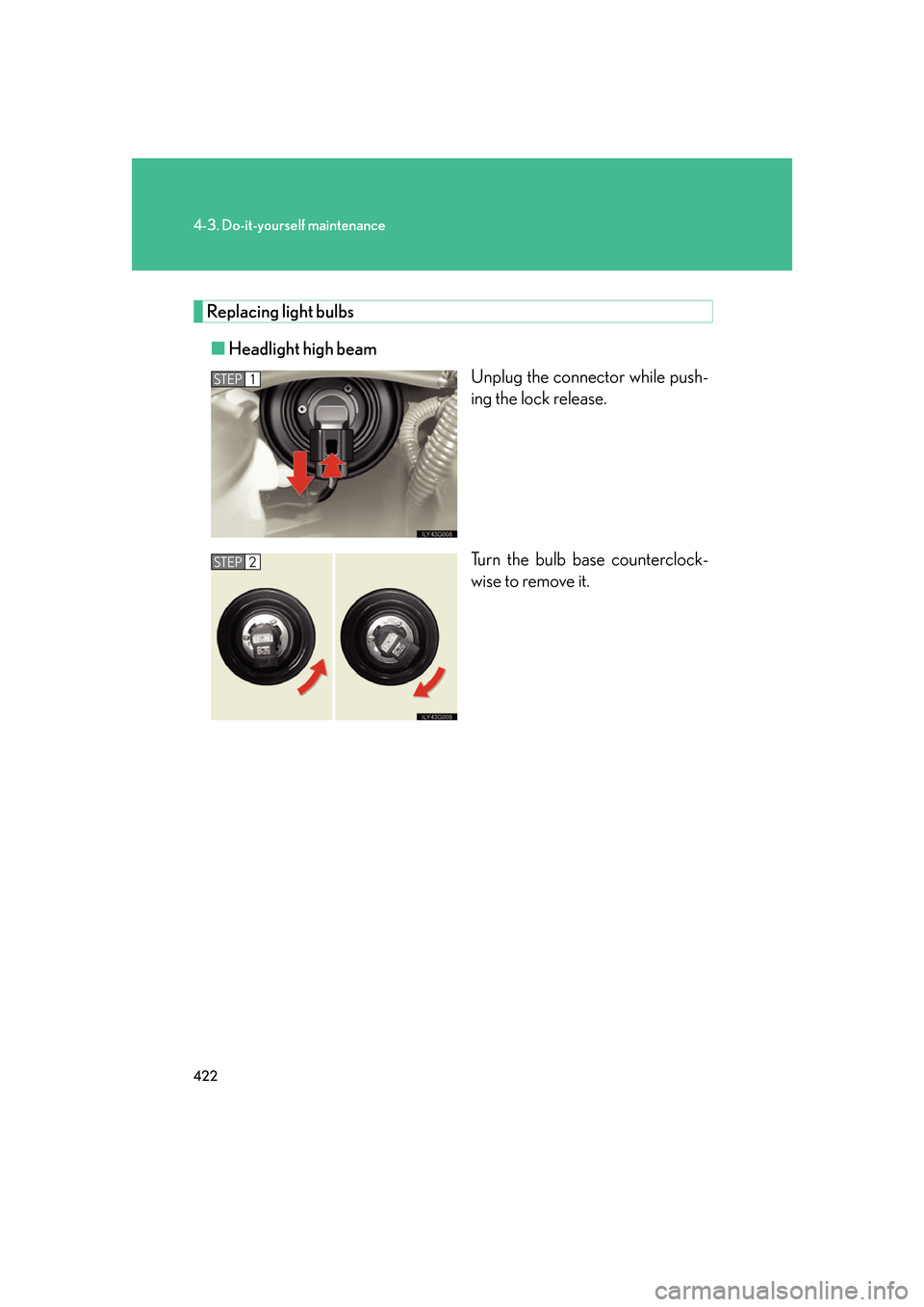

Replacing light bulbs■ Headlight high beam
Unplug the connector while push-
ing the lock release.
Turn the bulb base counterclock-
wise to remove it.
STEP1
STEP2

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up light
Open the trunk lid. Remove the
trunk handle and panel cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
STEP1
STEP2
STEP1
STEP2

424
4-3. Do-it-yourself maintenance
Remove the light bulb.
■ Rear turn signal light
Open the trunk lid and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3

474
5-2. Steps to take in an emergency
When the electronic key battery is discharged
Locking and unlocking the doors, unlocking the trunk and key linked functions
DoorsUsing the mechanical key in order
to perform the following opera-
tions:
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
Tr u n k
Turn the mechanical key clock-
wise to open.
If the electronic key battery is di scharged, the doors and trunk can be
opened by the mechanical key. The hybrid system can be still started by fol-
lowing the procedure.

519
Alphabetical index
Installing CRS with lower 
anchorages .......................................... 89
Installing CRS with seatbelts .......... 85
Installing CRS with top straps ........ 90
Child safety Airbag precautions .............................. 72
Child restraint system ........................ 82
Child-protectors....................................26
How your child should wear 
the seatbelt ............................................43
Installing child restraints .................... 85
Moon roof ................................................ 54
Power window lock switch ............. 50
Power window precautions.............. 51
Removed electronic key battery 
precautions ....................................... 402
Seat belt comfort guide....................... 41
Seat belt precautions...........................44
Seat heater precautions .........319, 321
Trunk............................................................32
Cigarette lighter ..................................... 317
Cleaning Exterior ................................................... 352
Interior..................................................... 354
Seat belts ............................................... 355
Clock........................................................... 314
Coin holder ............................................ 309
Compass ................................................. 334
Condenser............................................... 377
Console box........................................... 307
Cooling system Engine overheating ..........................480 Cruise control
Cruise control........................................129
Dynamic radar cruise control........132
Cup holders ............................................. 310
Curtain shield airbags............................ 66
Customizable features ........................ 510
Daytime running light system ........... 123
Defogger Rear window ......................................... 199
Side mirror.............................................. 199
Dimension................................................486
Dinghy towing ......................................... 182
Display Energy flow ................................................. 6
Multi-information display .................. 119
Touch screen ........................................ 184
Trip information ................................... 120
Warning message ............................. 444
Do-it-yourself maintenance .............363
Door courtesy lights ............................304
Door pocket............................................... 311
Doors Door lock .................................................. 25
Rear door child protector ................ 26
Driver's seat belt reminder light .....440
Driving Correct posture..................................... 64
Procedures ..............................................96
DVD player/changer.......................... 232
Electronic key Replacing battery................................ 401
When the electronic key battery 
is discharged..................................... 474
D
E
