2007 Lexus GS450h navigation system

xiii
Audio remote control switches P. 260
Cruise control switch
P. 127, 130
Telephone switch P. 263
“DISP” switch P. 118
Distance switch P. 132
Talk switch* P. 275
: If equipped
*: Refer to “Navigation System Owner's Manual”.
A
B

xiv
C
Pictorial indexInstrument panel
Security indicator P. 62, 64
Rear window and outside 
rear view mirror defoggers 
P. 199
Emergency flashers
Clock
P. 319Outside temper
ature display P. 320
Air conditioning 
system
P. 191
Audio system
P. 200
Navigation system*

xv
“AFS OFF” switch P. 121
Rear sunshade switch P. 329
Headlight cleaner switch P. 126
Intuitive parking assist switch P. 139
Odometer/trip meter and trip meter 
reset button
P. 111
Instrument panel light control P. 111
Fuel filler door opener P. 58
Trunk opener P. 30
Outside rear view mirror switches P. 50
D
: If equipped
*: Refer to “Navigation System Owner's Manual”.

182
3-1. Using the touch screen
Touch screen
By touching the screen with your finger, you can control the audio system
and air-conditioning, adjust the screen display etc.
Vehicles with navigation system
Vehicles without navigation system
The “Information” screen shown in the above illustration is displayed when
the is pressed.

183
3-1. Using the touch screen
3
Interior features
The initial screen
If the power switch is set to “ACC” or
“IG-ON” mode, the initializing screen
will be displayed for a few seconds as
the system starts up.
SwitchesPa g e
“CLIMATE”P. 1 9 1
“A U D I O ”P. 2 0 0
“INFO” (Displaying the “Informa-
tion” screen)P. 1 8 2
“DISP” (Adjusting the display)P. 1 8 6
Trip Information. (Displaying the
“Trip Information” screen)P. 6
MaintenanceNavigation System Owner's Manual
Te l e p h o n eP. 2 6 8
CalendarNavigation System Owner's Manual
“LEXUS Park Assist”P. 1 5 3
LanguageP. 1 8 5
Screen SettingP. 1 8 8
Adjust ClockP. 3 1 9 /
Navigation System Owner's Manual

188
3-1. Using the touch screen

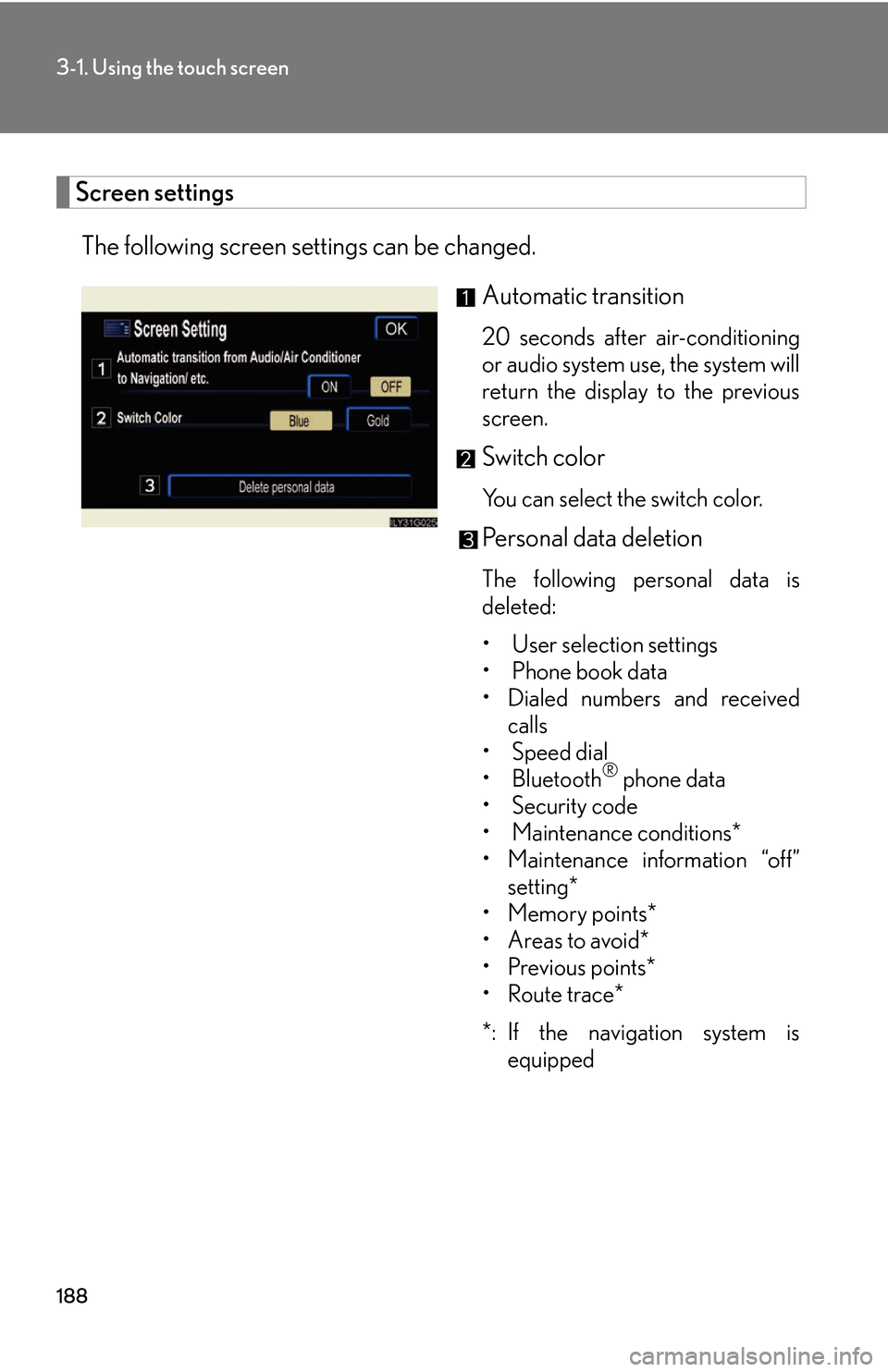

Screen settings
The following screen settings can be changed.
Automatic transition
20 seconds after air-conditioning
or audio system use, the system will
return the display to the previous
screen.
Switch color
You can select the switch color.
Personal data deletion
The following personal data is
deleted:
• User selection settings
• Phone book data
• Dialed numbers and received calls
• Speed dial
• Bluetooth
® phone data
• Security code
• Maintenance conditions*
• Maintenance information “off” se
tting*
•Memory points*
•Areas to avoid*
• Previous points*
• Route trace*
*: If the navigation system is eq
uipped

191
3
Interior features
3-2. Using the air conditioning system and defogger
Automatic air conditioning system
Airflow and outlets are automatically adjusted according to the tempera-
ture setting.
Press
to display the air conditioning operation screen.
The above illustration is for a vehicle equipped with the navigation sys -
tem. The position of may differ slightly for vehicles not equipped
with the navigation system.
Automatic mode
Driver’s side 
temperature display
Fan speed display
Off Airflow display
Air conditioning operation
screen display button
Passenger’s side 
temperature 
display
Micro dust and pollen removal mode
Driver's side

temperature control
Air conditioning

ON/OFF switch
Outside air or recirculated mode
Windshield defogger Passenger’s side 
temperature control
Dual operation switch

200
3-3. Using the audio system
Audio system type
CD and (optional) DVD player with changer, cassette player, and AM/
FM radio

This illustration below is for a ve hicle not equipped with the D
VD
player.
Vehicles with navigation system
Vehicles without navigation system
The audio system appearance and scr een may dif
fer slightly for vehi-
cles equipped with the DVD player.
