2007 Lexus GS450h remote control

64
1-7. Anti-theft system
Alarm
Deactivating or stopping the alarm
Do one of the following:
●Unlock the doors or trunk using the smar
t access system with push-
button start or the wireless remote control.
● St
art the hybrid system. (The alarm wi ll be deactivated or stopped after
a few seconds.)
■Items to check before locking the vehicle
To prevent unintended triggering of the alar m
, check that there is no one in the vehi-
cle, and that all windows and moon roof ar
e closed before locking the vehicle.
The alarm warns of forcible entry using the horn and lights.
To arm the alarm, exit the vehi-
cle, make sure that the doors,
trunk and hood ar
e closed, and
lock all the doors. 
The system will operate auto -
matically once the indicator
changes fr
om lit to flashing.

65
1-7. Anti-theft system
1
Before driving
■When the 12 volt battery is disconnected
Be sure to cancel the alarm system. 
If the 12 volt battery is discharged before canceling the alarm, the system may be
triggered when the battery is reconnected.
■Pa n i c m o d e
When is pushed for longer than about
one second, the headlights/tail lights/emer-
gency flashers will flash, the front and rear
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, push any button on the
wireless remote control.

334
3-7. Other interior features
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufactured
under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ P
rogramming the HomeLink
Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
 control but -
tons.
Keep the indicator light on the
HomeLink in view while pro -
gramming.
The garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
STEP1

336
3-7. Other interior features
■Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code eq uipped, follo
w the steps under the
heading “Programming the HomeLink” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted gar
age door
opener motor. The exact location and color of the button may
v

ary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Press and release the vehi cle
’s programmed HomeLink button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should no
w recognize
the HomeLink transceiver and operate the garage door.
Repeat the steps above to prog ram another rolling code system
for any of the remaining HomeLink buttons.
■ P
rogramming an entry gate (for U .S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 7
5 mm) away from the sur-
face of the HomeLink.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cyc le) the de
vice’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans -
ceiver start to flashing rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

338
3-7. Other interior features
■Before programming
●Install a new battery in the transmitter.
●The battery side of the transmitter must be pointed away from the HomeLink.
■Certification for the garage door opener
This device complies with Part 15 of the F
CC Rules and with RSS-210 of the IC
Rules. 
Operation is subject to the following two co
nditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
WARNING: This transmitter has been tested and complies with FCC and IC rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.
CAUTION
■When programming a garage door or other remote control device
The garage door may operate, so ensure people and objects are out of danger to
prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
 Compatible Transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an obstruction object. A door or
device without these featur es increases the risk of death or serious injury.

394
4-3. Do-it-yourself maintenance
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children. 
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other comp onents inside the electronic key.
●Do not bend the battery terminals.

501
6-2. Customization
6
Vehicle specifications
ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol 
(
P. 2 3 )
Wireless remote controlONOFF
Unlocking operation
Driver's door
unlocked in
one step, all
doors
unlocked 
in 2-steps
All doors
unlocked
in 1-step
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds60 seconds
Operation indicator
(Emergency flashers)ONOFF
Operation indicator
(Buzzer) ONOFF
Wireless
remote con-
trol 
(
P. 2 3 )
Tr u n k u n l o c k i n g f u n c t i o nONOFF
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionONOFF
Buzzer sounds when
pushing with any door
not closed.
ONOFF

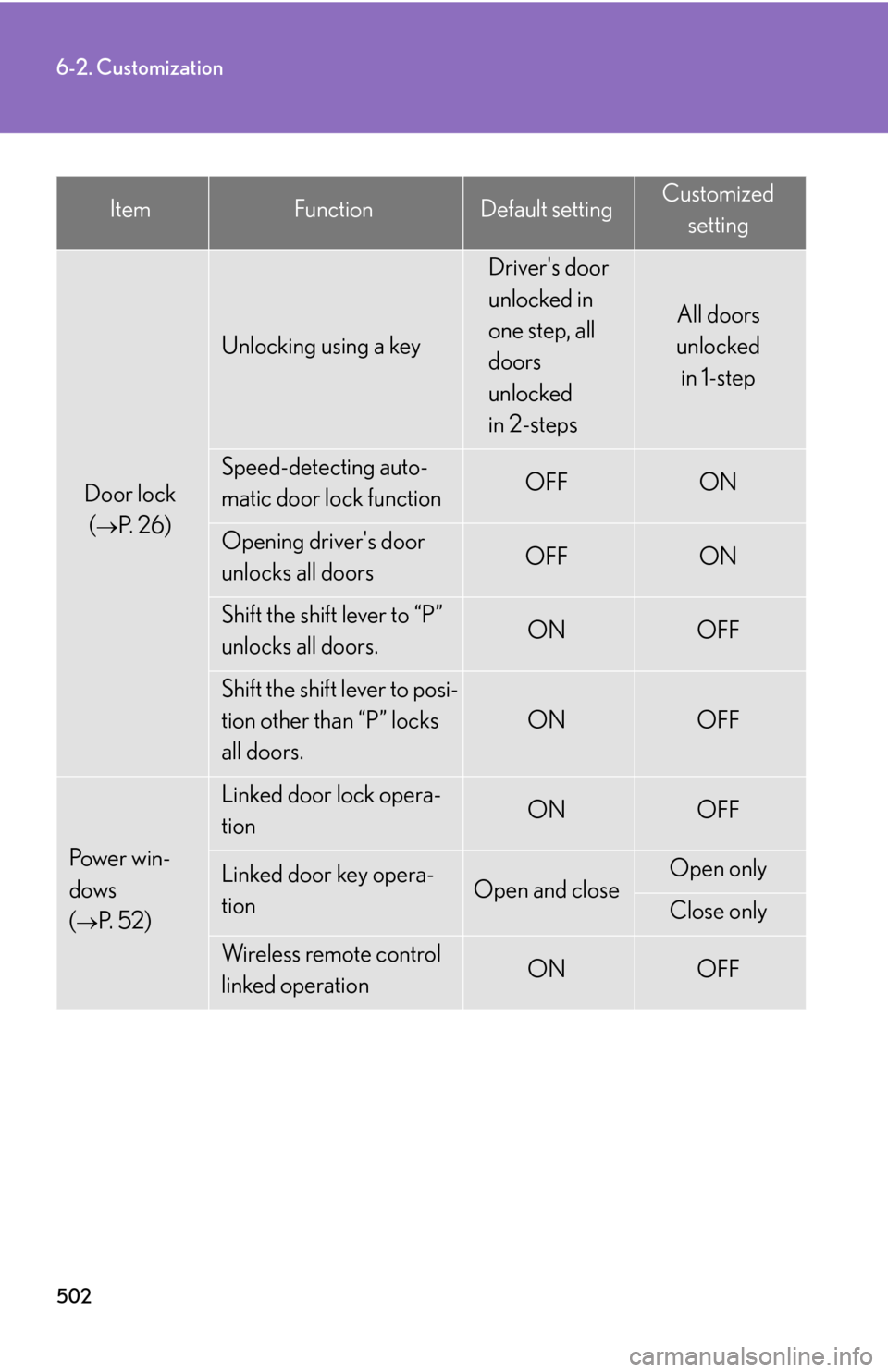

502
6-2. Customization
ItemFunctionDefault settingCustomizedsetting
Door lock (
P. 2 6 )
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked 
in 2-steps
All doors
unlocked in 1-step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver's door
unlocks all doors OFFON
Shift the shift lever to “P”
unlocks all doors.ONOFF
Shift the shift lever to posi-
tion other than “P” locks
all doors.
ONOFF
Pow e r w i n -
dows 
(
P. 5 2 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF
