2007 Lexus GS450h reset

xv
“AFS OFF” switch P. 121
Rear sunshade switch P. 329
Headlight cleaner switch P. 126
Intuitive parking assist switch P. 139
Odometer/trip meter and trip meter 
reset button
P. 111
Instrument panel light control P. 111
Fuel filler door opener P. 58
Trunk opener P. 30
Outside rear view mirror switches P. 50
D
: If equipped
*: Refer to “Navigation System Owner's Manual”.

8
1-1. Hybrid system
■Consumption
Press .
To u c h on the “Information” screen.
If the “Energy Monitor” screen is displayed, touch .
Fuel consumption in the past 30
minutes
Regenerated energy in the past
30 minutes
One symbol indicates 50 Wh. Up
to 4 symbols are shown.
Best past fuel consumption
Average fuel consumption
Cruising range
Hybrid warning message
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display and
the touch scr

een, read the mes -
sage and follow the instructions.
( P. 4 3 6 )
STEP1
STEP2
■Resetting the consumption data
To u c h i n g will reset the “Average fuel consumption”. Touching
will reset all the data (except the “Cruis ing
Range”) on the “Consumption” screen.

36
1-4. Adjustable components
Driving position memory system (if equipped)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be entered into the computer's
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.

Three different driving positions can be entered into memory.
The same buttons are found on the front passenger's side, allowing the
position of the fr

ont passenger's seat to be memorized.
■Entering a position to memory
Check that the shift lever is set in “P”.
Switch to “IG-ON” mode.
Adjust the driver’s seat, steering wheel, and outside r
ear view
mirrors to the desired positions.
While pushing the “SET” button,
push button
“1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ -
ously recorded position will be
o
verwritten.
STEP1
STEP2
STEP3STEP3

38
1-4. Adjustable components
■Canceling the linked door unlock operation
Close the driver’s door with th e po
wer switch set to the “OFF”
mode.
Push the “SET” button and the or button on the wireless
remote control at the same time fo r about 1 second until y
ou hear
2 beeps.
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column) can
be act
ivated within 30 seconds after the co rresponding side door is opened, even if
the power switch is in the “OFF” mode.
■If any position memory button is push ed while the adjustments are being made
The operation will stop. To reactivate the sy st
em, push the desired button (“1” or “2”)
again.
■If the 12 volt battery is disconnected
The memorized positions must be reset be cause the computer's memory is erased
when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
If this happens, you can stop the movement by pressing another seat position mem-
ory button.
STEP1
STEP2

111
2-2. Instrument cluster
2
When drivingOdometer/trip meter and trip meter reset button
Changes the display
Resets the trip meter driving
range to “0”.
Instrument panel light control
The brightness of the instrument panel lights excluding the clock and out-
side temperature display, can be adjusted.
Brighter
Darker
Maximum brightness
Odometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

119
2-2. Instrument cluster
2
When driving
■Average vehicle speed
Displays the average vehicl e speed since the hybrid
system was started or the function was reset.
The function can be reset by pushing the “DISP” switch
for longer than one second when the average vehicle
speed is displayed.
■System check display
The “HYBRID SYNERGY DRIVE” message is displayed 3 seconds after the
po
wer switch is set to the “IG-ON” mode . At this time a systems check is con-
ducted, and the normal display is shown up on successful completion of this check.
CAUTION
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.

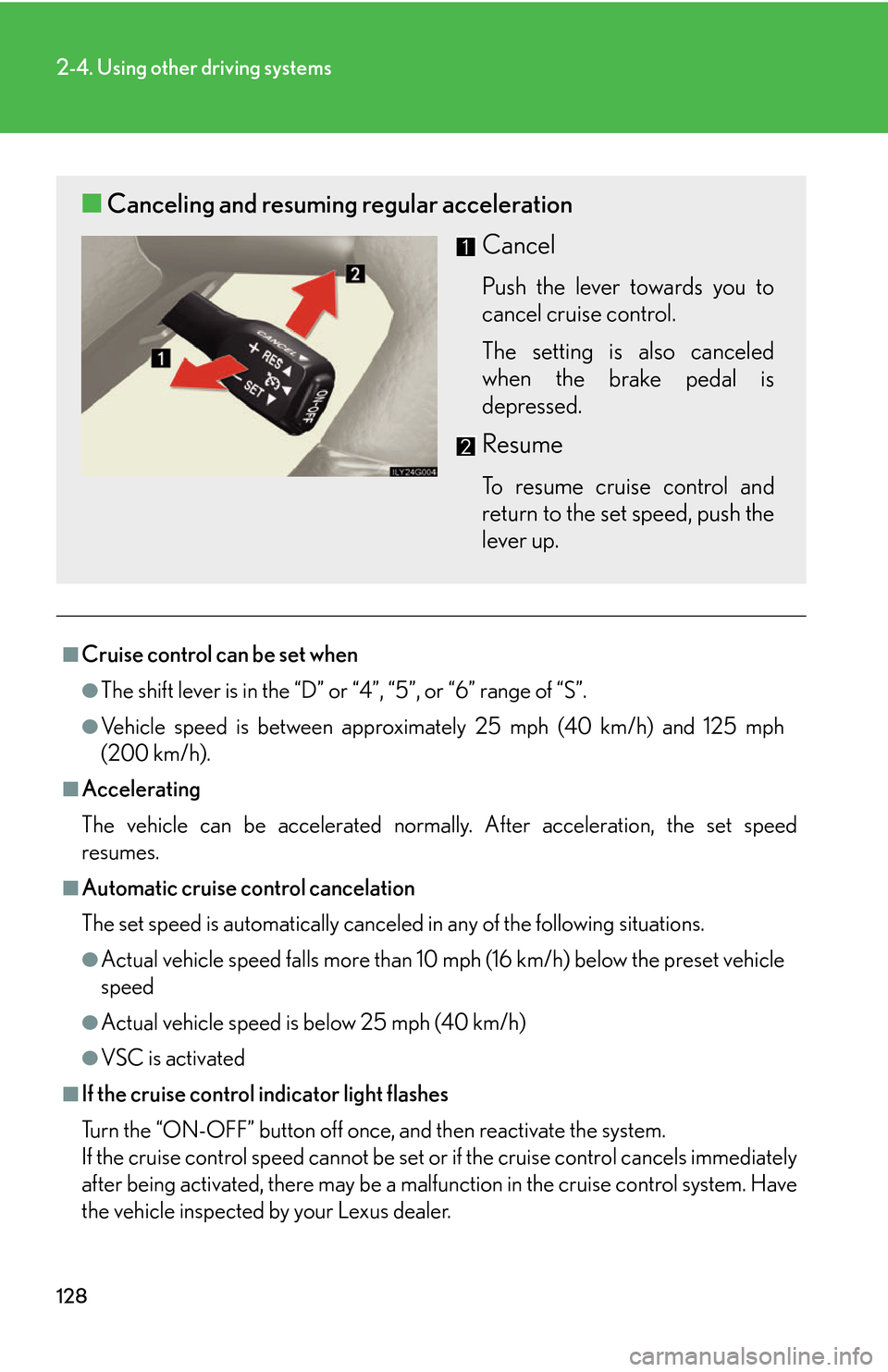

128
2-4. Using other driving systems
■Cruise control can be set when
●The shift lever is in the “D” or “4”, “5”, or “6” range of “S”.
●Vehicle speed is between approximately 25 mph (40 km/h) and 125 mph
(200 km/h).
■Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
r
esumes.
■Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
●Actual vehicle speed falls more than 10 mph (16 km/h) below the preset vehicle
speed
●Actual vehicle speed is below 25 mph (40 km/h)
●VSC is activated
■If the cruise control indicator light flashes
Turn the “ON-OFF” button off once, and
then reactivate the system. 
If the cruise control speed cannot be set or i
f the cruise control cancels immediately
after being activated, there may be a malfun ction in the cruise control system. Have
the vehicle inspected by your Lexus dealer.
■ Canceling and resuming regular acceleration
Cancel
Push the lever towards you to
cancel cruise control.
The setting is also canceled
when th

e brake pedal is
depressed.
Resume
To resume cruise control and
return to the set speed, push the
lever up.

130
2-4. Using other driving systems
Dynamic radar cruise control (if equipped)
Dynamic radar cruise control supplements conventional cruise control
with a vehicle-to-vehicle distance control. In the vehicle-to-vehicle dis
-
tance control mode, the vehicle automa tic
ally accelerates or decelerates
in order to maintain a set following distance from vehicles ahead.
■ Select cruise mode
Selecting vehicle-to-vehicle dis-
tance control mode
Turn the “ON-OFF” button
ON.
Push the button once more to
deactivate.
Selecting conventional con -
stant speed control mode
Turn the “ON-OFF” button
ON.
Switch to constant speed
control mode. 
(Push and hold for approxi -
mately 1 second.)
Push the button once more to
deactivate.
Vehicle-to-vehicle distance con -
trol mode is always reset when
the po
wer switch is switched to
“IG-ON” mode.
