109
2-2. Instrument cluster
2
When driving
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the temperature gauge is in the red zone (“H”). In
this case, immediately stop the vehicle in a safe place. Check the engine after it has
cooled completely. ( P. 4 9 2 )
■To activate the light sensitivity function properly
Do not affix a sticker or window tint to the rear window glass, or put an object
behind the rear seat.

112
2-2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light not
come on when you start the engine, this could mean that these systems are not
available to help protect you in an accident, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( P. 4 4 9 )
*: These lights turn on when the engine switch is turned to “IG-ON” mode
to indicate that a system check is being performed. They will turn off
after the engine is started or afte r a few seconds. There may be a mal -
function in a system if the lights do not come on, or turn off. Have the
vehicle inspected by your Lexus dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(if equipped)
*******
*****
*

115
2-2. Instrument cluster
2
When driving
■System check display
After switching the engine switch to IG-ON mode, “CHECK” is displayed while
system operation is checked. When the system check is complete, “COMPLETED”
is displayed before returning to the normal screen.
CAUTION
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.

269
3-4. Using the hands-free system
3
Interior features
Input the passkey displayed on
screen into your phone.
If the message “Bluetooth* con-
nection successful” is displayed,
r
egistration is complete.
If the message “Bluetooth* con-
nection failed. Please check the
“P
asskey” and the settings of the
telephone” is displayed, start again
from the beginning.
Bluetooth® phone connection
There are two connection methods av ailable—automatic and manual.
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
Choose one of the following methods.
Automatic connection
If the engine switch is in the “ACC”
or “IG-ON” mode, the system will
automatically connect to the 
Bluetooth* phone. Touching auto -
matic connection will turn it ON/
OFF
.
Manual connection
If automatic connection fails or is
turned OFF, connection must be
made manually.
If the message “Bluetooth* con -
nection successful” is displayed,
connection is complete.
*: Bluetooth is a registered trade -
mark of Bluetooth SIG. Inc.
STEP6
STEP1
STEP2
STEP3
STEP4

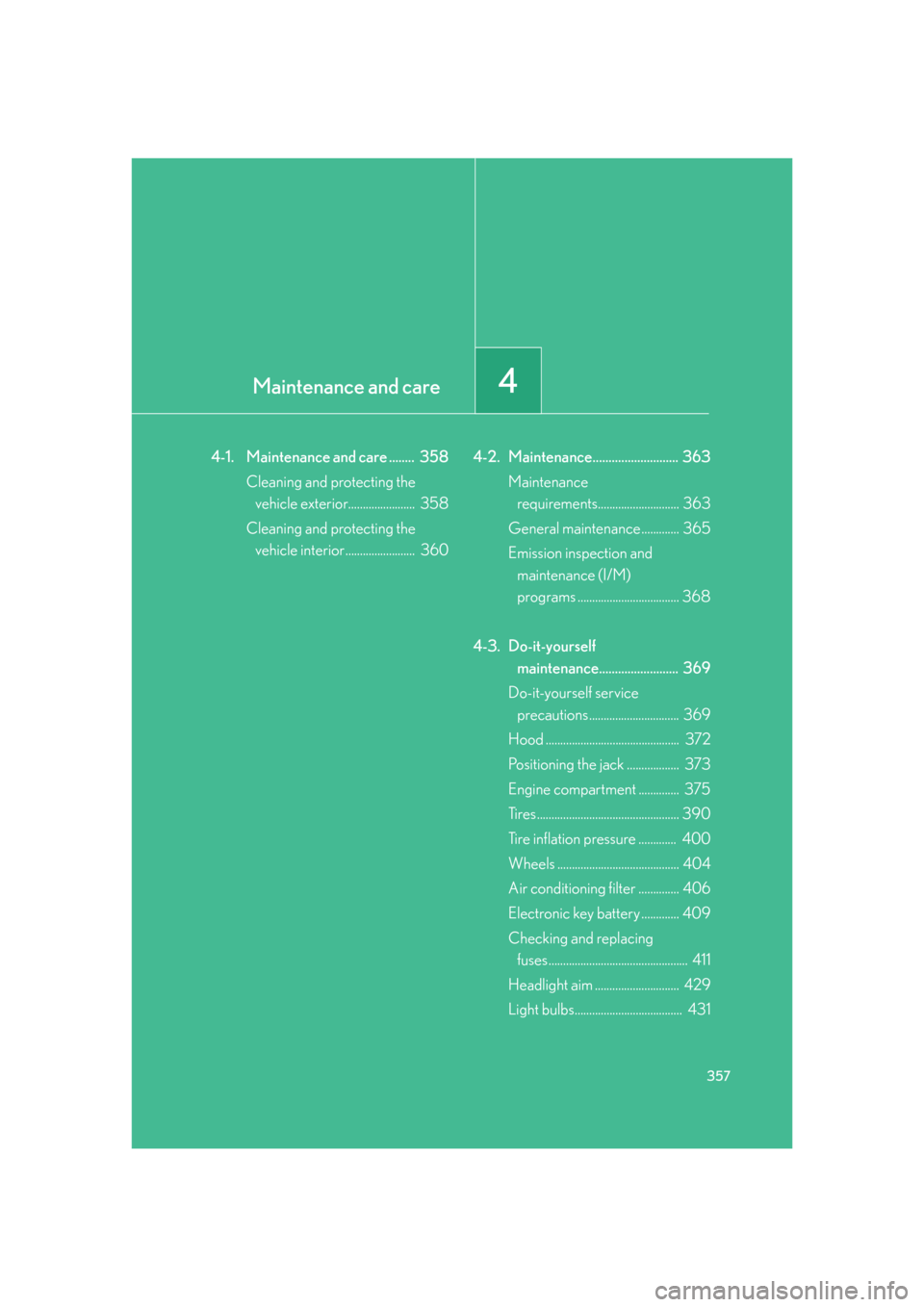

Maintenance and care4
357
4-1. Maintenance and care ........ 358Cleaning and protecting the 
vehicle exterior....................... 358
Cleaning and protecting the 
vehicle interior........................ 360 4-2. Maintenance........................... 363
Maintenance requirements............................ 363
General maintena nce ............. 365
Emission inspection and 
maintenance (I/M) 
programs ................................... 368
4-3. Do-it-yourself 
maintenance......................... 369
Do-it-yourself service 
precautions ............................... 369
Hood .............................................. 372
Positioning the jack .................. 373
Engine compartment .............. 375
Tires ................................................. 390
Tire inflation pressure ............. 400
Wheels .......................................... 404
Air conditioning filter .............. 406
Electronic key battery ............. 409
Checking and replacing 
fuses ................................................ 411
Headlight aim ............................. 429
Light bulbs..................................... 431

365
4-2. Maintenance
4
Maintenance and care
General maintenance
Engine compartment
ItemsCheck points
Battery• Maintenance-free (P. 3 8 6 )
Brake fluid• At the correct level? (P. 3 8 5 )
Engine coolant• At the correct level? ( P. 3 8 3 )
Engine oil• At the correct level? ( P. 3 7 8 )
Exhaust system• No fumes or strange sounds?
Radiator/condenser/hoses• Not blocked with foreign matter? 
( P. 3 8 4 )
Wa s h e r f l u i d• At the correct level? ( P. 3 8 9 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recommend ed that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

367
4-2. Maintenance
4
Maintenance and care
Vehicle exterior
ItemsCheck points
Doors/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or damaged?
• Tires rotated according to the mainte-nance schedule?
• Wheel nuts are not loose?
CAUTION
■If the engine is running
Turn off the engine and ensure that there is adequate ventilation before performing
maintenance checks.

378
4-3. Do-it-yourself maintenance
■Installing the clips
Open
Insert
Press
Engine oil
With the engine at operating temperat ure and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. A
fter turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick ou
t and check the
oil level.
STEP1
STEP2
GS430GS350
STEP3
STEP4
STEP5
