2007 Lexus GS350 engine coolant

106
2-2. Instrument cluster
Gauges and meters
Tachometer
Displays the number of engine speed in revolutions per minute. (RPM)
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Multi-information display
P. 113
Odometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

172
2-5. Driving information
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■ Pre-winter preparations
●Use fluids that ar
e appropriate to the prevailing outside tempera -
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Ha
ve a service technician inspect th e level and specific gravity of
battery electrolyte.
● Ha
ve the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same si ze and brand, and that chains match
the size of the tires.

365
4-2. Maintenance
4
Maintenance and care
General maintenance
Engine compartment
ItemsCheck points
Battery• Maintenance-free (P. 3 8 6 )
Brake fluid• At the correct level? (P. 3 8 5 )
Engine coolant• At the correct level? ( P. 3 8 3 )
Engine oil• At the correct level? ( P. 3 7 8 )
Exhaust system• No fumes or strange sounds?
Radiator/condenser/hoses• Not blocked with foreign matter? 
( P. 3 8 4 )
Wa s h e r f l u i d• At the correct level? ( P. 3 8 9 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recommend ed that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

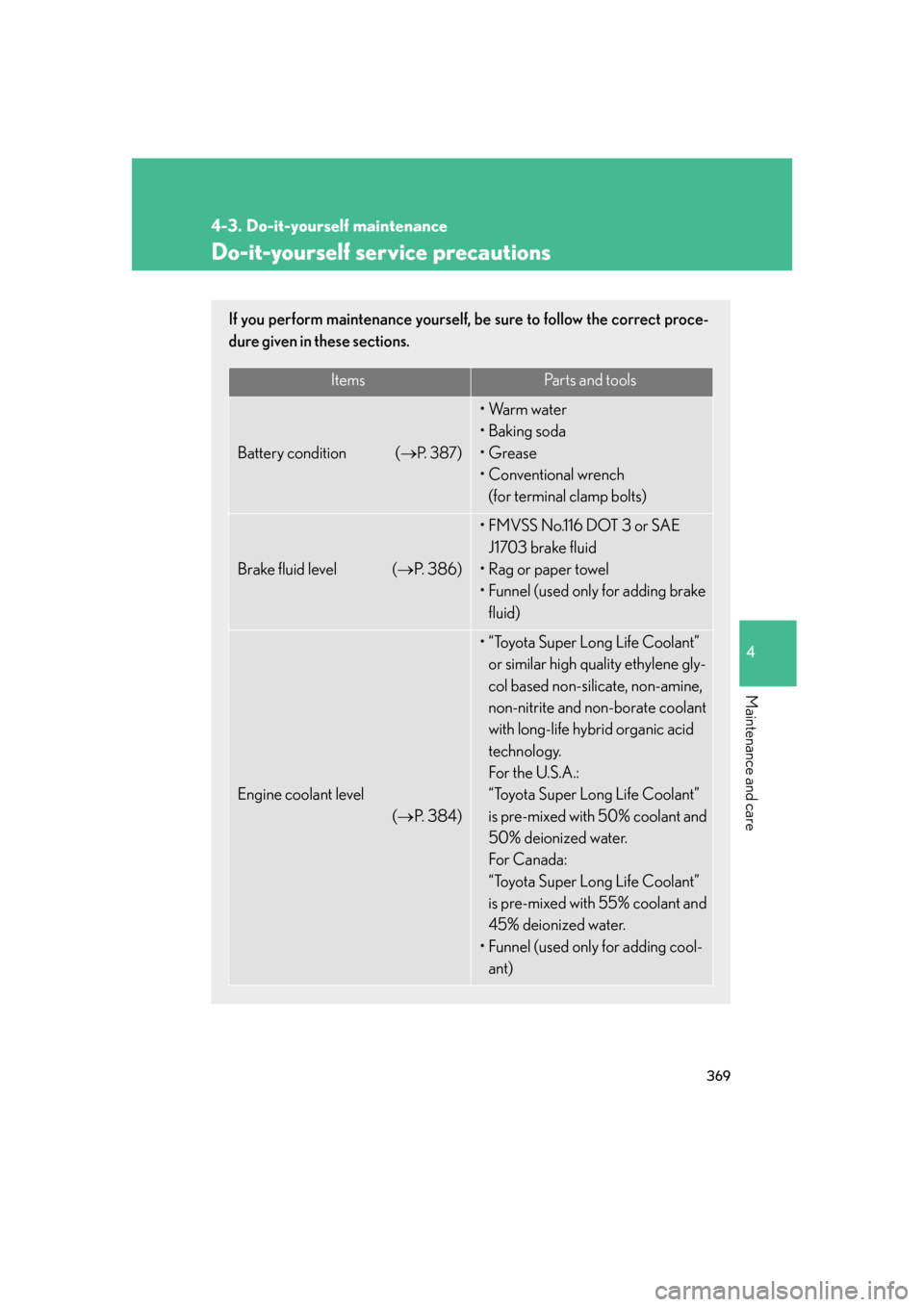

369
4
Maintenance and care
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct proce-
dure given in these sections.
ItemsPa r t s a n d t o o l s
Battery condition ( P. 3 8 7)
•Warm water
• Baking soda
•Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( P. 3 8 6 )
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake
fluid)
Engine coolant level 
(P. 3 8 4 )
• “Toyota Super Long Life Coolant”
or similar high quality ethylene gly-
col based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.: 
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada: 
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding cool-
ant)

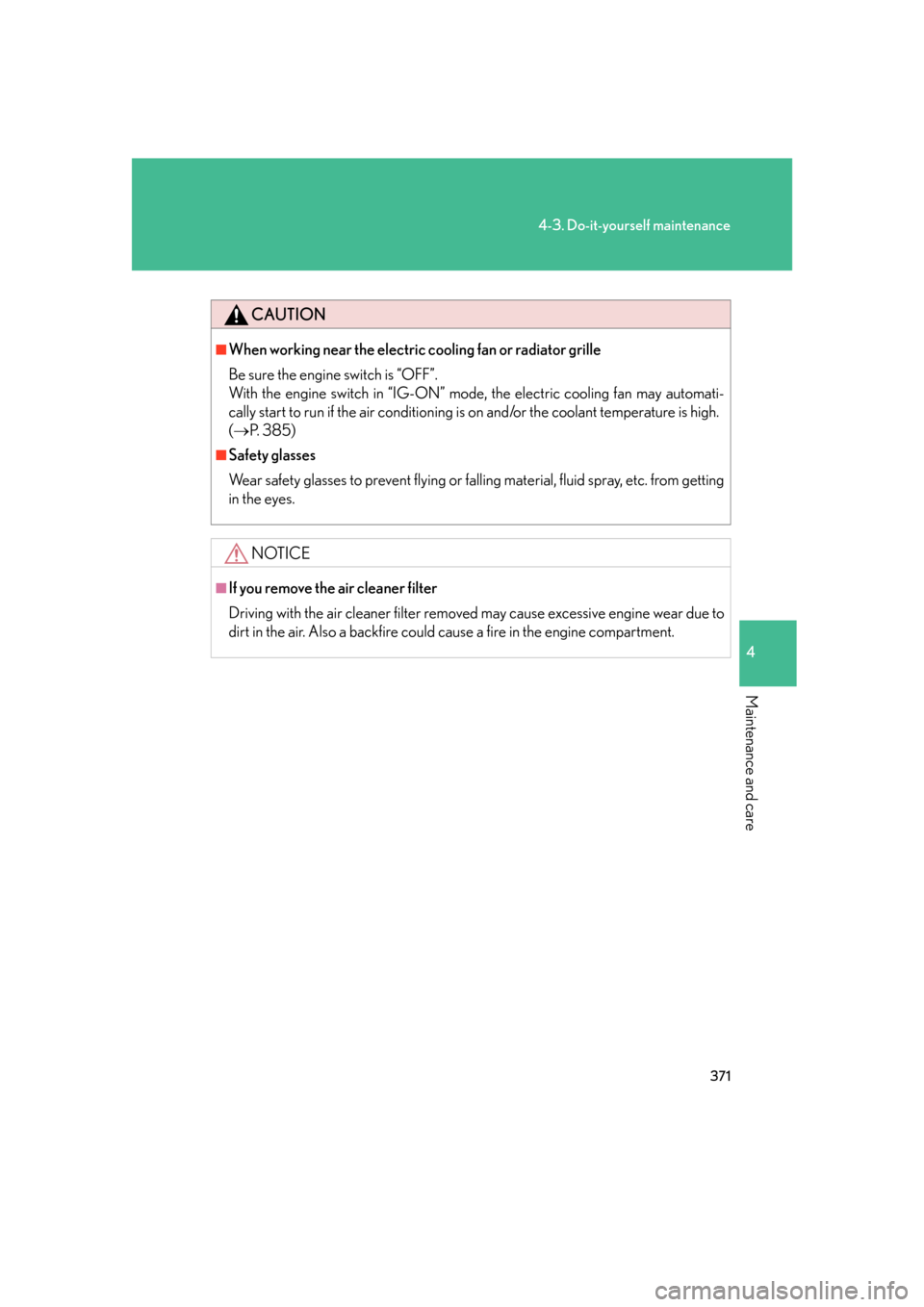

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■When working near the electric cooling fan or radiator grille
Be sure the engine switch is “OFF”.
With the engine switch in “IG-ON” mode, the electric cooling fan may automati-
cally start to run if the air conditioning is on and/or the coolant temperature is high. 
(  P. 3 8 5 )
■Safety glasses
Wear safety glasses to prevent flying or fall ing material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.

375
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
Engine oil filler cap
( P. 3 7 9 )
Engine oil level dipstick 
( P. 380)
Brake fluid reservoir (P. 386)
Fuse box ( P. 413)
Washer fluid tank 
( P. 390)Engine coolant reservoir 
( P. 384)
Electric cooling fans
Condenser ( P. 385)
Radiator ( P. 385)
Fuse box ( P. 413)
Battery ( P. 387)
GS430

376
4-3. Do-it-yourself maintenance
Engine oil level dipstick
( P. 3 7 9 )
Engine oil filler cap 
( P. 380)
Brake fluid reservoir 
( P. 386)
Fuse box ( P. 413)
Washer fluid tank 
( P. 390)Engine coolant reservoir 
( P. 384)
Electric cooling fans
Condenser ( P. 385)
Radiator ( P. 385)
Fuse box ( P. 413)
Battery ( P. 387)
GS350

383
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
FULL
LOW
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, engine c ool
ant filler cap, radiator cap, drain cock
and water pump. 
If you cannot find a leak, have your Lexus dealer pressure test the cap and check for
le
aks in the cooling system.
■Coolant selection
Only use “Toyota Super Long Life Coolant” or similar hig
h quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50%
deionized water. (Enabled: -31 F [-35C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% de
ionized water. (Enabled: -44F [-42 C])
For more details about engine coolant, contact your Lexus dealer.
