2007 JEEP PATRIOT check engine

Miles 36,000 42,000 48,000 54000 60,000 66,000
(Kilometers) (60 000) (70 000) (80 000) (90 000) (100 000) (110 000)
[Months] [36] [42] [48] [54] [60] [66]
Change engine oil and engine oil filter. X X X X X X
Change Rear Drive Assembly (RDA) fluid. X
Change Power Transfer Unit (PTU) fluid. X
Rotate tires. X X X X X X
Check spare tire for proper pressure and cor-
rect stowage.X X XXXX
Flush and replace engine coolant at 60
months, if not replaced at 102,000 miles (170
000 km).X
Inspect brake linings. X X
Inspect engine air cleaner filter, replace if
necessary.X
Replace engine air cleaner filter.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Replace climate control air filtration filter (if
equipped).XX
X
406 SCHEDULE ªAº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 72,000 78,000 84,000 90,000 96,000
(Kilometers) (120 000) (130 000) (140 000) (150 000) (160 000)
[Months] [72] [78] [84] [90] [96]
Change engine oil and engine oil filter. X X X X X
Rotate tires. X X X X X
Check spare tire for proper pressure and correct
stowage.X X XXX
Inspect brake linings. X X
Inspect engine air cleaner filter, replace if neces-
sary.XX
Replace engine air cleaner filter.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Replace climate control air filtration filter (if
equipped).XXX
SCHEDULE ªAº 407
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 102,000 108,000 114,000 120,000
(Kilometers) (170 000) (180 000) (190 000) (200 000)
[Months] [102] [108] [114] [120]
Change engine oil and engine oil filter. X X X X
Change Rear Drive Assembly (RDA) fluid. X
Change Power Transfer Unit (PTU) fluid. X
Rotate tires. X X X X
Check spare tire for proper pressure and correct stowage. X X X X
Flush and replace engine coolant, if not done at 60
months.X
Flush and replace engine coolant, if not done at 102,000
miles (170 000 km)X
Inspect brake linings. X
Replace the Accessory Drive Belt.X
Inspect engine air cleaner filter, replace if necessary.X
Replace engine air cleaner filter.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Replace climate control air filtration filter (if equipped). X X
408 SCHEDULE ªAº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

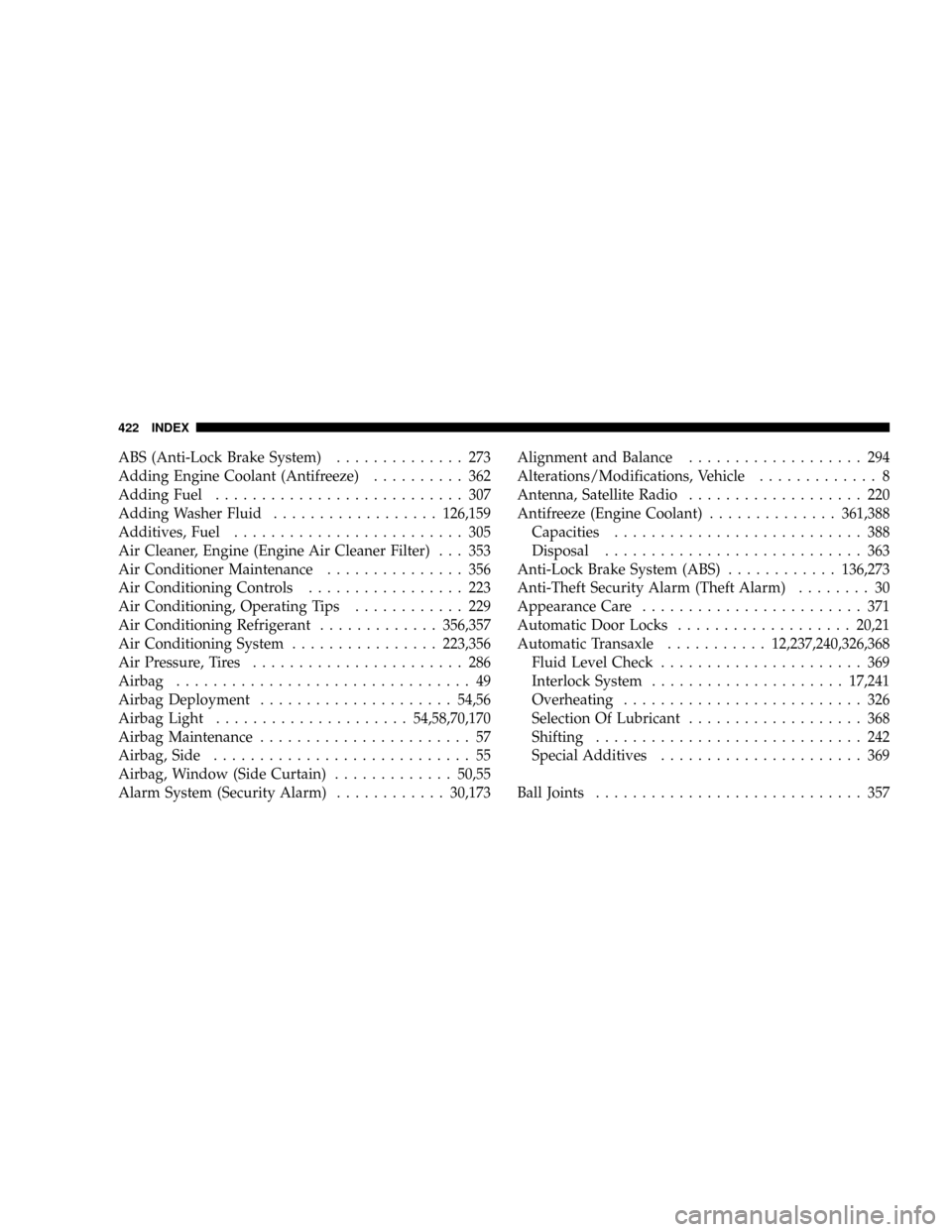

ABS (Anti-Lock Brake System).............. 273
Adding Engine Coolant (Antifreeze).......... 362
Adding Fuel........................... 307
Adding Washer Fluid..................126,159
Additives, Fuel......................... 305
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 353
Air Conditioner Maintenance............... 356
Air Conditioning Controls................. 223
Air Conditioning, Operating Tips............ 229
Air Conditioning Refrigerant.............356,357
Air Conditioning System................223,356
Air Pressure, Tires....................... 286
Airbag................................ 49
Airbag Deployment.....................54,56
Airbag Light.....................54,58,70,170
Airbag Maintenance....................... 57
Airbag, Side............................ 55
Airbag, Window (Side Curtain).............50,55
Alarm System (Security Alarm)............30,173Alignment and Balance................... 294
Alterations/Modifications, Vehicle............. 8
Antenna, Satellite Radio................... 220
Antifreeze (Engine Coolant)..............361,388
Capacities........................... 388
Disposal............................ 363
Anti-Lock Brake System (ABS)............136,273
Anti-Theft Security Alarm (Theft Alarm)........ 30
Appearance Care........................ 371
Automatic Door Locks...................20,21
Automatic Transaxle...........12,237,240,326,368
Fluid Level Check...................... 369
Interlock System.....................17,241
Overheating.......................... 326
Selection Of Lubricant................... 368
Shifting............................. 242
Special Additives...................... 369
Ball Joints............................. 357
422 INDEX

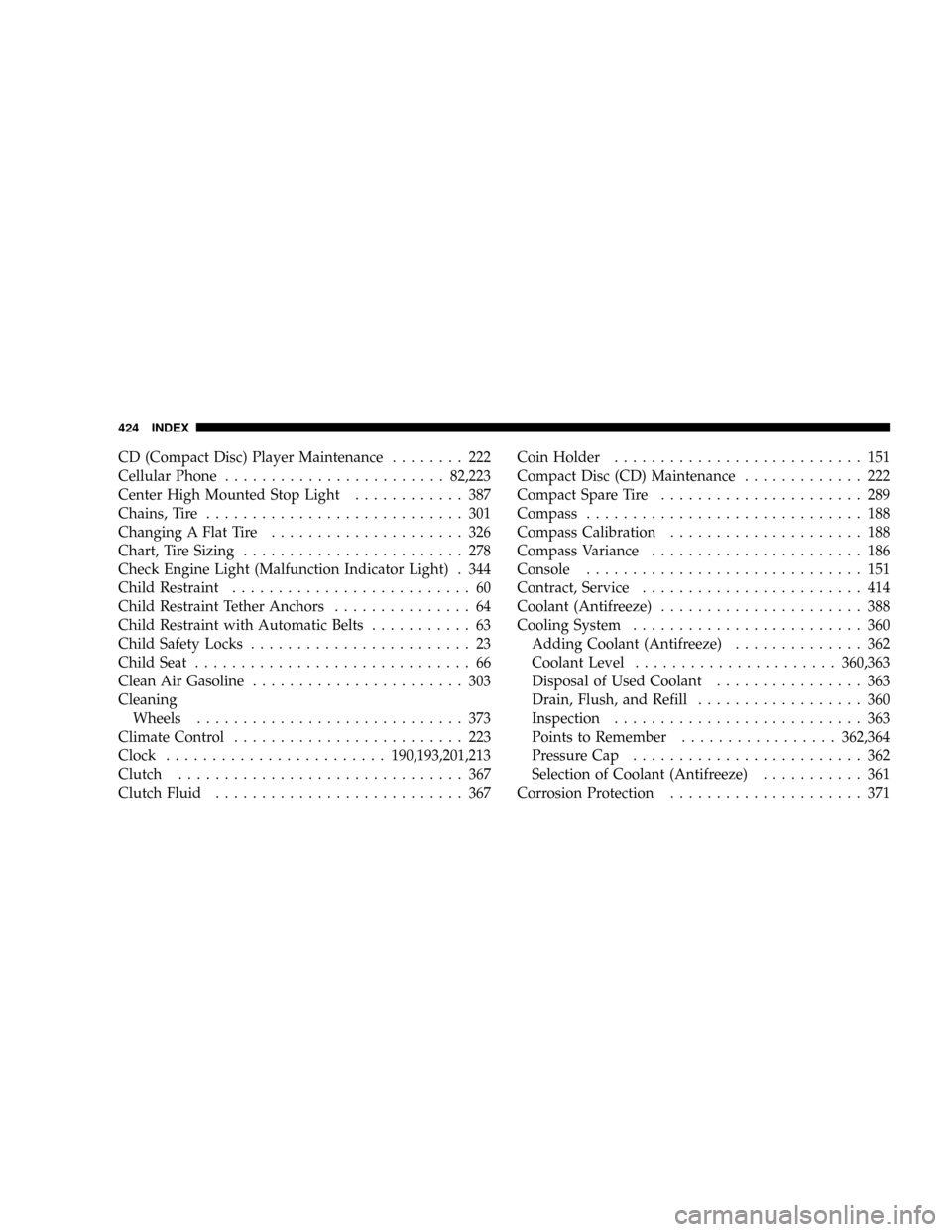

CD (Compact Disc) Player Maintenance........ 222
Cellular Phone........................82,223
Center High Mounted Stop Light............ 387
Chains, Tire............................ 301
Changing A Flat Tire..................... 326
Chart, Tire Sizing........................ 278
Check Engine Light (Malfunction Indicator Light) . 344
Child Restraint.......................... 60
Child Restraint Tether Anchors............... 64
Child Restraint with Automatic Belts........... 63
Child Safety Locks........................ 23
Child Seat.............................. 66
Clean Air Gasoline....................... 303
Cleaning
Wheels............................. 373
Climate Control......................... 223
Clock........................190,193,201,213
Clutch............................... 367
Clutch Fluid........................... 367Coin Holder........................... 151
Compact Disc (CD) Maintenance............. 222
Compact Spare Tire...................... 289
Compass.............................. 188
Compass Calibration..................... 188
Compass Variance....................... 186
Console.............................. 151
Contract, Service........................ 414
Coolant (Antifreeze)...................... 388
Cooling System......................... 360
Adding Coolant (Antifreeze).............. 362
Coolant Level......................360,363
Disposal of Used Coolant................ 363
Drain, Flush, and Refill.................. 360
Inspection........................... 363
Points to Remember.................362,364
Pressure Cap......................... 362
Selection of Coolant (Antifreeze)........... 361
Corrosion Protection..................... 371
424 INDEX

Emergency, In Case of
Jacking............................. 326
Jump Starting......................... 331
Towing............................. 336
Emission Control System Maintenance......344,392
Engine............................... 342
Break-In Recommendations................ 69
Checking Oil Level..................... 347
Cooling............................. 360
Exhaust Gas Caution.................... 306
Fuel Requirements..................... 303
Jump Starting......................... 331
Oil ..............................347,388
Oil Change Interval.................... 348
Oil Filler Cap......................342,349
Oil Filter............................ 388
Oil Selection.......................... 349
Oil Synthetic......................... 350
Overheating.......................... 324Temperature Gauge..................... 173
Enhanced Accident Response Feature.......... 57
Event Data Recorder...................... 58
Exhaust Gas Caution..............33,69,306,359
Exhaust System......................... 359
Fabric Care............................ 373
Filters
Air Cleaner.......................... 353
Engine Fuel.......................... 353
Engine Oil........................350,388
Flashers.............................. 324
Hazard Warning....................... 324
Turn Signal.......................... 384
Flat Tire Stowage........................ 330
Flooded Engine Starting................... 239
Fluid, Brake........................... 389
Fluid Capacities......................... 388
Fluid Leaks............................. 71
426 INDEX

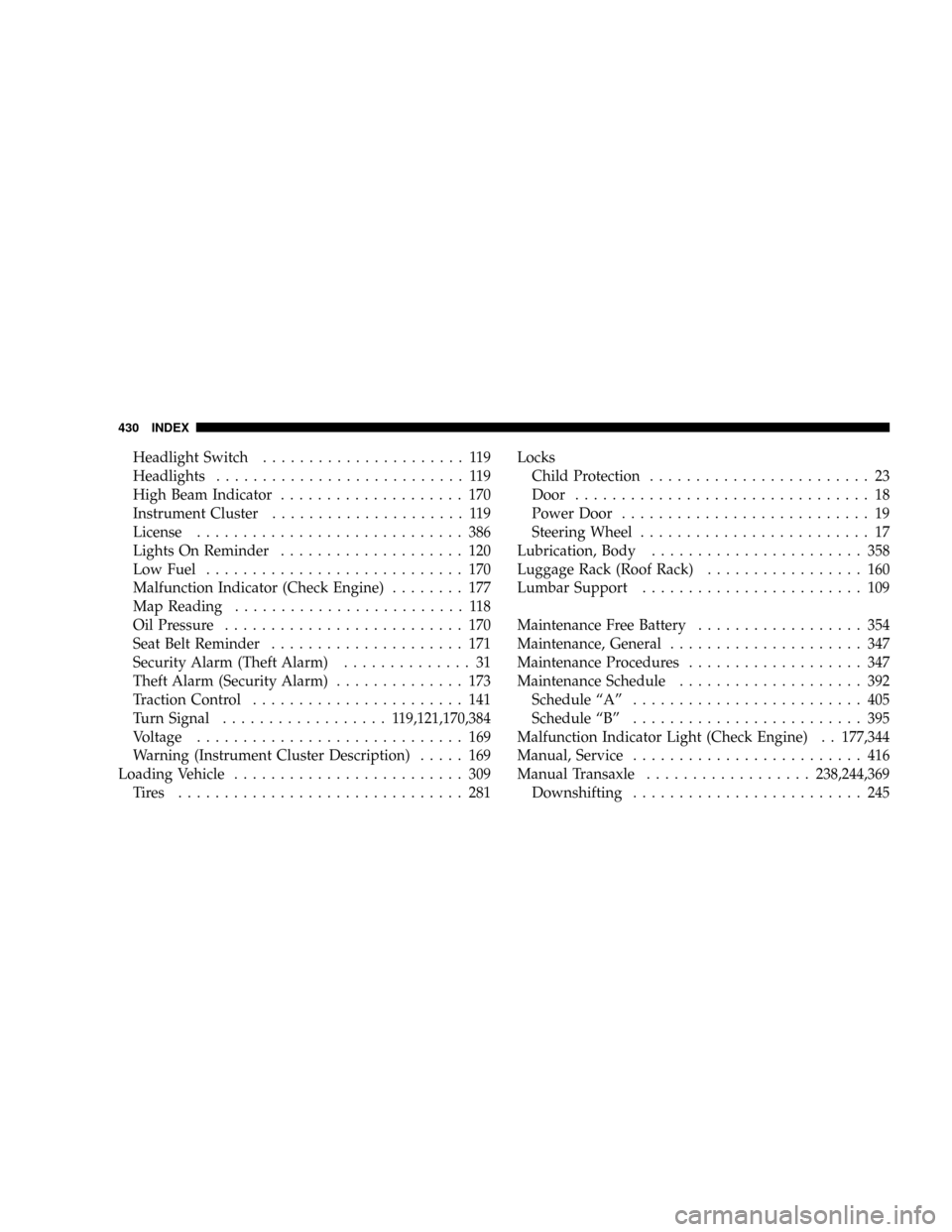

Headlight Switch...................... 119
Headlights........................... 119
High Beam Indicator.................... 170
Instrument Cluster..................... 119
License............................. 386
Lights On Reminder.................... 120
Low Fuel............................ 170
Malfunction Indicator (Check Engine)........ 177
Map Reading......................... 118
Oil Pressure.......................... 170
Seat Belt Reminder..................... 171
Security Alarm (Theft Alarm).............. 31
Theft Alarm (Security Alarm).............. 173
Traction Control....................... 141
Turn Signal.................. 119,121,170,384
Voltage............................. 169
Warning (Instrument Cluster Description)..... 169
Loading Vehicle......................... 309
Tires ............................... 281Locks
Child Protection........................ 23
Door................................ 18
Power Door........................... 19
Steering Wheel......................... 17
Lubrication, Body....................... 358
Luggage Rack (Roof Rack)................. 160
Lumbar Support........................ 109
Maintenance Free Battery.................. 354
Maintenance, General..................... 347
Maintenance Procedures................... 347
Maintenance Schedule.................... 392
Schedule ªAº......................... 405
Schedule ªBº......................... 395
Malfunction Indicator Light (Check Engine) . . 177,344
Manual, Service......................... 416
Manual Transaxle..................238,244,369
Downshifting......................... 245
430 INDEX

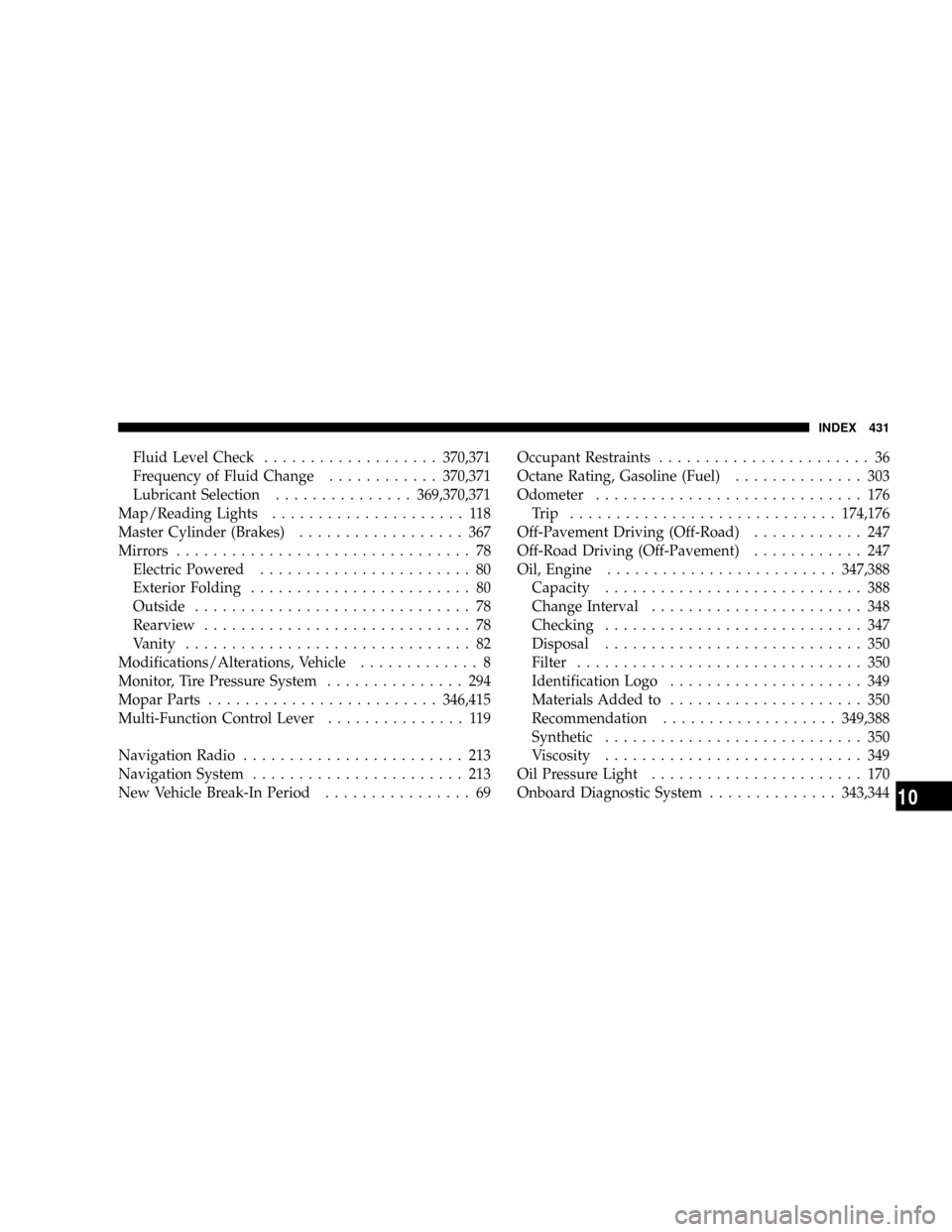

Fluid Level Check...................370,371
Frequency of Fluid Change............370,371
Lubricant Selection...............369,370,371
Map/Reading Lights..................... 118
Master Cylinder (Brakes).................. 367
Mirrors................................ 78
Electric Powered....................... 80
Exterior Folding........................ 80
Outside.............................. 78
Rearview............................. 78
Vanity............................... 82
Modifications/Alterations, Vehicle............. 8
Monitor, Tire Pressure System............... 294
Mopar Parts.........................346,415
Multi-Function Control Lever............... 119
Navigation Radio........................ 213
Navigation System....................... 213
New Vehicle Break-In Period................ 69Occupant Restraints....................... 36
Octane Rating, Gasoline (Fuel).............. 303
Odometer............................. 176
Trip .............................174,176
Off-Pavement Driving (Off-Road)............ 247
Off-Road Driving (Off-Pavement)............ 247
Oil, Engine.........................347,388
Capacity............................ 388
Change Interval....................... 348
Checking............................ 347
Disposal............................ 350
Filter............................... 350
Identification Logo..................... 349
Materials Added to..................... 350
Recommendation...................349,388
Synthetic............................ 350
Viscosity............................ 349
Oil Pressure Light....................... 170
Onboard Diagnostic System..............343,344
INDEX 431
10
