POWER-ASSISTED STEERING SYSTEM 3B-43
6. Install the driver knee bolster assembly.
7. Install the steering lower cover and engine hood opening lever.
8. Install the steering wheel and align the setting marks.
Refer to the adjustment method in case a mark has
not been applied in this section.
NOTE: Confirm SRS and horn harness connector is
fixed by the steering wheel.

RTW 73BSH000701
CAUTION: Never apply force to the steering wheel in
the direction of the shaft by using a hammer o
r
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.
9. Tighten the steering wheel fixing nut to the specified torque.
Torque: 35 N ⋅
⋅⋅
⋅
m (3.6 kgf ⋅
⋅⋅
⋅
m/26 lb ⋅
⋅⋅
⋅
ft)
10. Support the inflator module and carefully connect the SRS connector (1) and horn lead (2) (with SRS
air bag).

RTW 73BSH001101
11. Connect the horn leads at center of wheel (without
SRS air bag).
NOTE: The horn leads (1) are passed along the top o
f
the bracket (2).
(Plastic type steering wheel only)



RTW 73BSH000801
12. Push the horn pad at areas 1-4.
Tighten the horn pad fixing screw to the specifed torque (without SRS air bag)
Torque: 3 N ⋅
⋅⋅
⋅
m (0.3 kgf ⋅
⋅⋅
⋅
m/26 lb ⋅
⋅⋅
⋅
in)
NOTE: A horn pad should not be struck during
attachment.

RTW 73BSH000201

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

POWER-ASSISTED STEERING SYSTEM 3B-49
825RS048
4. Install the driver knee bolster assembly.
5. Install the steering lower cover and engine hood opening lever.
6. Install the steering wheel and align the setting marks.
Refer to the adjustment method in case a mark has not been applied in this section.
NOTE: Confirm SRS and horn harness connector is
fixed by the steering wheel.

RTW 73BSH000701

CAUTION: Never apply force to the steering wheel in
the direction of the shaft by using a hammer o
r
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.
7. Tighten the steering wheel fixing nut to the specified torque.
Torque: 35 N ⋅
⋅⋅
⋅
m (3.6 kgf ⋅
⋅⋅
⋅
m/26 lb ⋅
⋅⋅
⋅
ft)

8. Support inflator module and carefully connect the
SRS connector (1) and horn lead (2), then install
inflator module (with SRS air bag).

RTW 73BSH001101
9. Connect the horn leads at center of wheel (without SRS air bag).
NOTE: The horn leads (1) are passed along the top o
f
the bracket (2).
(Plastic type steering wheel only)



RTW 73BSH000801


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

3B-50 POWER-ASSISTED STEERING SYSTEM
10. Push the horn pad at areas 1-4.
Tighten the horn pad fixing screw to the specifed torque (without SRS air bag).
Torque: 3 N ⋅
⋅⋅
⋅
m (0.3 kgf ⋅
⋅⋅
⋅
m/26 lb ⋅
⋅⋅
⋅
in)
NOTE: A horn pad should not be struck during
attachment.

RTW 73BSH000201
11. Align each snap stud of driver air bag to the holes on
steering wheel (with SRS air bag).

RTW 73BSH001201

RTW 73BSH000401
12. Push the SRS air bag at area-1 (1) and area-2 (2). At that time confirm the audible noise of each stud.
(with SRS air bag)

RTW 73BSH000301
13. Enable the SRS (Refer to "Enabling the SRS" in this section) (with SRS air bag).
14. Install driver knee bolster (reinforcement).
15. Install instrument panel lower cover, then install the engine hood opening lever.
16. Connect the yellow 2-way SRS connector located under the steering column (with SRS air bag).
17. Connect the battery "-" terminal cable (with SRS ai
r
bag).

System Inspection (with SRS air bag)
Turn the ignition switch to "ON" while watching warning
light.
The light should flash 7 times and then go off. If lamp
does not operate correctly, refer to Restraints section.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

POWER-ASSISTED STEERING SYSTEM 3B-55
Check clearance between capsule and bracket. It must
be less than 1 mm (0.039 in).
431RW 031

Column Universal Joint (between the
power steering unit and the steering shaft)
If resistance is felt when checked by rotating the joint,
replace the lower second steering shaft.

Shaft Universal Joint (between the lower
second steering shaft and the second
steering shaft)
If resistance is felt when checked by rotating the joint,
replace the second steering shaft assembly.

Tilt Mechanism
The tilt mechanism should move smoothly.
W hile locking the tilt mechanism, be sure the steering
column is latched securely by pushing the steering
wheel upward and downward.

Installation
1. Align the setting mark (1) on the second steering
shaft and the steering column assembly (applied at
disassembly).
2. Connect the steering column assembly to the second steering shaft. Tighten the bolts to the specified
torque.
Torque: 31 N ⋅
⋅⋅
⋅
m (3.2 kgf ⋅
⋅⋅
⋅
m/23 lb ⋅
⋅⋅
⋅
ft)





RTW 53BSH00301
3. Thread the steering column assembly through the
hole in the dashpanel. Temporarily tighten the
steering column and the second steering shaft fixing
bolts.
4.
Align the setting marks (applied at disassembly) and
connect the lower second steering shaft and the
second steering shaft. Tighten the universal joint
bolts to the specified torque.
Torque: 31 N ⋅
⋅⋅
⋅
m (3.2 kgf ⋅
⋅⋅
⋅
m/23 lb ⋅
⋅⋅
⋅
ft)
5. Tighten the steering column fixing bolt (pedal bracket side) to the specified torque (This bolt was
temporarily tightened in Step 3).
Torque: 20 N ⋅
⋅⋅
⋅
m (2.0 kgf ⋅
⋅⋅
⋅
m/14 lb ⋅
⋅⋅
⋅
ft)
6. Tighten the second steering shaft fixing bolt to the specified torque (This bolt was temporarily tightened
in Step 3)
Torque: 20 N ⋅
⋅⋅
⋅
m (2.0 kgf ⋅
⋅⋅
⋅
m/14 lb ⋅
⋅⋅
⋅
ft)
7. Tighten the steering column fixing bolt (dashpanel side) to the specified torque (This bolt was
temporarily tightened in Step 3).
Torque: 20 N ⋅
⋅⋅
⋅
m (2.0 kgf ⋅
⋅⋅
⋅
m/14 lb ⋅
⋅⋅
⋅
ft)
8. Install combination switch and SRS coil assembly.
After installation of combination switch assembly,
connect the combination switch wiring harness
connector and the SRS 2-way connector located
under the steering column.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

3B-56 POWER-ASSISTED STEERING SYSTEM
9. Turn the SRS coil fully counterclockwise, return
about 3 turns and align the neutral mark (1). (with
SRS air bag)
CAUTION: When turning the SRS coil fully
counterclockwise, stop turning if resistance is felt.
Further forced turning may damage to the cable in
the SRS coil.
826RW 014
10. W hen installing the steering column cover, be sure to
route each wiring harness as illustrated so that the
harnesses do not catch any moving parts.
825RW 017
Legend
(1) Steering Column Cover
(2) Starter Switch Harness
(3) Combination Switch Harness
(4) Inflator Module Harness

11. Install steering wheel and align the setting marks
made when removing. Refer to the adjustment method in case a mark has
not been applied in this section.
NOTE: Confirm SRS and horn harness connector is
fixed by the steering wheel.

RTW 73BSH000701

CAUTION: Never apply force to the steering wheel in
the direction of the shaft by using a hammer o
r
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.
12. Tighten the steering wheel fixing nut to the specified torque.
Torque: 35 N ⋅
⋅⋅
⋅
m (3.6 kgf ⋅
⋅⋅
⋅
m/26 lb ⋅
⋅⋅
⋅
ft)
13. Support the module and carefully connect the module connector and horn lead, then install inflato
r
module.
NOTE: Pass the lead wire through the tabs on the
plastic cover (wire protector) of inflator to prevent lead
wire from being pinched.
14. Tighten bolts to specified torque.
Torque: 3 N ⋅
⋅⋅
⋅
m (0.3 kgf ⋅
⋅⋅
⋅
m/26 lb ⋅
⋅⋅
⋅
in)
15. Install driver knee bolster (reinforcement).
16. Install instrument panel lower cover.
17. Install the engine hood opening lever.
18. Connect the yellow 2-way SRS connector and horn lead located under the steering column.
19. Connect the battery "-" terminal cable (with SRS ai
r
bag).


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

3B-58 POWER-ASSISTED STEERING SYSTEM

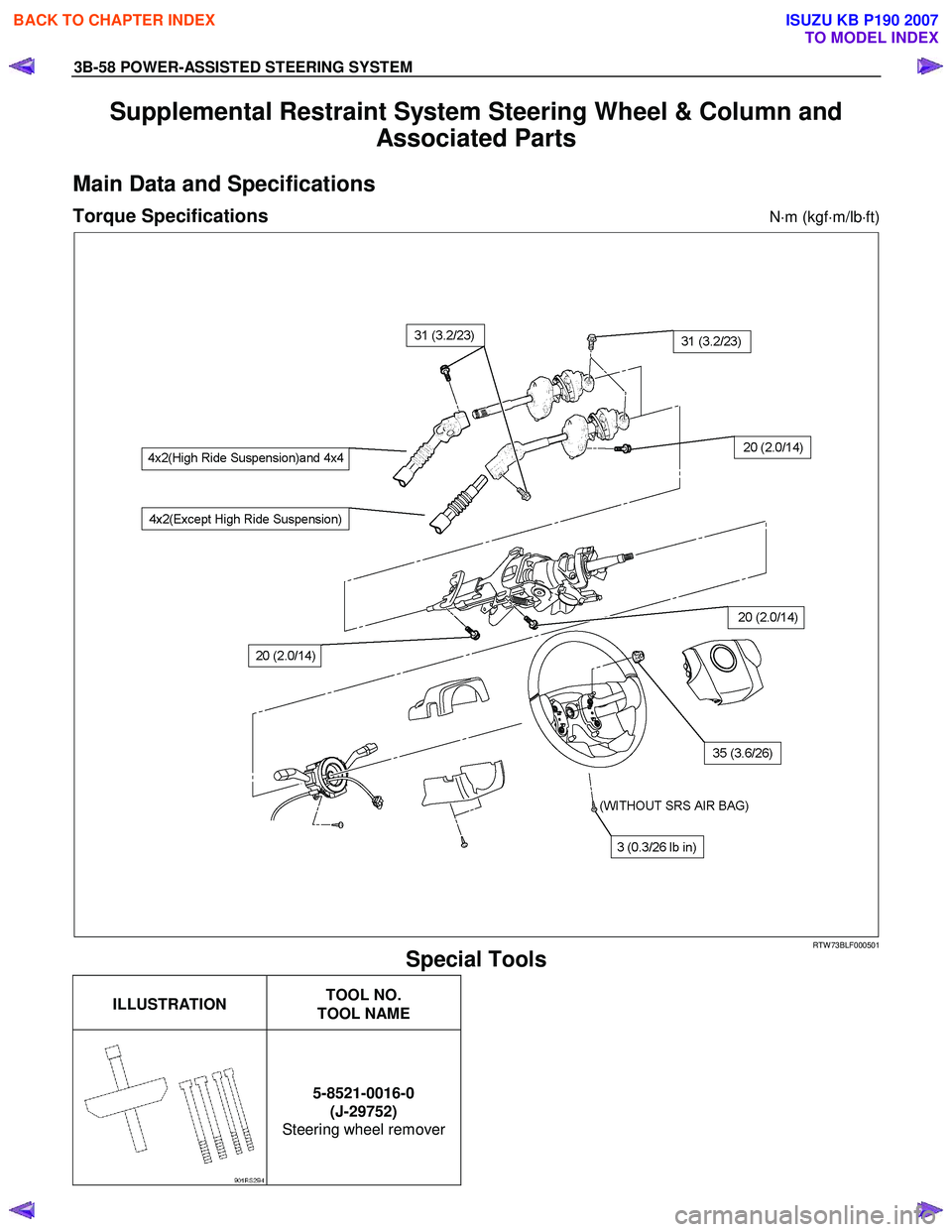

Supplemental Restraint System Steering Wheel & Column and
Associated Parts
Main Data and Specifications
Torque Specifications N⋅m (kgf ⋅m/lb ⋅ft)







RTW 73BLF000501
Special Tools

ILLUSTRATION
TOOL NO.
TOOL NAME




5-8521-0016-0
(J-29752)
Steering wheel remover
