2007 ISUZU KB P190 display

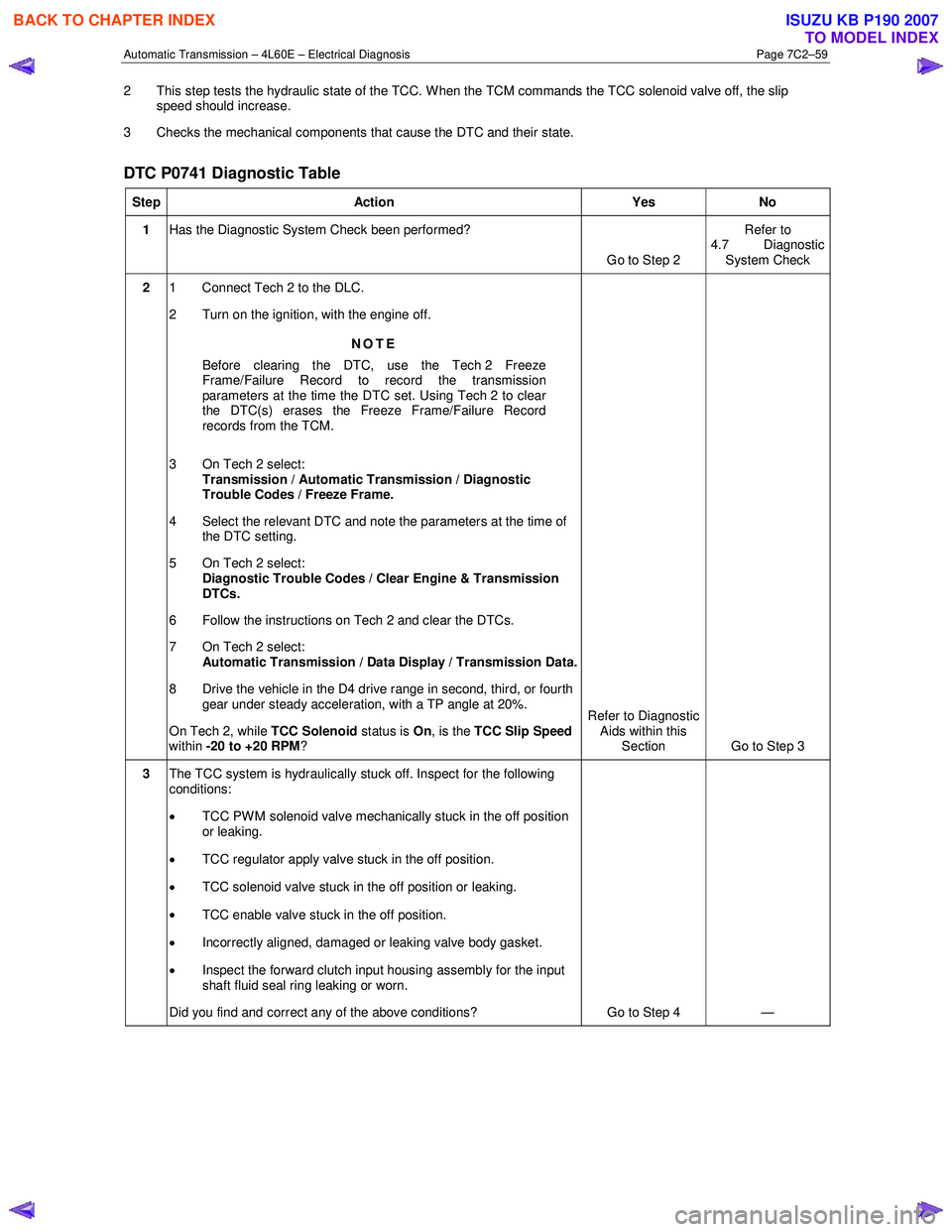

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–59
2 This step tests the hydraulic state of the TCC. W hen the TCM commands the TCC solenoid valve off, the slip
speed should increase.
3 Checks the mechanical components that cause the DTC and their state.
DTC P0741 Diagnostic Table
Step Action Yes No
1 Has the Diagnostic System Check been performed?
Go to Step 2 Refer to
4.7 Diagnostic System Check
2 1 Connect Tech 2 to the DLC.
2 Turn on the ignition, with the engine off.
NOTE
Before clearing the DTC, use the Tech 2 Freeze
Frame/Failure Record to record the transmission
parameters at the time the DTC set. Using Tech 2 to clear
the DTC(s) erases the Freeze Frame/Failure Record
records from the TCM.
3 On Tech 2 select: Transmission / Automatic Transmission / Diagnostic
Trouble Codes / Freeze Frame.
4 Select the relevant DTC and note the parameters at the time of the DTC setting.
5 On Tech 2 select:
Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs.
6 Follow the instructions on Tech 2 and clear the DTCs.
7 On Tech 2 select: Automatic Transmission / Data Display / Transmission Data.
8 Drive the vehicle in the D4 drive range in second, third, or fourth gear under steady acceleration, with a TP angle at 20%.
On Tech 2, while TCC Solenoid status is On, is the TCC Slip Speed
within -20 to +20 RPM ? Refer to Diagnostic
Aids within this Section Go to Step 3
3 The TCC system is hydraulically stuck off. Inspect for the following
conditions:
• TCC PWM solenoid valve mechanically stuck in the off position
or leaking.
• TCC regulator apply valve stuck in the off position.
• TCC solenoid valve stuck in the off position or leaking.
• TCC enable valve stuck in the off position.
• Incorrectly aligned, damaged or leaking valve body gasket.
• Inspect the forward clutch input housing assembly for the input
shaft fluid seal ring leaking or worn.
Did you find and correct any of the above conditions? Go to Step 4 —

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–60
Step Action Yes No
4 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs.
2 Follow the instructions on Tech 2 and clear any DTCs.
3 On Tech 2 select: Automatic Transmission / Data Display / Transmission Data.
4 Drive the vehicle in D4 with the TCC on and the throttle above 10%. Ensure Tech 2 displays TCC Slip Speed between -25 to
+25 RPM for 3 seconds.
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Has DTC P0741 set? Go to Step 2 Go to Step 5
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic Trouble Code List System OK
When all diagnosis and repairs are completed, check the system for correct operation.
4.19 DTC P0742 – Torque Converter Clutch
System – Stuck On
DTC Description
This diagnostic procedure supports DTC P0742 Torque Converter Clutch (TCC) System – Stuck On.
Circuit Description
The torque converter clutch (TCC) solenoid valve is a normally-open exhaust valve that is used with the torque converter
clutch pulse width modulation (TCC PWM) solenoid valve to control fluid acting on the converter clutch apply valve. The
TCC solenoid valve attaches to the transmission case assembly extending into the pump cover. W hen grounded by the
transmission control module (TCM), the TCC solenoid valve stops converter signal oil from exhausting. This causes
converter signal oil pressure to increase and move the converter clutch apply valve against spring force and into the
apply position. In this position, release fluid is open to an exhaust port and converter feed fluid fills the apply fluid circu it.
The converter feed fluid applies the TCC. When the TCM no longer provides a ground path, the TCC solenoid valve de-
energizes and apply fluid exhausts, releasing the TCC.
W hen the TCM detects low torque converter slip when the TCC is commanded off, then DTC P0742 sets. DTC P0742 is
a type B DTC.
Refer to 2 W iring Diagrams and Connector Chart to aid in diagnosis.
Conditions for Running the DTC
• No DTCs P0722, P0723, P0741 P02763, P02764, P02769 or P02770.
• Ignition voltage is 8 – 18 V.
• The engine run time is greater than 5 seconds.
• The IMS range is D4.
• The transmission fluid temperature is 10 – 130°C.
• The engine speed is 500 – 6,500 r.p.m. for 5 seconds, then 800 – 4,400 r.p.m.
• The engine torque is 156 – 881 Nm.
• The throttle position is greater than 10 percent.
• The transmission is not in 1st gear and the gear ratio is 0.95:1 – 1.56:1.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

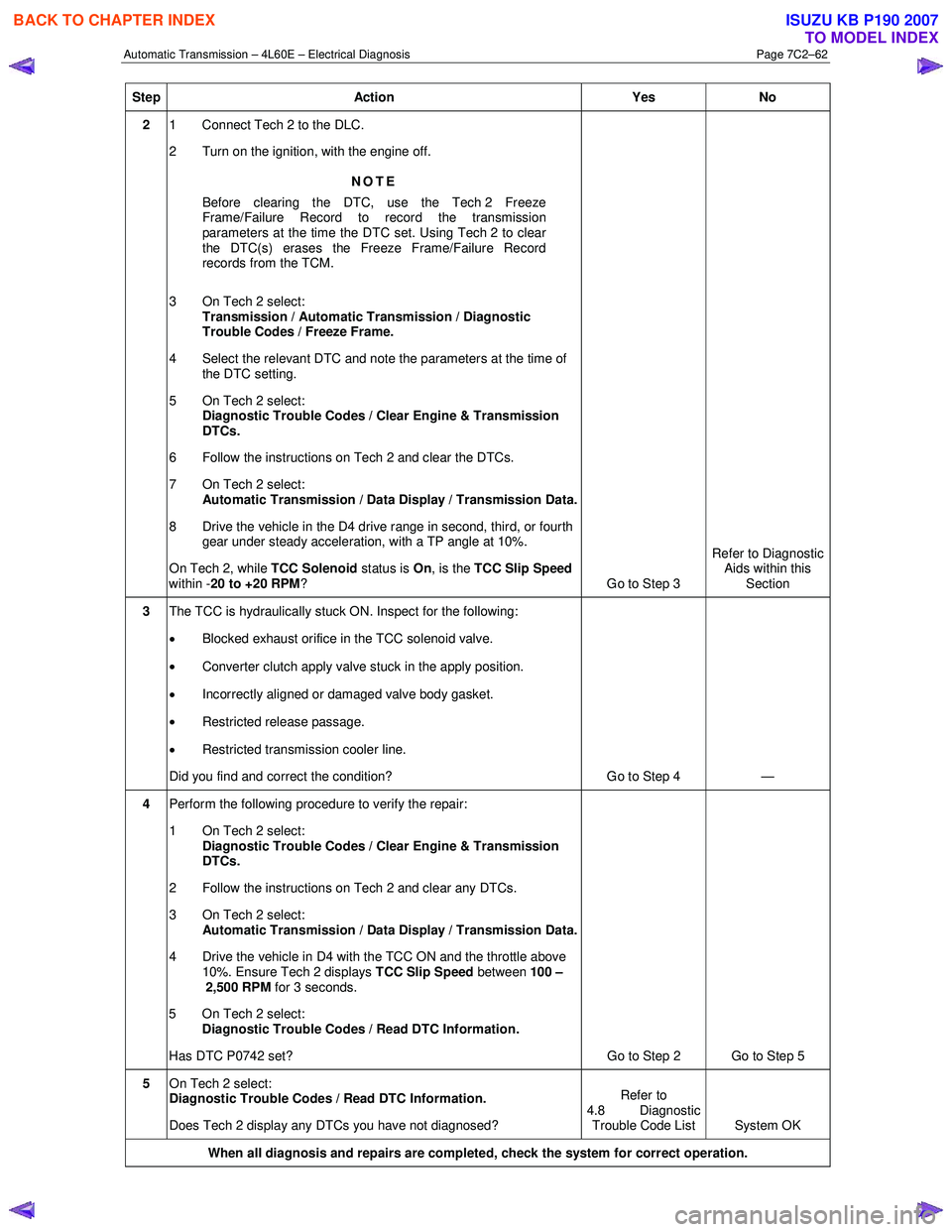

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–62
Step Action Yes No
2 1 Connect Tech 2 to the DLC.
2 Turn on the ignition, with the engine off.
NOTE
Before clearing the DTC, use the Tech 2 Freeze
Frame/Failure Record to record the transmission
parameters at the time the DTC set. Using Tech 2 to clear
the DTC(s) erases the Freeze Frame/Failure Record
records from the TCM.
3 On Tech 2 select: Transmission / Automatic Transmission / Diagnostic
Trouble Codes / Freeze Frame.
4 Select the relevant DTC and note the parameters at the time of the DTC setting.
5 On Tech 2 select:
Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs.
6 Follow the instructions on Tech 2 and clear the DTCs.
7 On Tech 2 select: Automatic Transmission / Data Display / Transmission Data.
8 Drive the vehicle in the D4 drive range in second, third, or fourth gear under steady acceleration, with a TP angle at 10%.
On Tech 2, while TCC Solenoid status is On, is the TCC Slip Speed
within - 20 to +20 RPM ? Go to Step 3 Refer to Diagnostic
Aids within this Section
3 The TCC is hydraulically stuck ON. Inspect for the following:
• Blocked exhaust orifice in the TCC solenoid valve.
• Converter clutch apply valve stuck in the apply position.
• Incorrectly aligned or damaged valve body gasket.
• Restricted release passage.
• Restricted transmission cooler line.
Did you find and correct the condition? Go to Step 4 —
4 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs.
2 Follow the instructions on Tech 2 and clear any DTCs.
3 On Tech 2 select: Automatic Transmission / Data Display / Transmission Data.
4 Drive the vehicle in D4 with the TCC ON and the throttle above 10%. Ensure Tech 2 displays TCC Slip Speed between 100 –
2,500 RPM for 3 seconds.
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Has DTC P0742 set? Go to Step 2 Go to Step 5
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic Trouble Code List System OK
When all diagnosis and repairs are completed, check the system for correct operation.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–65
Step Action Yes No
4 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs
2 Follow the instructions on Tech 2 and clear any DTCs.
3 Drive the vehicle in D4 range under the following conditions, only if traffic and road conditions permit:
• Hold the throttle at 20%, and
• Accelerate to 88 km/h.
4 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Has DTC P0751 set? Go to Step 2 Go to Step 5
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic Trouble Code List System OK
When all diagnosis and repairs are completed, check the
system for correct operation.
4.21 DTC P0752 – 1-2 Shift Solenoid Valve
Performance – No Second or Third Gear
DTC Description
This diagnostic procedure supports DTC P0752 1-2 Shift Solenoid (SS) Valve Performance – No Second or Third Gear.
Circuit Description
The 1-2 shift solenoid (SS) valve controls the fluid flow acting on the 1-2 and 3-4 shift valves. The 1-2 SS valve is a
normally-open exhaust valve that is used with the 2-3 SS valve, to allow four different shifting combinations.
When the transmission control module (TCM) detects a 1-1-4-4 shift pattern, then DTC P0752 sets. DTC P0752 is a
type B DTC.
Refer to 2 W iring Diagrams and Connector Chart to aid in diagnosis.
Conditions for Running the DTC
• No DTCs P0722, P0723, P0742, P0894, P0973, P0974, P0976, or P0977.
• Ignition voltage is 8 – 18 V.
• The engine run time is greater than 5 seconds.
• The transmission fluid temperature is 20 – 130°C.
• The throttle position is greater than 10 percent.
• The output shaft speed is greater than 150 r.p.m.
• The engine torque is 108 – 882 Nm.
Conditions for Setting the DTC
The TCM commands 2nd gear and the resulting gear ratio is 2.42:1 – 2.52:1, 1st gear ratio for 2 seconds twice during
the same trip.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

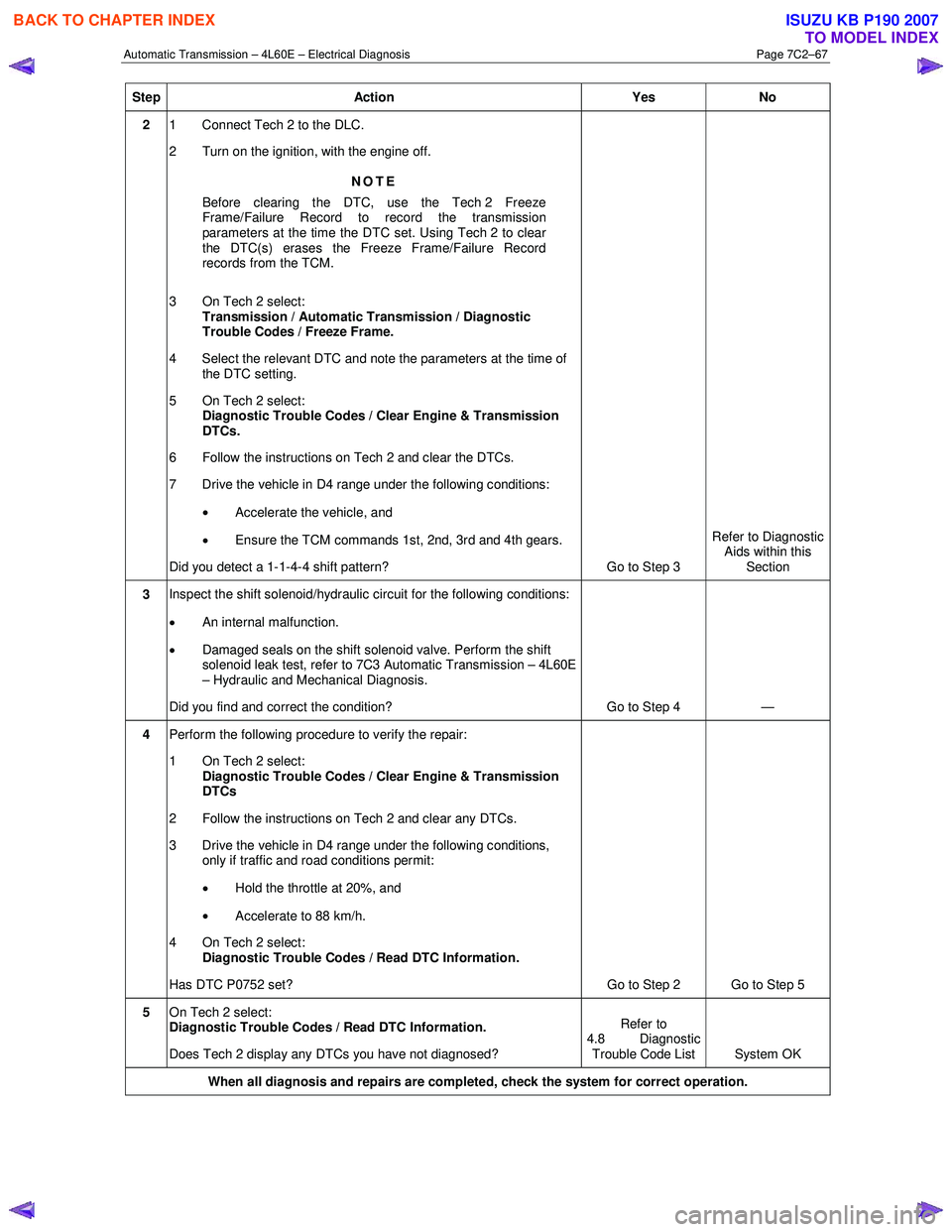

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–67
Step Action Yes No
2 1 Connect Tech 2 to the DLC.
2 Turn on the ignition, with the engine off.
NOTE
Before clearing the DTC, use the Tech 2 Freeze
Frame/Failure Record to record the transmission
parameters at the time the DTC set. Using Tech 2 to clear
the DTC(s) erases the Freeze Frame/Failure Record
records from the TCM.
3 On Tech 2 select: Transmission / Automatic Transmission / Diagnostic
Trouble Codes / Freeze Frame.
4 Select the relevant DTC and note the parameters at the time of the DTC setting.
5 On Tech 2 select:
Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs.
6 Follow the instructions on Tech 2 and clear the DTCs.
7 Drive the vehicle in D4 range under the following conditions:
• Accelerate the vehicle, and
• Ensure the TCM commands 1st, 2nd, 3rd and 4th gears.
Did you detect a 1-1-4-4 shift pattern? Go to Step 3 Refer to Diagnostic
Aids within this Section
3 Inspect the shift solenoid/hydraulic circuit for the following conditions:
• An internal malfunction.
• Damaged seals on the shift solenoid valve. Perform the shift
solenoid leak test, refer to 7C3 Automatic Transmission – 4L60E
– Hydraulic and Mechanical Diagnosis.
Did you find and correct the condition? Go to Step 4 —
4 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs
2 Follow the instructions on Tech 2 and clear any DTCs.
3 Drive the vehicle in D4 range under the following conditions, only if traffic and road conditions permit:
• Hold the throttle at 20%, and
• Accelerate to 88 km/h.
4 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Has DTC P0752 set? Go to Step 2 Go to Step 5
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic
Trouble Code List System OK
When all diagnosis and repairs are completed, check the
system for correct operation.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–70
Step Action Yes No
3 1 Inspect the shift solenoid/hydraulic circuit for the following
conditions:
• Debris or chips in the AFL oil passage.
• Debris or chips restricting oil flow in passage #29 of the
case or through the spacer plate gasket into the valve
body.
• A cracked 2-3 shift solenoid.
• A 2-3 shift valve which is stuck or hung up in the valve
body bore.
• A 2-3 shuttle valve which is stuck or hung up in its bore.
• Damaged seals on the shift solenoid valves. Perform the
shift solenoid leak test, refer to 7C3 Automatic
Transmission – 4L60E – Hydraulic and Mechanical
Diagnosis.
2 Clean and inspect the related valves, bores and the valve body for debris or contamination.
Did you find and correct the condition? Go to Step 4 —
4 Perform the following procedure to verify the repair:
1 On Tech 2 select: Diagnostic Trouble Codes / Clear Engine & Transmission
DTCs
2 Follow the instructions on Tech 2 and clear any DTCs.
3 Drive the vehicle in D4 range under the following conditions, only if traffic and road conditions permit:
• Hold the throttle at 40%, and
• Accelerate to 64 km/h.
4 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Has DTC P0756 set? Go to Step 2 Go to Step 5
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic Trouble Code List System OK
When all diagnosis and repairs are completed, check the system for correct operation.
4.23 DTC P0757 – 2-3 Shift Solenoid Valve
Performance – No Third or Fourth Gear
DTC Description
This diagnostic procedure supports DTC P0757 2-3 Shift Solenoid (SS) Valve Performance – No Third or Fourth Gear.
Circuit Description
The 2-3 shift solenoid (SS) valve controls the fluid flow acting on the 2-3 shift valves. The 2-3 SS valve is a normally-
open exhaust valve that is used with the 1-2 SS valve to allow four different shifting combinations.
When the transmission control module (TCM) detects a 1-2-2-1 shift pattern, then DTC P0757 sets. DTC P0757 is a
type A DTC.
Refer to 2 W iring Diagrams and Connector Chart to aid in diagnosis.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–73
Step Action Yes No
5 On Tech 2 select:
Diagnostic Trouble Codes / Read DTC Information.
Does Tech 2 display any DTCs you have not diagnosed? Refer to
4.8 Diagnostic Trouble Code List System OK
When all diagnosis and repairs are completed, check the system for correct operation.
4.24 DTC P0787 – 3-2 Shift Solenoid Control
Circuit Low Voltage
DTC Description
This diagnostic procedure supports the following DTC:
DTC P0787 3-2 Shift Solenoid (SS) Control Circuit Low Voltage.
Circuit Description
The 3-2 shift solenoid (SS) valve is a normally-closed, 3-port, on/off device that controls the 3-2 downshift. The solenoid
attaches to the control valve body within the transmission. The solenoid receives ignition voltage through the ignition
circuit. The transmission control module (TCM) controls the solenoid by providing a ground path on the 3-2 shift solenoid
valve control circuit. During a 3-2 downshift, the 2-4 band applies as the 3-4 clutch releases. The TCM varies the timing
between the 3-4 clutch release and the 2-4 band apply depending on the vehicle speed and the throttle position.
When the TCM detects a continuous open or short to ground in the 3-2 SS valve circuit, then DTC P0787 sets.
DTC P0787 is a type A DTC.
Refer to 2 W iring Diagrams and Connector Chart to aid in diagnosis.
Conditions for Running the DTC
• The system voltage is 10 – 18 V.
• The engine speed is greater than 450 r.p.m. for 5 seconds.
• Vehicle speed is less than 200 km/h.
Conditions for Setting the DTC
The TCM commands the solenoid off and the voltage feedback remains low, 0 V.
Action Taken When the DTC Sets
•
The TCM requests the ECM to illuminate the MIL during the second consecutive trip in which the conditions for
setting the DTC are met.
• The TCM commands maximum line pressure.
• The TCM freezes transmission adaptive functions.
• The TCM commands 3rd gear.
• The TCM inhibits TCC engagement.
• At the time of the first failure, the TCM records the operating conditions when the conditions for setting the DTC are
met. The TCM stores this information as a Failure Record.
• At the time of the second failure, the ECM records the operating conditions when the conditions for setting the DTC
are met. The ECM stores this information as a Freeze Frame.
• The TCM stores DTC P0787 in TCM history during the second consecutive trip in which the conditions for setting
the DTC are met.
Conditions for Clearing the DTC
• The ECM turns off the MIL after the fourth consecutive drive trip in which the TCM does not send a MIL illumination
request.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

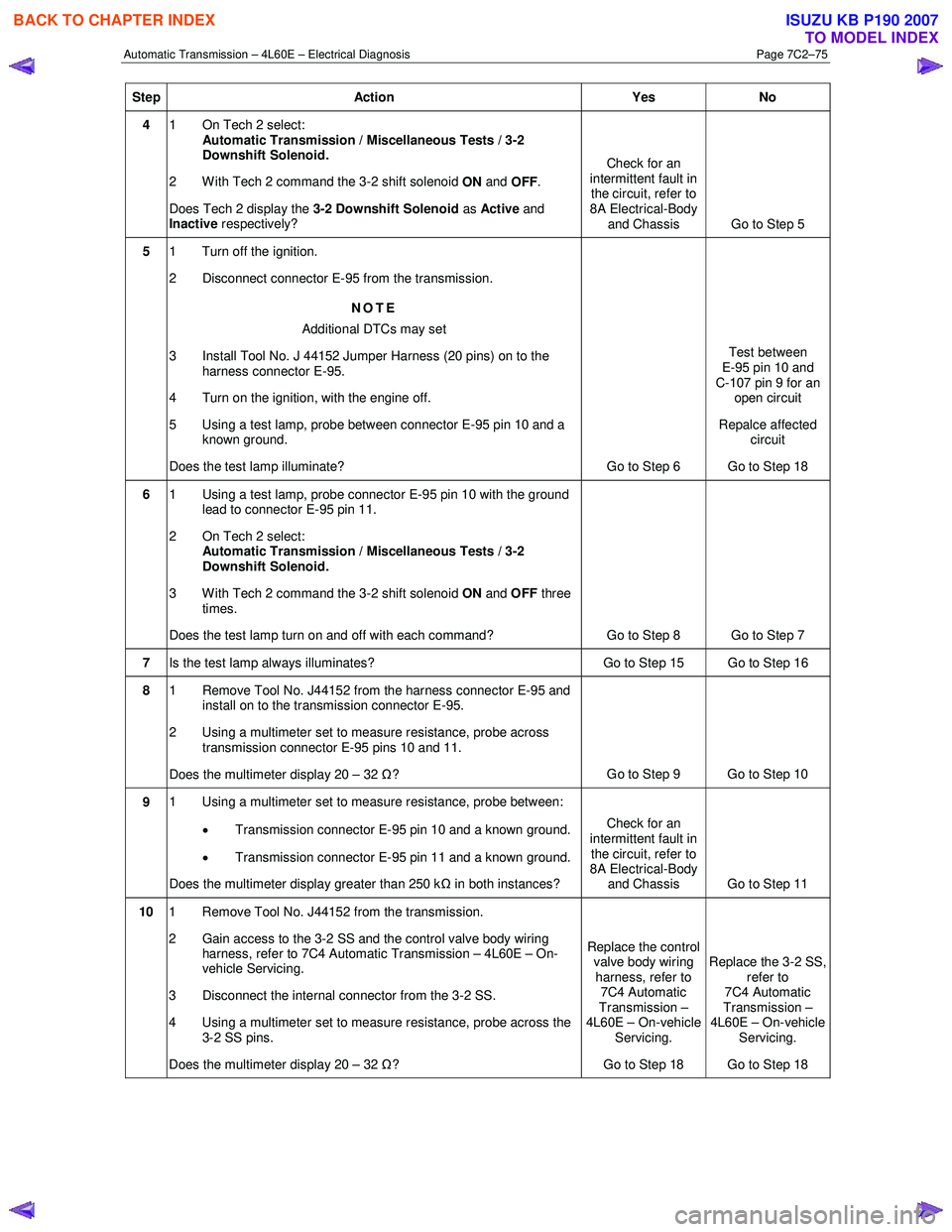

Automatic Transmission – 4L60E – Electrical Diagnosis Page 7C2–75
Step Action Yes No
4 1 On Tech 2 select:
Automatic Transmission / Miscellaneous Tests / 3-2
Downshift Solenoid.
2 With Tech 2 command the 3-2 shift solenoid ON and
OFF .
Does Tech 2 display the 3-2 Downshift Solenoid as Active and
Inactive respectively? Check for an
intermittent fault in the circuit, refer to
8A Electrical-Body and Chassis Go to Step 5
5 1 Turn off the ignition.
2 Disconnect connector E-95 from the transmission.
NOTE
Additional DTCs may set
3 Install Tool No. J 44152 Jumper Harness (20 pins) on to the harness connector E-95.
4 Turn on the ignition, with the engine off.
5 Using a test lamp, probe between connector E-95 pin 10 and a known ground.
Does the test lamp illuminate? Go to Step 6 Test between
E-95 pin 10 and
C-107 pin 9 for an open circuit
Repalce affected circuit
Go to Step 18
6 1 Using a test lamp, probe connector E-95 pin 10 with the ground
lead to connector E-95 pin 11.
2 On Tech 2 select: Automatic Transmission / Miscellaneous Tests / 3-2
Downshift Solenoid.
3 With Tech 2 command the 3-2 shift solenoid ON and OFF three
times.
Does the test lamp turn on and off with each command? Go to Step 8 Go to Step 7
7 Is the test lamp always illuminates? Go to Step 15 Go to Step 16
8 1 Remove Tool No. J44152 from the harness connector E-95 and
install on to the transmission connector E-95.
2 Using a multimeter set to measure resistance, probe across transmission connector E-95 pins 10 and 11.
Does the multimeter display 20 – 32 Ω? Go to Step 9 Go to Step 10
9 1 Using a multimeter set to measure resistance, probe between:
• Transmission connector E-95 pin 10 and a known ground.
• Transmission connector E-95 pin 11 and a known ground.
Does the multimeter display greater than 250 k Ω in both instances? Check for an
intermittent fault in
the circuit, refer to
8A Electrical-Body
and Chassis Go to Step 11
10 1 Remove Tool No. J44152 from the transmission.
2 Gain access to the 3-2 SS and the control valve body wiring harness, refer to 7C4 Automatic Transmission – 4L60E – On-
vehicle Servicing.
3 Disconnect the internal connector from the 3-2 SS.
4 Using a multimeter set to measure resistance, probe across the 3-2 SS pins.
Does the multimeter display 20 – 32 Ω? Replace the control
valve body wiring
harness, refer to 7C4 Automatic
Transmission –
4L60E – On-vehicle
Servicing.
Go to Step 18 Replace the 3-2 SS,
refer to
7C4 Automatic
Transmission –
4L60E – On-vehicle Servicing.
Go to Step 18

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
