11A-42 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
Step Action Value(s) Yes No
9 Check the immobilizer programming functions.
• Engine control module (ECM).
If a problem is found, repair as necessary.
(Refer to "Important information on Programming")
W as the action complete? 
Go to Step 10 Go to Step 11
10 Recheck the DTC on ECM.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Are below DTCs stored?
P1649 (C24SE) 
Go to Step 11 Go to Step 12
11 Replace the engine control module (ECM).
IMPORTANT: The replacement ECM must be
programmed the security data by scan tool.
W as the action complete? 
Go to Step 12 
12 Recheck the DTC on ECM.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Are below DTCs stored?
P1626 (C24SE) 
Go to Step 13 Go to Step 2
13 Replace the immobilizer control unit (ICU).
IMPORTANT: The replacement ICU must be
programmed the security data by scan tool.
W as the action complete? 
Verify repair 


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-43
B0008 WRONG TRANSPONDER KEY
Step Action Value(s) Yes No
1
W as the "Immobilizer System Check" performed? 
Go to Step 2 Go to Immobilizer
System Check
2 Check the key.
Is a key peculiar to a vehicle? 
Go to Step 3 Refer to
Diagnostic Aids
3 Check the immobilizer programming functions.
• Transponder (Key).
W as a problem found? 
Go to Step 4 Go to Step 5
4 Perform the immobilizer programming functions.
• Transponder (Key).
(Refer to "Important information on Programming")
W as the action complete? 
Go to Step 5 
5 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0008 stored? 
Go to Step 6 Verify repair
6 Replace the transponder (Key).
IMPORTANT : The replacement transponder (key)
must be programmed the security data by scan tool.
W as the action complete? 
Go to Step 7 
7 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0008 stored? 
Go to Step 8 Verify repair
8 Replace the immobilizer control unit (ICU).
IMPORTANT : The replacement ICU must be
programmed the security data by scan tool.
W as the action complete? 
Verify repair 


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11A-44 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)

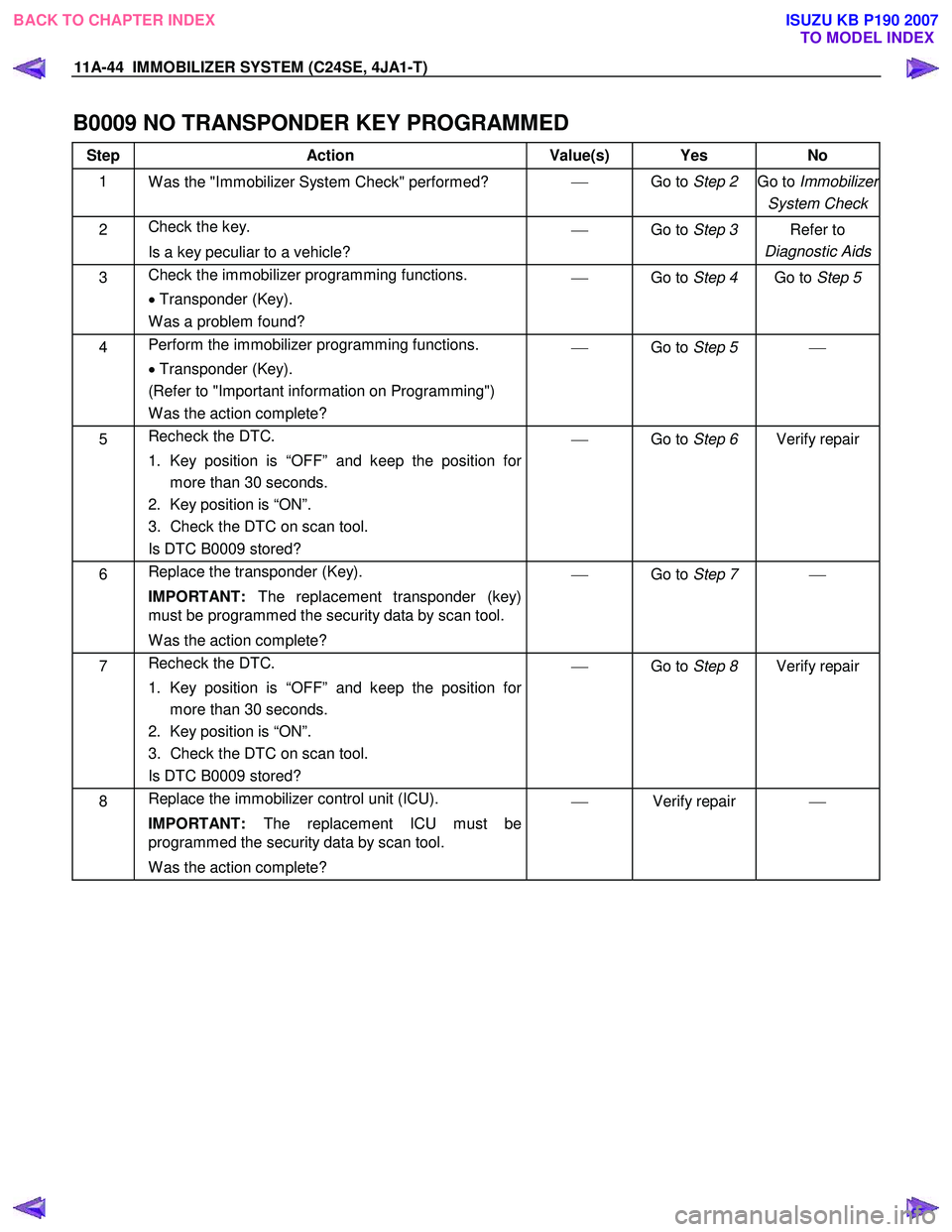

B0009 NO TRANSPONDER KEY PROGRAMMED
Step Action Value(s) Yes No
1
W as the "Immobilizer System Check" performed? 
Go to Step 2 Go to Immobilizer
System Check
2 Check the key.
Is a key peculiar to a vehicle? 
Go to Step 3 Refer to
Diagnostic Aids
3 Check the immobilizer programming functions.
• Transponder (Key).
W as a problem found? 
Go to Step 4 Go to Step 5
4 Perform the immobilizer programming functions.
• Transponder (Key).
(Refer to "Important information on Programming")
W as the action complete? 
Go to Step 5 
5 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0009 stored? 
Go to Step 6 Verify repair
6 Replace the transponder (Key).
IMPORTANT: The replacement transponder (key)
must be programmed the security data by scan tool.
W as the action complete? 
Go to Step 7 
7 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0009 stored? 
Go to Step 8 Verify repair
8 Replace the immobilizer control unit (ICU).
IMPORTANT: The replacement ICU must be
programmed the security data by scan tool.
W as the action complete? 
Verify repair 


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-45

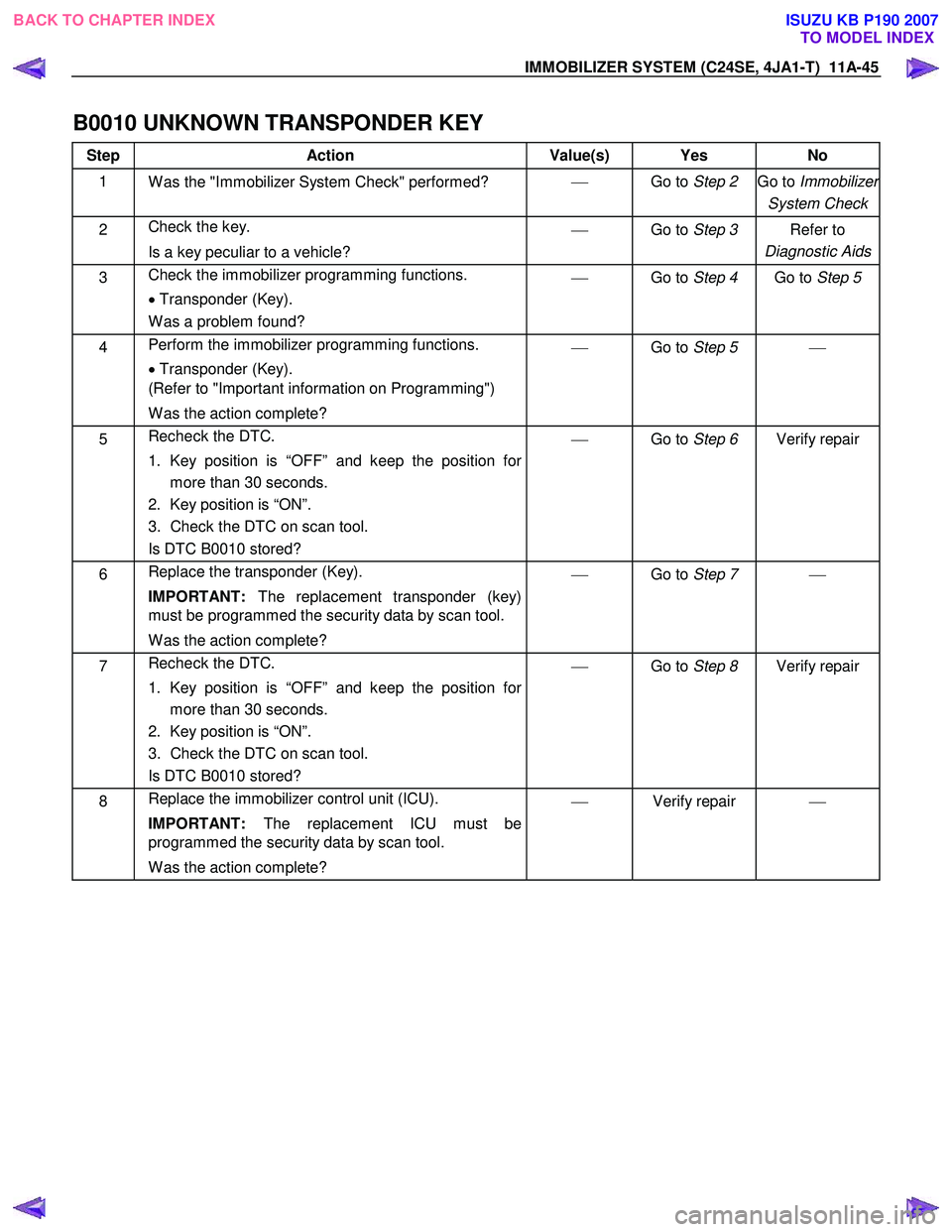

B0010 UNKNOWN TRANSPONDER KEY
Step Action Value(s) Yes No
1
W as the "Immobilizer System Check" performed? 
Go to Step 2 Go to Immobilizer
System Check
2 Check the key.
Is a key peculiar to a vehicle? 
Go to Step 3 Refer to
Diagnostic Aids
3 Check the immobilizer programming functions.
• Transponder (Key).
W as a problem found? 
Go to Step 4 Go to Step 5
4 Perform the immobilizer programming functions.
• Transponder (Key).
(Refer to "Important information on Programming")
W as the action complete? 
Go to Step 5 
5 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0010 stored? 
Go to Step 6 Verify repair
6 Replace the transponder (Key).
IMPORTANT: The replacement transponder (key)
must be programmed the security data by scan tool.
W as the action complete? 
Go to Step 7 
7 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0010 stored? 
Go to Step 8 Verify repair
8 Replace the immobilizer control unit (ICU).
IMPORTANT: The replacement ICU must be
programmed the security data by scan tool.
W as the action complete? 
Verify repair 



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

11A-46 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
B0011 TRANSPONDER KEY PROBLEM (Only 4JA1-T Engine)
Step Action Value(s) Yes No
1
W as the "Immobilizer System Check" performed? 
Go to Step 2 Go to Immobilizer
System Check
2 Check the key.
Is a key peculiar to a vehicle? 
Go to Step 3 Refer to
Diagnostic Aids
3 Check the immobilizer programming functions.
• All transponder (Key).
If a problem is found, repair as necessary.
(Refer to "Important information on Programming")
W as the action complete? 
Go to Step 4 Go to Step 5
4 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0011 stored? 
Go to Step 5 Verify repair
5 Recheck the DTC.
1. Non-OEM parts switch is "OFF" or remove the Non- OEM parts.
2. Remove the accessory and another key from key.
3. Move the vehicle to a new location.
4. Key position is “OFF” and keep the position for more than 30 seconds.
5. Key position is “ON”.
6. Check the DTC on scan tool.
Is DTC B0011 stored? 
Go to Step 6 Verify repair
6 Check the immobilizer coil (antenna) circuit.
1. Key position is “OFF”.
2. Disconnect the immobilizer control unit (ICU).
(immobilizer coil circuit : 3 pin connector)
3. Check the immobilizer coil circuit for an open, short to ground, or short to voltage.
Also, check the ICU ignition feed circuit for an open or
short to ground and the ICU ground circuit for an open.
W as a problem found? 
Go to Step 7 Go to Step 8
7 Repair or replace the immobilizer coil (antenna) circuit.
W as the action complete? 
Verify repair 
8 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0011 stored? 
Go to Step 9 Verify repair

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-47

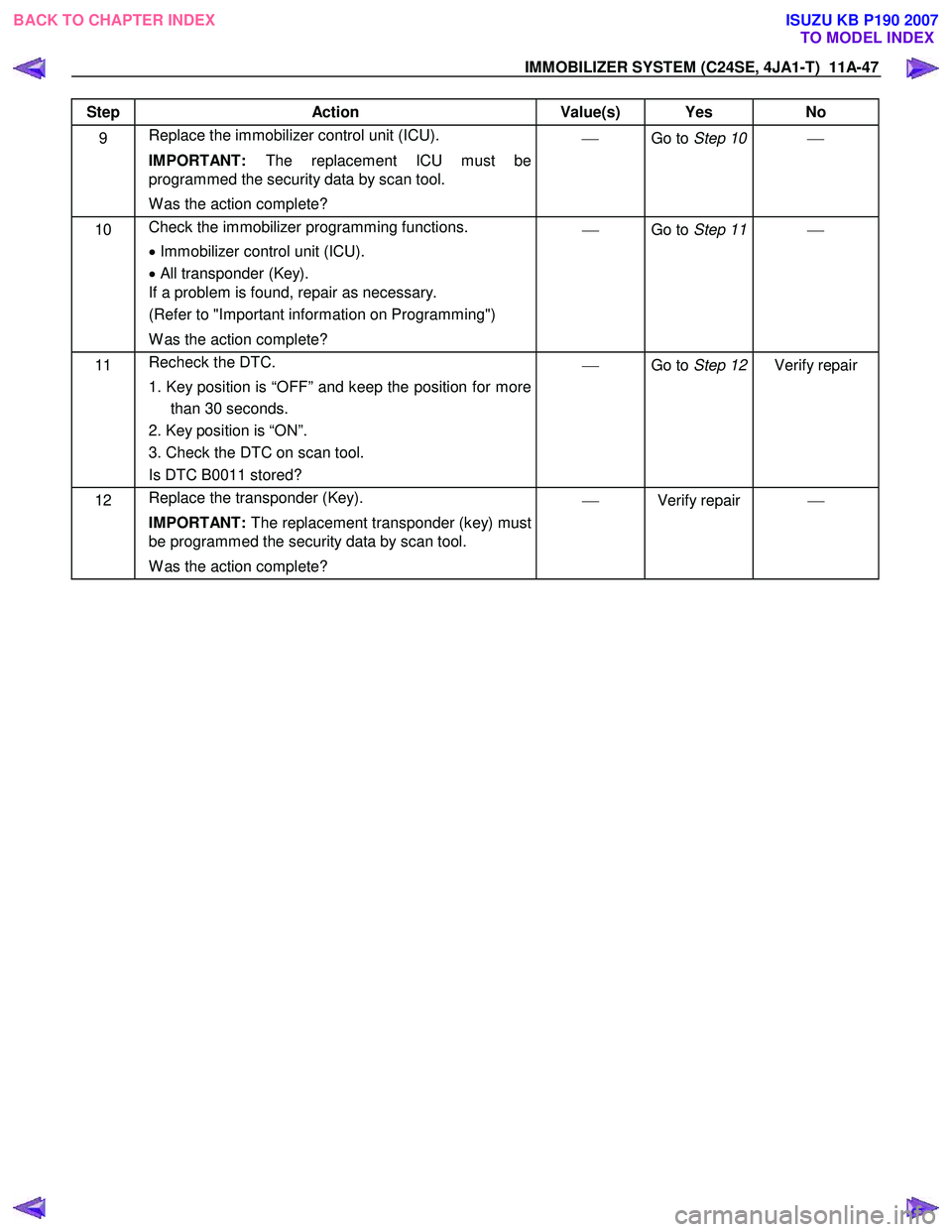

Step Action Value(s) Yes No
9 Replace the immobilizer control unit (ICU).
IMPORTANT: The replacement ICU must be
programmed the security data by scan tool.
W as the action complete? 
Go to Step 10 
10 Check the immobilizer programming functions.
• Immobilizer control unit (ICU).
• All transponder (Key).
If a problem is found, repair as necessary.
(Refer to "Important information on Programming")
W as the action complete? 
Go to Step 11 
11 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0011 stored? 
Go to Step 12 Verify repair
12 Replace the transponder (Key).
IMPORTANT: The replacement transponder (key) must
be programmed the security data by scan tool.
W as the action complete? 
Verify repair 


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11A-48 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
B0012 WRONG TRANSPONDER KEY (Only 4JA1-T Engine)
Step Action Value(s) Yes No
1
W as the "Immobilizer System Check" performed? 
Go to Step 2 Go to Immobilizer
System Check
2 Check the key.
Is a key peculiar to a vehicle? 
Go to Step 3 Refer to
Diagnostic Aids
3 Check the immobilizer programming functions.
• Transponder (Key).
W as a problem found? 
Go to Step 4 Go to Step 5
4 Perform the immobilizer programming functions.
• Transponder (Key).
(Refer to "Important information on Programming")
W as the action complete? 
Go to Step 5 
5 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0012 stored? 
Go to Step 6 Verify repair
6 Replace the transponder (Key).
IMPORTANT : The replacement transponder (key)
must be programmed the security data by scan tool.
W as the action complete? 
Go to Step 7 
7 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0012 stored? 
Go to Step 8 Verify repair
8 Replace the immobilizer control unit (ICU).
IMPORTANT : The replacement ICU must be
programmed the security data by scan tool.
W as the action complete? 
Verify repair 


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-49
B0013 IMMOBILIZER NOT PROGRAMMED (Only 4JA1-T Engine)
Step Action Value(s) Yes No
1
W as the "Immobilizer System Check" performed? 
Go to Step 2 Go to Immobilizer
System Check
2 Check the immobilizer programming functions.
• Immobilizer control unit (ICU).
If a problem is found, repair as necessary.
(Refer to "Important information on Programming")
W as the action complete? 
Go to Step 3 Go to Step 5
3 Recheck the DTC.
1. Key position is “OFF” and keep the position for more than 30 seconds.
2. Key position is “ON”.
3. Check the DTC on scan tool.
Is DTC B0013 stored? 
Go to Step 4 Verify repair
4 Replace the immobilizer control unit (ICU).
IMPORTANT: The replacement ICU must be
programmed the security data by scan tool.
W as the action complete? 
Verify repair 
5 Check the immobilizer programming functions.
• Engine control immobilizer unit.
• Immobilizer control unit (ICU).
If a problem is found, repair as necessary.
(Refer to "Important information on Programming")
W as the action complete? 
Verify repair Go to Step 6
6 Replace the key and lock cylinder assembly and
immobilizer system (ICU and Engine immobilizer
unit).
IMPORTANT:
• ICU and Engine immobilizer unit are not
replacing simultaneously.
• After replace lock cylinders, perform the
following below the items.
• Program the immobilizer system.
(Refer to "Important information on Programming")
W as the action complete? 
Verify repair 

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
