2007 ISUZU KB P190 engine

Engine Mechanical – V6 Page 6A1–168
Page 6A1–168
CAUTION
The right-hand secondary camshaft drive
shoe is marked with th e letters ‘RH’. Ensure
that the right-hand drive shoe is used when
installing to the right-hand side in this
procedure and that the letters ‘RH” are
facing the front of the vehicle when installed.
13 Ensure the right-hand secondary timing chain shoe is selected and orientated correctly.

Figure 6A1 – 251
14 Position the right-hand secondary timing chain shoe (1).


Figure 6A1 – 252
15 Install the secondary timing chain shoe bolt (1) and tighten to the correct torque specification.




Secondary timing chain shoe
attaching bolt torque spec ification ........... 20.0 – 26.0 Nm


Figure 6A1 – 253

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–169
Page 6A1–169
16 Ensure the right-hand secondary timing chain
tensioner is selected and orientated correctly.


Figure 6A1 – 254
17 Reset the right-hand secondary timing chain tensioner.


NOTE
To reset the tensioner, use a suitably sized flat
blade screwdriver (1) or Tool No. J 45027 to
wind the plunger in a clockwise direction, into
the tensioner shaft (2).


Figure 6A1 – 255
18 Install the tensioner s haft (1) into the right-hand
secondary timing chain tensioner body (2).


Figure 6A1 – 256

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–170
Page 6A1–170
19 Compress the tensioner shaft into the body and lock
the tensioner by inserting Tool No. EN 46112 into the
access hole in the side of the tensioner body.
20 Slowly release pressure on the right-hand secondary timing chain tensioner. The tensioner should remain
compressed.



Figure 6A1 – 257
21 Install a new right-hand secondary timing chain tensioner gasket (1) to the tensioner (2).
22 Install the right-hand secondary timing chain tensioner bolts (3) through the tensioner and gasket.
23 Ensure the right-hand secondary timing chain tensioner mounting surfac e on the right-hand cylinder
head does not have any burrs or defects that would
affect the sealing of the new tensioner gasket.


Figure 6A1 – 258
24 Place the right-hand secondar y timing chain tensioner
(2) into position and loosely install the bolts (1) to the
engine block.


Figure 6A1 – 259

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–171
Page 6A1–171
25 Verify the proper placement of the right-hand
secondary timing chain tensioner gasket tab (1).
26 Tighten the right-hand secondary timing chain tensioner bolts (2) to the co rrect torque specification.




Secondary timing chain tensioner
attaching bolt torque spec ification ........... 20.0 – 26.0 Nm


Figure 6A1 – 260
27 Release the right-hand timi ng chain tensioner (1) by
pulling out Tool No. EN 46112 (2) and unlocking the
tensioner plunger.

Figure 6A1 – 261
28 Verify all primary and secondary timing chain timing mark alignments (1 to 18).
29 Remove Tool No. EN 46105 and EN 46105-2 from the left and right-hand cylinder head camshafts.
30 Reinstall the spark plugs. Refer to Section 6C1-3
Engine Management – V6 – Service Operations.
31 Reinstall the engine front cover assembly, refer to 3.15 Front Cover Assembly .

Figure 6A1 – 262
Right-hand Secondary Timing Chain Components – MY06 Update
1 Install the primary timing chain components, refer to Primary Timing chain Components in this Section.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–172
Page 6A1–172
2 Using Tool No. EN46111 (1), rotate the crankshaft in
a clockwise direction until the crankshaft sprocket
timing mark (2) is aligned with the indexing mark (3)
on the oil pump housing.

Figure 6A1 – 263
CAUTION
In order to install Tool No. EN 46105 onto the
camshafts, rotate the camshafts. There
should be no need to rotate the camshaft
more than 45 degrees.

Figure 6A1 – 264
3 Install Tool No. EN 46105–1 (1) onto the rear of the right-hand cylinder head camshafts (2).

Figure 6A1 – 265

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

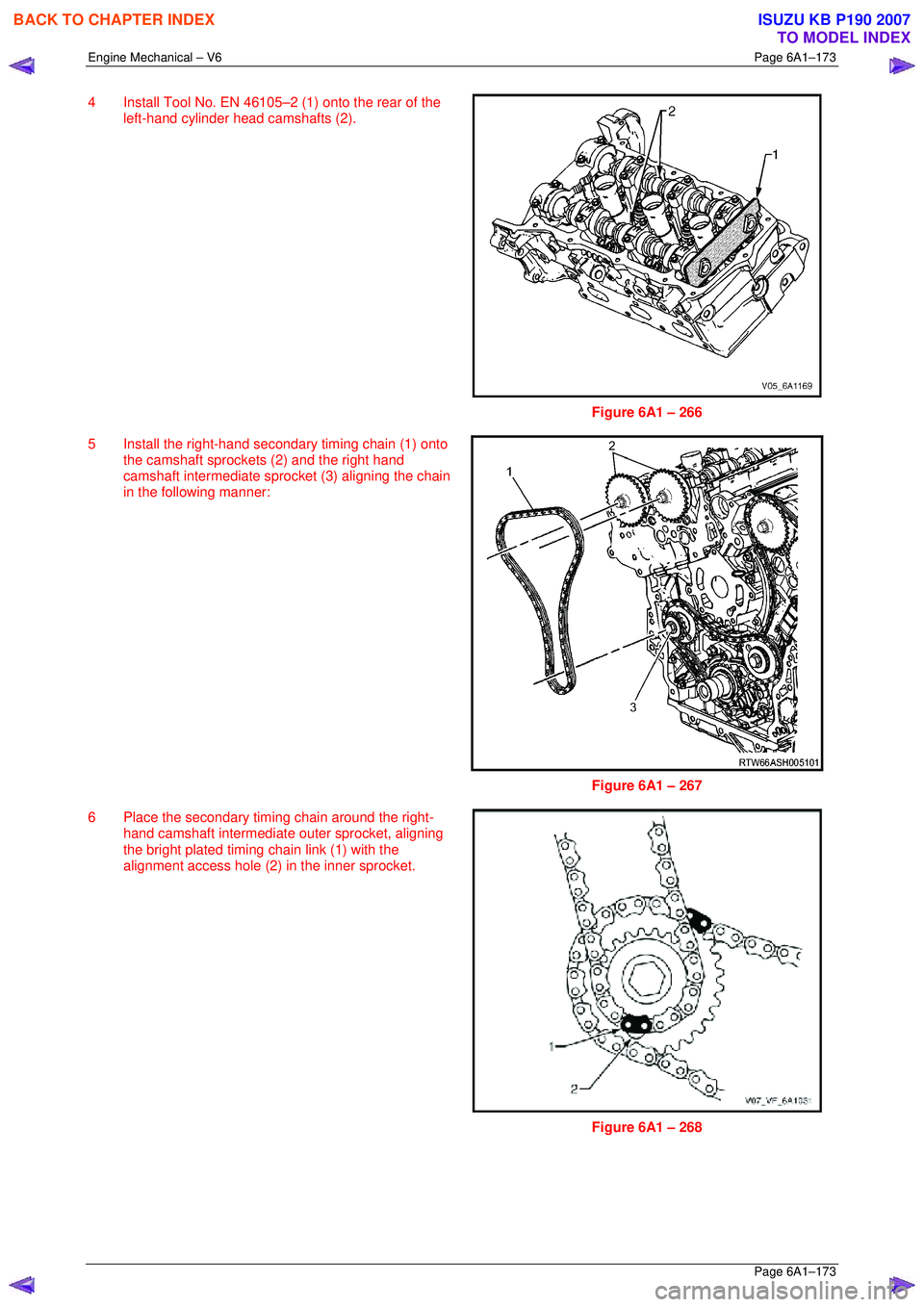

Engine Mechanical – V6 Page 6A1–173
Page 6A1–173
4 Install Tool No. EN 46105–2 (1) onto the rear of the
left-hand cylinder head camshafts (2).

Figure 6A1 – 266
5 Install the right-hand sec ondary timing chain (1) onto
the camshaft sprockets (2) and the right hand
camshaft intermediate sprocket (3) aligning the chain
in the following manner:

Figure 6A1 – 267
6 Place the secondary timi ng chain around the right-
hand camshaft intermediate outer sprocket, aligning
the bright plated timing chain link (1) with the
alignment access hole (2) in the inner sprocket.

Figure 6A1 – 268

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

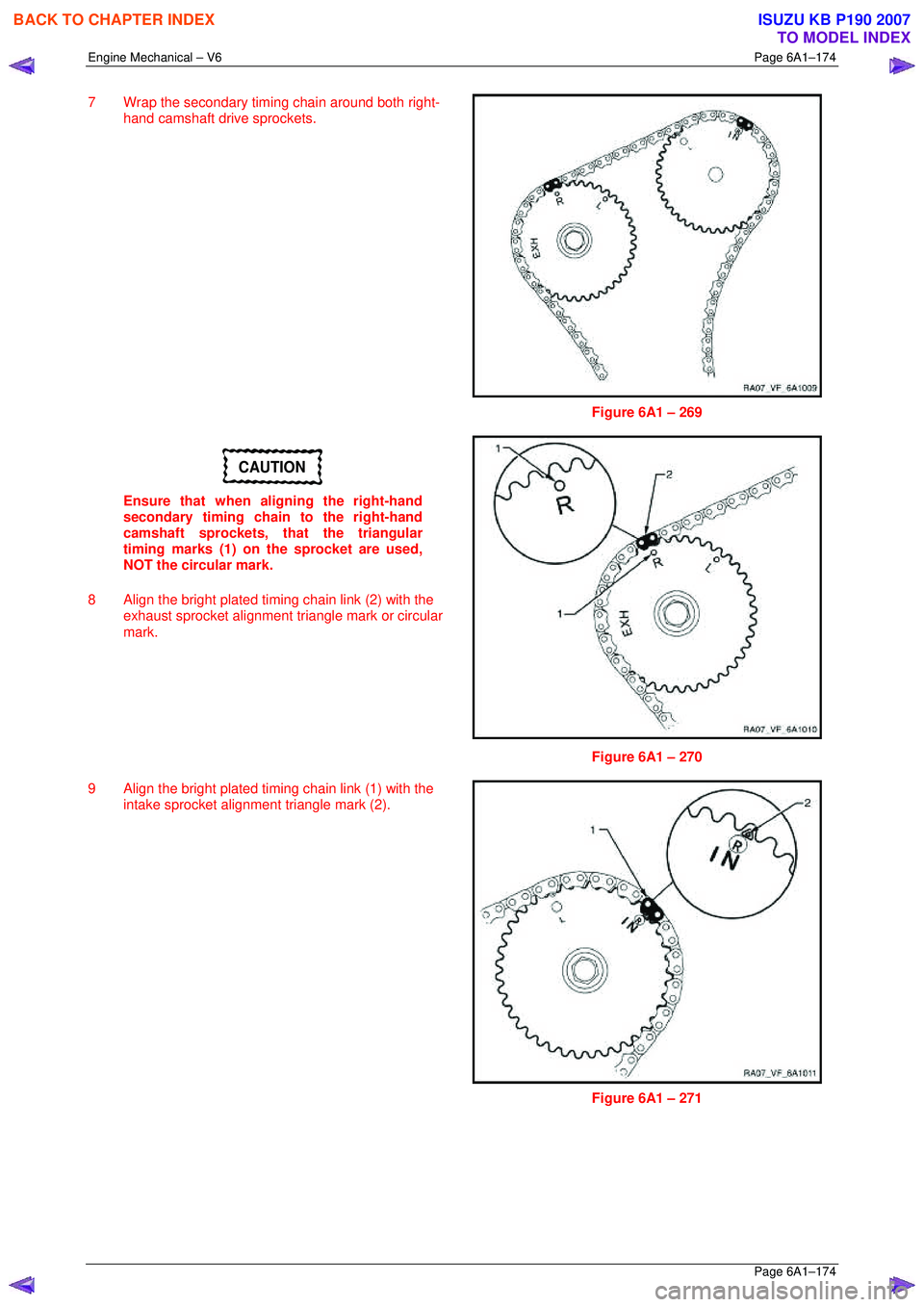

Engine Mechanical – V6 Page 6A1–174
Page 6A1–174
7 Wrap the secondary timing chain around both right-
hand camshaft drive sprockets.

Figure 6A1 – 269
CAUTION
Ensure that when aligning the right-hand
secondary timing chain to the right-hand
camshaft sprockets, th at the triangular
timing marks (1) on the sprocket are used,
NOT the circular mark.
8 Align the bright plated timing chain link (2) with the exhaust sprocket alignment triangle mark or circular
mark.

Figure 6A1 – 270
9 Align the bright plated timing chain link (1) with the intake sprocket alignment triangle mark (2).

Figure 6A1 – 271

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–175
Page 6A1–175
CAUTION
Ensure that the right-hand secondary timing
chain guide is used when installing to the
right-hand side in this procedure.
10 Ensure that the right -hand secondary timing chain
guide is selected and orientated correctly.

Figure 6A1 – 272
11 Position the chain guide (2).
12 Install the secondary timing chain guide bolts (1) and tighten to the correct torque specification.




Secondary timing chain guide
attaching bolt torque spec ification ........... 20.0 – 26.0 Nm

Figure 6A1 – 273
13 Ensure the right-hand secondary timing chain shoe is selected and orientated correctly.

CAUTION
The right-hand secondary camshaft drive
shoe is marked with th e letters ‘RH’. Ensure
that the right-hand drive shoe is used when
installing to the right-hand side in this
procedure and that the letters ‘RH” are
facing the front of the vehicle when installed.

Figure 6A1 – 274
