Cruise Control – HFV6 Page 8C–22
3.3 Stop Lamp Switch Assembly
Remove
1 Press the connector locking tab while pulling on the
stop lamp connector (1) and remove from the switch
assembly (2).
2 Twist the stop lamp switch assembly (2) anticlockwise a quarter of a turn and pull out of the brake pedal
support bracket.
3 If required, remove the plastic clip (3) by pressing the locking tabs on the rear of the clip and pulling from the
brake pedal support bracket.
Figure 8C – 10

Test
Terminal Testing
1 Using a multimeter, probe the pins of the switch assembly and compare to the table below.
NOTE
The pins are as follows:
• C44 – pins 1 and 2
• C44 – pins 3 and 4
NOTE
Holding the plunger (5) with tape will help when
performing the test with the plunger in the active
position (plunger pressed).

Figure 8C – 11
Plunger Position Connector C44 – 1 and 2 Connector C44 – 3 and 4
Neutral position (plunger extended) Open circuit Continuity
Active position (plunger pressed) Continuity Open circuit

Reinstall
1 If removed, install the plastic clip (2) with the arrow pointing upwards, refer to Figure 8C – 11.
2 With the connectors pointing upwards (12 o’clock position), insert the switch assembly (1) into the plastic clip.
3 Ensure the brake pedal is in the rest position.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Cruise Control – HFV6 Page 8C–23

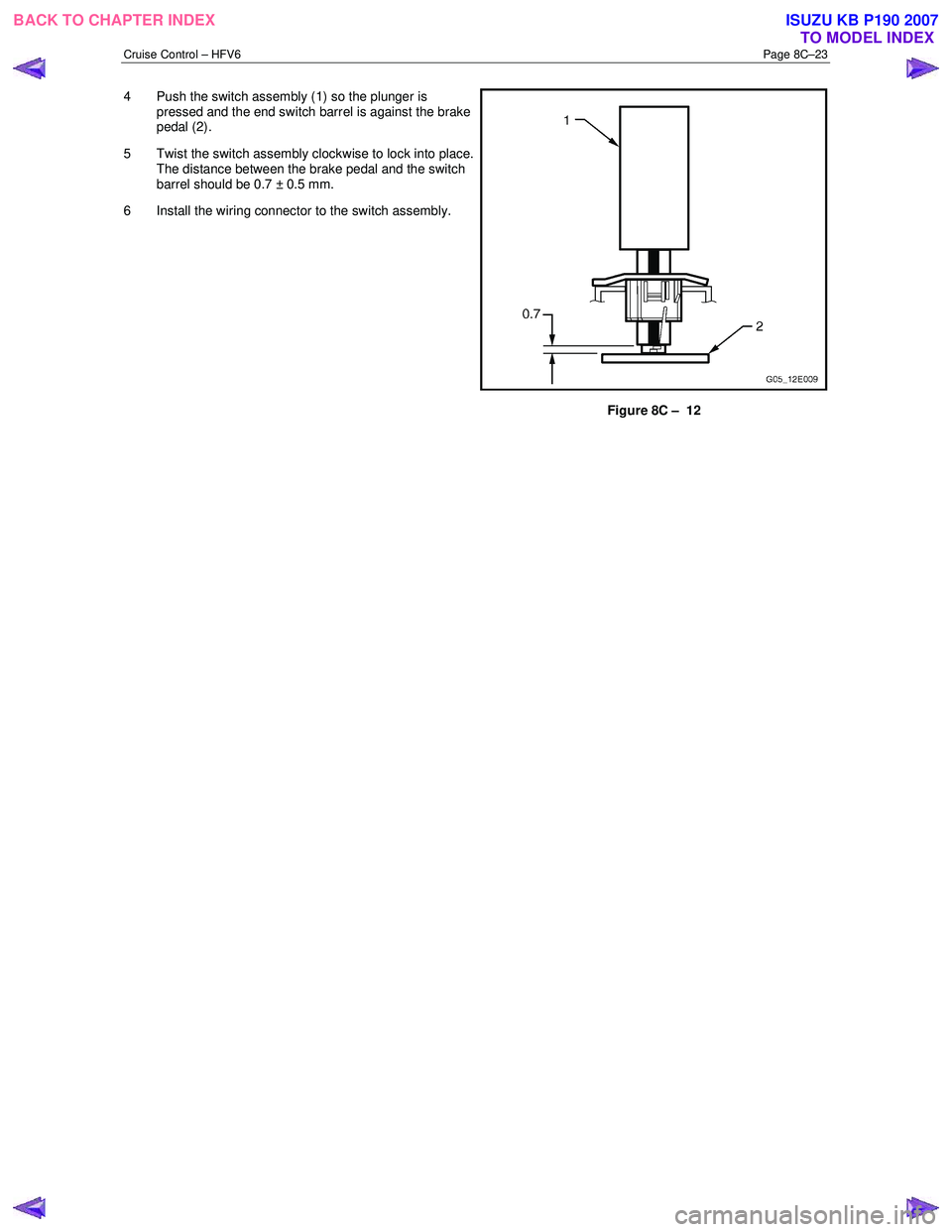

4 Push the switch assembly (1) so the plunger is
pressed and the end switch barrel is against the brake
pedal (2).
5 Twist the switch assembly clockwise to lock into place. The distance between the brake pedal and the switch
barrel should be 0.7 ± 0.5 mm.
6 Install the wiring connector to the switch assembly.

Figure 8C – 12


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Cruise Control – HFV6 Page 8C–24
3.4 Clutch Pedal Switch (Manual Only)
Remove
1 Disconnect the electrical connector (1) from the clutch
switch (2).
2 Loosen the lock nut (3) and remove the clutch switch from the pedal bracket.

Figure 8C – 13

Test
1 Using a multimeter set to measure ohms, probe the pins (1) of the switch assembly.
2 In the neutral position (plunger extended) there should be an open circuit across the switch.
3 In the active position (plunger extended) there should be a closed circuit across the switch.
4 Replace the switch as per the following reinstall procedure if the tests prove the switch to be faulty.
5 If the test proves the switch to be serviceable, reinstall it as per the following procedure.
Figure 8C – 14

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Cruise Control – HFV6 Page 8C–25

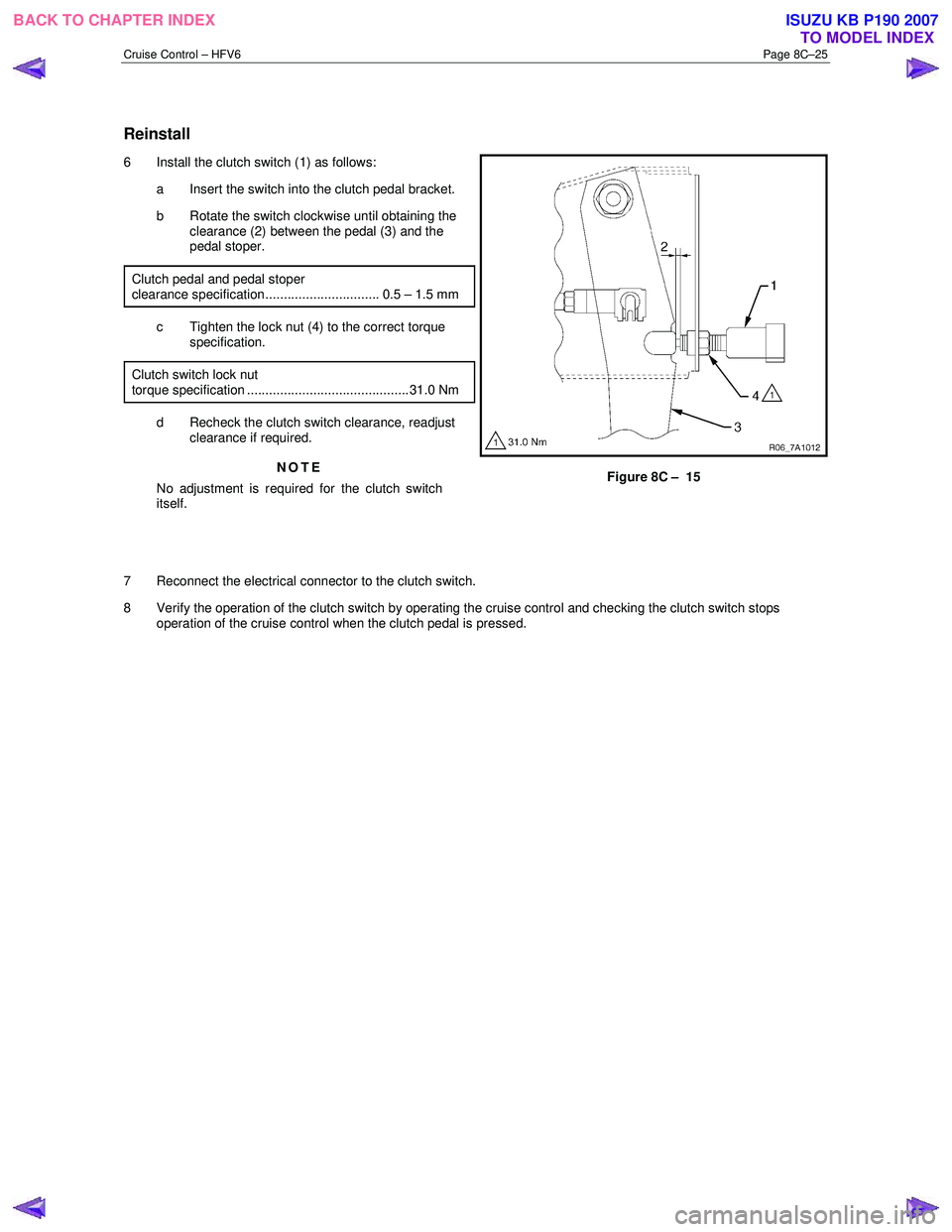

Reinstall
6 Install the clutch switch (1) as follows:
a Insert the switch into the clutch pedal bracket.
b Rotate the switch clockwise until obtaining the clearance (2) between the pedal (3) and the
pedal stoper.
Clutch pedal and pedal stoper
clearance specification............................... 0.5 – 1.5 mm
c Tighten the lock nut (4) to the correct torque specification.
Clutch switch lock nut
torque specification ............................................ 31.0 Nm
d Recheck the clutch switch clearance, readjust clearance if required.
NOTE
No adjustment is required for the clutch switch
itself.

Figure 8C – 15

7 Reconnect the electrical connector to the clutch switch.
8 Verify the operation of the clutch switch by operating the cruise control and checking the clutch switch stops operation of the cruise control when the clutch pedal is pressed.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Cruise Control – HFV6 Page 8C–26
4 Special Tools
Tool Number Illustration Description Tool Classification
3588
Digital Multimeter
Previously released as J39200 or
equivalent.
NOTE: The instrument must have 10
meg ohms impedance and be capable
of reading frequencies. Mandatory
KM-609 Electronic Kit.
Used in conjunction with a multimeter
for measuring voltages and
resistances without damaging wiring
harness connectors. Desirable.
70000861
Tech 2 Diagnostic Scan Tool
Previously released. Mandatory
