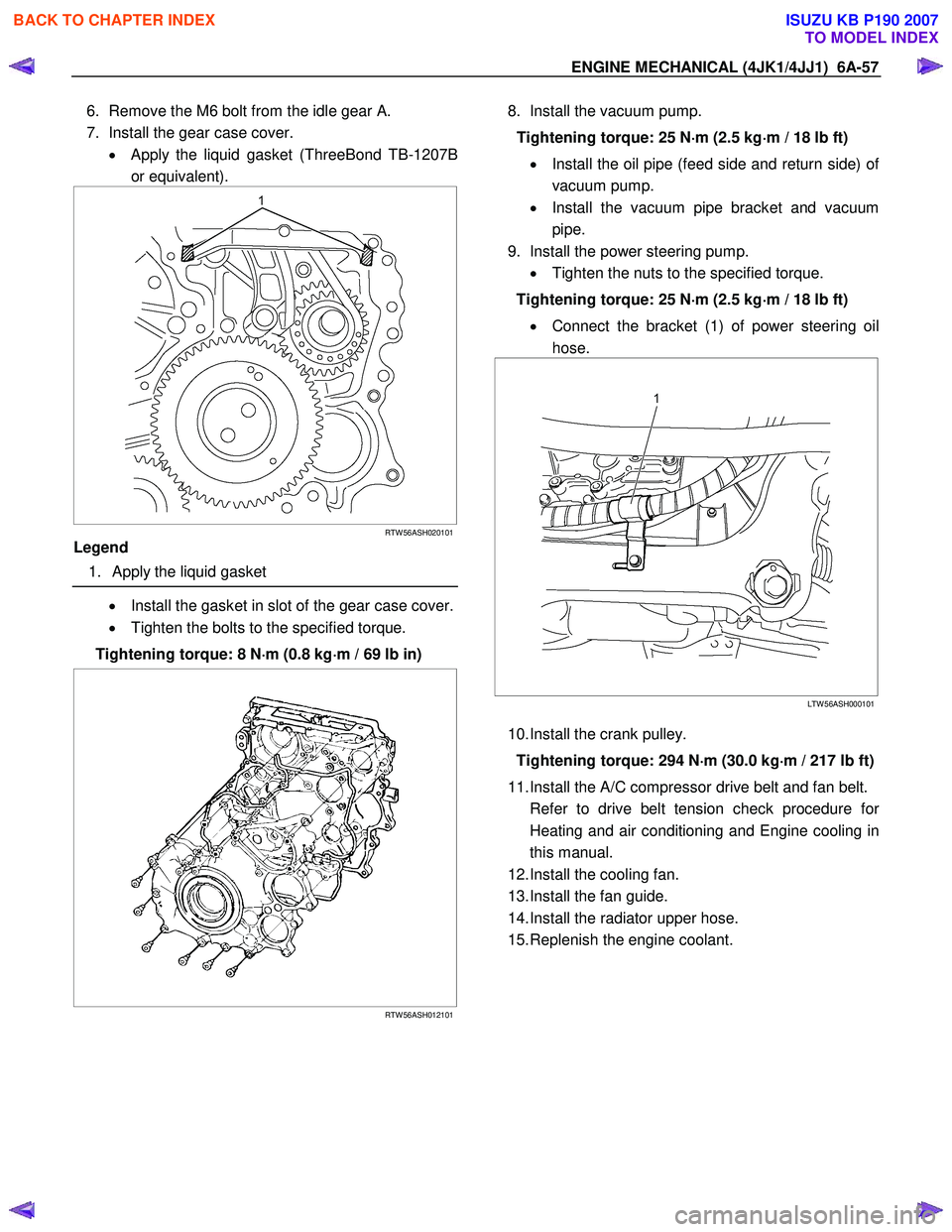

ENGINE MECHANICAL (4JK1/4JJ1) 6A-57
6. Remove the M6 bolt from the idle gear A.
7. Install the gear case cover. • Apply the liquid gasket (ThreeBond TB-1207B
or equivalent).


RTW 56ASH020101
Legend
1. Apply the liquid gasket

• Install the gasket in slot of the gear case cover.
• Tighten the bolts to the specified torque.
Tightening torque: 8 N ⋅
⋅⋅
⋅
m (0.8 kg ⋅
⋅⋅
⋅
m / 69 lb in)




RTW 56ASH012101
8. Install the vacuum pump.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
• Install the oil pipe (feed side and return side) o
f
vacuum pump.
• Install the vacuum pipe bracket and vacuum
pipe.
9. Install the power steering pump. • Tighten the nuts to the specified torque.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
• Connect the bracket (1) of power steering oil
hose.




LTW 56ASH000101

10. Install the crank pulley.
Tightening torque: 294 N ⋅
⋅⋅
⋅
m (30.0 kg ⋅
⋅⋅
⋅
m / 217 lb ft)
11. Install the A/C compressor drive belt and fan belt.
Refer to drive belt tension check procedure fo
r
Heating and air conditioning and Engine cooling in
this manual.
12. Install the cooling fan.
13. Install the fan guide.
14. Install the radiator upper hose.
15. Replenish the engine coolant.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

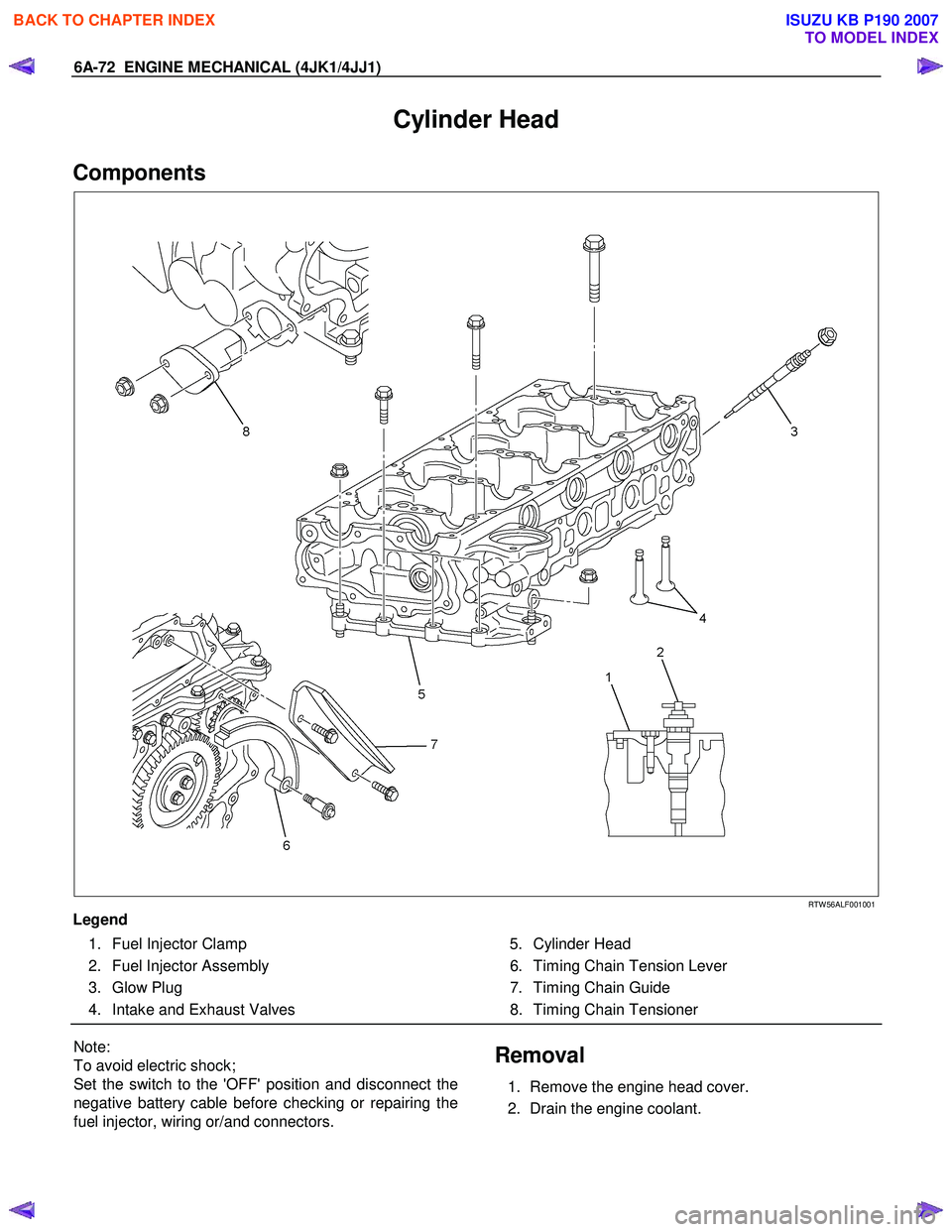

6A-72 ENGINE MECHANICAL (4JK1/4JJ1)
Cylinder Head
Components





RTW 56ALF001001
Legend 1. Fuel Injector Clamp
2. Fuel Injector Assembly
3. Glow Plug
4. Intake and Exhaust Valves 5. Cylinder Head
6. Timing Chain Tension Lever
7. Timing Chain Guide
8. Timing Chain Tensioner

Note:
To avoid electric shock;
Set the switch to the 'OFF' position and disconnect the
negative battery cable before checking or repairing the
fuel injector, wiring or/and connectors. Removal
1. Remove the engine head cover.
2. Drain the engine coolant.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE MECHANICAL (4JK1/4JJ1) 6A-99
67.Install the intercooler (High output).
• Install the intercooler.
• Install the two intake hoses.
• Connect the BARO sensor harness connector.
68. Install the intake hose.




RTW 56ASH022501
Legend
1. Intake Hose for Intercooler and Intake Throttle
2. Intake Duct for Turbocharger and Air Cleaner
3. Intake Hose for Turbocharger and Intercooler

69. Install the engine head cover.
70. Replenish the coolant.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

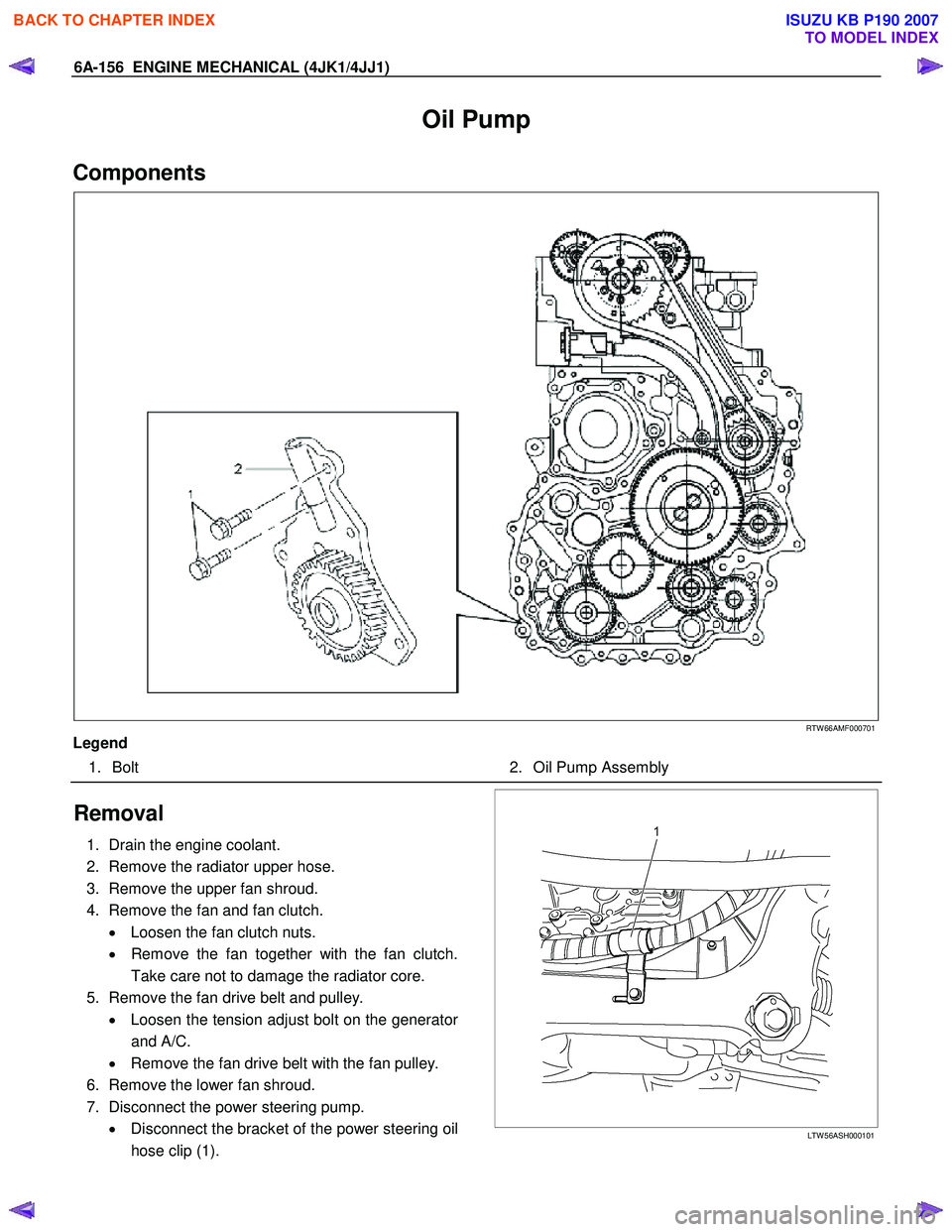

6A-156 ENGINE MECHANICAL (4JK1/4JJ1)
Oil Pump
Components




RTW 66AMF000701
Legend 1. Bolt 2. Oil Pump Assembly

Removal
1. Drain the engine coolant.
2. Remove the radiator upper hose.
3. Remove the upper fan shroud.
4. Remove the fan and fan clutch. • Loosen the fan clutch nuts.
• Remove the fan together with the fan clutch.
Take care not to damage the radiator core.
5. Remove the fan drive belt and pulley. • Loosen the tension adjust bolt on the generato
r
and A/C.
• Remove the fan drive belt with the fan pulley.
6. Remove the lower fan shroud.
7. Disconnect the power steering pump. • Disconnect the bracket of the power steering oil
hose clip (1).






LTW 56ASH000101


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

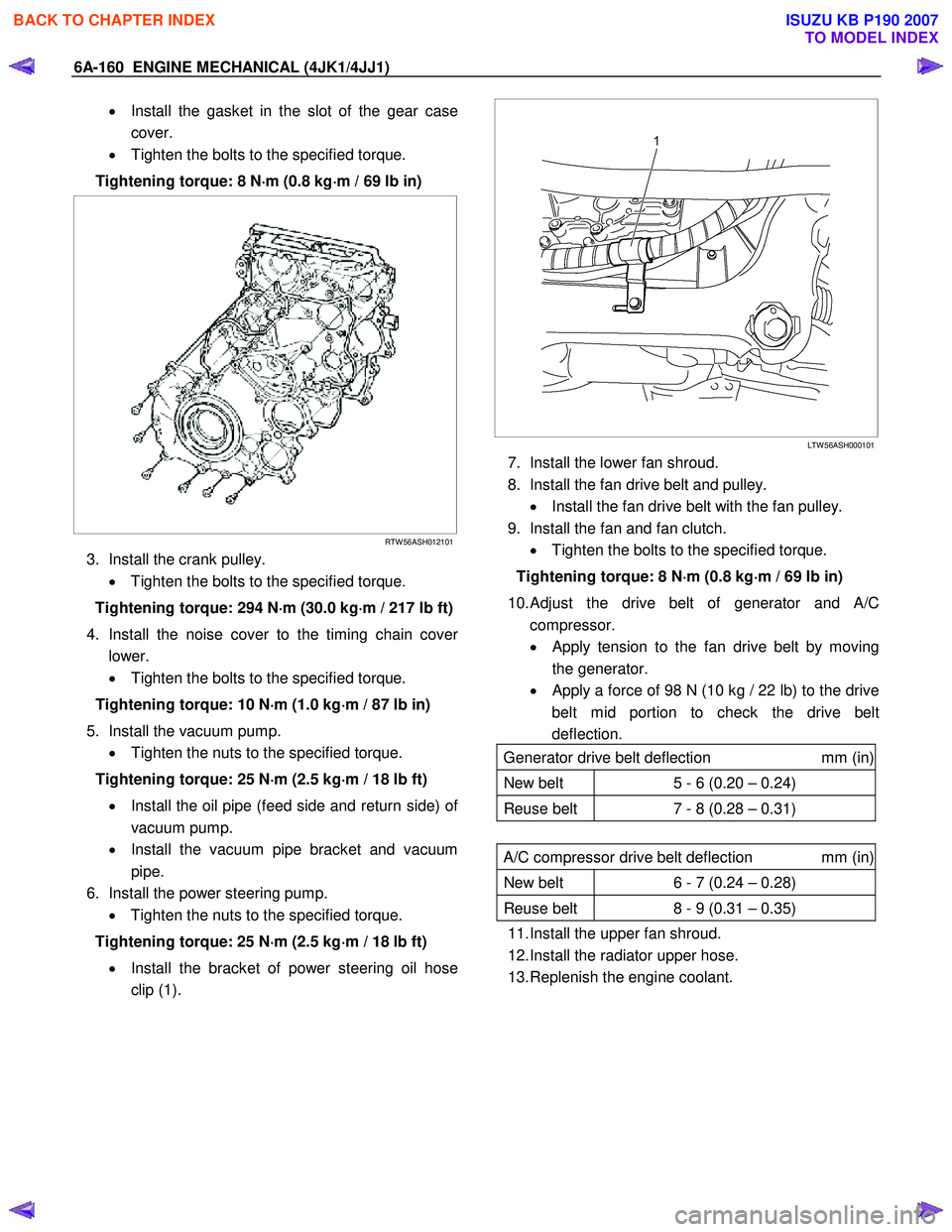

6A-160 ENGINE MECHANICAL (4JK1/4JJ1)
• Install the gasket in the slot of the gear case
cover.
• Tighten the bolts to the specified torque.
Tightening torque: 8 N ⋅
⋅⋅
⋅
m (0.8 kg ⋅
⋅⋅
⋅
m / 69 lb in)





RTW 56ASH012101
3. Install the crank pulley.
• Tighten the bolts to the specified torque.
Tightening torque: 294 N ⋅
⋅⋅
⋅
m (30.0 kg ⋅
⋅⋅
⋅
m / 217 lb ft)
4. Install the noise cover to the timing chain cove
r
lower.
• Tighten the bolts to the specified torque.
Tightening torque: 10 N ⋅
⋅⋅
⋅
m (1.0 kg ⋅
⋅⋅
⋅
m / 87 lb in)
5. Install the vacuum pump. • Tighten the nuts to the specified torque.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
• Install the oil pipe (feed side and return side) o
f
vacuum pump.
• Install the vacuum pipe bracket and vacuum
pipe.
6. Install the power steering pump. • Tighten the nuts to the specified torque.
Tightening torque: 25 N ⋅
⋅⋅
⋅
m (2.5 kg ⋅
⋅⋅
⋅
m / 18 lb ft)
• Install the bracket of power steering oil hose
clip (1).






LTW 56ASH000101
7. Install the lower fan shroud.
8. Install the fan drive belt and pulley. • Install the fan drive belt with the fan pulley.
9. Install the fan and fan clutch. • Tighten the bolts to the specified torque.
Tightening torque: 8 N ⋅
⋅⋅
⋅
m (0.8 kg ⋅
⋅⋅
⋅
m / 69 lb in)
10.
Adjust the drive belt of generator and A/C
compressor.
• Apply tension to the fan drive belt by moving
the generator.
•
Apply a force of 98 N (10 kg / 22 lb) to the drive
belt mid portion to check the drive belt
deflection.
Generator drive belt deflection mm (in)
New belt 5 - 6 (0.20 – 0.24)
Reuse belt 7 - 8 (0.28 – 0.31)

A/C compressor drive belt deflection mm (in)
New belt 6 - 7 (0.24 – 0.28)
Reuse belt 8 - 9 (0.31 – 0.35)
11. Install the upper fan shroud.
12. Install the radiator upper hose.
13. Replenish the engine coolant.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

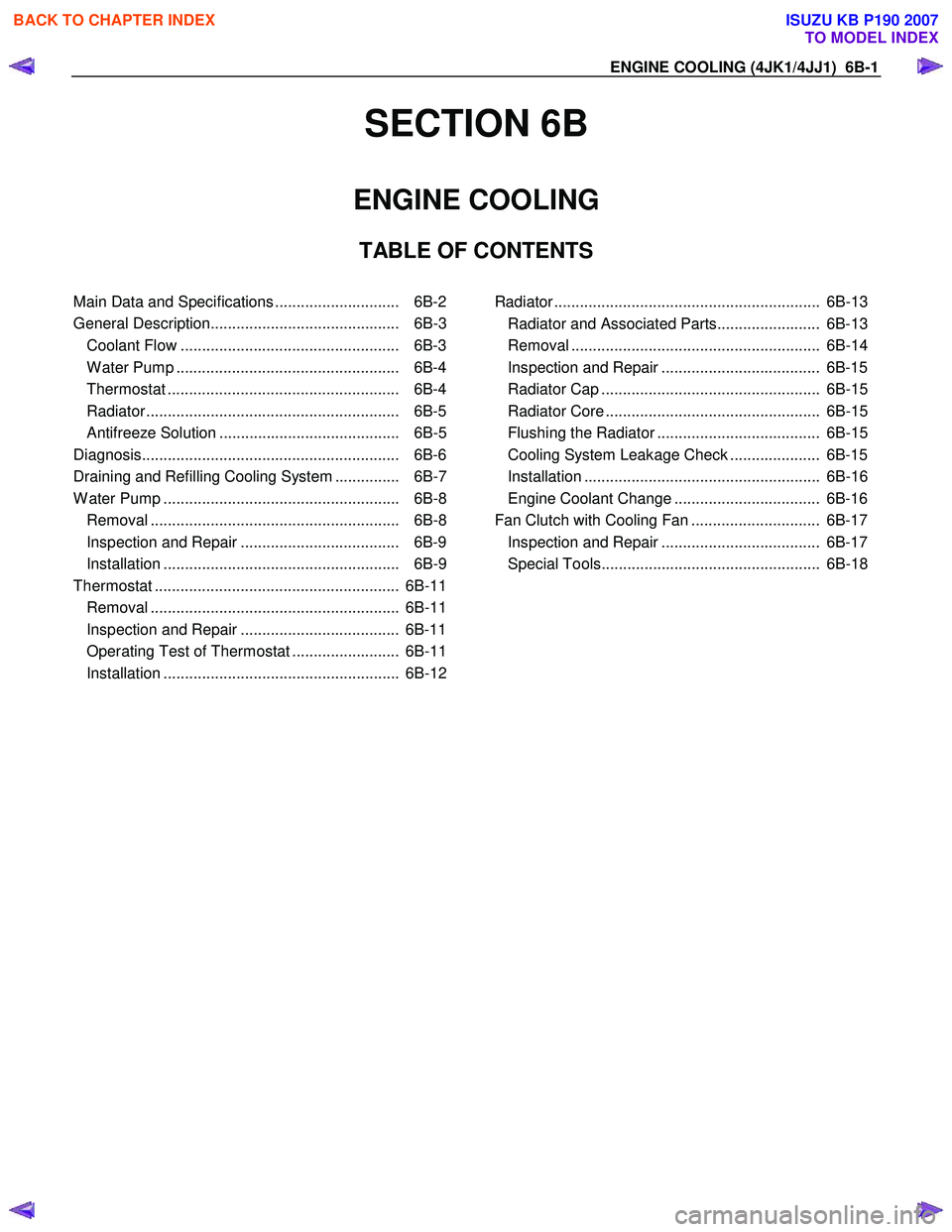

ENGINE COOLING (4JK1/4JJ1) 6B-1
SECTION 6B
ENGINE COOLING
TABLE OF CONTENTS

Main Data and Specifications ............................. 6B-2
General Description............................................ 6B-3 Coolant Flow ................................................... 6B-3
W ater Pump .................................................... 6B-4
Thermostat ...................................................... 6B-4
Radiator ........................................................... 6B-5
Antifreeze Solution .......................................... 6B-5
Diagnosis............................................................ 6B-6
Draining and Refilling Cooling System ............... 6B-7
W ater Pump ....................................................... 6B-8 Removal .......................................................... 6B-8
Inspection and Repair ..................................... 6B-9
Installation ....................................................... 6B-9
Thermostat ......................................................... 6B-11 Removal .......................................................... 6B-11
Inspection and Repair ..................................... 6B-11
Operating Test of Thermostat ......................... 6B-11
Installation ....................................................... 6B-12

Radiator .............................................................. 6B-13 Radiator and Associated Parts........................ 6B-13
Removal .......................................................... 6B-14
Inspection and Repair ..................................... 6B-15
Radiator Cap ................................................... 6B-15
Radiator Core .................................................. 6B-15
Flushing the Radiator ...................................... 6B-15
Cooling System Leakage Check ..................... 6B-15
Installation ....................................................... 6B-16
Engine Coolant Change .................................. 6B-16
Fan Clutch with Cooling Fan .............................. 6B-17 Inspection and Repair ..................................... 6B-17
Special Tools................................................... 6B-18

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

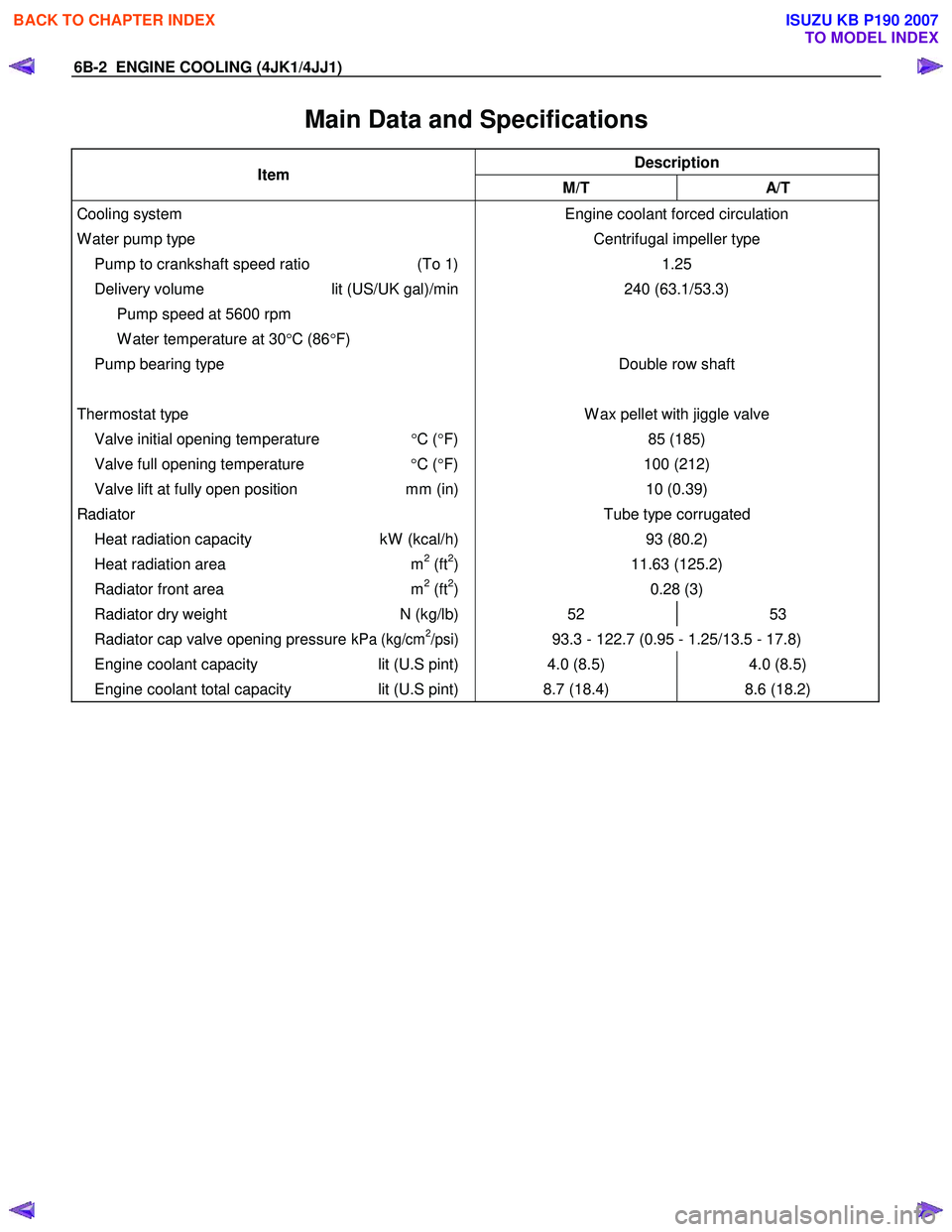

6B-2 ENGINE COOLING (4JK1/4JJ1)
Main Data and Specifications
Description Item
M/T A/T
Cooling system
W ater pump type
Pump to crankshaft speed ratio (To 1)
Delivery volume lit (US/UK gal)/min
Pump speed at 5600 rpm
W ater temperature at 30 °C (86 °F)
Pump bearing type

Thermostat type
Valve initial opening temperature °C ( °F)
Valve full opening temperature °C ( °F)
Valve lift at fully open position mm (in) Engine coolant forced circulation
Centrifugal impeller type 1.25
240 (63.1/53.3)

Double row shaft
W ax pellet with jiggle valve 85 (185)
100 (212) 10 (0.39)
Radiator Tube type corrugated
Heat radiation capacity kW (kcal/h) 93 (80.2)
Heat radiation area m2 (ft2) 11.63 (125.2)
Radiator front area m2 (ft2) 0.28 (3)
Radiator dry weight N (kg/lb) 52 53
Radiator cap valve opening pressure kPa (kg/cm2/psi) 93.3 - 122.7 (0.95 - 1.25/13.5 - 17.8)
Engine coolant capacity lit (U.S pint) 4.0 (8.5) 4.0 (8.5)
Engine coolant total capacity lit (U.S pint) 8.7 (18.4) 8.6 (18.2)


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

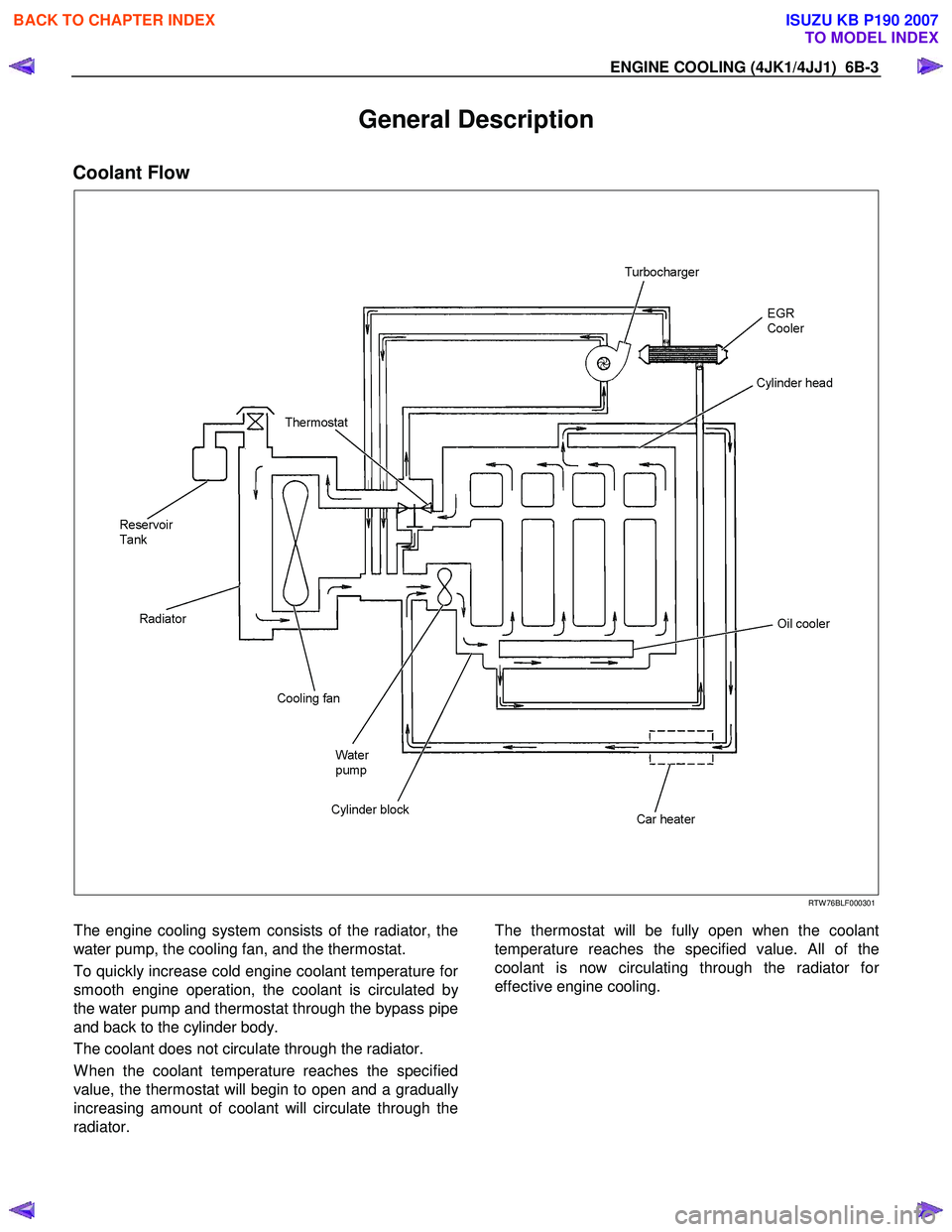

ENGINE COOLING (4JK1/4JJ1) 6B-3
General Description
Coolant Flow








RTW 76BLF000301

The engine cooling system consists of the radiator, the
water pump, the cooling fan, and the thermostat.
To quickly increase cold engine coolant temperature fo
r
smooth engine operation, the coolant is circulated by
the water pump and thermostat through the bypass pipe
and back to the cylinder body.
The coolant does not circulate through the radiator.
W hen the coolant temperature reaches the specified
value, the thermostat will begin to open and a graduall
y
increasing amount of coolant will circulate through the
radiator.
The thermostat will be fully open when the coolant
temperature reaches the specified value. All of the
coolant is now circulating through the radiator fo
r
effective engine cooling.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
